ET9001TX
Main Image

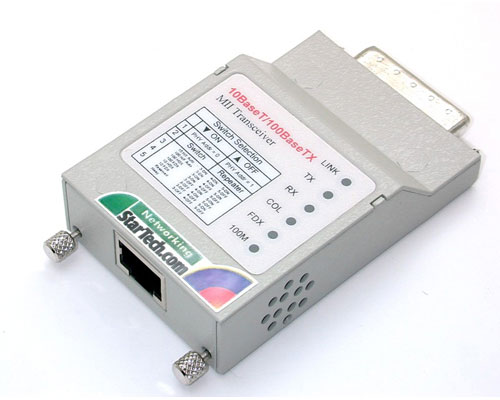

Product Name *D*10/100-Mbps to MII Fast Ethernet Transceiver Product Number ET9001TX UPC 065030781381 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*10/100-Mbps to MII Fast Ethernet Transceiver Bullet 1 Supports 802.3u 10BaseT and 100BaseTX industry standards Bullet 2 Standard MII connector for connecting to any Fast Ethernet device's MII port. Bullet 3 Supports Half-Duplex and Full-Duplex operating modes. Bullet 4 Complete set of diagnostic LEDs indicate the transceiver's operating status. Bullet 5 Slim and compact palmtop design. Marketing Copy Looking for a Fast Ethernet Transceiver 10/100-Mbps to MII Fast Ethernet Transceiver? Look no further than StarTech.com’s ET9001TX. Supporting the 802.3u 10BaseT and 100BaseTX industry standard, this device supports half-duplex and full-duplex operating modes. The slim and compact palmtop design is highlighted by a complete set of diagnostic LEDs indicate the transceiver’s operating status. TAA Compliant No General Specifications - Standards: IEEE 802.3 & 802.3u
- 10/100 Mbps Port: (1) RJ-45 with Nway Auto-negiotiation
- MII Port: (1) MII (connecting to switch, hub, or workstation)
- Transmission Mode: Full-Duplex or Half-Duplex
- PHY Address: 0 & 1 (selectable)
- LEDs: 100M, FDX, Collision, Rx, Tx, Link
- Dimensions: 85 x 50 x 21 mm (3.35 x 1.97 x 0.83 in.)
- Operating Temperature: 0-55 deg C (32-131 deg F)
- Operating Humidity: 10-95% (non-condensing)
- Emission: FCC Class A & CE Mark
Included in Package - 1 - ETHERNET TRANSCEIVER
- 1 - INSTRUCTION MANUAL
- 1 - CONNECTOR
