ET9002FX
Main Image

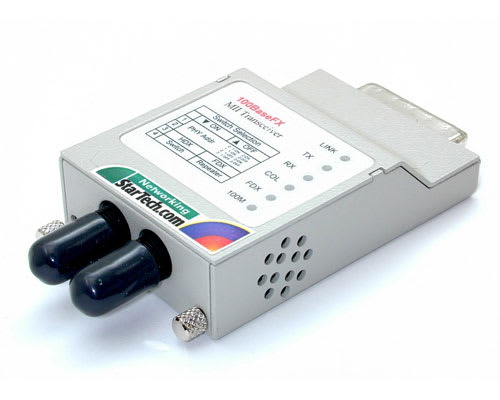

Product Name *D*ST Fiber to MII Fast Ethernet Transceiver Product Number ET9002FX UPC 065030781374 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) *D*ST Fiber to MII Fast Ethernet Transceiver Bullet 1 Supports 802.3u 100Base-FX industry standard. Bullet 2 Standard MII connector for connecting to any Fast Ethernet device's MII port. Bullet 3 Supports Half-Duplex and Full-Duplex operating modes. Bullet 4 Complete set of diagnostic LEDs indicate the transceiver's operating status. Bullet 5 Slim and compact palmtop design. Marketing Copy Looking for a ST Fiber to MII Fast Ethernet Transceiver? Look no further than StarTech.com’s ET9002FX. Supporting the 802.3u 100Base-FX industry standard, this device supports half-duplex and full-duplex operating modes. The slim and compact palmtop design is highlighted by a complete set of diagnostic LEDs indicate the transceiver’s operating status. TAA Compliant No General Specifications - Standards: IEEE 802.3u 100Base-FX
- 100 Mbps Fiber Port: (1) ST Fiber type
- MII Port: (1) MII (connecting to switch, hub, or workstation)
- Transmission Mode: Full-Duplex or Half-Duplex
- PHY Address: 0, 1, 2, 3 (selectable)
- Dimensions: 90 x 50 x 21 mm (3.74 x 1.97 x 0.83 in.)
- Operating Temperature: 0-55 deg C (32-131 deg F)
- Emission: FCC Class A & CE Mark
- LEDs: 100M, FDX, Collision, Rx, Tx, Link
Included in Package - 1 - ETHERNET TRANSCEIVER
- 1 - INSTRUCTION MANUAL
en-US Content Approved Yes
