Main Image
ET9003SC
Main Image

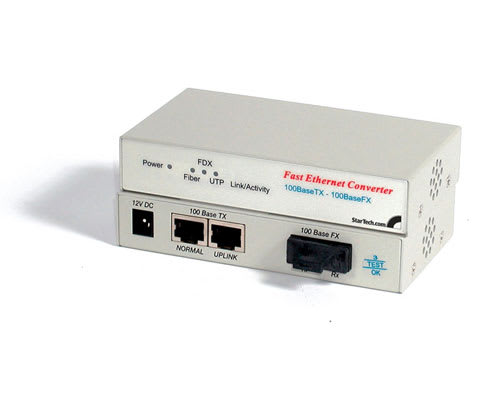

Product Name 100Mbps RJ45 to SC Fiber Media Converter Product Number ET9003SC UPC 065030782692 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX022X Product Title (Long) 100-Mbps RJ45 to SC Multimode Fiber Media Converter Bullet 1 Heavy-duty power supply which is engineered to withstand the most challenging environments. Bullet 2 Full wire speed 148,800 packet per second throughput that prevents bottlenecks Bullet 3 Easy installation in seconds. Bullet 4 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Bullet 5 Supports 802.3u 100BaseTX and 100BaseFX industry standards. Marketing Copy StarTech.com’s high-speed ET9003SC media converters are engineered to make fiber connections simple and reliable for even the most demanding network specialists. The ET9003SC’s heavy-duty power supply is engineered to withstand the most challenging environments. Easily convert electrical Ethernet signals to optical Ethernet signals with this ET9003SC 100 Base TX to 100 Base FX Fiber Optic media converter. Its high-speed 148,000 packet-per-second throughput prevents data bottlenecks while it features guaranteed compatibility with 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with the IEEE 802.3u standard. Applications - Connect remote areas of large buildings to the main network
- Connect 2 buildings that are on the same campus
Accessory Products SCFIBLBTEST Related Products - ET9003ST
- FIBSCSC10
- FIBSCSC20
- FIBSTSC2
- ET9003SM
- ET90110SC
- ET90110ST
- ET91000SC
Replacement Product ET90110SC2 Color Beige TAA Compliant No General Specifications - Standards: IEEE 802.3u 100BaseTX and 100BaseFX
- 100 Mbps UTP Port: (2) RJ-45 (One for normal connection, other for uplink)
- 100 Mbps Fiber Port: (1) SC Fiber (Multimode)
- Transmission Mode: Full-Duplex or Half-Duplex, according to connected device
- LEDs: Power, Full Duplex, Fiber Link/Activity, UTP Link/Activity
- Dimensions: 123 x 68 x 24 mm (4.84 x 2.67 x 0.98 in.)
- Operating Temperature: 0-55 deg C (32-131 deg F)
- Operating Humidity: 10-95% (non-condensing)
- Emission: FCC Class A & CE Mark
- Wave length: 1300nm
LED Indicators - 1 - Power
- 1 - Link
- 1 - Activity
Carton Depth (mm) 525 Carton Height (mm) 345 Carton Quantity 20 Carton Weight Gross (g) 15600 Included in Package - 1 - ETHERNET CONVERTER
- 1 - POWER ADAPTOR
- 4 - BUTTONS
- 1 - INSTRUCTION MANUAL
Package Depth (mm) 79 Package Height (mm) 158 Package Width (mm) 236 Package Weight (g) 720 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
