Main Image
ET9003SM
Main Image

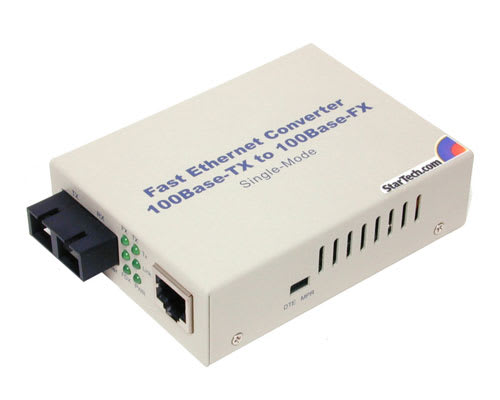

Product Name RJ45 TO SINGLE MODE FIBER 100M CONVERTER Product Number ET9003SM UPC 065030792691 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Product Title (Long) 100-Mbps RJ45 to SC Single Mode Fiber Media Converter Bullet 1 Heavy-duty power supply which is engineered to withstand the most challenging environments. Bullet 2 Easy installation in seconds. Bullet 3 Guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks due to compliance with IEEE 802.3u standard Bullet 4 Supports 802.3u 100BaseTX and 100BaseFX industry standards Bullet 5 Standard RJ-45 connectors for connecting to UTP media, and SC connectors for connecting to fiber media. Marketing Copy The StarTech.com 100Base-TX to 100Base-FX Long Range Fiber Optic media converter provides a simple plug and play solution for converting electrical Ethernet signals to optical Ethernet signals. This allows the use of single mode fiber optic cable for electrical noise immunity and cable lengths of up to 20Km. This model uses SC type fiber optic connectors. Applications - Connecting networks between buildings
- Connecting remote areas of large buildings
- Connecting buildings in a metropolitan area
Accessory Products 50FIBSCSC10 Related Products - ET9003SC
- ET9003ST
- ET90110SC
- ET90110ST
- ET91000SC
Color Beige Product Length (mm) 95 Product Width (mm) 70 Product Height (mm) 22 TAA Compliant No General Specifications - Copper Connector: Shielded RJ-45 Female
- Fiber Connectors: SC Female (single mode)
- Fiber types supported: 8.3/125, 8.7/125, 10/125 micron single mode
- Operating Temperature: 0 - 50º C
- Humidity: 5 - 90% non-condensing
- Certifications: FCC PArt 15 Class A, CE Mark
- Wave length: 1300nm
LED Indicators - 1 - Power
- 1 - Link
- 1 - Activity
Carton Depth (mm) 0 Carton Height (mm) 0 Carton Quantity 10 Carton Weight Gross (g) 0 Included in Package - 1 - Fiber Optic Converter RJ45 to Single Mode Fiber (Special Order)
- 1 - Instructional Manual
- 1 - Power Adaptor
Package Depth (mm) 160 Package Height (mm) 55 Package Width (mm) 210 Package Weight (g) 879.98 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
