Main Image
ET9010SC
Main Image

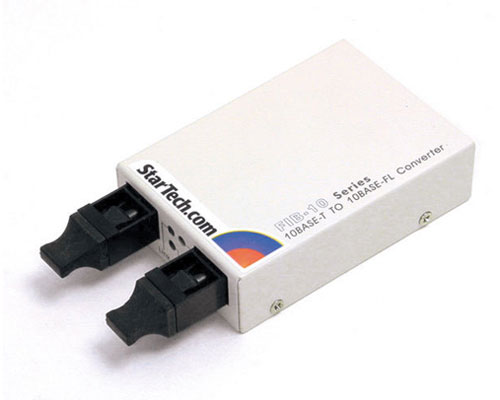

Product Name 10 Mbps RJ45 to SC Fiber Media Converter Product Number ET9010SC UPC 065030788663 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) 10 Mbps RJ45 to SC Fiber Media Converter Bullet 1 Heavy-duty power supply which is engineered to withstand the most challenging environments. Bullet 2 Easy installation in seconds. Bullet 3 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Bullet 4 Supports 802.3 10Base-T and 10Base-F industry standards. Bullet 5 Standard RJ-45 connectors for connecting to UTP media, and SC connector for connecting to fiber media. Marketing Copy The StarTech.com 10Base-T to 10Base-F Fiber Optic media converter provides a simple plug and play solution for converting electrical Ethernet signals to optical Ethernet signals. This allows the use of multimode fiber optic cable for electrical noise immunity and much longer cable lengths. This model uses SC type fiber optic connectors. Applications - Connect remote areas of large buildings to the main network
- Connect 2 buildings that are on the same campus
Replacement Product ET90110SC2 TAA Compliant No General Specifications - Standards: IEEE 802.3 10BaseT 10BaseFL
- Connectors: 1 x Cat 3,4 or 5 RJ-45
- : 2 x SC fiber optic
- Wavelength: 820nm
- Fiber Mode/Cable: Multi-mode SC 62.5/125um
- Max Cable Length: 1.24 miles (2 kilometers)
- LEDs Fiber Side: Power, Fiber Link, Receive data
- LEDs UTP Side: Ethernet Link, Receive data
- Environment: Temperature 32-111F (0 - 40C) Humidity 10-90% non condensing
- Dimensions: 2.84 x 1.97 x 0.71 inches (72mm x 50mm x 18mm)
- Power: +9V 600mA max (DC plug type center positive)
Included in Package - 1 - 10 Mbps to SC Mmode Fiber Converter
- 1 - DC 9V Adapter
- 1 - Instruction Manual
en-US Content Approved Yes
