ET90110SC
10/100 Mbps SC Fibre Media Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 Mbps SC Fibre Media Converter Product Number ET90110SC UPC 065030795340 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet to SC MM Fiber Media Converter Product Title (Standard) StarTech.com Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - SC multi-mode - external - up to 2 km - 1300 nm Product Title (Long) 10/100 Mbps Ethernet to Multi Mode Fiber Media Converter - SC Title Ingram (Part 1) 10/100 Mbps Ethernet to MM Fiber Title Ingram (Part 2) Media Converter - SC Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber Bullet 1 Automatically detects 10 or 100 Mbps network connection speed Bullet 2 Heavy-Duty power supply which is engineered to withstand the most challenging conditions and environments Bullet 3 Full wire speed of 148,800 packet per second throughput prevents bottlenecks Bullet 4 Easy installation and setup in seconds Bullet 5 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Marketing Copy Accessory Products - SCFIBLBTEST
- FIBSCSC10
- FIBSCSC15
- FIBSCSC5
Related Products - ET90110ST
- ET9003SC
- ET9003ST
- ET91000SC
Replacement Product ET90110SC2 Equivalent Part Number in the EU ET90110SCEU Equivalent Part Number in the UK ET90110SCGB Input Voltage 115V AC Output Current 1A Output Voltage (V) 9V DC Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123.5 Product Width (mm) 85.5 Product Height (mm) 20 Product Weight (g) 885 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100 Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
LED Indicators - 1 - Power
- 1 - Fiber Mode
- 1 - Fiber Link
- 1 - Ethernet Link
- 1 - LAN Mode

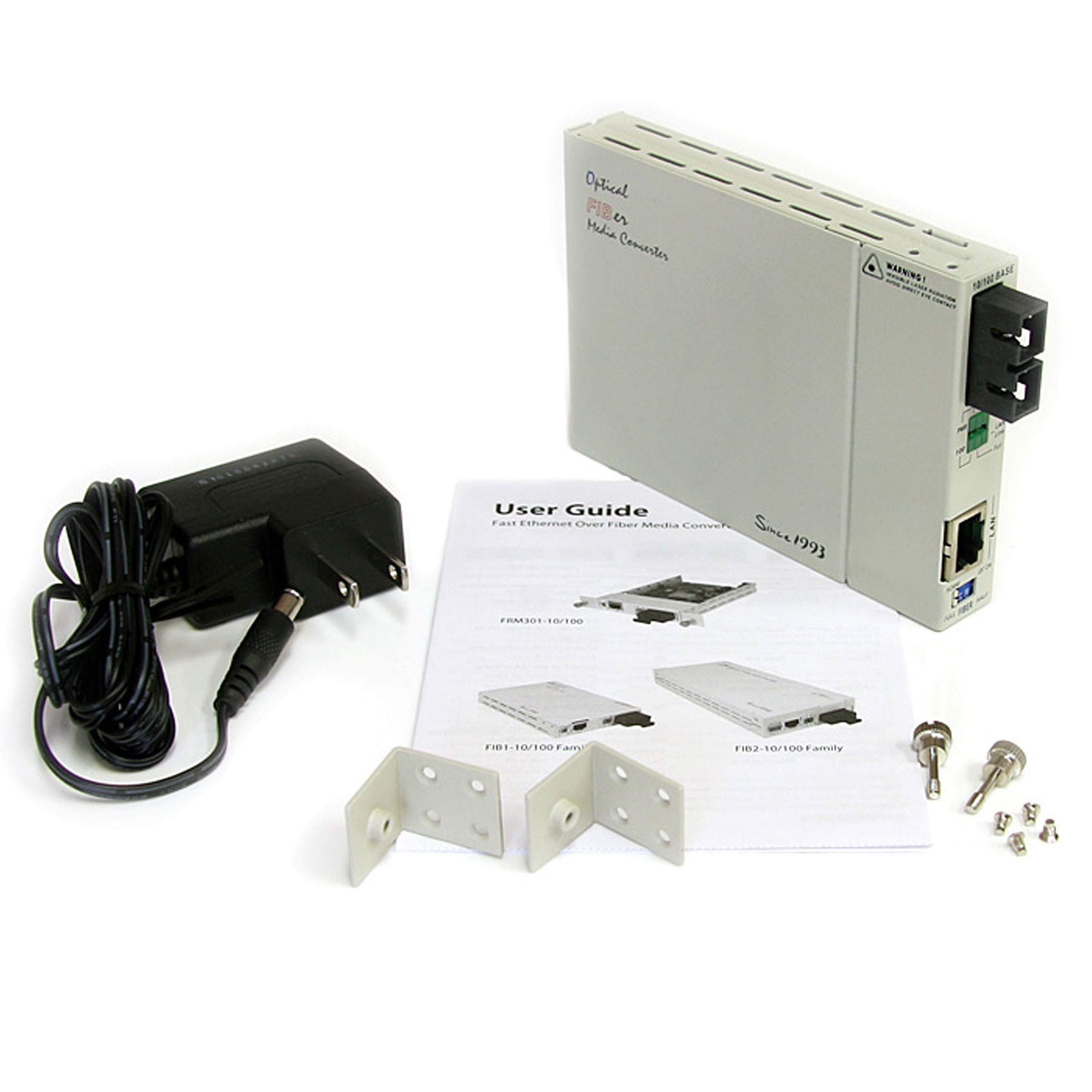

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 415 Carton Height (mm) 299 Carton Quantity 12 Carton Weight Gross (g) 12240 Included in Package - 1 - 10/100 Mbps SC Fiber Media Converter
- 1 - Power Adapter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 76 Package Width (mm) 235 Package Weight (g) 920 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
