ET90110SC2
10 100 Mbps MM Fiber Converter SC 2 km
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 Mbps MM Fiber Converter SC 2 km Product Number ET90110SC2 UPC 065030846240 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet to SC MM Fiber Media Converter Product Title (Medium) x Product Title (Standard) 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km, TAA Product Title (Long) 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km - TAA Product Title (AMZ) 10/100 Mbps Multi Mode Fiber Media Converter SC - Up to 1.2 miles/2km , TAA (ET90110SC2) Title Ingram (Part 1) 10/100 Mbps Multi Mode Fiber Med Title Ingram (Part 2) ia Converter SC 2 km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber Bullet 1 Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths Bullet 2 Easy to use and install Bullet 3 Supports a maximum fiber cable length of 2 km Bullet 4 Supports full or half-duplex operation Bullets (Consolidated) Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber - fiber converter - Ethernet Media Converter -Fibre Converter - 10/100 media converter - UTP to fiber Marketing Copy Applications - Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals over multimode fiber cable
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Perfect for secure environments required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- SC
- 10/100
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
- N784-001-SC
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000MMSM
- MCM110SC2
- ET90110SC
- MMC110MMST
- ET90110SM30
- MCM110ST2

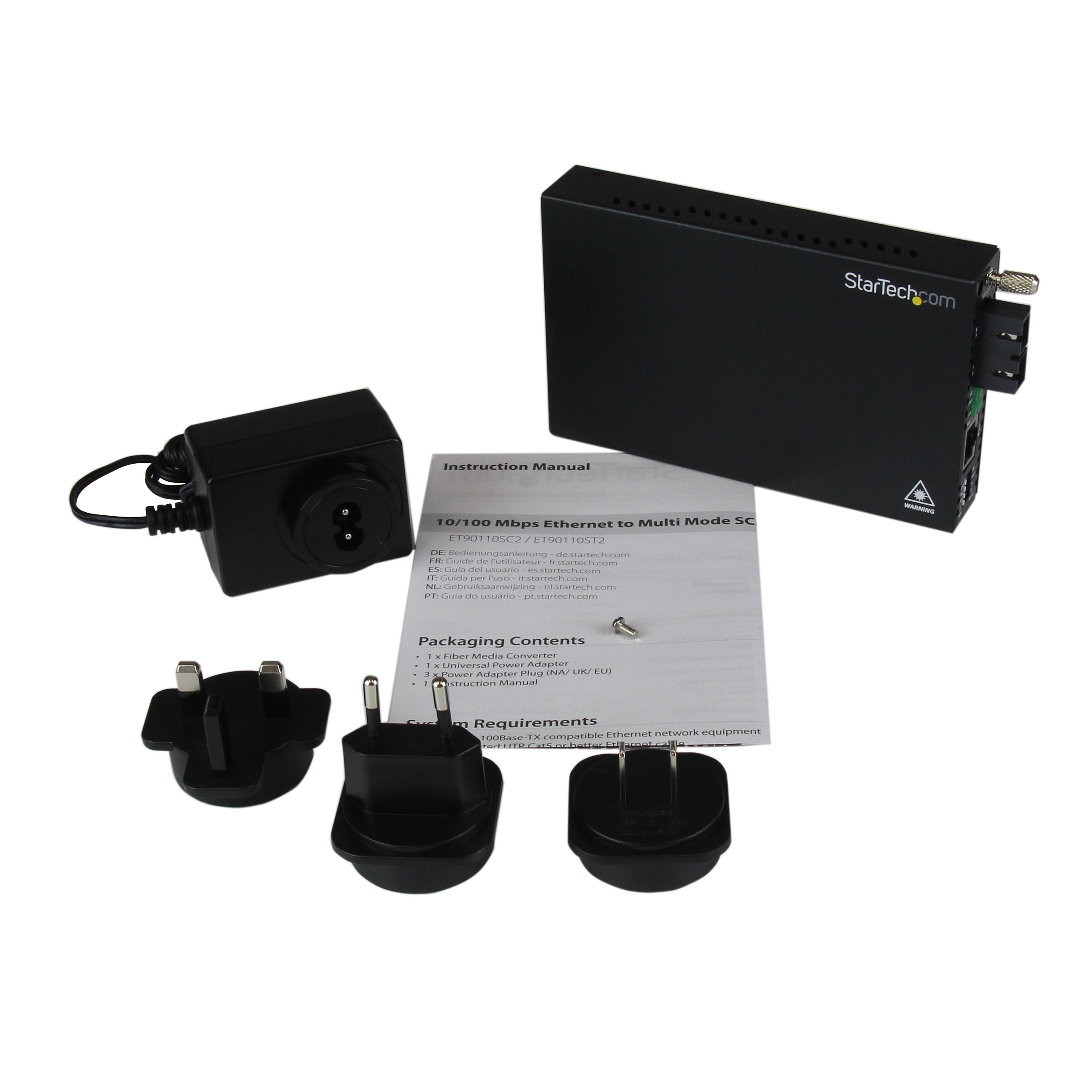

Input Current 0.48A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 159.500 Product Width (mm) 88.000 Product Height (mm) 23.200 Product Weight (g) 390.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode) Max Transfer Distance 2 km (1.2 mi) Wavelength 1310nm Fiber Connector SC Industry Standards Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 298 Carton Quantity 15 Carton Weight Gross (g) 12166 Included in Package - 1 - Fiber Media Converter
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 138 Package Height (mm) 92 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 754 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
