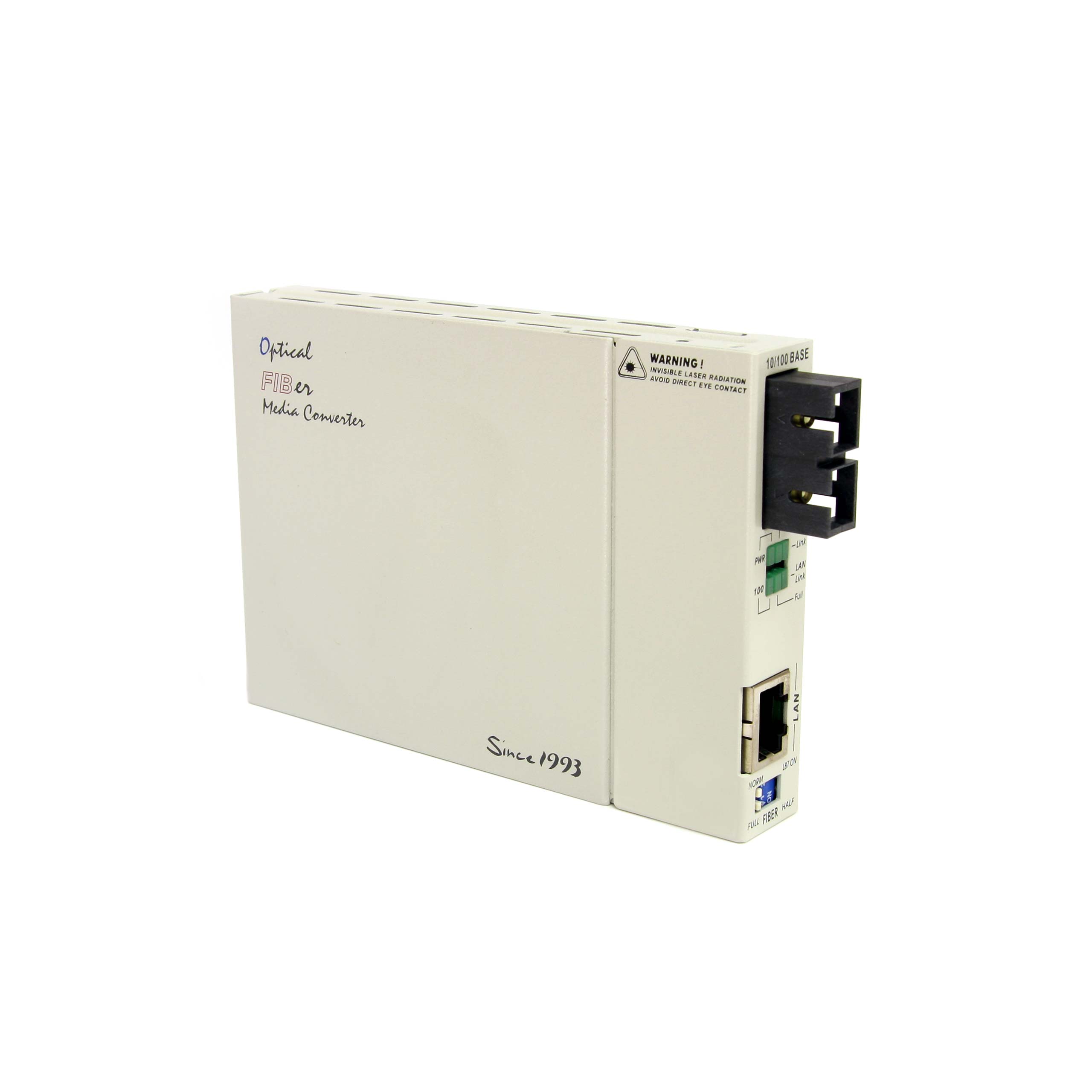

Main Image
ET90110SCGB
10/100 Mbps SC Fiber Media Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
Main Image

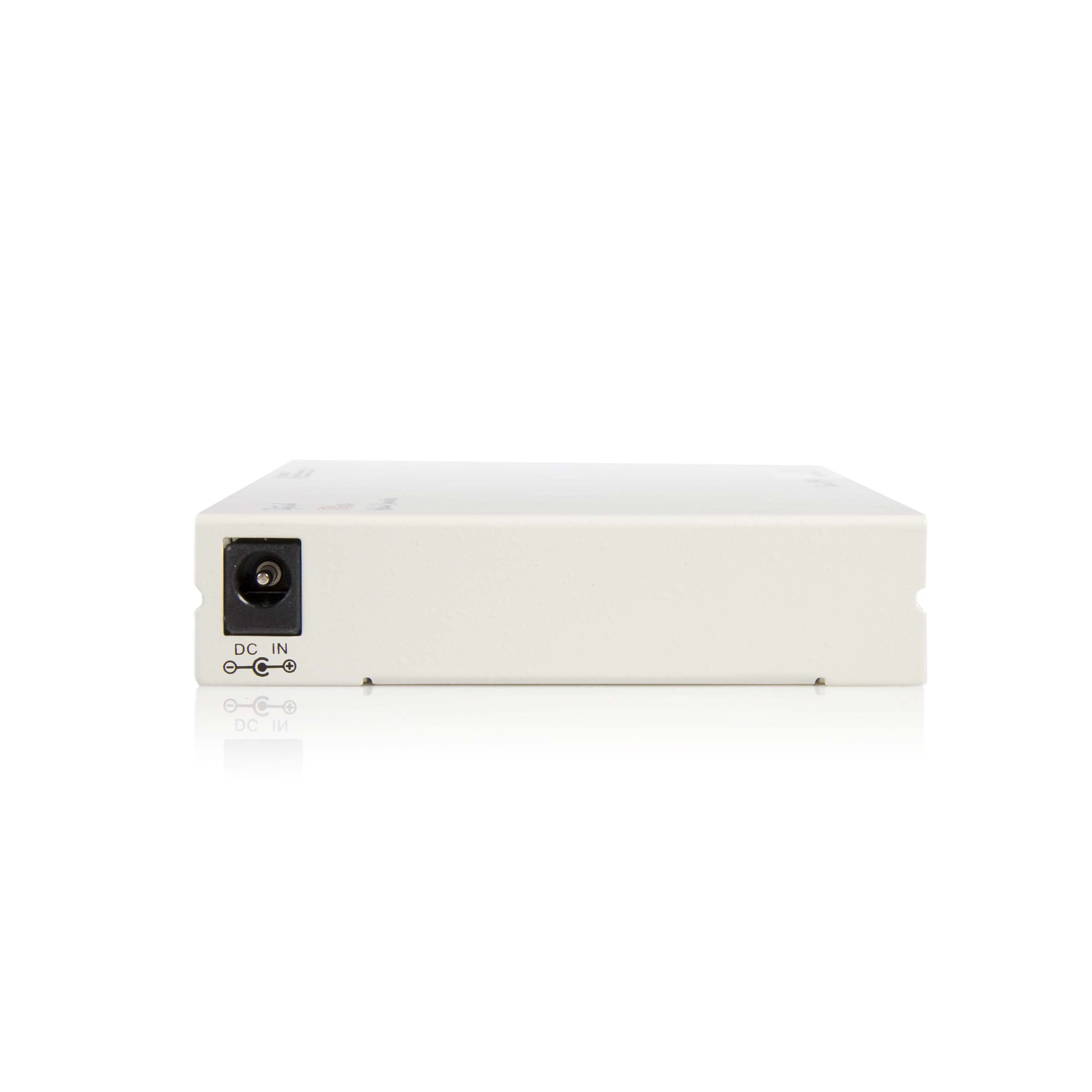

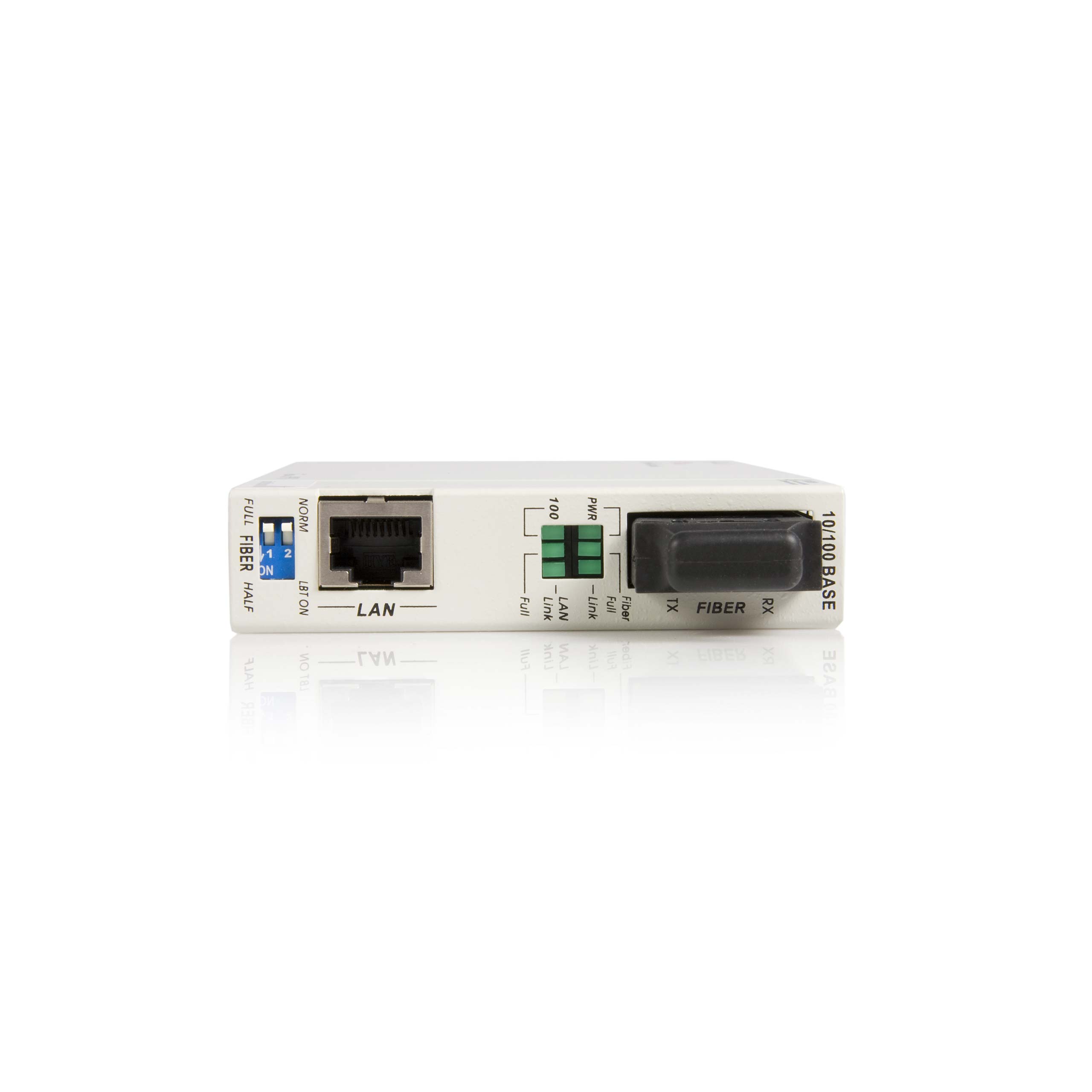

Product Images
Product Images
BOM Image
Product Name 10/100 Mbps SC Fiber Media Converter Product Number ET90110SCGB UPC 065030800495 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Ethernet to SC MM Fiber Media Converter Product Title (Standard) StarTech.com Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - SC multi-mode - external - up to 2 km - 1300 nm Product Title (Long) 10/100 Mbps Ethernet to Multi Mode Fiber Media Converter - SC Title Ingram (Part 1) 10/100 Mbps Ethernet to MM Fiber Title Ingram (Part 2) Media Converter - SC Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber Bullet 1 Automatically detects 10 or 100 Mbps network connection speed Bullet 2 Heavy-Duty power supply which is engineered to withstand the most challenging conditions and environments Bullet 3 Full wire speed of 148,800 packet per second throughput prevents bottlenecks Bullet 4 Easy installation and setup in seconds Bullet 5 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Marketing Copy Replacement Product ET90110SC2 Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123.5 Product Width (mm) 85.5 Product Height (mm) 20 Product Weight (g) 885 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC LED Indicators - 1 - Power
- 1 - Fiber Mode
- 1 - Fiber Link
- 1 - Ethernet Link
- 1 - LAN Mode

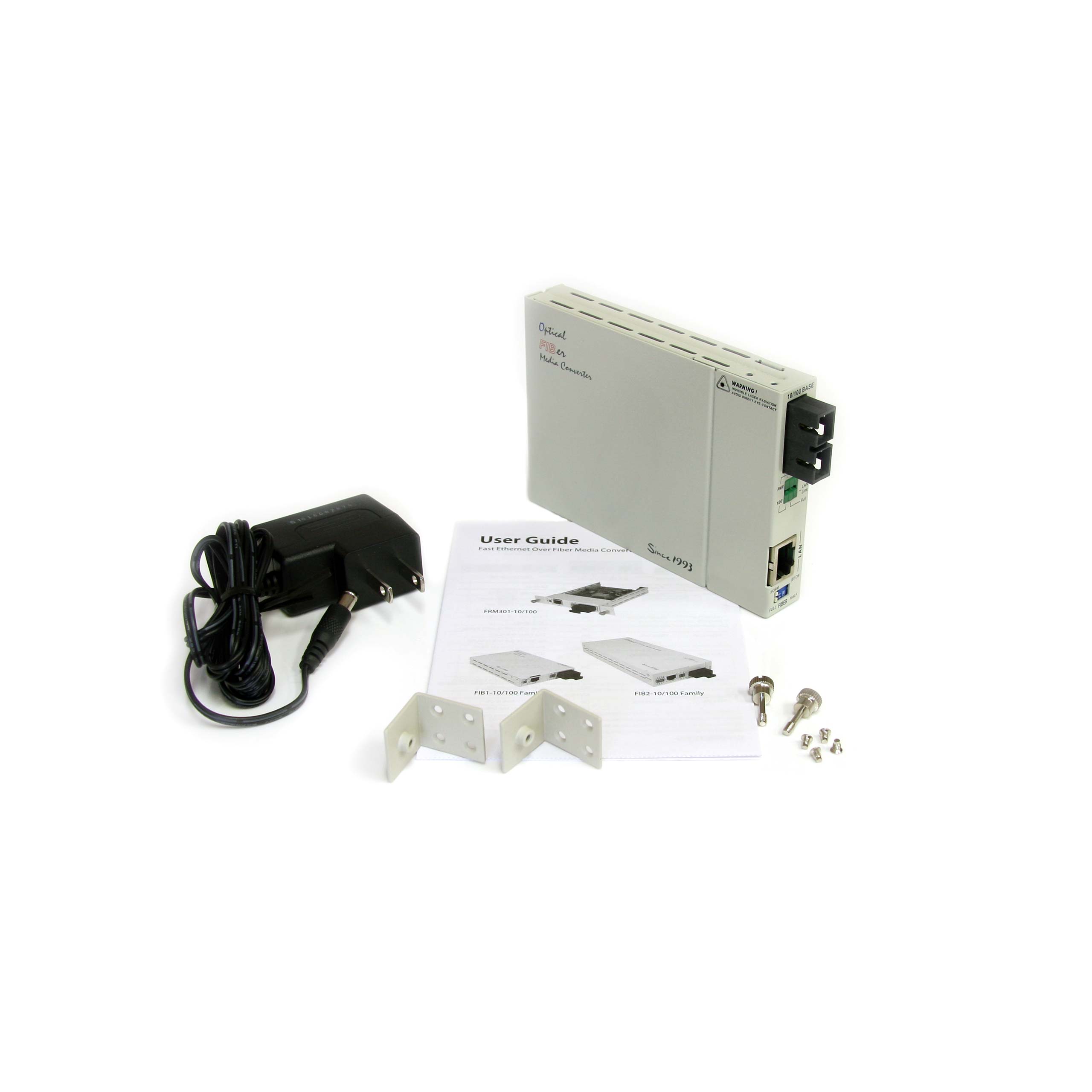

Power over Ethernet No Regulatory Approvals FCC Class A, CE Class A & CISPR Class A Wave Division Multiplexing (WDM) No Carton Depth (mm) 415 Carton Height (mm) 299 Carton Quantity 1 Carton Weight Gross (g) 12240 Included in Package - 1 - 10/100 Mbps SC Fiber Media Converter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 76 Package Width (mm) 235 Package Weight (g) 920 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
