ET90110SM30
10/100 30km Single Mode Media Convert
Convert and extend a 10/100 Mbps Ethernet connection up to 30 km over Single Mode SC fiber
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 10/100 30km Single Mode Media Convert Product Number ET90110SM30 UPC 065030812160 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 10/100 SM Fiber Media Converter - 30 km Product Title (Standard) StarTech.com Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - SC single mode - external - up to 30 km Product Title (Long) 10/100 Mbps Single Mode Fiber Media Converter - 30 km Title Ingram (Part 1) 10/100 Mbps Single Mode Fiber Me Title Ingram (Part 2) dia Converter - 30 km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 30 km over Single Mode SC fiber Marketing Copy Accessory Products - SMFIBSCSC5
- SMFIBSCSC10
- SMFIBSCSC15
Replacement Product ET90110SM302 Equivalent Part Number in the UK ET90110SM3GB Input Voltage 115V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 122 Product Width (mm) 85.6 Product Height (mm) 20 Product Weight (g) 340 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Single Mode Max Transfer Distance 30 km (18.6 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC LED Indicators - 1 - 100M active (light) or 10M (off)

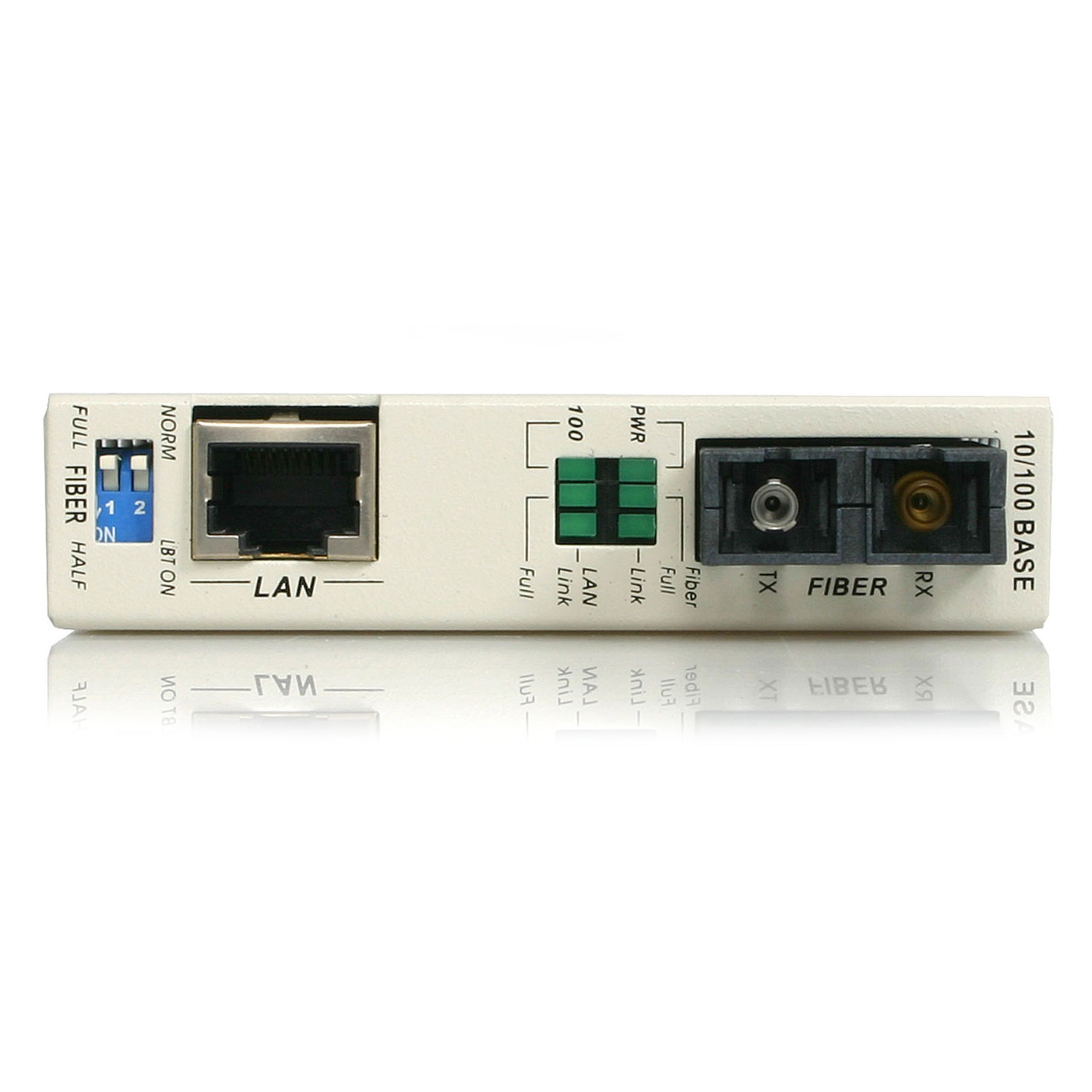

- 1 - FX port with full Duplex (light) or Half Duplex (off)
- 1 - UTP port with Full Duplex (light) or Half Duplex (off)
- 1 - Fx port link success (light), fail (off) or receive data (flash)
- 1 - UTP port link success (light), fail (off) or receive data (flash)
- 1 - Power Indicator

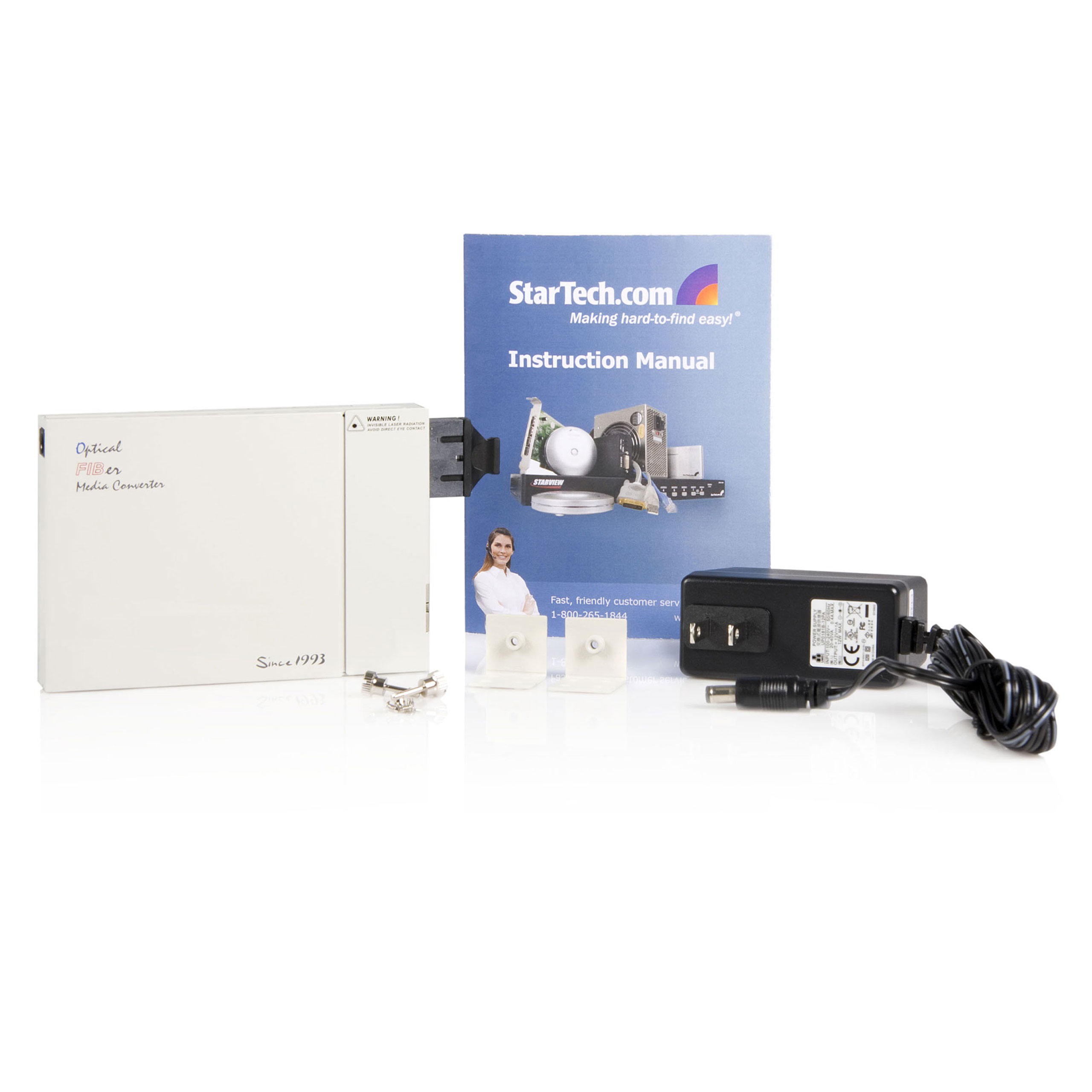

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 415 Carton Height (mm) 299 Carton Quantity 12 Carton Weight Gross (g) 14080 Included in Package - 1 - Fiber Media Converter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 78 Package Height (mm) 190 Package Width (mm) 239 Package Weight (g) 920 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 30km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
