Main Image
ET90110SM302
10 100 Mbps SM Fiber Converter SC 30 km
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 Mbps SM Fiber Converter SC 30 km Product Number ET90110SM302 UPC 065030846264 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet to SC SM Fiber Media Converter Product Title (Standard) 10/100 Mbps Single Mode Fiber Media Converter SC 30 km, TAA Product Title (Long) 10/100 Mbps Single Mode Fiber Media Converter SC 30 km - TAA Product Title (AMZ) 10/100 Mbps Single Mode Fiber Media Converter SC - 18.6 miles/30km over Single Mode SC Fiber , TAA (ET90110SM302) Title Ingram (Part 1) 10/100 Mbps Single Mode Fiber Me Title Ingram (Part 2) dia Converter SC 30 km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber Bullet 1 Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths Bullet 2 Cost-effective way to extend/bridge networks using fiber cabling Bullet 3 Easy to use and install Bullet 4 Maximum Fiber Cable length of 30 km Bullet 5 Supports full or half-duplex operation Bullets (Consolidated) Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles (30km) over Single Mode SC fiber - 10/100 Mbps Single Mode Fiber Media Converter SC 30 km - Fiber Converter/Ethernet Media Converter/10/100 Mbps Media Converter - Single Mode Fiber Converter/Fiber Optic Media Converter - UTP to Fiber/Copper to Fiber/100Base-FX Fiber to Ethernet - Use as a standalone device or install into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for durability Marketing Copy Applications - Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over single mode fiber cable
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Perfect for secured environments required by government agencies, where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- SC
- 10/100
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
- long range fiber
- long range fibre
- ET90110SM30
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000MMSM
- MCM110SC2
- ET90110SM30
- IMC110MMSC
- ET90110WDM
Constrained SKU Alternatives (Limited Stock) ET91000SM402 Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 155 Product Width (mm) 87 Product Height (mm) 24 Product Weight (g) 392 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode) Max Transfer Distance 30 km (18.6 mi) Wavelength 1310nm Fiber Connector SC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 296 Carton Quantity 15 Carton Weight Gross (g) 12212 Included in Package - 1 - Fiber Media Converter

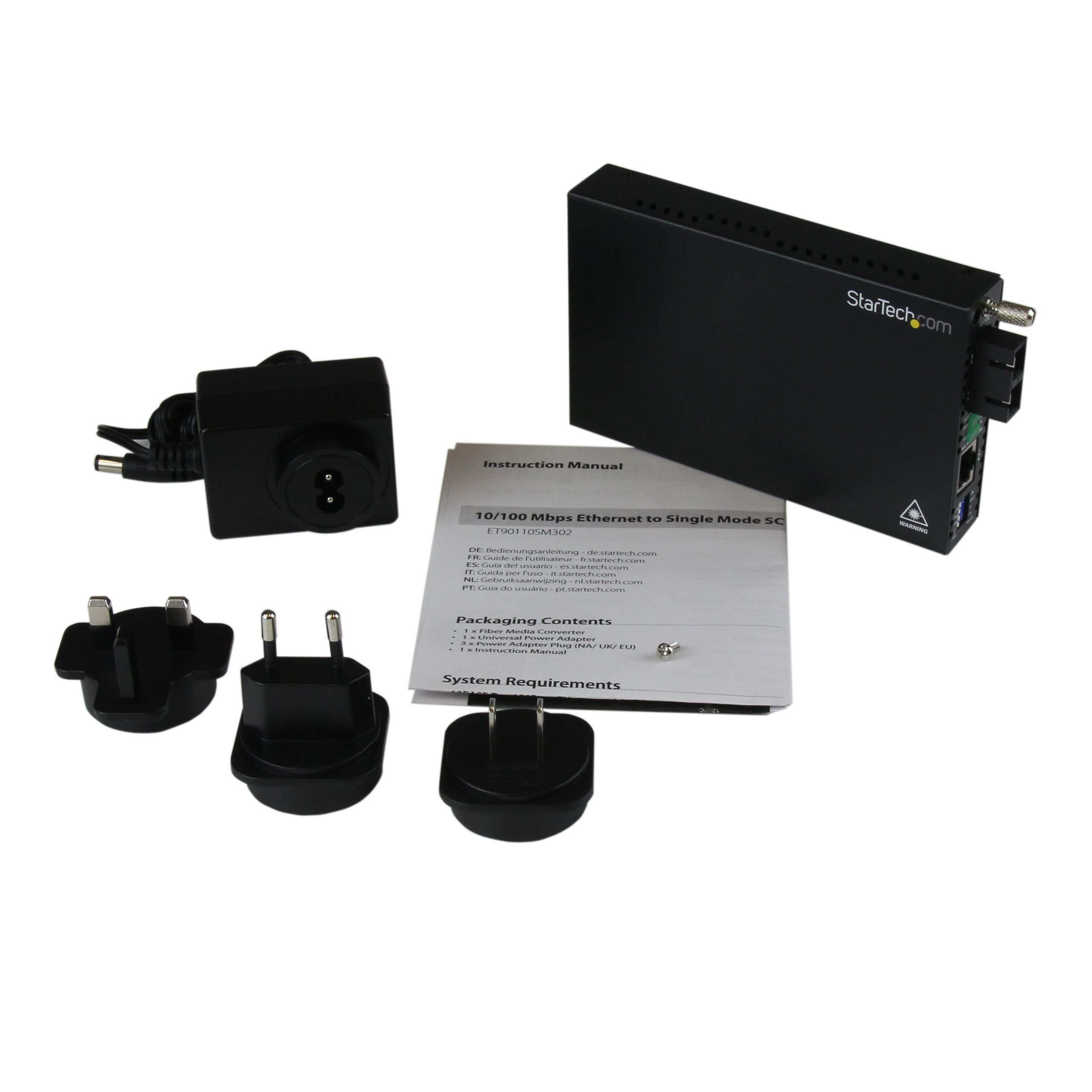

- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 139 Package Height (mm) 90 Package Width (mm) 207 Package Quantity 1 Package Weight (g) 756 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 30km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
