ET90110SM3GB

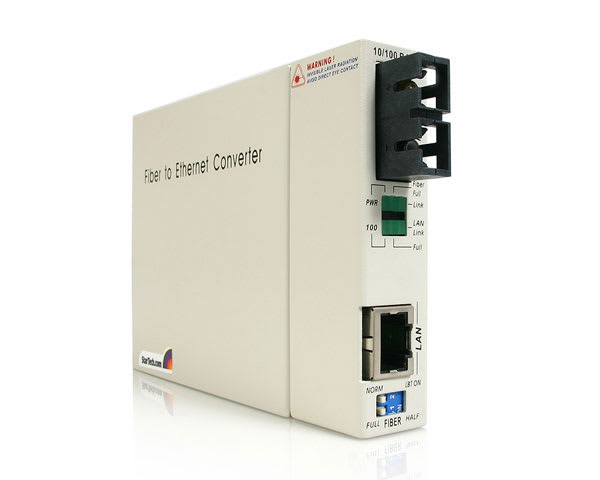

10/100 30km Single Mode Media Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 30 km over Single Mode SC fiber
Main Image
Product Images
Product Images
Product Images
Product Name 10/100 30km Single Mode Media Converter Product Number ET90110SM3GB UPC 065030833585 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 10/100 Fiber Ethernet Media Converter Product Title (Standard) StarTech.com 10/100 Mbps Single Mode Fiber Ethernet Media Converter - 30 km Product Title (Long) 10/100 Mbps Single Mode Fiber Ethernet Media Converter 30 km Title Ingram (Part 1) 10/100 Mbps Single Mode Fiber Et Title Ingram (Part 2) hernet Media Converter 30km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 30 km over Single Mode SC fiber Bullet 1 No external power needed - draws power from the USB connection Bullet 2 Supports serial data transfer rates of up to 1 Mbps Bullet 3 Easy to setup and install Bullet 4 Compatible with modems, printers, bar code scanners, servers, PDUs, and nearly any serial RS232 equipment Bullet 5 Thin, lightweight design Marketing Copy Accessory Products - SMFIBSCSC10
- SMFIBSCSC15
- SMFIBSCSC5

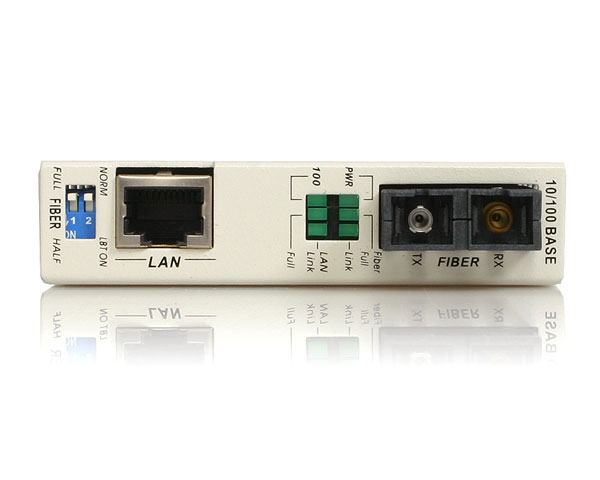

Input Voltage 115V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 122 Product Width (mm) 85.6 Product Height (mm) 20 Product Weight (g) 340 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Fiber Type Single Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 30 km (18.6 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC LED Indicators - 1 - Power indicator
- 1 - UTP port link success (light), fail (off) or receive data (flash)
- 1 - UTP port with Full Duplex (light) or Half Duplex (off)
- 1 - 100Mbps active (on) or 10Mbps (off)
- 1 - Fx port link success (light), fail (off) or receive data (flash)
- 1 - FX port with full Duplex (light) or Half Duplex (off)
Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 400 Carton Height (mm) 280 Carton Quantity 1 Carton Weight Gross (g) 9000 Included in Package - 1 - Fiber Media Converter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 80 Package Width (mm) 230 Package Weight (g) 650 Packaging Description 10/100 Mbps Ethernet to SC Fiber Converter 30km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
