ET90110ST
10/100 Mbps ST Fiber Media Conver
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 Mbps ST Fiber Media Conver Product Number ET90110ST UPC 065030795333 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet to ST MM Fiber Media Converter Product Title (Standard) StarTech.com - Media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - ST multi-mode - external - up to 2 km - 1300 nm Product Title (Long) 10/100 Mbps Ethernet Multi Mode Fiber Media Converter - ST Title Ingram (Part 1) 10/100 Mbps Ethernet MM Fiber Me Title Ingram (Part 2) dia Converter - ST Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber Bullet 1 Automatically detects 10 or 100 Mbps network connection speed Bullet 2 Heavy-Duty power supply which is engineered to withstand the most challenging conditions and environments Bullet 3 Full wire speed of 148,800 packet per second throughput prevents bottlenecks Bullet 4 Easy installation and setup in seconds Bullet 5 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Marketing Copy Applications - Connect remote areas of large buildings to the main network
- Connect 2 buildings that are on the same campus
Accessory Products - FIBSTST5
- FIBSTST10
- FIBSTST15
Related Products - ET90110SC
- ET9003SC
- ET9003ST
- ET9003SM
- ET91000SC

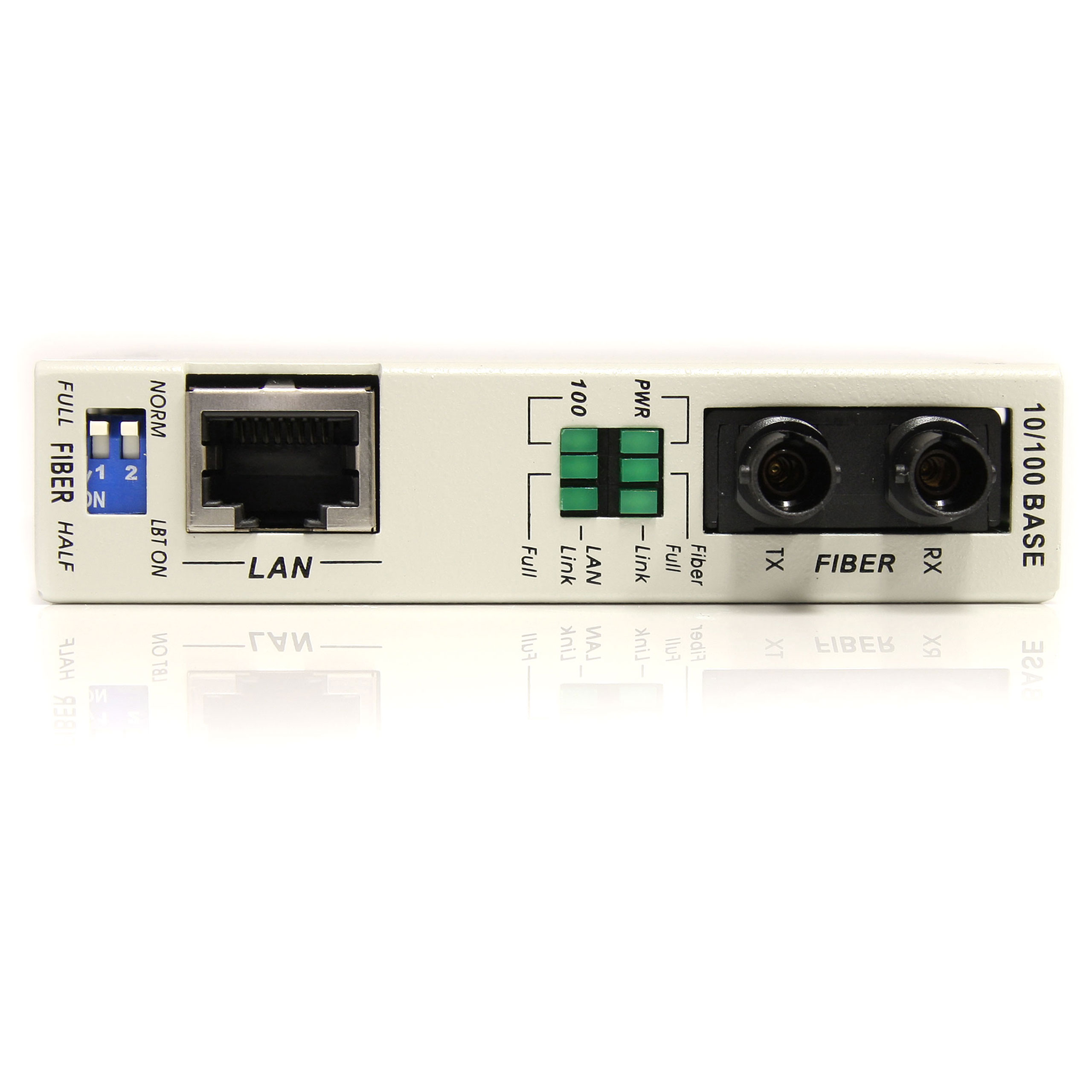

Replacement Product ET90110ST2 Equivalent Part Number in the UK ET90110STGB Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 122 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 884 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100 Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector ST LED Indicators - 1 - Power
- 1 - Fiber Mode
- 1 - Fiber Link
- 1 - Ethernet Link
- 1 - LAN Mode

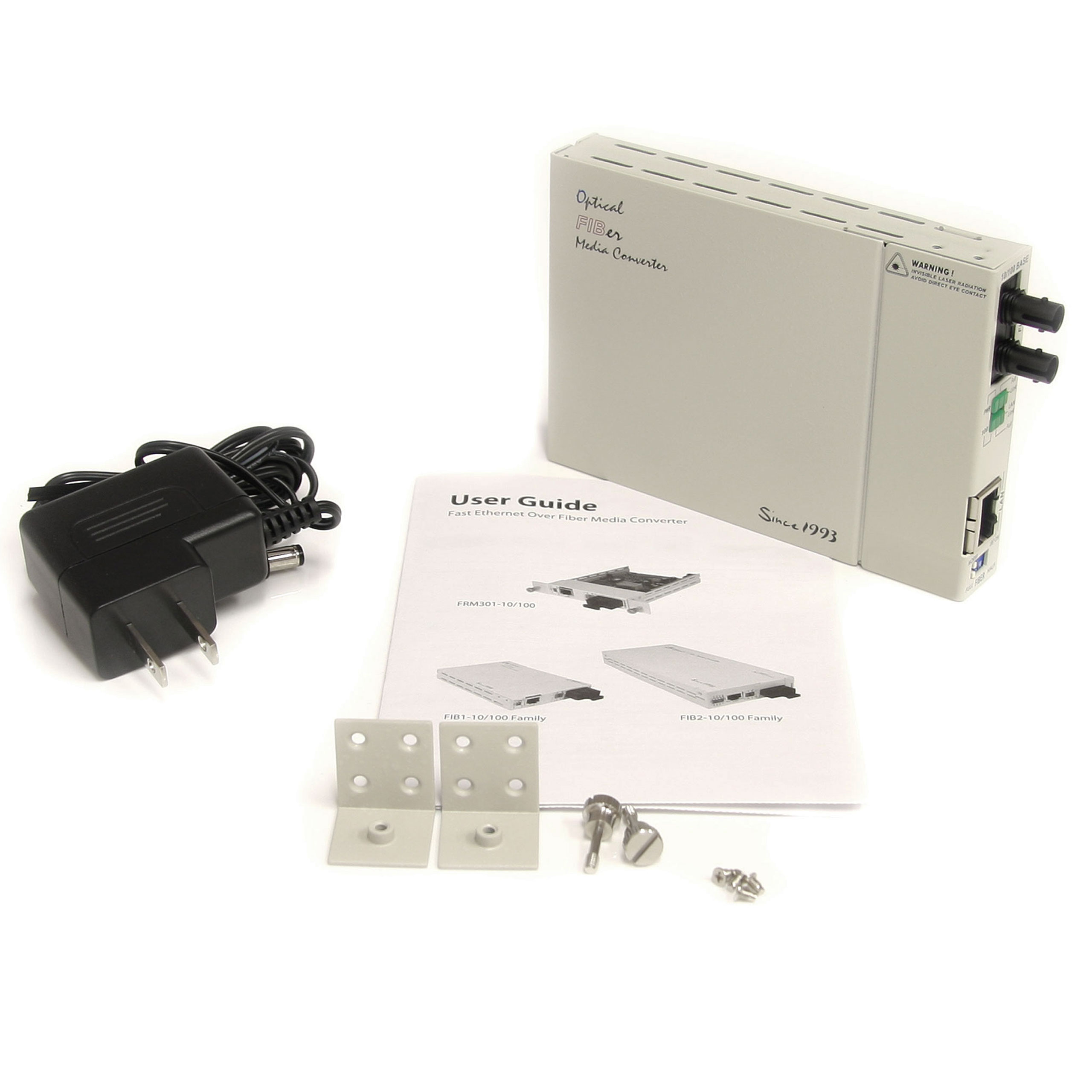

Power over Ethernet No Regulatory Approvals FCC Class A, CE Class A & CISPR Class A Wave Division Multiplexing (WDM) No Carton Depth (mm) 415 Carton Height (mm) 299 Carton Quantity 12 Carton Weight Gross (g) 12360 Included in Package - 1 - 10/100 Mbps ST Fiber Media Converter
- 2 - Mounting Brackets
- 1 - Power Adapter
- 1 - Bag, Screws
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 75 Package Width (mm) 235 Package Weight (g) 930 Packaging Description 10/100 Mbps Ethernet to ST Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 ST Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
