ET90110ST2

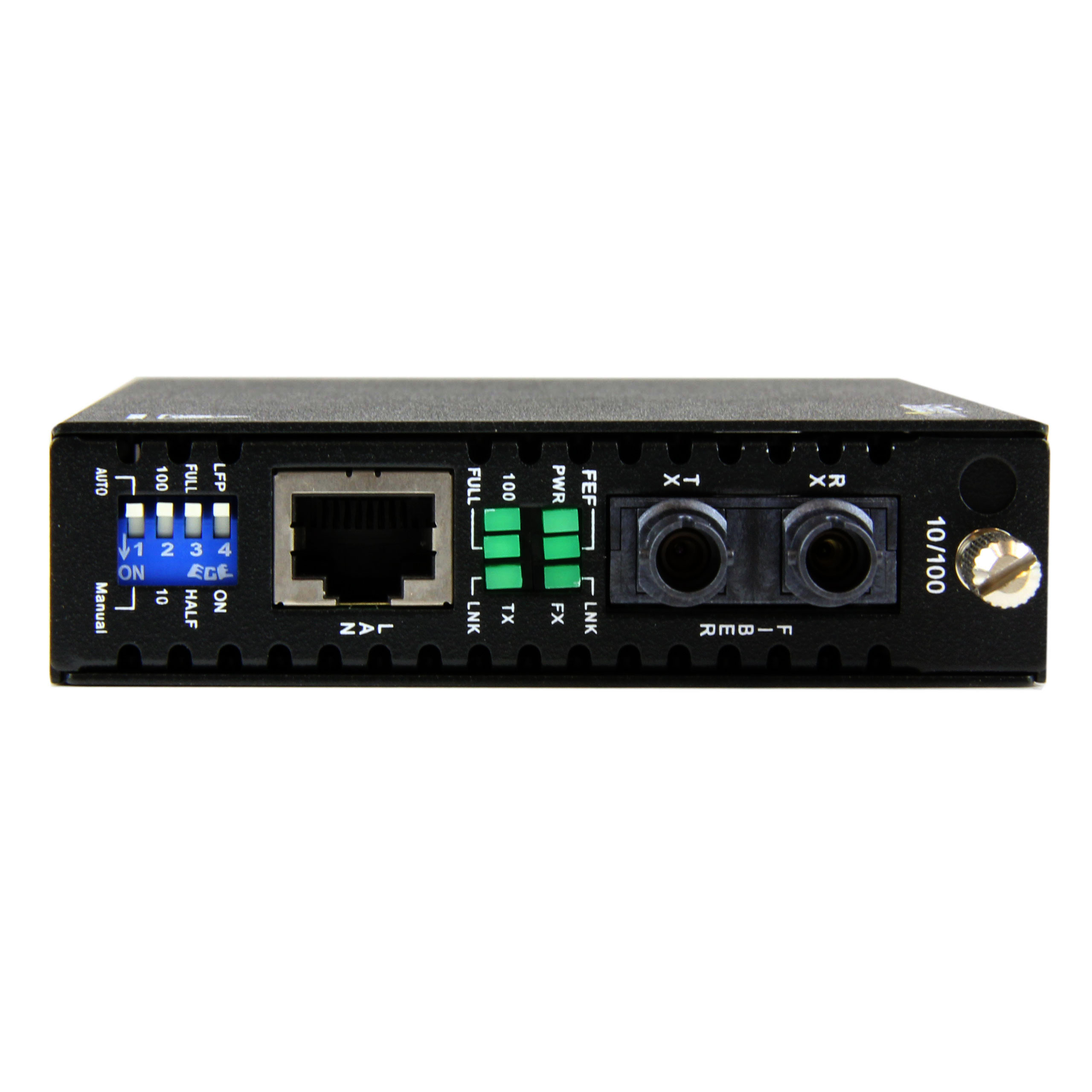

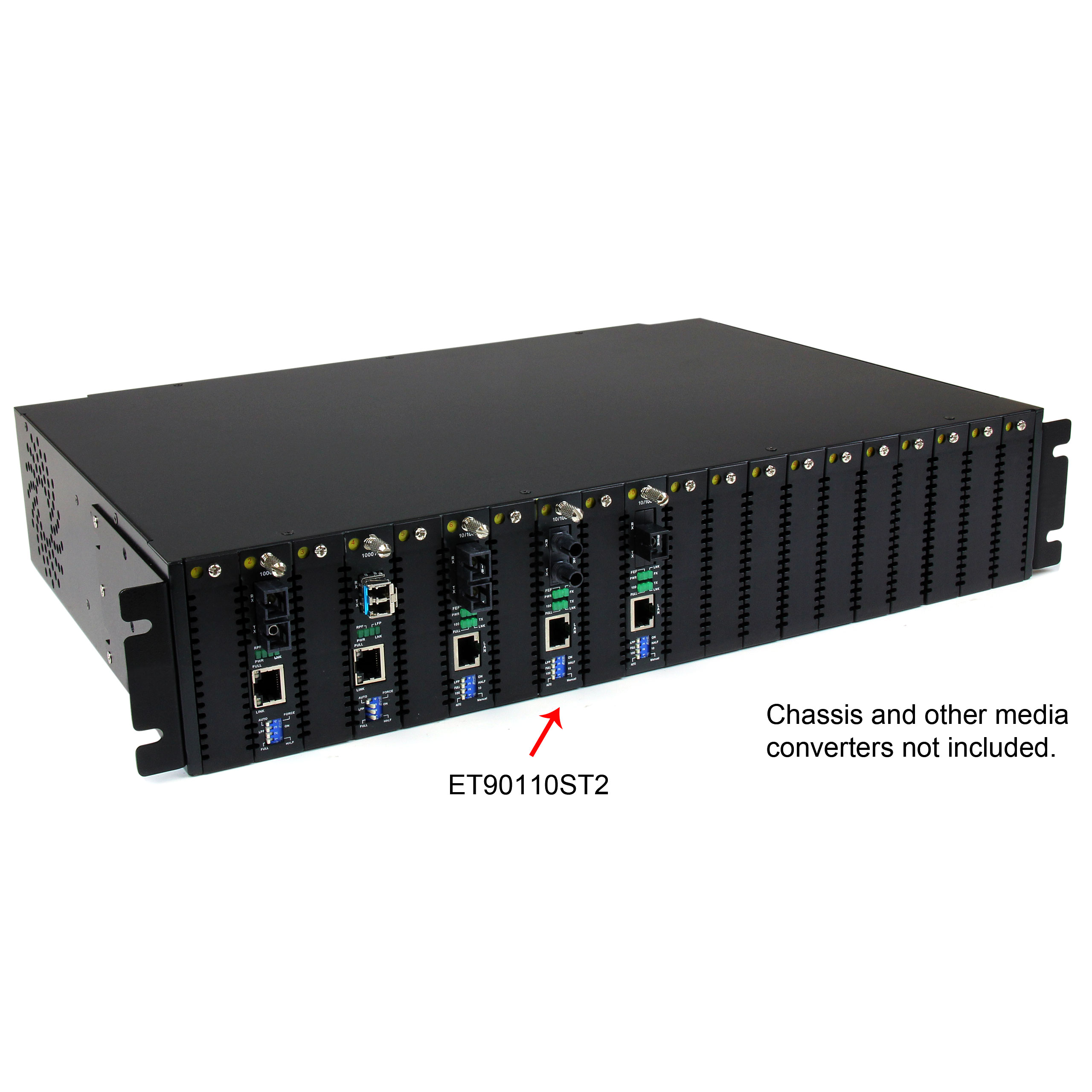

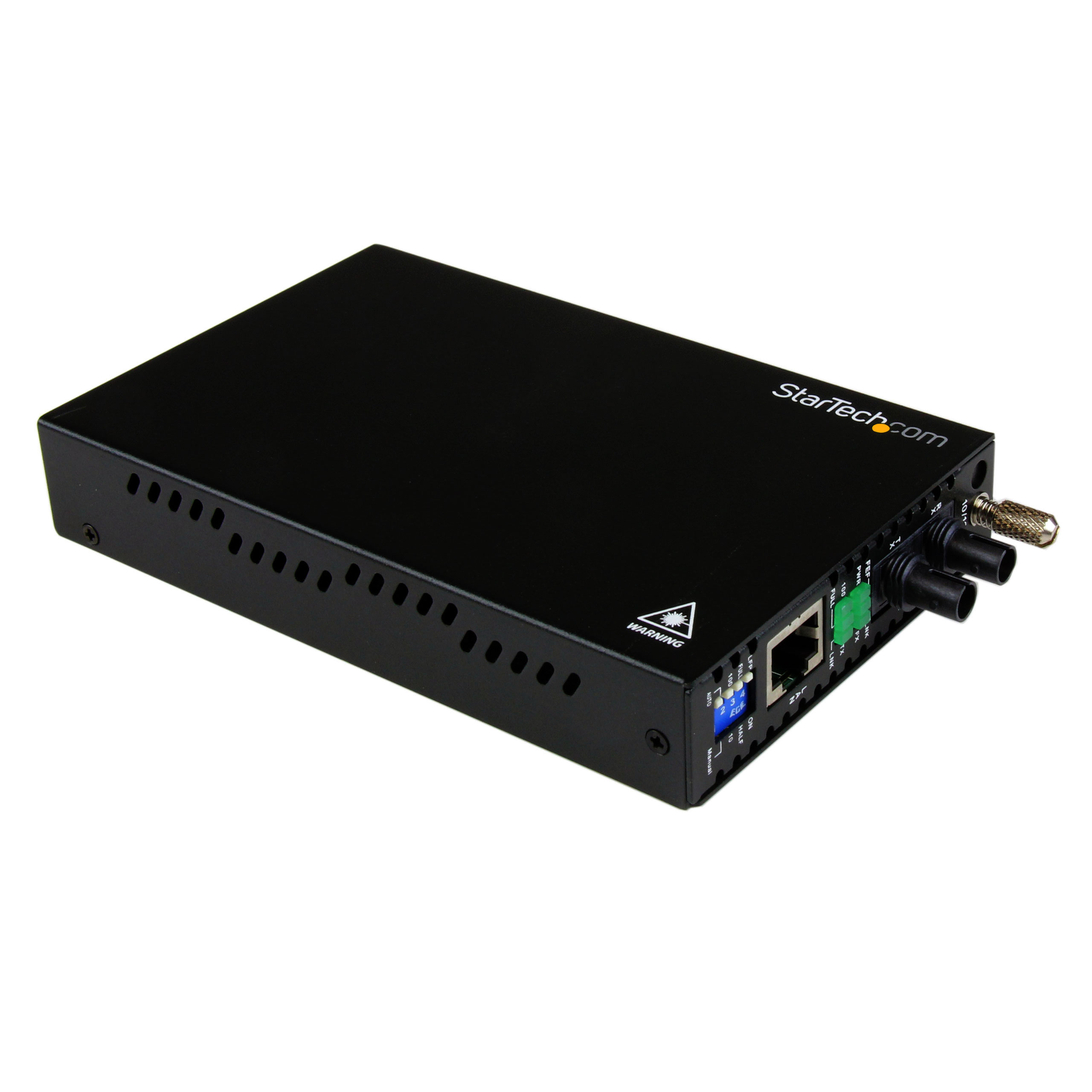

10 100 Mbps RJ45 to ST MM Fiber Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 Mbps RJ45 to ST MM Fiber Converter Product Number ET90110ST2 UPC 065030846257 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Ethernet to ST MM Fiber Media Converter Product Title (Standard) 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km, TAA Product Title (Long) 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km - TAA Product Title (AMZ) 10/100 Mbps Ethernet to Fiber Optic Media Converter - Steel - Chassis Mount - ST Multimode - 1310nm - 2km , TAA (ET90110ST2) Title Ingram (Part 1) 10/100 Mbps Multi Mode Fiber Med Title Ingram (Part 2) ia Converter ST 2 km Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber Bullet 1 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullet 2 Cost-effective way to extend/bridge networks using fiber cabling Bullet 3 Quick and simple installation, easy to use Bullet 4 Supports a maximum fiber cable length of 2 km Bullet 5 Supports full or half-duplex operation Bullets (Consolidated) Convert and extend a 10/100 Mbps Ethernet connection up to 2km (1.2 miles) over multimode ST fiber - 10/100 Mbps Multimode Fiber Media Converter - ST - 2km - Ethernet Fiber Media Converter/Multimode Media Converter/Fiber Converter/UTP to Fiber - Ethernet to fiber conversion as a standalone device or can be installed in the ETCHS2U 20-slot chassis for added versatility - Cost-effective way to bridge networks using fiber optic cable - Rugged steel casing for durability in harsh environments Marketing Copy Marketing Copy (No HTML) Applications - Converts 100Base-FX fiber optic signals to 10/100Base-T Ethernet over multi mode fiber cable
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Perfect for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- ST
- 10/100
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
- N784-001-ST
Required Regulatory Compliance Marks - Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000MMSM
- MCM110ST2
- ET90110ST
- MMC110MMST
- ET90110SM30
- MCM110ST2P

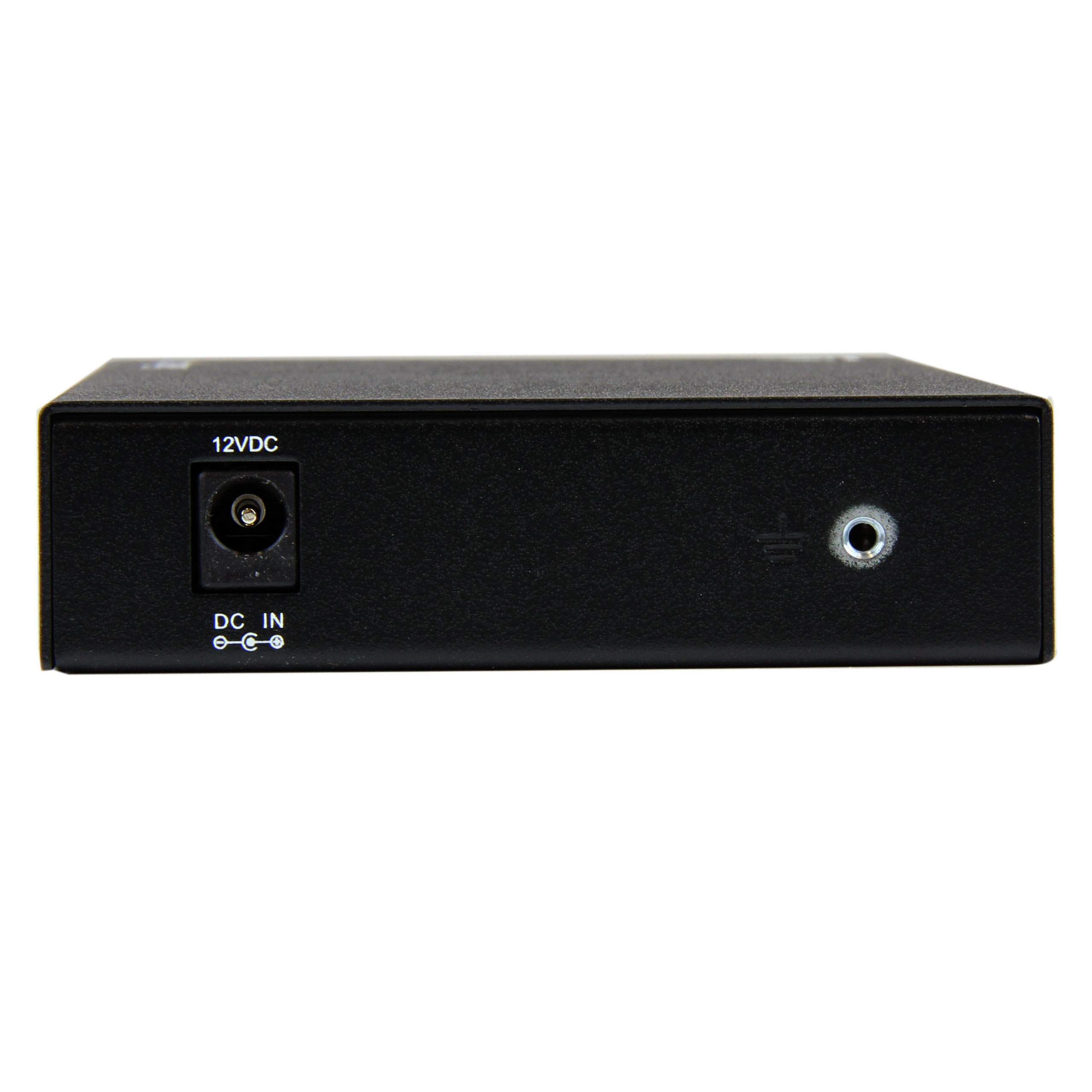

Input Current 0.48 A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 154 Product Width (mm) 87 Product Height (mm) 24 Product Weight (g) 387 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode) Max Transfer Distance 2 km (1.2 mi) Wavelength 1310nm Fiber Connector ST Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 362 Carton Height (mm) 298 Carton Quantity 15 Carton Weight Gross (g) 12138 Included in Package - 1 - Fiber Media Converter
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 138 Package Height (mm) 90 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 748 Packaging Description 10/100 Mbps Ethernet to ST Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ST Duplex Fiber Connector 1 (Quantity) 1 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,NL,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
