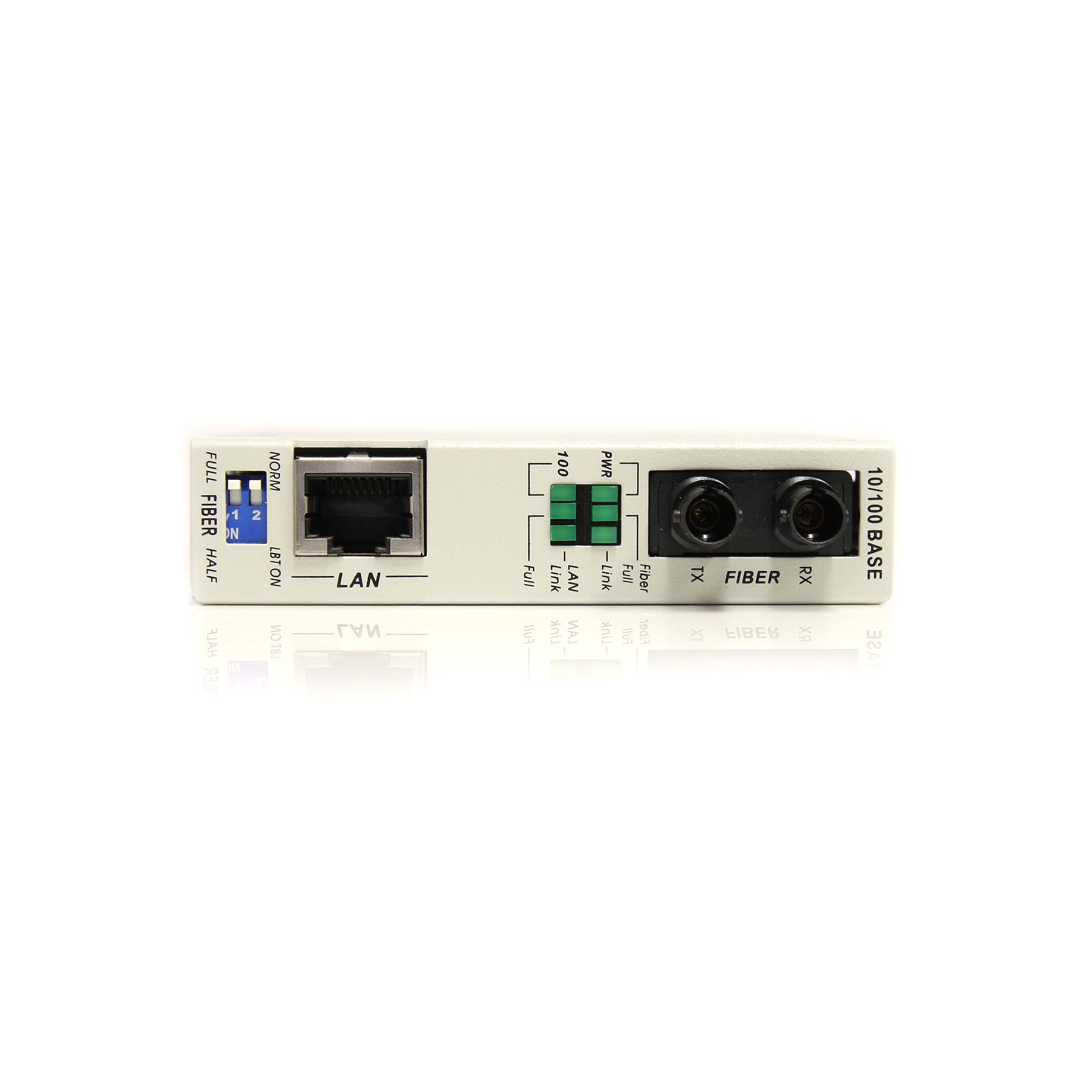

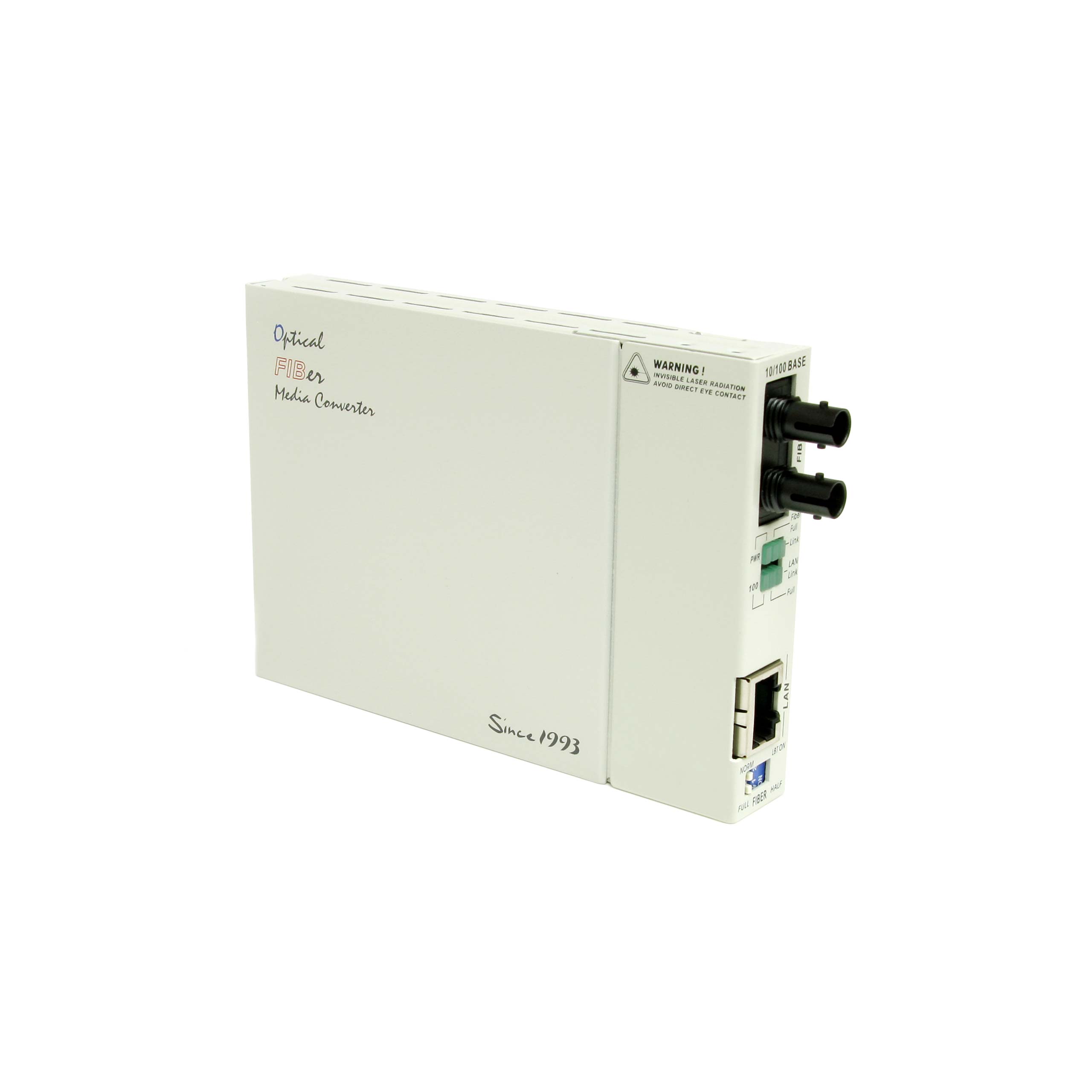

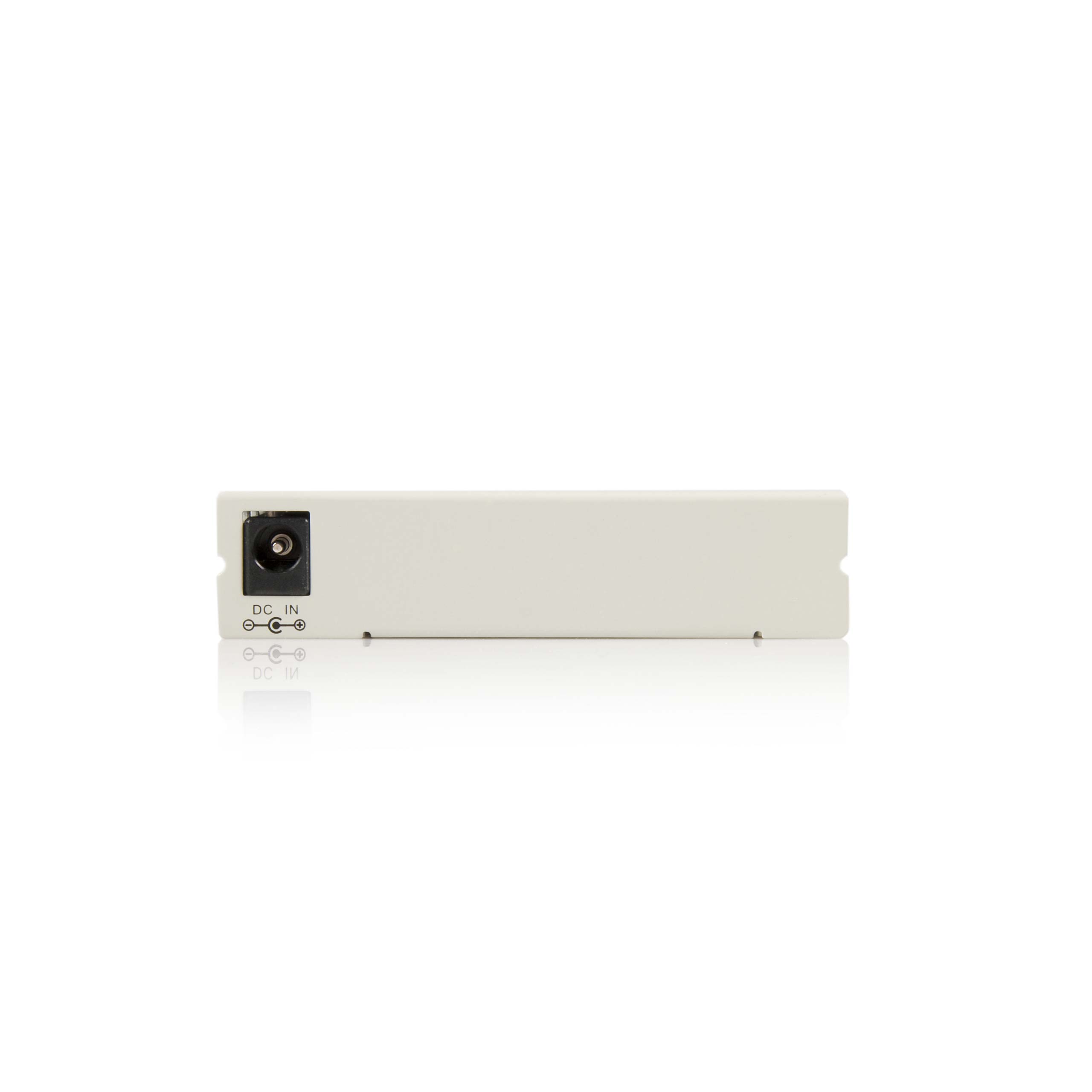

Main Image
ET90110STGB
10/100 Mbps ST Fiber Media Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 Mbps ST Fiber Media Converter Product Number ET90110STGB UPC 065030800501 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) Ethernet to ST MM Fiber Media Converter Product Title (Standard) StarTech.com Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - ST - external - up to 2 km - 1300 nm Product Title (Long) 10/100 Mbps Ethernet Multi Mode Fiber Media Converter - ST Title Ingram (Part 1) 10/100 Mbps Ethernet MM Fiber Me Title Ingram (Part 2) dia Converter - ST Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber Bullet 1 Automatically detects 10 or 100 Mbps network connection speed Bullet 2 Heavy-Duty power supply which is engineered to withstand the most challenging conditions and environments Bullet 3 Full wire speed of 148,800 packet per second throughput prevents bottlenecks Bullet 4 Easy installation and setup in seconds Bullet 5 Compliant with IEEE 802.3u standard and guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Marketing Copy Applications - Connect remote areas of large buildings to the main network
- Connect 2 buildings that are on the same campus
Related Products - ET90110SC
- ET9003SC
- ET9003ST
- ET9003SM
- ET91000SC
Replacement Product ET90110ST2 Output Current 1A Output Voltage (V) 9V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 122 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 884 Storage Temperature 0°C to 70°C (32°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 2 km (1.2 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector ST Industry Standards - IEEE 802.3u 100BASE-FX
- IEEE 802.3u 100BASE-TX
LED Indicators - 1 - Power
- 1 - Fiber Mode
- 1 - Fiber Link
- 1 - Ethernet Link
- 1 - LAN Mode

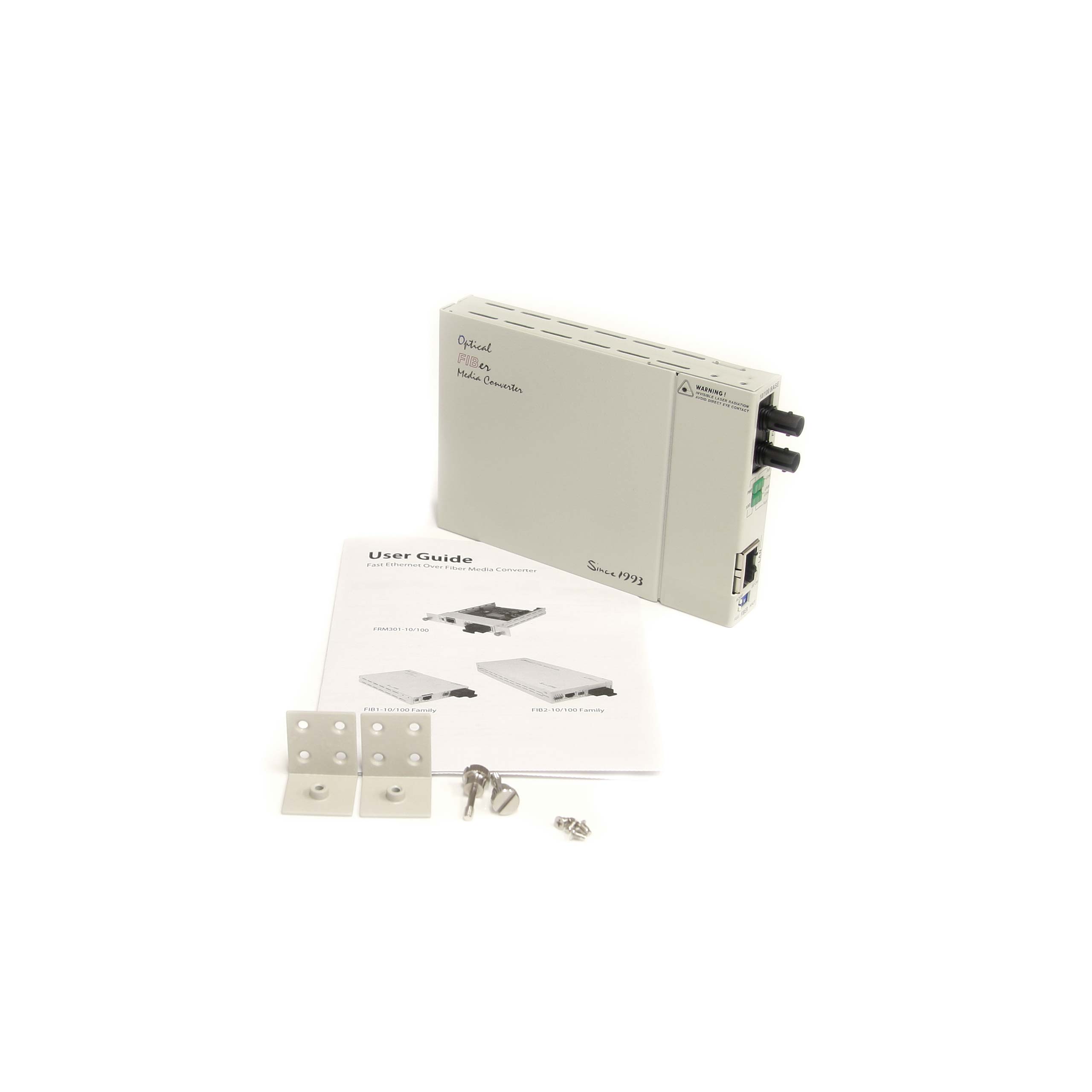

Power over Ethernet No Regulatory Approvals FCC Class A, CE Class A & CISPR Class A Wave Division Multiplexing (WDM) No Carton Depth (mm) 415 Carton Height (mm) 299 Carton Quantity 1 Carton Weight Gross (g) 12360 Included in Package - 1 - 10/100 Mbps ST Fiber Media Converter
- 2 - Mounting Brackets
- 1 - Power Adapter
- 1 - Bag, Screws
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 75 Package Width (mm) 235 Package Weight (g) 930 Packaging Description 10/100 Mbps Ethernet to ST Fiber Converter 2km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 ST Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
