ET90110WDM
10/100 MBPS Single Mode WDM Media Conver
Convert and extend a 10/100 Mbps Ethernet connection up to 20 km over a single SC fiber cable
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 MBPS Single Mode WDM Media Conver Product Number ET90110WDM UPC 065030820486 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 10/100 WDM Fiber Media Converter Kit SC Product Title (Standard) StarTech.com WDM Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - SC single mode - external - up to 20 km - 1310 (TX) / 1550 (RX) nm (pack of 2 ) Product Title (Long) 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit - SC Title Ingram (Part 1) 10/100 Ethernet Single Mode WDM Title Ingram (Part 2) Fiber Media Converter Kit SC Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 20 km over a single SC fiber cable Bullet 1 WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for both sending and receiving of data (Tx/Rx), reducing the amount of cable required by half Bullet 2 Single mode design allows signals to be transmitted up to 20 Km Bullet 3 Additional features include Link-loss forwarding, loop-back test, remote monitor status Bullet 4 Supports 9/125 µm Single Mode fiber cable (SC Connector) Marketing Copy Applications Bridging two Ethernet networks using a single fiber cable Website Search Keyword RoHS Related Products - ET90110SC
- ET90110ST
- ET91000SC
Equivalent Part Number in the UK ET90110WDMGB Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 340 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Single Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 20 km (12.4 mi) MTBF (hours) 38,000 Hours Switching Architecture Store and Forward Wavelength 1310nm Fiber Connector SC Industry Standards - IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX
- IEEE 802.3 10BASE-T

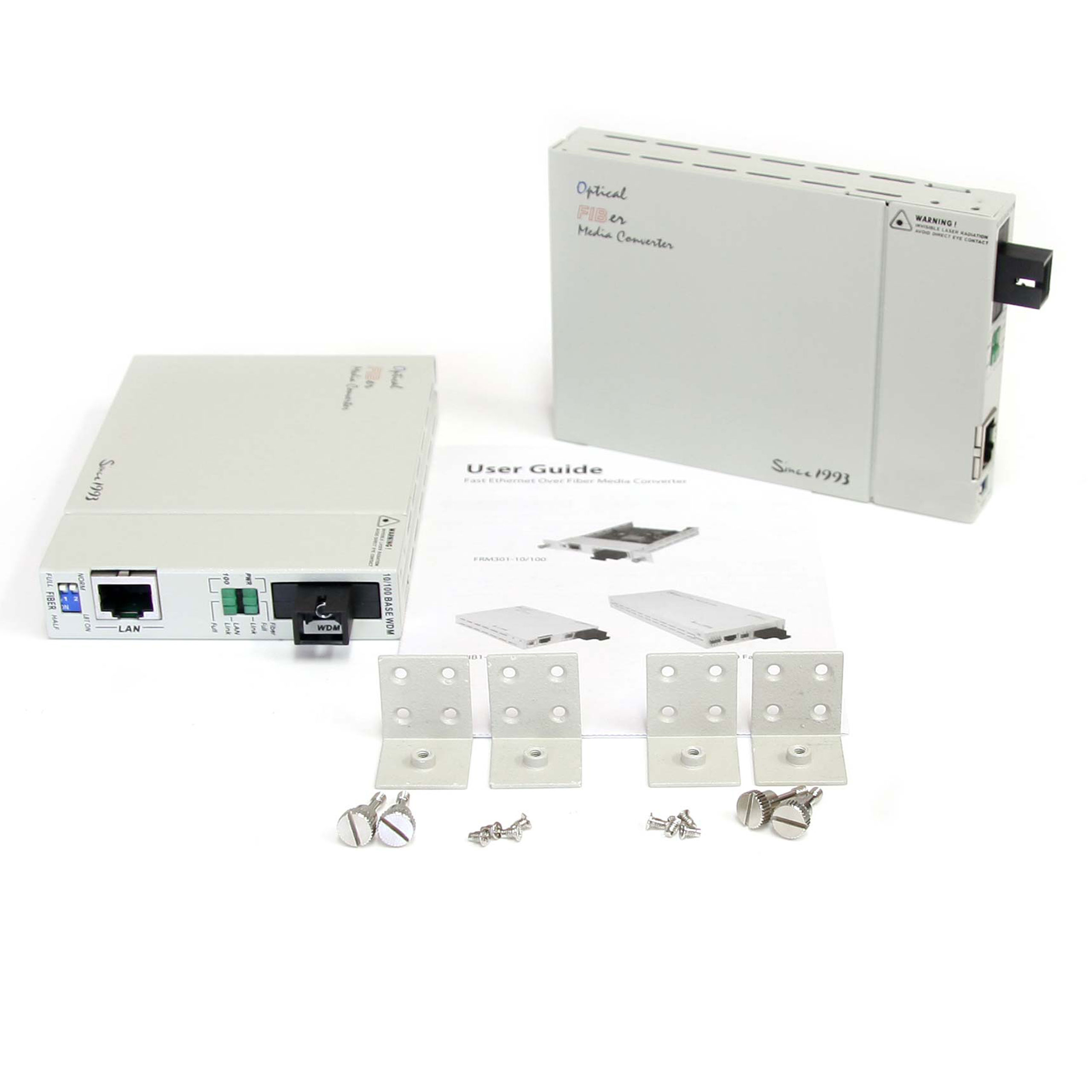

Power over Ethernet No Wave Division Multiplexing (WDM) Yes Carton Depth (mm) 488 Carton Height (mm) 210 Carton Quantity 8 Carton Weight Gross (g) 10000 Included in Package - 1 - Local Media Converter Unit
- 1 - Remote Media Converter Unit
- 2 - Power Adapters
- 1 - Instruction Manual
- 4 - Mounting Brackets (w/ Screws)
Package Depth (mm) 189 Package Height (mm) 75 Package Width (mm) 234 Package Weight (g) 1100 Packaging Description 10/100 Ethernet to Fiber Converter Kit WDM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
