ET90110WDM2

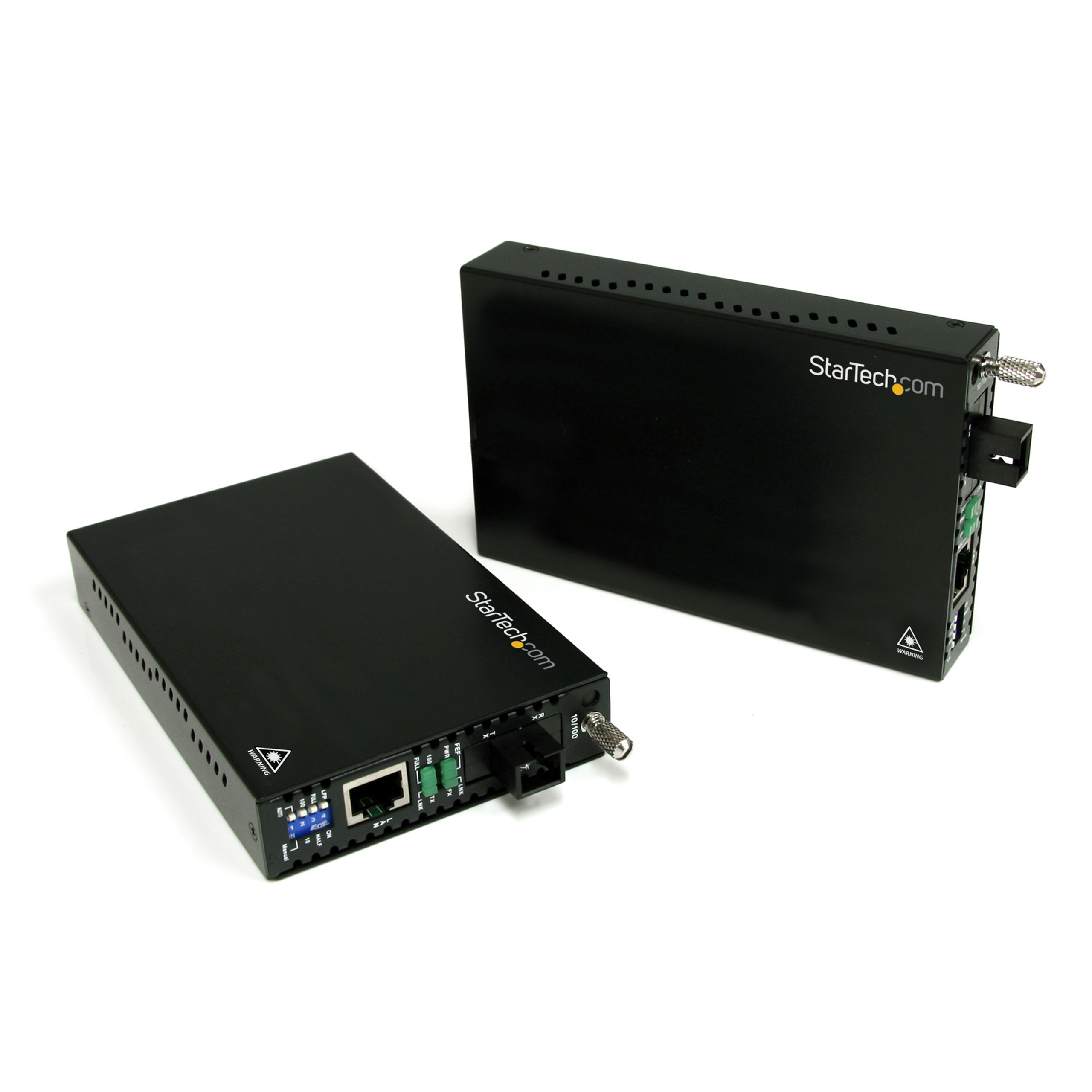

10 100 Ethernet WDM Fiber Media Converter Kit SC
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 10 100 Ethernet WDM Fiber Media Converter Kit SC Product Number ET90110WDM2 UPC 065030846271 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) Fiber WDM Converter Product Title (Short) 10/100 WDM Fiber Media Converter Kit SC Product Title (Standard) 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km, TAA Product Title (Long) 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km - TAA Product Title (AMZ) 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km , TAA (ET90110WDM2) Title Ingram (Part 1) 10/100 Ethernet Single Mode WDM Title Ingram (Part 2) Fiber Media Converter Kit SC Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable Bullet 1 WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication Bullet 2 Maximum Fiber Cable Length of 20 Km Bullet 3 Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths Bullet 4 Kit includes local and remote converter module for a complete solution Bullet 5 Supports full or half-duplex operation Bullets (Compact) Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles (20 km) over a single-mode SC fiber cable - WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for full-duplex bi-directional communication Bullets (Consolidated) WDM (Wave Division Multiplexing) Technology - Kit includes local and remote converter module for a complete solution - Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis - Maximum Fiber Cable Length of 20 Km - Supports full or half-duplex operation - Easy to use and install Marketing Copy Marketing Copy (No HTML) Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Suitable for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues

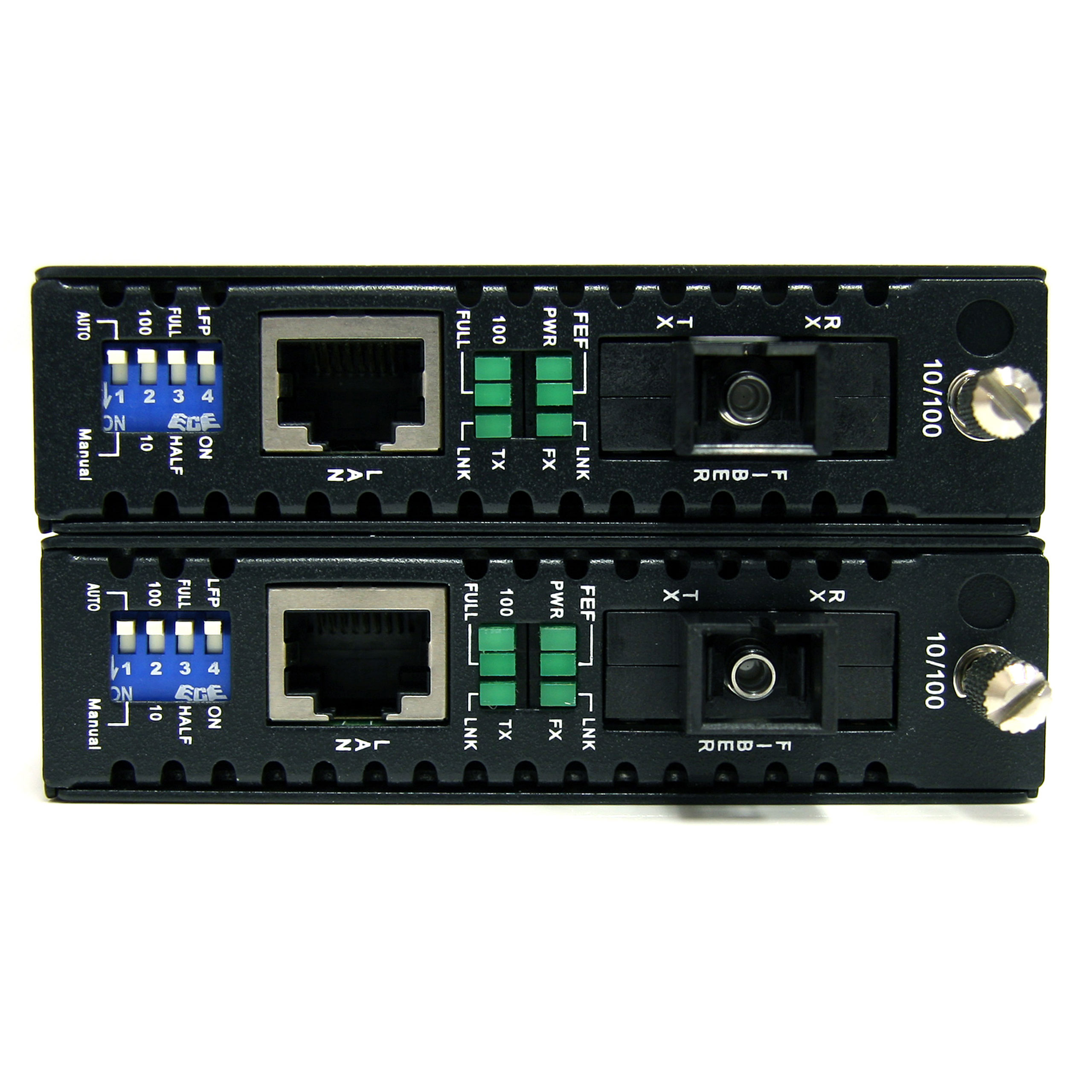

- Converts 10/100Base-T Ethernet to 100Base-FX fiber optic signals (and back - includes both endpoints) over single mode fiber cable
Website Search Keyword - Ethernet Fiber Media Converter
- 10/100
- fibre converter
- coax to fibre
- coax to fiber
- ethernet to fiber
- ethernet to fibre
- copper to optical
- copper to fiber
- copper to fibre
- wave duplex
- wave division
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - ETCHS2U
- C6PATCH10BL
- C6PATCH15BL
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET90110WDM
- ET90110SM30
- ET1000SM40LC
- ET91000SM40

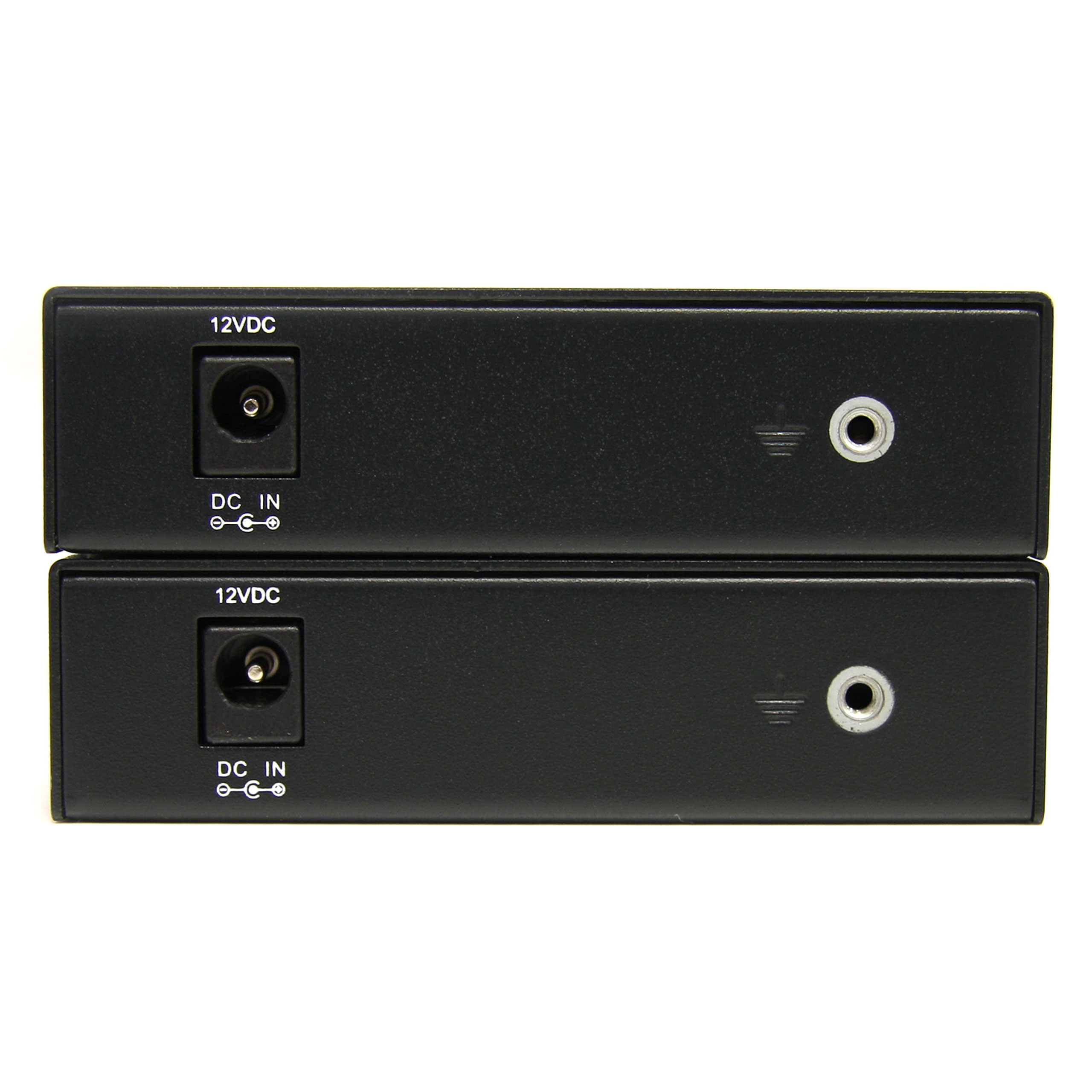

Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source 2 AC Adapters Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 160 Product Width (mm) 88 Product Height (mm) 25 Product Weight (g) 1200 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode) Max Transfer Distance 20 km (12.4 mi) Wavelength - 1310nm
- 1550nm
Fiber Connector SC Industry Standards - IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3u 100BASE-FX

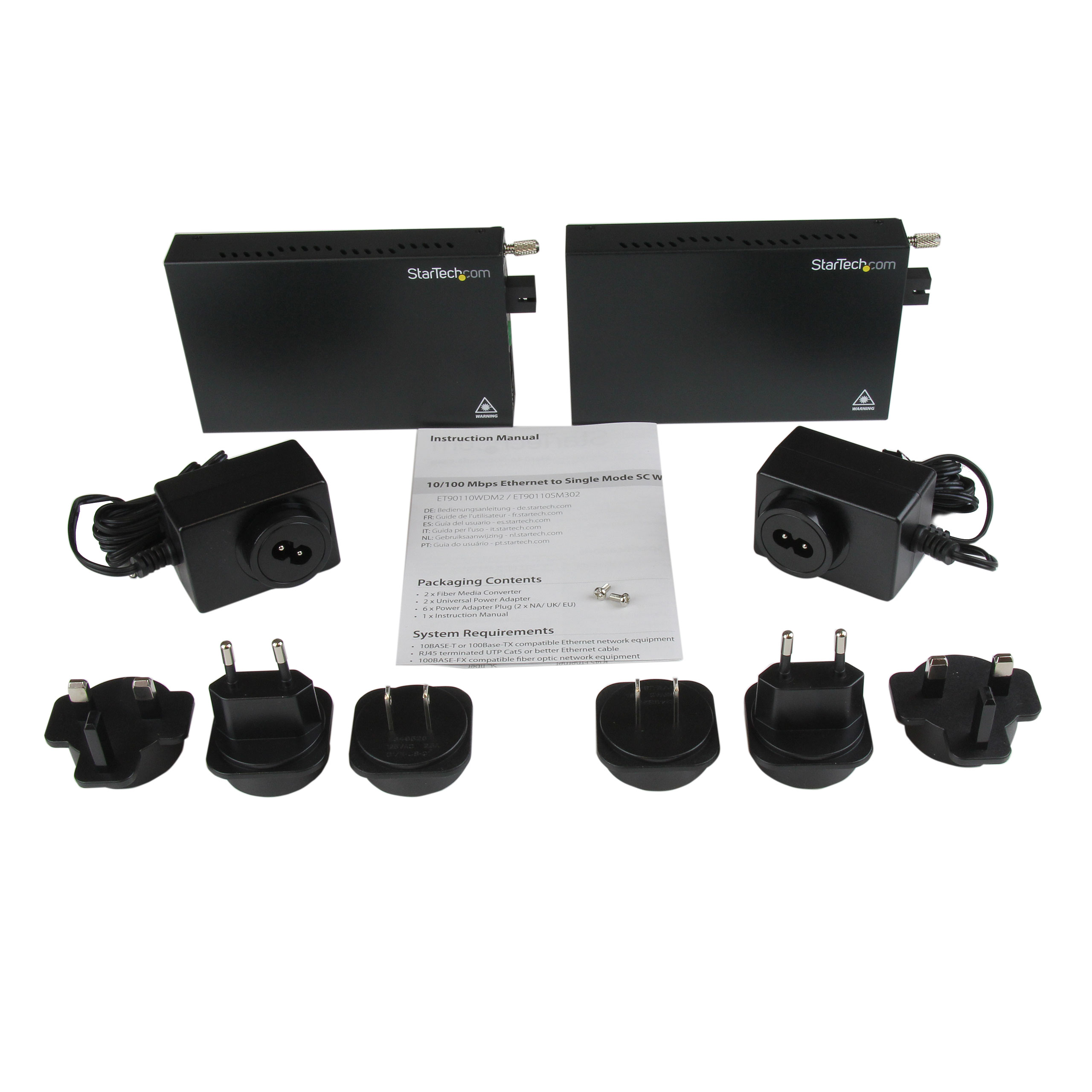

Power over Ethernet No Wave Division Multiplexing (WDM) Yes Carton Depth (mm) 434 Carton Height (mm) 326 Carton Quantity 12 Carton Weight Gross (g) 20926 Included in Package - 1 - Local Media Converter Unit
- 1 - Remote Media Converter Unit
- 2 - Universal Power Adapters (NA/EU/UK/AU)
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 212 Package Height (mm) 99 Package Width (mm) 278 Package Quantity 1 Package Weight (g) 1626 Packaging Description 10/100 Ethernet to SC Fiber Converter Kit WDM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
