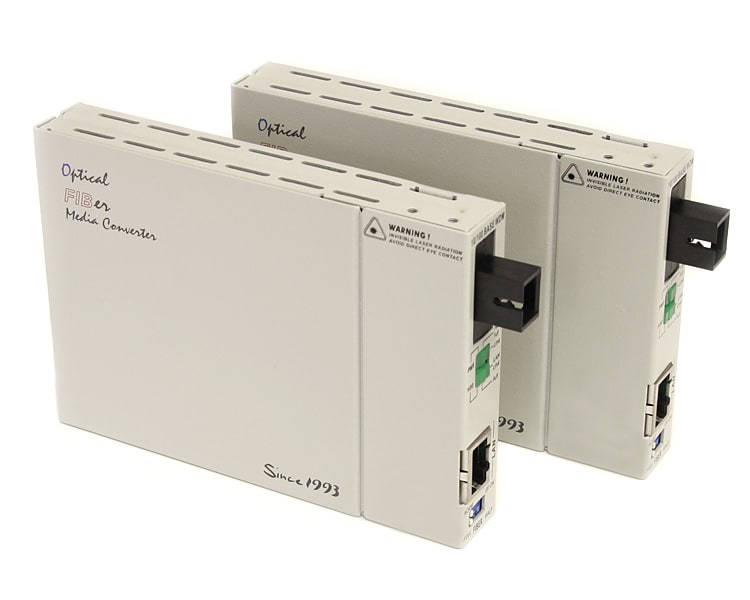

Product Name 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit - SC Product Number ET90110WDMEU UPC 065030833615 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) 1 Country of Origin History (2) Taiwan Product Title (Short) 10/100 WDM Fiber Media Converter Kit SC Product Title (Standard) StarTech.com WDM Fiber media converter - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 - SC single mode - external - up to 20 km - 1310 (TX) / 1550 (RX) nm (pack of 2 ) Product Title (Long) 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit - SC Title Ingram (Part 1) 10/100 Ethernet Single Mode WDM Title Ingram (Part 2) Fiber Media Converter Kit SC Bullet 1 Single mode design allows signals to be transmitted up to 20 Km Bullet 2 WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for both sending and receiving of data (Tx/Rx), reducing the amount of cable required by half Marketing Copy Applications Bridging two Ethernet networks using a single fiber cable Website Search Keyword RoHS Related Products - ET90110SC
- ET90110ST
- ET91000SC
Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 340 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Single Mode General Specifications - Additional Features: Link-loss forwarding, loop-back test, remote monitor status
- MBTF: 38,000 hours (minimum)
- Output Power: -18 dBm
- Power Margin: 14 dB
- Return Loss: -14 dBm
- Sensitivity: -32 dBm
- Supported Cable Type: 9/125 um Single Mode (SC Connector)
- Switching Mechanism: Store and Forward
- Wavelength: Tx: 1310 nm / Rx: 1550 nm
- Max Transfer Distance: 20 km
Maximum Data Transfer Rate 10/100 Mbps Max Transfer Distance 20 km (12.4 mi) Wavelength 1310nm Fiber Connector SC Industry Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX, 100Base-FX Power over Ethernet No Wave Division Multiplexing (WDM) Yes Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 en-US Content Approved Yes
