ET90110WDMGB

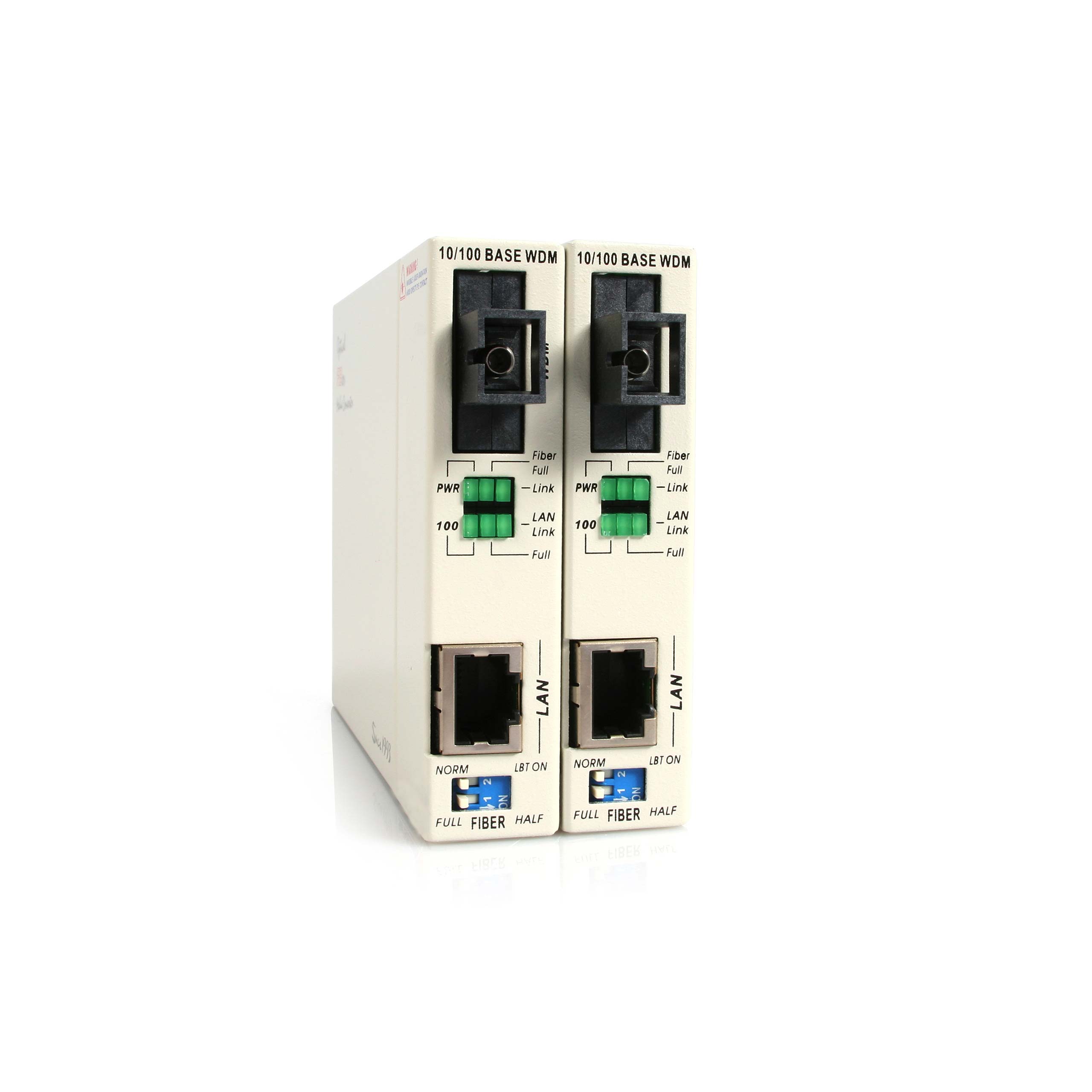

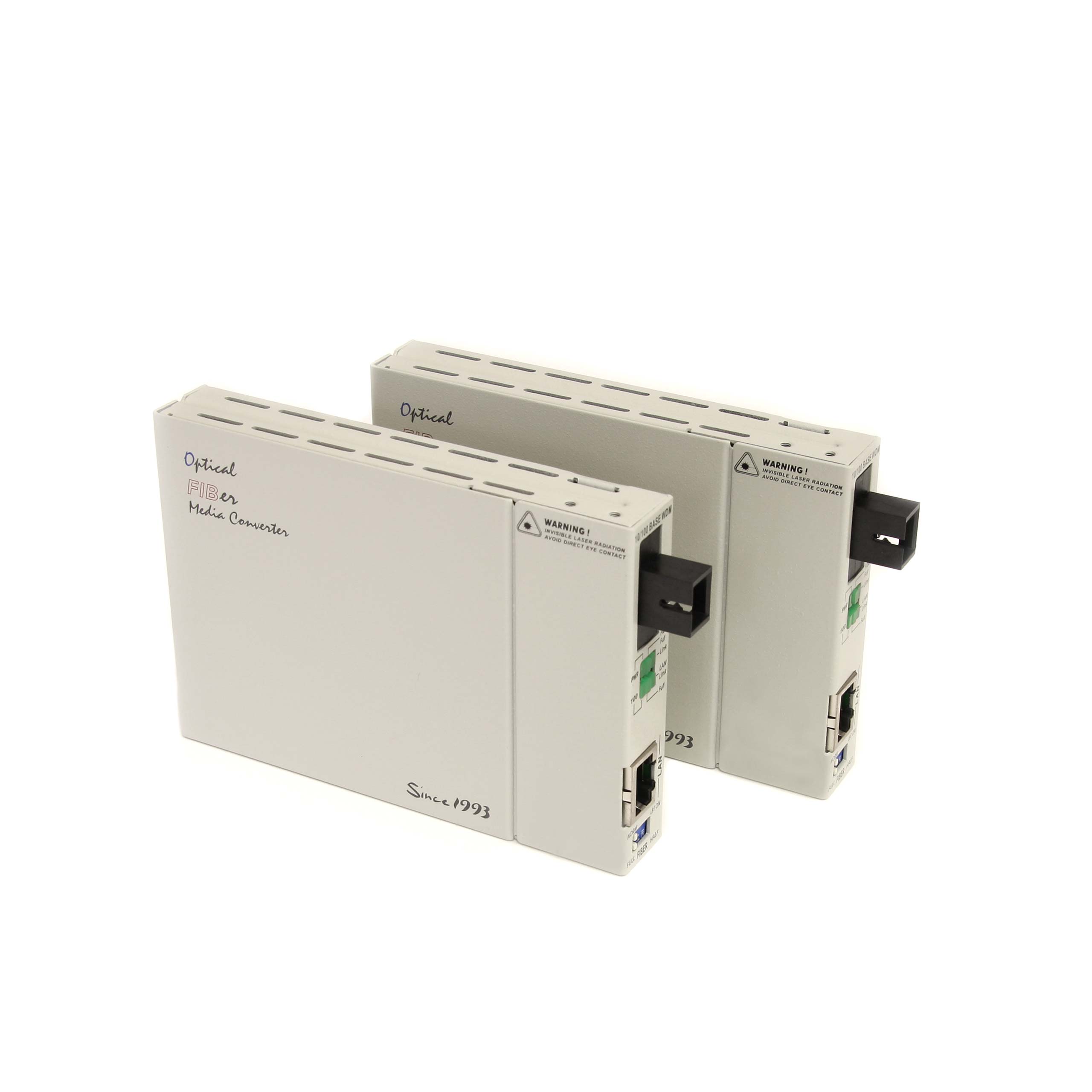

10/100 MBPS Single Mode WDM Media Converter
Convert and extend a 10/100 Mbps Ethernet connection up to 20 km over a single SC fiber cable
Main Image
Product Images
Product Images
BOM Image
Product Name 10/100 MBPS Single Mode WDM Media Converter Product Number ET90110WDMGB UPC 065030833608 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) WDM Fiber Ethernet Media Converter Kit Product Title (Standard) StarTech.com 10/100 Mbps Single Mode WDM Fiber to Ethernet Media Converter Kit - SC Product Title (Long) 10/100 Mbps Single Mode WDM Fiber to Ethernet Media Converter Kit - SC Title Ingram (Part 1) 10/100 Single Mode WDM Fiber Eth Title Ingram (Part 2) ernet Media Converter Kit SC Website Product Headline Convert and extend a 10/100 Mbps Ethernet connection up to 20 km over a single SC fiber cable Bullet 1 Single mode design allows signals to be transmitted up to 20 Km Bullet 2 WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for both sending and receiving of data (Tx/Rx), reducing the amount of cable required by half Bullet 3 Additional Features include Link-loss forwarding, loop-back test, remote monitor status Bullet 4 Supports 9/125 µm Single Mode fiber cable (SC Connector) Marketing Copy Applications Bridging two Ethernet networks using a single fiber cable Website Search Keyword RoHS Related Products - ET90110SC
- ET90110ST
- ET91000SC

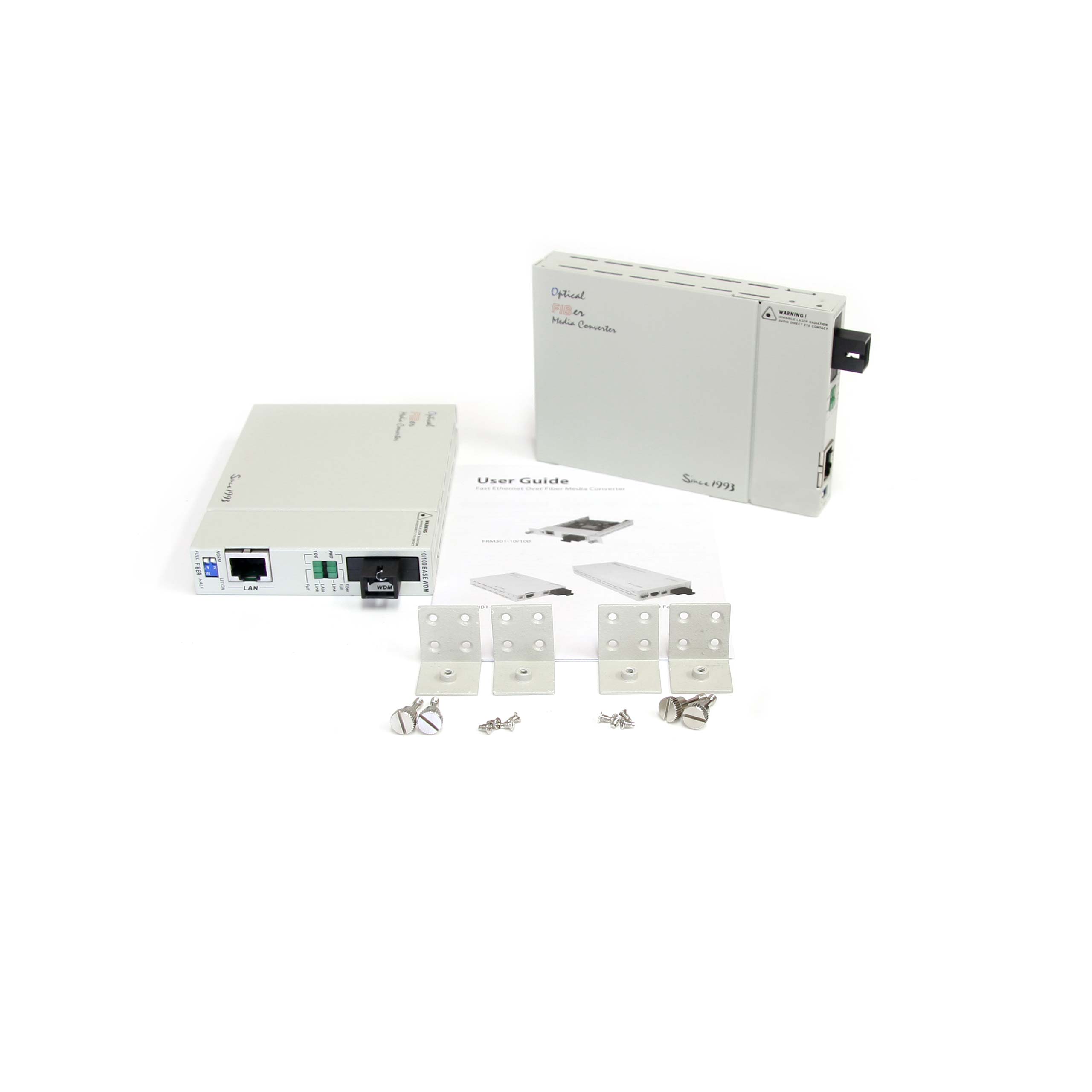

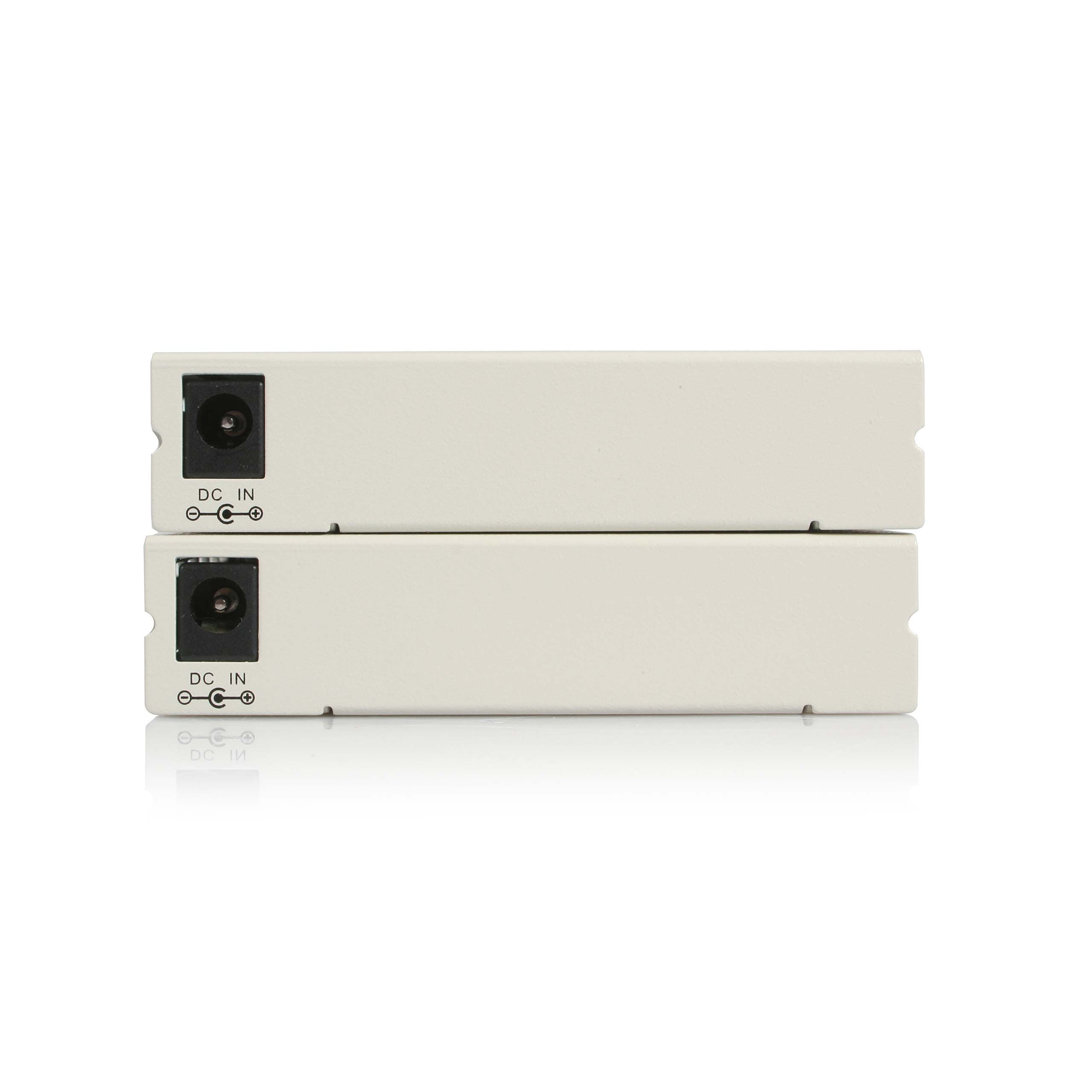

Replacement Product ET90110WDM2 Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 340 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type Single Mode Maximum Data Transfer Rate 10/100Mbps Max Transfer Distance 20 km (12.4 mi) MTBF (hours) 38,000 Hours Switching Architecture Store and Forward Wavelength 1310nm Fiber Connector SC Industry Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX, 100Base-FX Power over Ethernet No Wave Division Multiplexing (WDM) Yes Carton Depth (mm) 400 Carton Height (mm) 280 Carton Quantity 12 Carton Weight Gross (g) 9240 Included in Package - 1 - Local Media Converter Unit
- 1 - Remote Media Converter Unit
- 2 - Power Adapter
- 1 - Instruction Manual
- 4 - Mounting Brackets
Package Depth (mm) 190 Package Height (mm) 80 Package Width (mm) 230 Package Weight (g) 670 Packaging Description 10/100 Ethernet to Fiber Converter Kit WDM Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
