ET91000LC
1000 Ethernet MM Fiber Optic Media Converter LC
Convert an RJ-45 Gigabit Ethernet network connection to MultiMode fiber
Main Image
Product Images
Product Images
BOM Image
Product Name 1000 Ethernet MM Fiber Optic Media Converter LC Product Number ET91000LC UPC 065030826969 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 1000 Ethernet Fiber Media Converter LC Product Title (Standard) StarTech.com Gigabit RJ45 to Mmode SC Fiber Media Converter - Media converter - 1000Base-SX, 1000Base-T - RJ-45 - LC multi-mode - external - up to 550 m - 850 nm Product Title (Long) 1000 Mbps Gigabit Ethernet Multi Mode Fiber Media Converter LC 550m Title Ingram (Part 1) 1000Mbps Gigabit Ethernet MM Fib Title Ingram (Part 2) er Media Converter LC Website Product Headline Convert an RJ-45 Gigabit Ethernet network connection to MultiMode fiber Bullet 1 Easy installation and setup in seconds Bullet 2 Compatible with most 3Com™, Cisco™, Lucent™, and Nortel™ networks Bullet 3 Supports IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX industry standards Bullet 4 Standard RJ-45 connectors for connecting to UTP media, and LC connector for connecting to fiber media Bullet 5 Supports Half-Duplex and Full-Duplex operating modes up to 2 Gigabits/sec Marketing Copy Applications - Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- LAN-to-LAN connectivity between remote offices
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Connecting network servers and power users to Gigabit backbone
- Connects distant network or devices up to 550m in an existing multimode network
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- 50FIBLCLC1
Related Products - ET90110SC
- ET90110ST
- ET90110WDM
- ET91000SC
Replacement Product ET91000LC2 Equivalent Part Number in the EU ET91000LCEU Equivalent Part Number in the UK ET91000LCGB Input Current 0.4A Input Voltage 110V-240V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 690 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1000Mbps (1Gbps) Max Transfer Distance 550m [1804ft] Wavelength 850nm Fiber Connector LC Industry Standards IEEE 802.3ab 1000BaseT, IEEE 802.3z 1000BaseSX LED Indicators - 1 - Power
- 1 - Fiber Link
- 1 - Ethernet Link
- 1 - Fiber Duplex Mode
- 1 - Loopback Testing Mode
- 1 - Link Loss Forwarding Mode

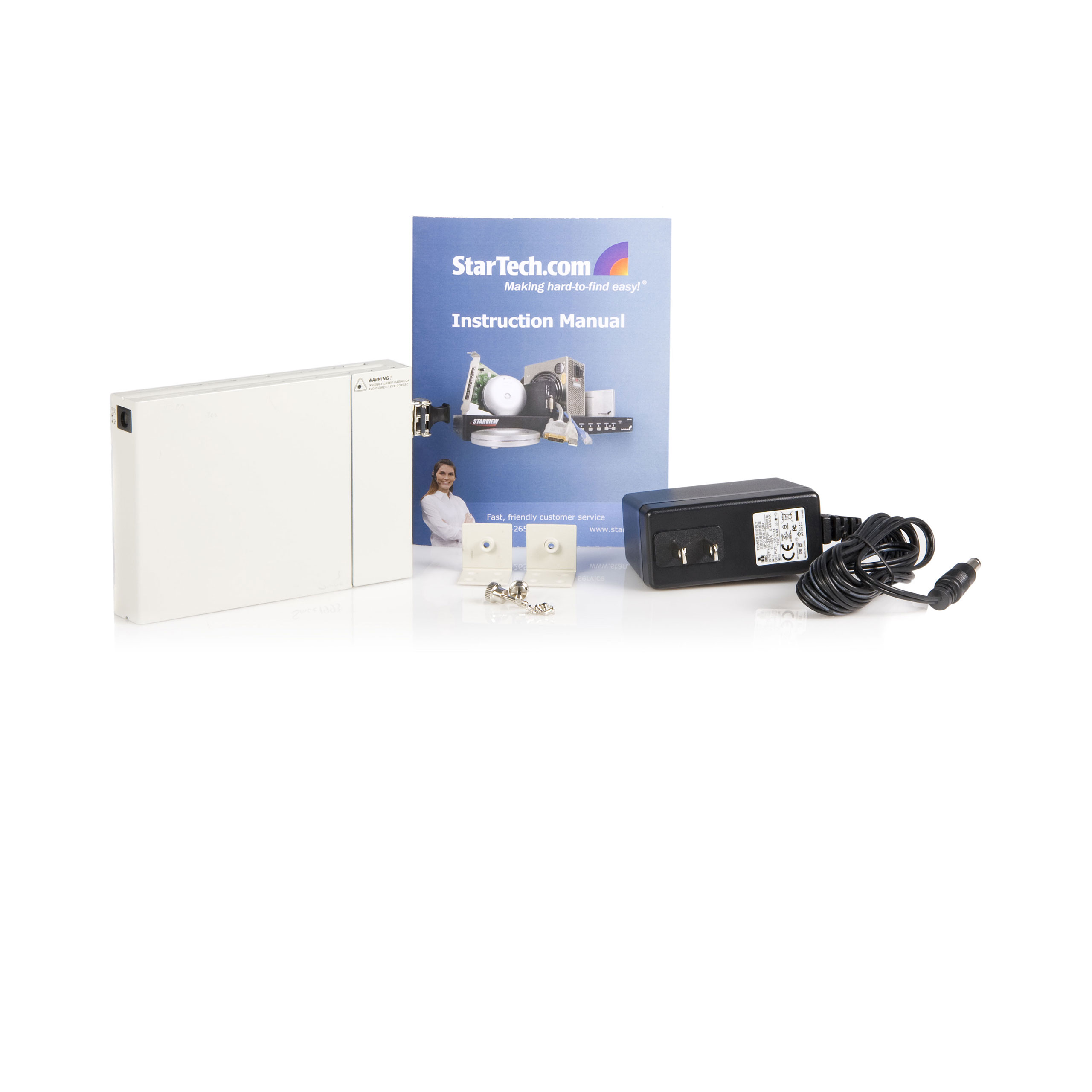

Power over Ethernet No Regulatory Approvals FCC Class A & CE Mark C-Tick Wave Division Multiplexing (WDM) No Carton Depth (mm) 489 Carton Height (mm) 215 Carton Quantity 12 Carton Weight Gross (g) 9840 Included in Package - 1 - Ethernet/Fiber Media Converter
- 1 - Power Adapter
- 1 - Instruction Manual
- 2 - Mounting Bracket w/ Screws
Package Depth (mm) 74 Package Height (mm) 185 Package Width (mm) 226 Package Weight (g) 720 Packaging Description Gigabit Ethernet to LC Fiber Converter 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
