Gigabit Multi Mode Fiber Media Converter LC Fibre

Main Image

ET91000LC2

Gigabit Multi Mode Fiber Media Converter LC Fibre

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber

Main Image

Product Images

Product Images

Product Images

BOM Image

Product Name	Gigabit Multi Mode Fiber Media Converter LC Fibre
Product Number	ET91000LC2
UPC	065030846226
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Networking > Ethernet Media Converters
Category Level 1	Networking
Category Level 2	Ethernet Media Converters
Category Level 3	Multi Mode
Family	Media Converters - ET Series
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX016X

Manual https://images.salsify.com/image/upload/s--gVi4hQcE--/f480b2b6dc192a0b427ef65d12a06d2c250f5892.pdf

Product Title (Short)	Fiber Media Converter Gigabit Fibre LC
Product Title (Medium)	x
Product Title (Standard)	Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m, TAA
Product Title (Long)	Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m - TAA
Product Title (AMZ)	Multimode (MM) LC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet - 850nm - with SFP Transceiver , TAA (ET91000LC2)
Title Ingram (Part 1)	Fiber Media Converter Gigabit 10
Title Ingram (Part 2)	00Mbps MM Fibre LC 550m
Website Product Headline	Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber
Bullet 1	ETHERNET OVER FIBER EXTENSION: Use this half / full duplex RJ45 copper to fiber media converter to convert and extend a Gigabit Ethernet connection up to 550m / 1804ft over multimode LC fiber
Bullet 2	INCLUDES SFP: IT-grade network fiber media converter includes an SFP transceiver, enabling an 850nm LC multimode Gigabit fiber connection
Bullet 3	MAXIMUM DURABILITY: Rugged media converter with durable steel housing has been built to withstand harsh environments and features an operating temperature range of 0°C-60°C (32°F-140°F); TAA Complaint
Bullet 4	PLUG AND PLAY: Designed for ease of use, this LC RJ45 copper to fiber media converter provides a quick and easy setup; Can be used as a standalone device or mounted to a wall; Supports IEEE 802.1q Tag VLAN pass through and 9K Jumbo Frames
Bullet 5	THE IT PRO'S CHOICE: Designed and built for IT Professionals, this media converter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Bullets (Consolidated)	Convert and extend a Gigabit Ethernet connection up to 550 m/1804 ft over Multimode LC fiber - Gigabit Media Converter - Fibre Converter - Ethernet Media Converter - 1000base-sx - Fiber Converter - Media Converter Multi Mode Fiber LC 550m
Marketing Copy
Marketing Copy (No HTML)
Applications	Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over multi mode fiber cable Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether Extend network connectivity to remote areas of stadiums, auditoriums or other venues Perfect for secure connections required by government agencies where EMI is not acceptable Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword	Ethernet Fiber Media Converter Media Converter LC gigabit 1000Base-LX fibre converter coax to fiber coax to fibre ethernet to fiber copper to fibre ethernet fibre copper to optical copper to fiber Fiber fibre media converter multi mode multi-mode multimode N785-001-LC-MM

Required Regulatory Compliance Marks

FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

Accessory Products	C6PATCH10BL C6PATCH15BL ETCHS2U SFPLHSM SVA12M2NEUA SVA12M5NA
Related Products	ET91000MMSM ET91000LC ET91000SC MCMGBSC055 ET1000SM40LC
Constrained SKU Alternatives (Limited Stock)	ET91000LCOAM ET91000SFP2

Input Current 0.36A
Input Voltage 100 - 240 AC
Output Current 1.6 A
Output Voltage (V) 12V DC
Power Consumption (In Watts) 4
Power Source AC Adapter Included
Plug Type M
Center Tip Polarity Positive

Color	Black
Humidity	10~90% RH
Material	Steel
Operating Temperature	0°C to 60°C (32°F to 140°F)
Primary Material	Steel
Product Length (mm)	160
Product Width (mm)	95
Product Height (mm)	20
Product Weight (g)	405
Storage Temperature	-10°C to 70°C (14°F to 158°F)
TAA Compliant	Yes

Auto MDIX Yes
Fiber Operating Mode Half/Full-Duplex
Fiber Type Multi Mode
Maximum Data Transfer Rate 2000 Mbps (full duplex mode)
Max Transfer Distance 550m [1804ft]
MTBF (hours) 65,000 Hours
Wavelength 850nm
Fiber Connector LC
Power over Ethernet No
Wave Division Multiplexing (WDM) No

Carton Depth (mm)	356
Carton Height (mm)	302
Carton Quantity	15
Carton Weight Gross (g)	12418

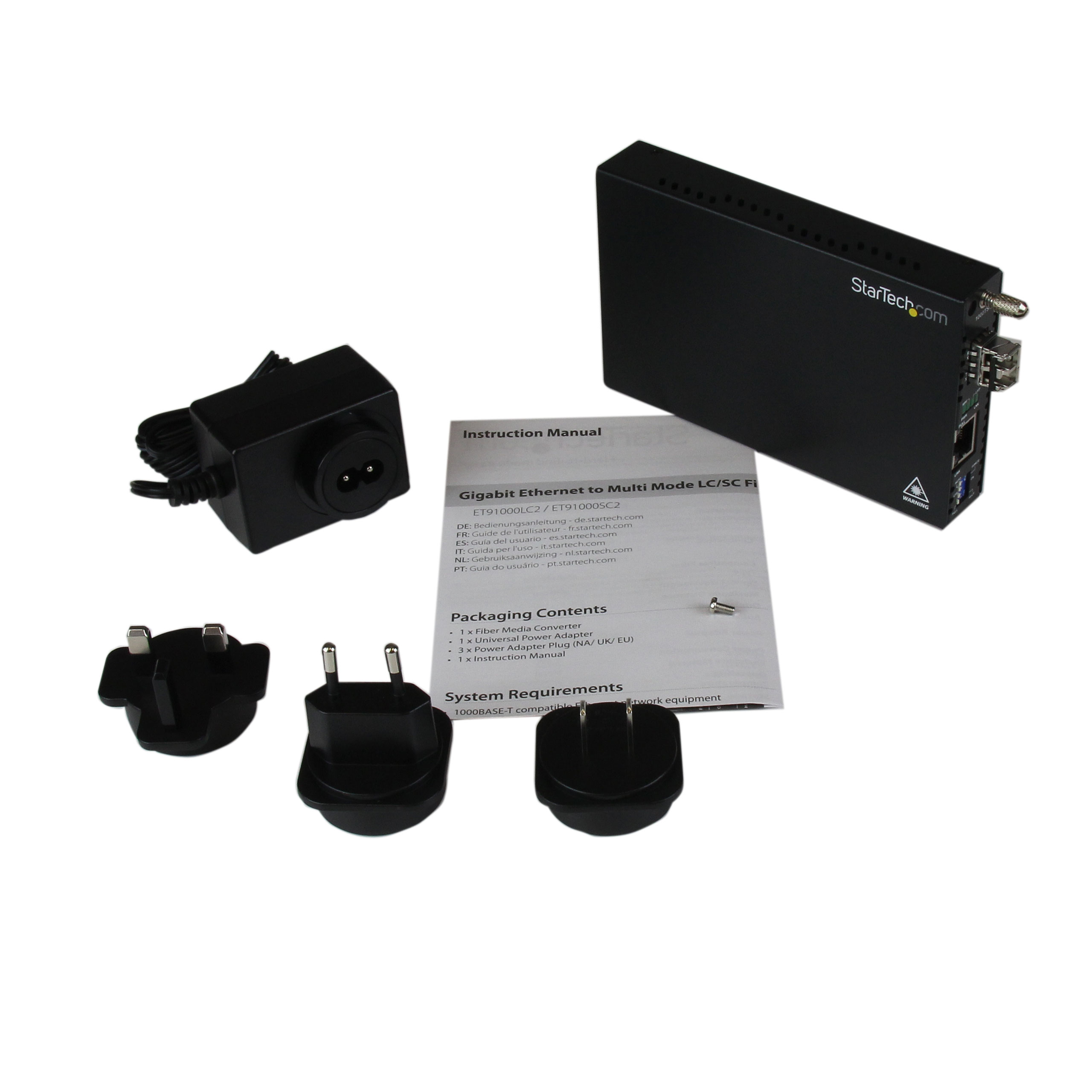

Included in Package	1 - Fiber Media Converter 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand 1 - Instruction Manual 1 - Grounding Screw
Package Depth (mm)	139
Package Height (mm)	91
Package Width (mm)	206
Package Quantity	1
Package Weight (g)	766
Packaging Description	Gigabit Ethernet to LC Fiber Converter 550m
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0

Host Connector 1 RJ-45
Host Connector 1 (Quantity) 1
Host Connector 2 LC Duplex Fiber
Host Connector 2 (Quantity) 1

Amazon Merchandising Manager	Kathleen Marshall
Artwork Due Date	2014-06-18
Buying Center - AV & Collaboration	No
Buying Center - Data Center	No
Buying Center - End User Compute	No
Buying Center - Networking & Edge	No
Enhanced Gallery Designer	Catherine Almeida
en-US Content Approved	Yes
Focus Rank	Level 0 - Not Applicable
Graphic Designer	Shane Arnett
Launch Markets (concatenated)	AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,UK,US
Primary Technology	None
Product Development Specialist	Ray Aoki
Product Information Creation Specialist (PICS)	Alex Garcia
Product Manager	Rob Fleck
Product Performance Specialist	Ray Aoki
Product Photographer	Alejandra Valencia
Tech Lead	Stefan Tirolese
Technical Writer	Alex Garcia
Technology Lifecycle	None

Input Current	0.36A
Input Voltage	100 - 240 AC
Output Current	1.6 A
Output Voltage (V)	12V DC
Power Consumption (In Watts)	4
Power Source	AC Adapter Included
Plug Type	M
Center Tip Polarity	Positive

Auto MDIX	Yes
Fiber Operating Mode	Half/Full-Duplex
Fiber Type	Multi Mode
Maximum Data Transfer Rate	2000 Mbps (full duplex mode)
Max Transfer Distance	550m [1804ft]
MTBF (hours)	65,000 Hours
Wavelength	850nm

Fiber Connector	LC
Power over Ethernet	No
Wave Division Multiplexing (WDM)	No

Host Connector 1	RJ-45
Host Connector 1 (Quantity)	1
Host Connector 2	LC Duplex Fiber
Host Connector 2 (Quantity)	1
