ET91000LCGB
1000 MM Fiber Optic Ethernet Media Converter LC
Convert an RJ-45 Gigabit Ethernet network connection to MultiMode fiber
Main Image
Product Images
Product Images
BOM Image
Product Name 1000 MM Fiber Optic Ethernet Media Converter LC Product Number ET91000LCGB UPC 065030833622 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Short) 1000 Fiber Ethernet Media Converter LC Product Title (Standard) Gigabit Multi Mode Fiber Ethernet Media Converter LC Product Title (Long) 1000 Mbps Gigabit Multi Mode Fiber Ethernet Media Converter LC Title Ingram (Part 1) 1000Mbps Gigabit MM Fiber Ethern Title Ingram (Part 2) et Media Converter LC Website Product Headline Convert an RJ-45 Gigabit Ethernet network connection to MultiMode fiber Bullet 1 Compatible with most 3Com™, Cisco™, Lucent™, and Nortel™ networks Bullet 2 Easy installation and setup in seconds Bullet 3 Compact design and weight makes it portable and unobtrusive to carry Bullet 4 LED indicators continuously shows operating status of the converter Bullet 5 Plug and Play installation allows the converters to be connected to a PC, hub or a switch using an auto-sensing MDI/MDIX port Marketing Copy Applications - Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- LAN-to-LAN connectivity between remote offices
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Connecting network servers and power users to Gigabit backbone
- Connects distant network or devices up to 550m in an existing multimode network
Accessory Products - 50FIBLCLC1
- C6PATCH10BL
- C6PATCH15BL
Related Products - ET90110SC
- ET90110ST
- ET90110WDM
- ET91000SC
Replacement Product ET91000LC2 Output Current 0.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 690 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1000Mbps(1Gbps) Max Transfer Distance 550m [1804ft] Wavelength 850nm Fiber Connector LC Industry Standards - IEEE 802.3ab 1000BaseT
- IEEE 802.3z 1000BaseSX
LED Indicators - 1 - Fiber
- 1 - Power
- 1 - UTP

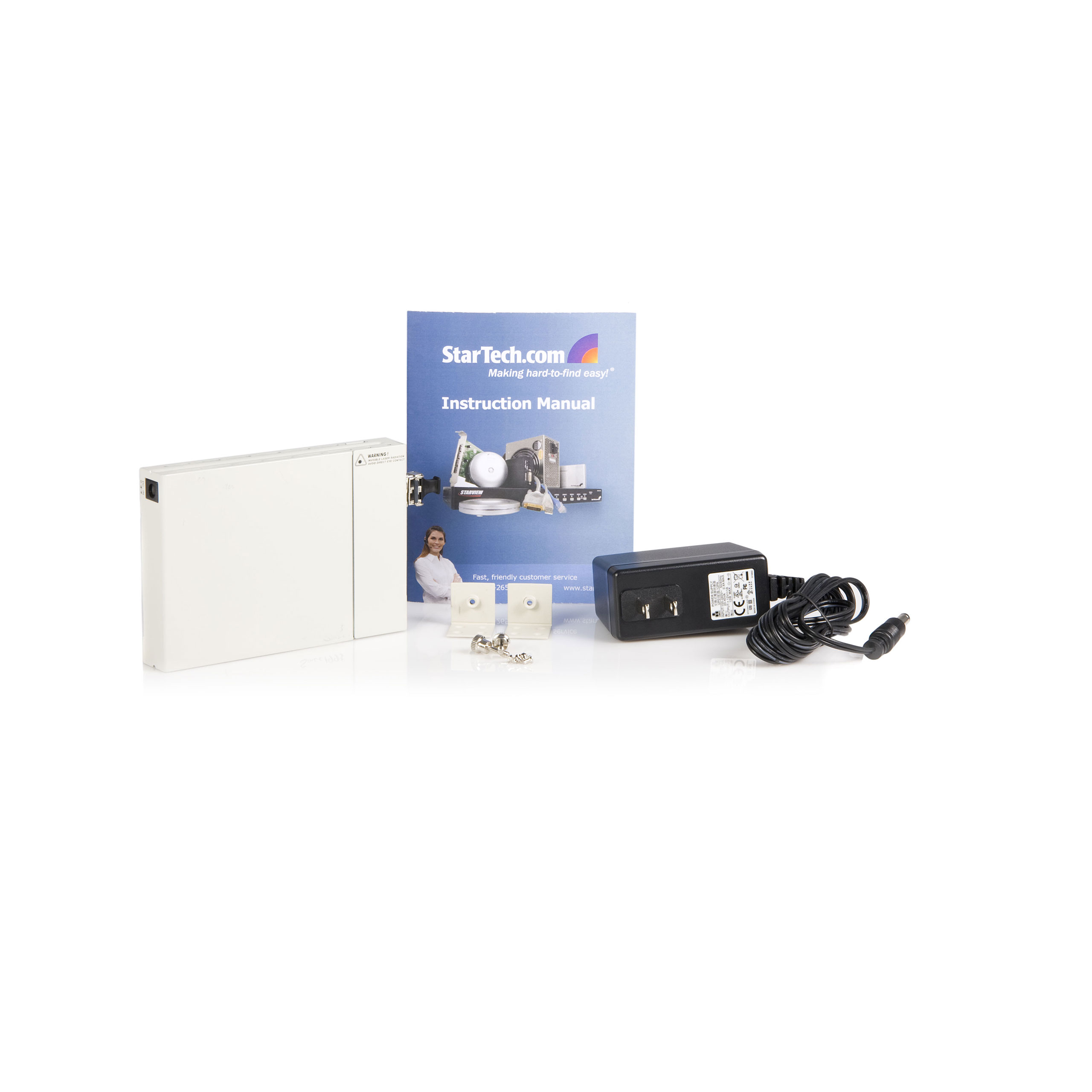

Power over Ethernet No Regulatory Approvals FCC Class A & CE Mark C-Tick Wave Division Multiplexing (WDM) No Carton Depth (mm) 400 Carton Height (mm) 280 Carton Quantity 1 Carton Weight Gross (g) 9000 Included in Package - 1 - Ethernet/Fiber Media Converter
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 190 Package Height (mm) 80 Package Width (mm) 230 Package Weight (g) 650 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 LC Duplex Fiber Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
