ET91000LCOAM

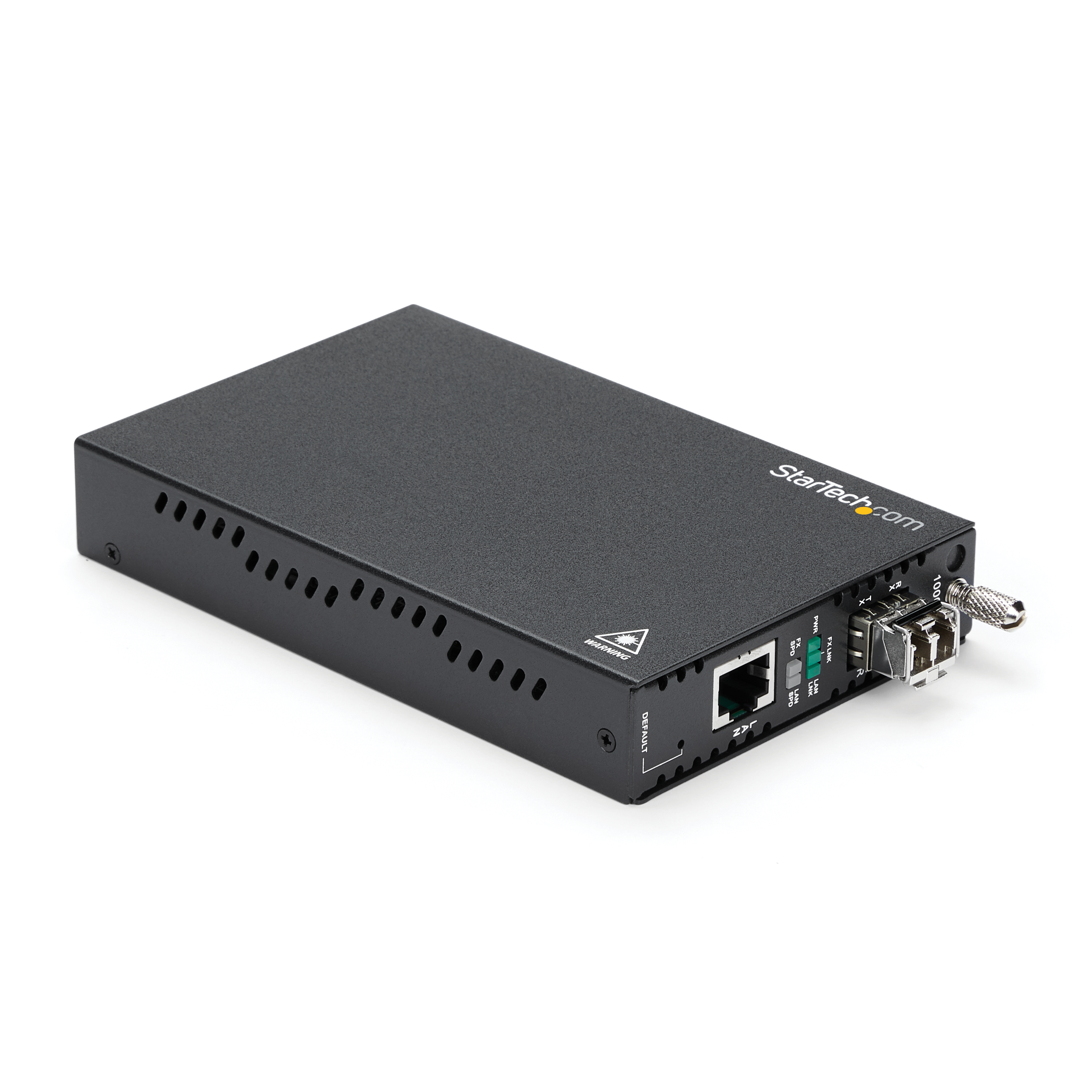

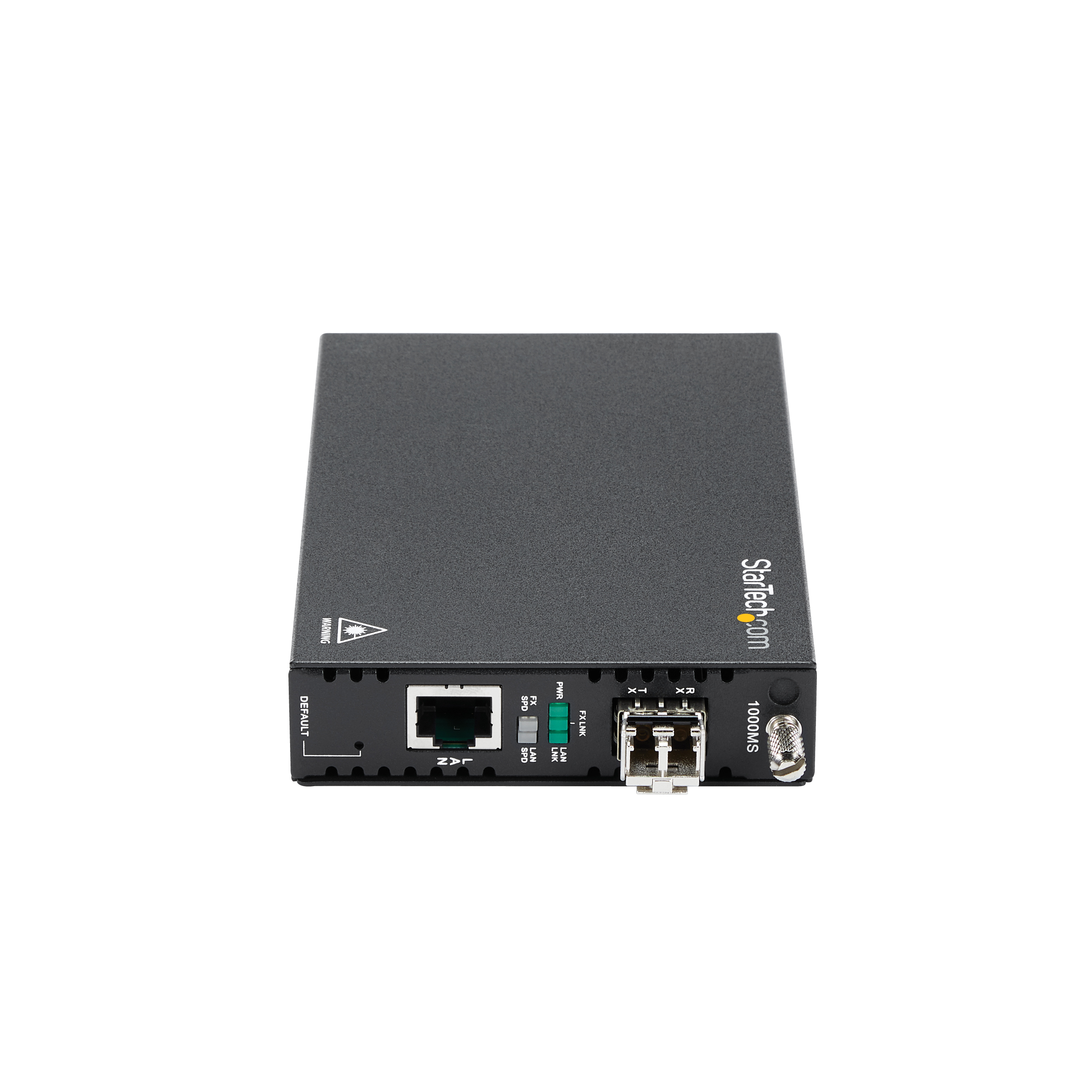

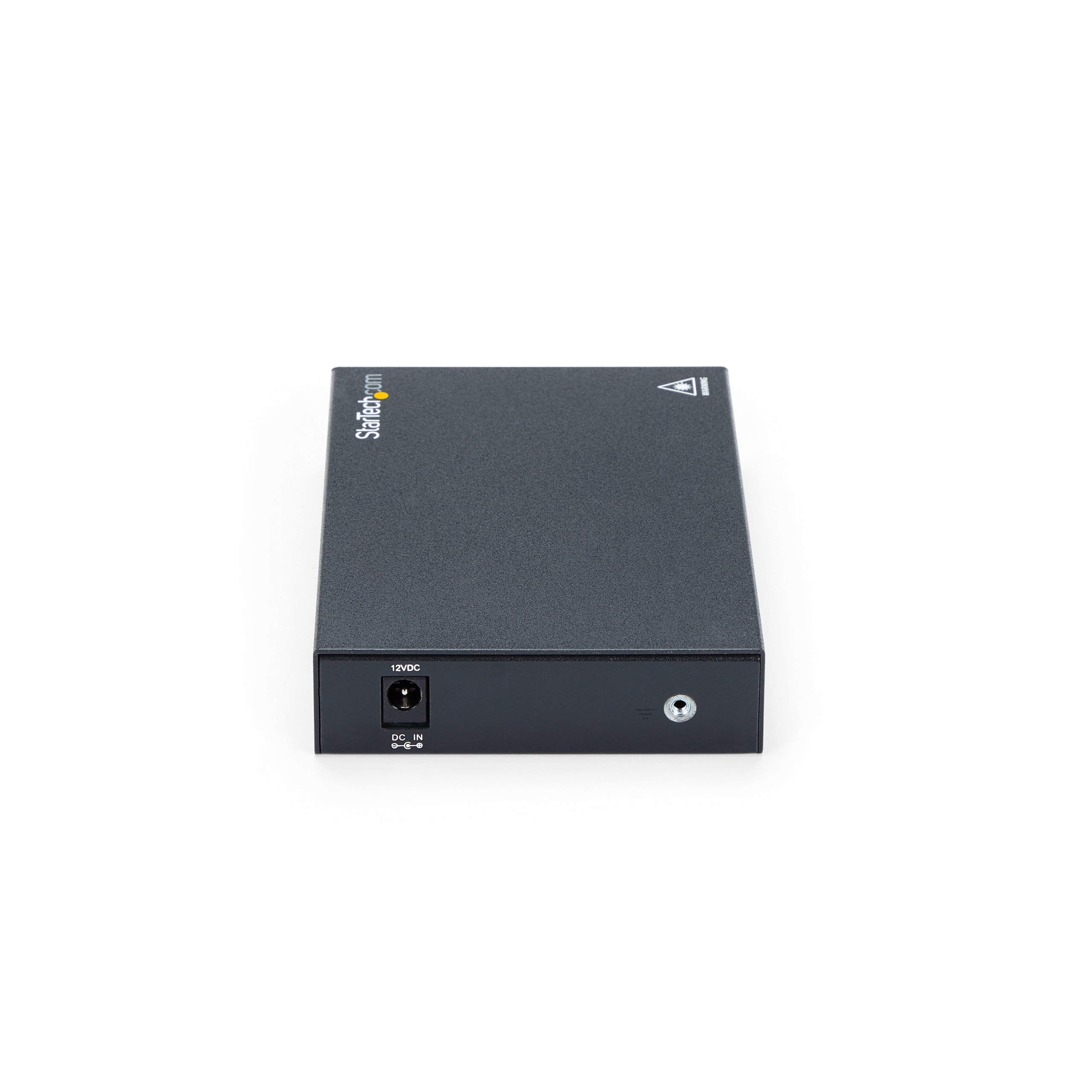

In-Band OAM Fiber Optic Media Converter MM LC 500m

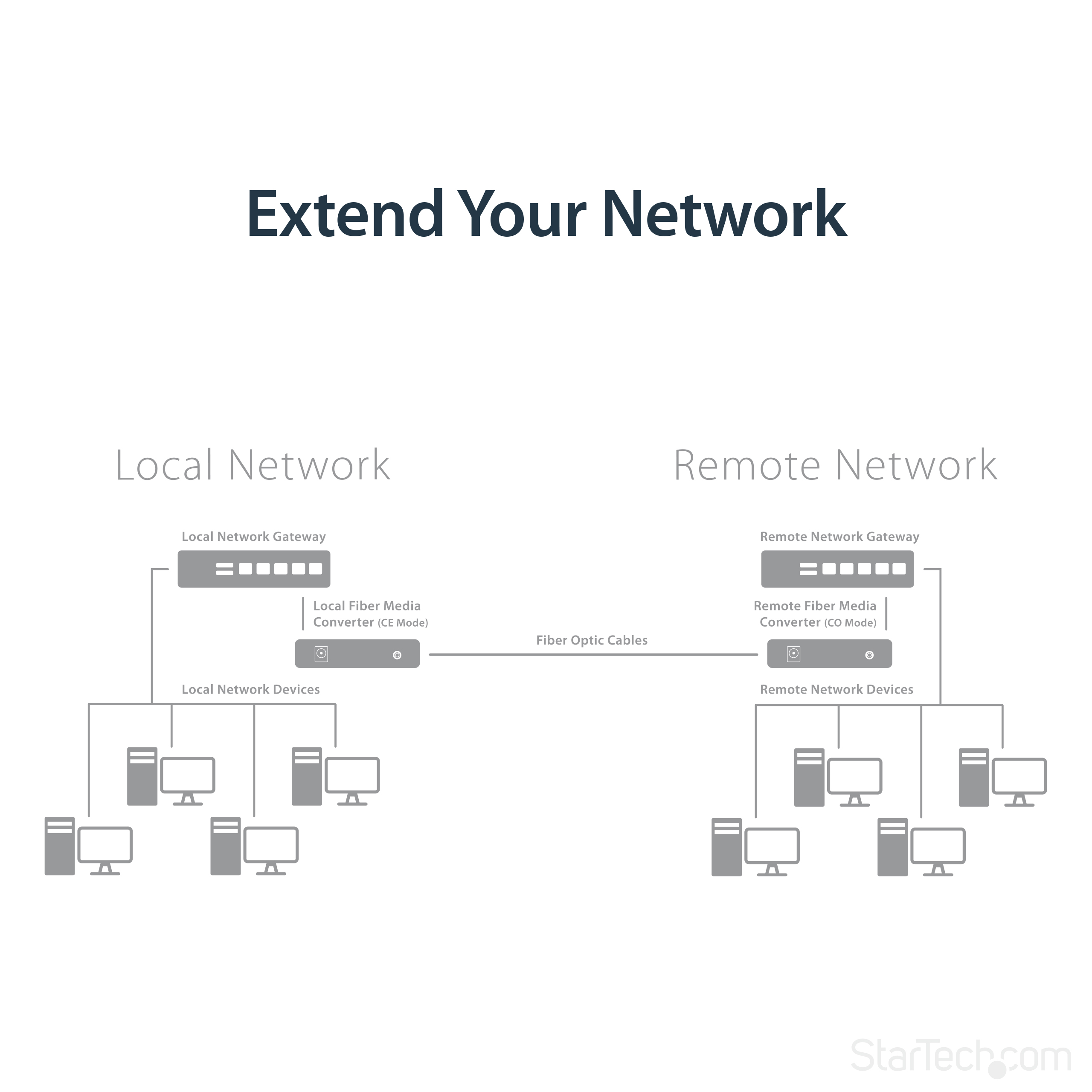

Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name In-Band OAM Fiber Optic Media Converter MM LC 500m Product Number ET91000LCOAM UPC 065030854566 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) OAM Fiber Converter Product Title (Short) OAM Managed Fiber Media Converter LC Product Title (Standard) OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant Product Title (Long) OAM Managed Gigabit Ethernet Fiber Media Converter - Multi Mode LC 550m - 802.3ah Compliant - TAA Product Title (AMZ) Multimode (MM) LC Fiber Media Converter with SFP - OAM Management - 802.3ah Compliant - Gigabit Ethernet - 550m - 850nm (ET91000LCOAM) Title Ingram (Part 1) In-Band OAM Fiber Optic Media Title Ingram (Part 2) Converter Gigabit Ethernet MM LC Website Product Headline Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities Bullet 1 ETHERNET OVER FIBER EXTENSION: Use this full duplex RJ45 copper to fiber media converter to convert and extend a Gigabit Ethernet connection up to 550m / 1804ft over multimode LC fiber; Remote management capabilities Bullet 2 INCLUDES SFP: IT-grade network fiber media converter includes an SFP transceiver, enabling an 850nm LC multimode Gigabit fiber connection Bullet 3 MAXIMUM DURABILITY: Rugged media converter with durable steel housing has been built to withstand harsh environments and features an operating temperature range of 0°C-60°C (32°F-140°F); TAA Complaint Bullet 4 PLUG AND PLAY: Designed for ease of use, this LC RJ45 copper to fiber media converter provides a quick and easy setup; Can be used as a standalone device or mounted to a wall; Supports IEEE 802.1q Tag VLAN pass through and 9K Jumbo Frames Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this media converter is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah - Multi Mode LC 550m Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities - Ethernet Fiber Optic Media Converter - Gigabit Fibre Converter - In-Band OAM Managed Fiber Converter - 802.3ah Compliant - Multi Mode LC 550m - Supports 802.3ah OAM In-band management for monitoring connection status Marketing Copy Marketing Copy (No HTML) Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secure connections required by government agencies where EMI is not acceptable

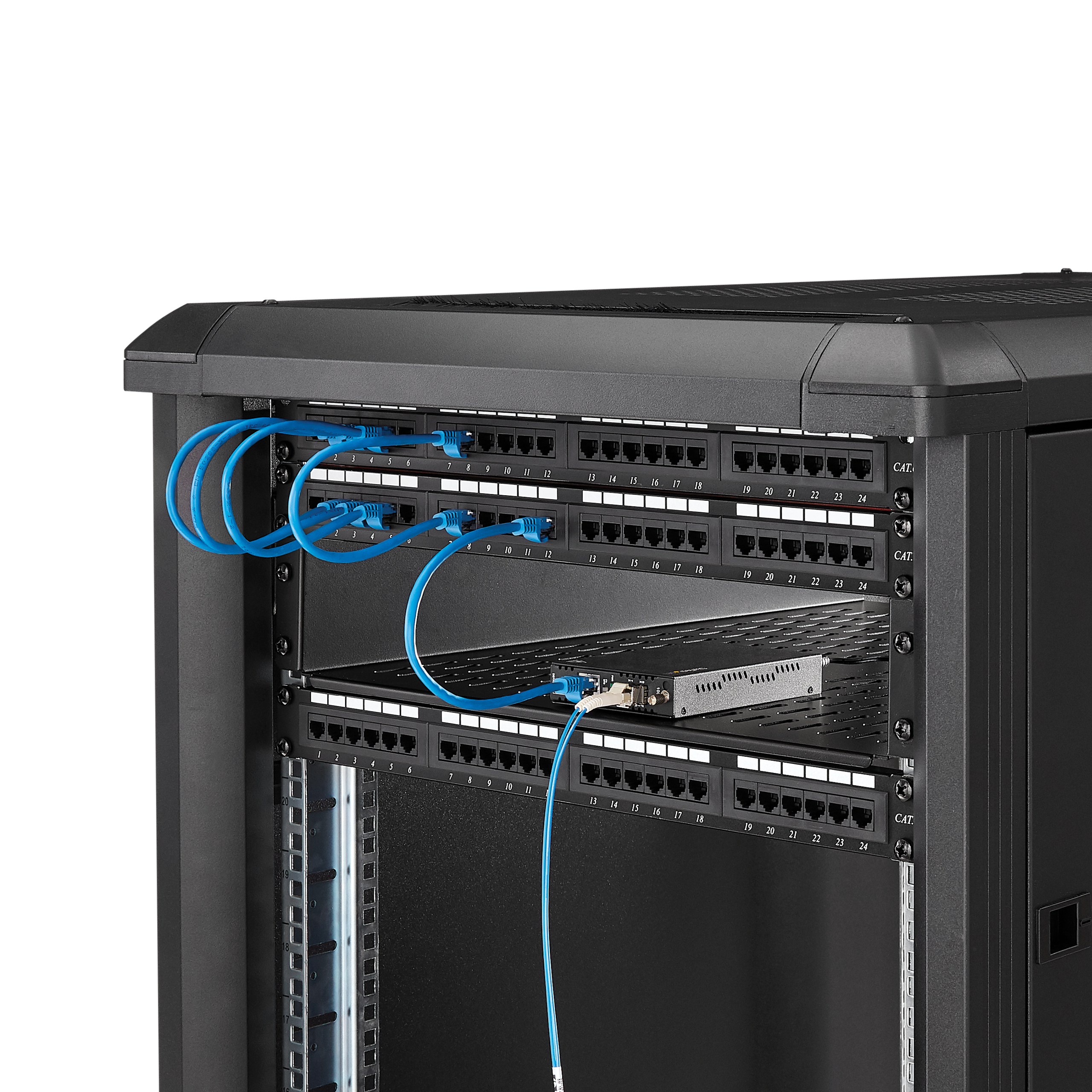

- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Connect traffic control or monitoring systems to a main office, even from extreme distances
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SFPG1320C
- SFPG1340C
- SFPG1580C
- SFPGESST
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SFP2
- ET91000SM402
- ET1110PSE
- ET91000SFP2C
- ET91000LC2
- ET91000SC2
Replacement Product ET91000LC2 Input Current 0.36 A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 163.000 Product Width (mm) 87.000 Product Height (mm) 23.000 Product Weight (g) 411.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Digital Diagnostics Monitoring Support No Fiber Operating Mode Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1.25 Gbps Max Transfer Distance 550m [1804ft] MTBF (hours) 65,000 Hrs Wavelength 850nm Fiber Connector LC Industry Standards - IEEE 802.3ab 1000BASE-T
- IEEE 802.3 10BASE-T
- IEEE 802.3z 1000BASE-SX
- IEEE 802.3u 100BASE-TX
- IEEE 802.3z 1000BASE-LX
- IEEE 802.3ah EFM

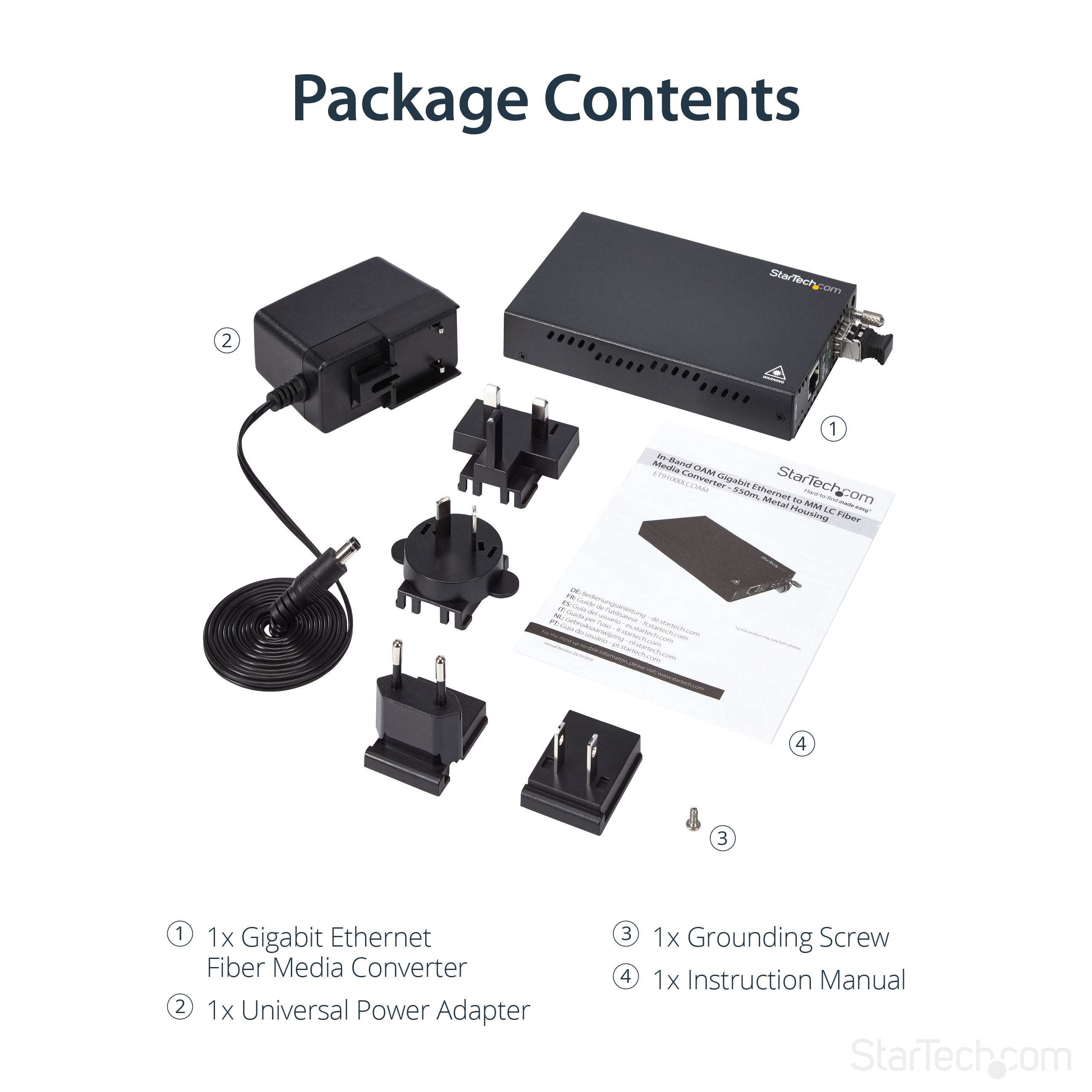

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 298 Carton Quantity 15 Carton Weight Gross (g) 12442 Included in Package - 1 - Instruction Manual
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Fiber Media Converter
- 1 - Grounding Screw

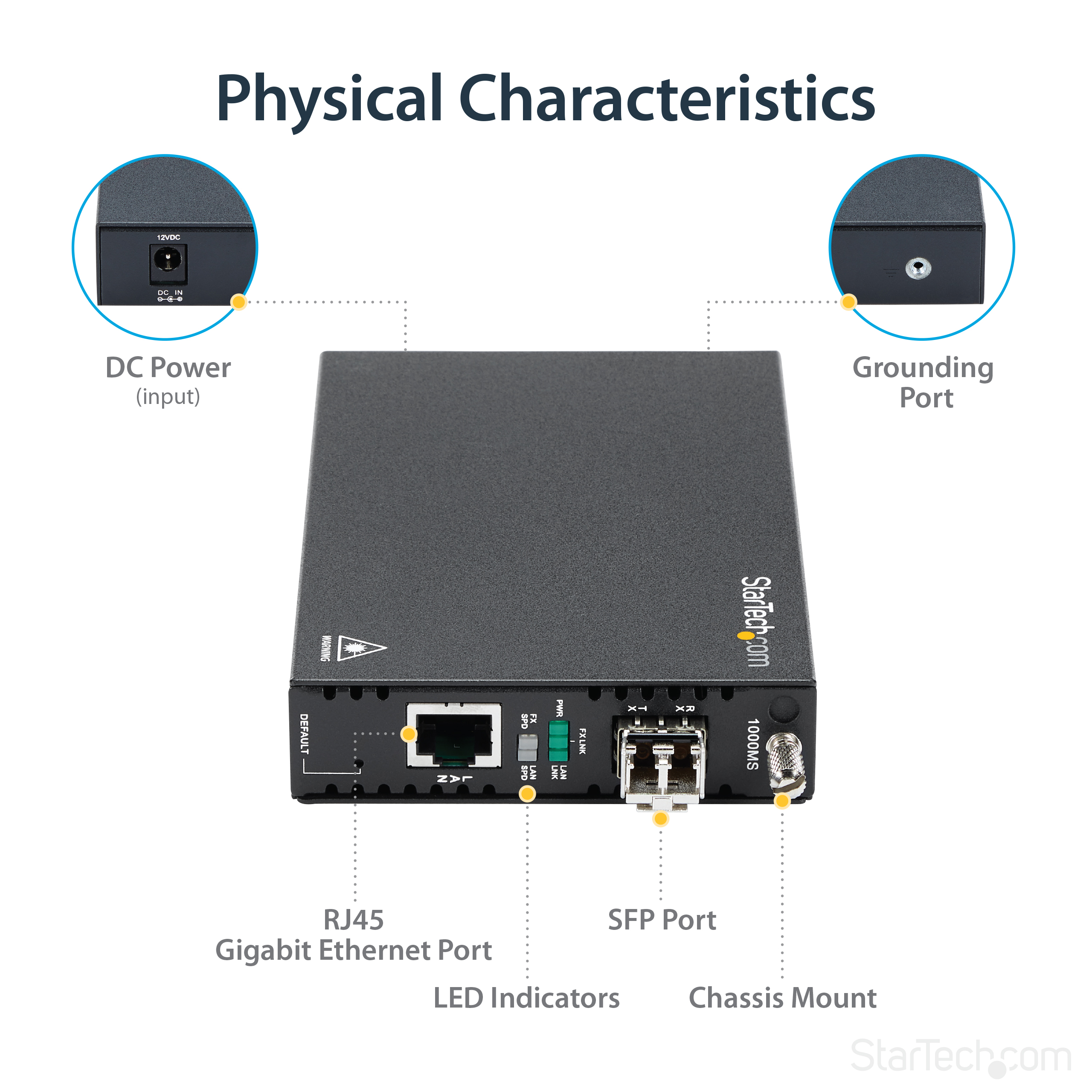

Package Depth (mm) 138 Package Height (mm) 92 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 780 Packaging Description In-Band OAM Gigabit Ethernet Fiber Media Converter - 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-22 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
