ET91000MMSM

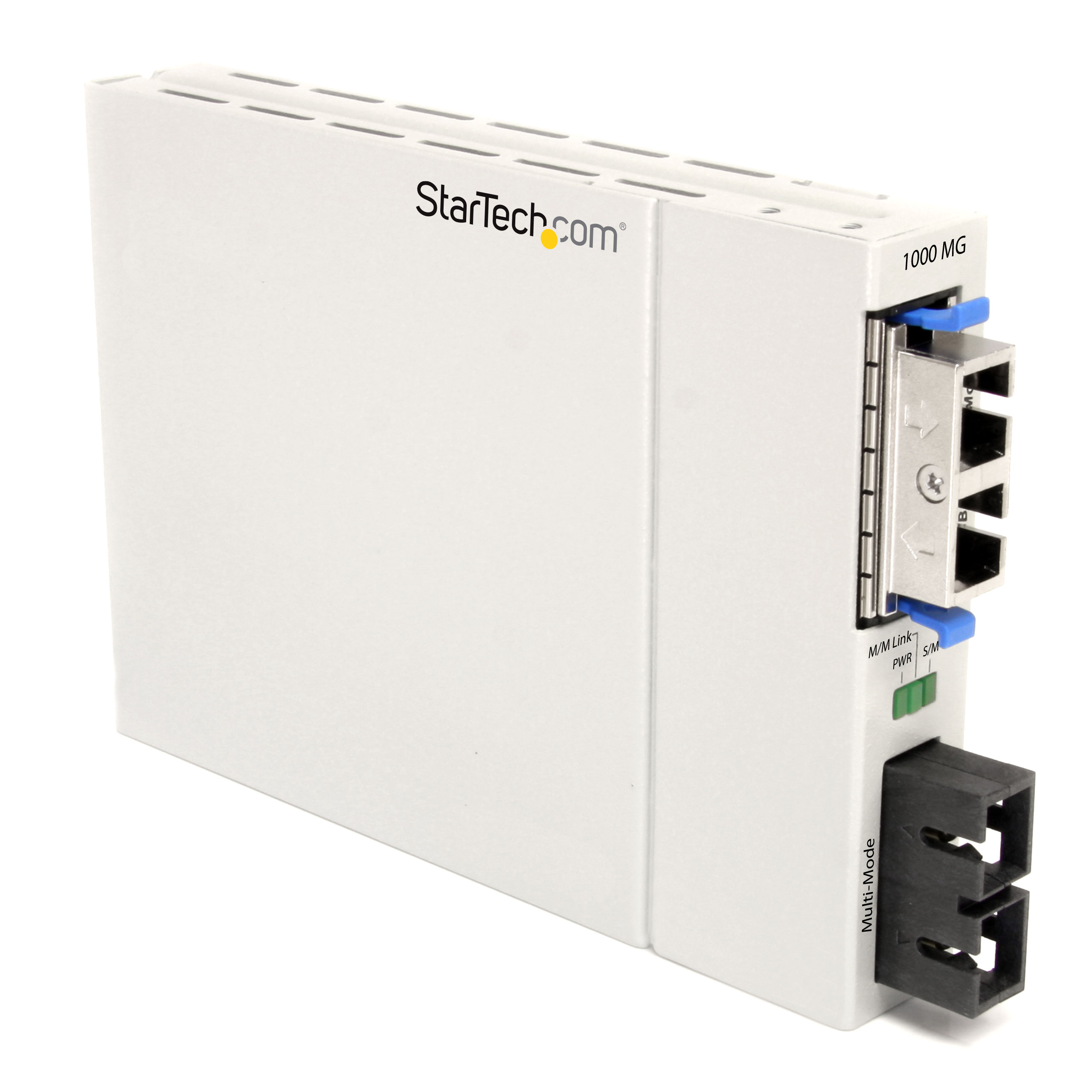

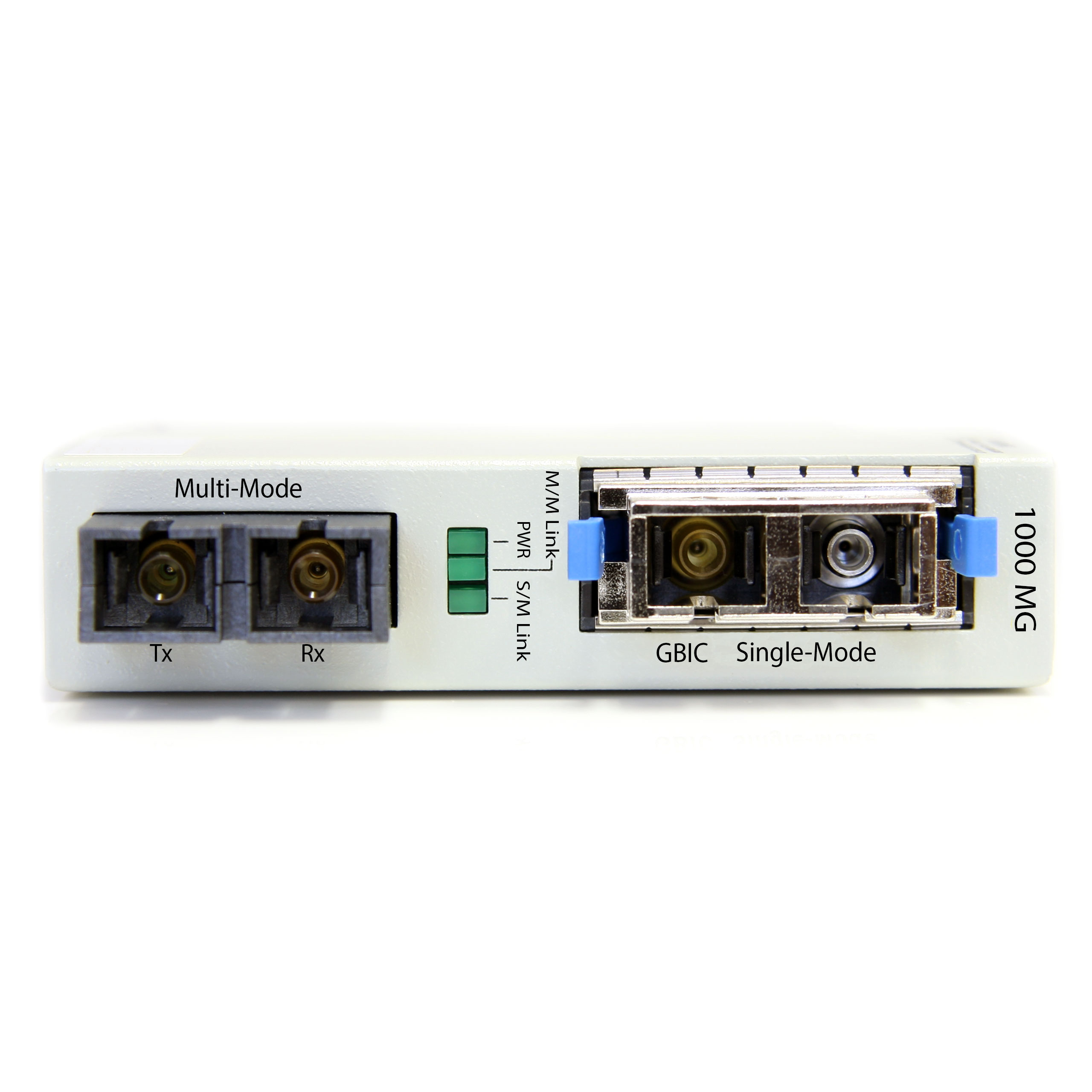

Gigabit SM/MM Fiber - Fiber Media Converter
Convert from Single to Multi Mode SC fiber protocol or vice-versa
Main Image
Product Images
Product Images
BOM Image
Product Name Gigabit SM/MM Fiber - Fiber Media Converter Product Number ET91000MMSM UPC 065030820493 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 1000 SM to MM Fiber Media Converter SC Product Title (Standard) 1000 Mbps Gigabit Single to Multi Mode Fiber Media Converter SC 10 km Product Title (Long) 1000 Mbps Gigabit Single to Multi Mode Fiber Media Converter SC 10 km Title Ingram (Part 1) Gigabit Single to Multi Mode Fib Title Ingram (Part 2) er Media Converter SC 10 km Website Product Headline Convert from Single to Multi Mode SC fiber protocol or vice-versa Bullet 1 Easy to use and install Bullet 2 Cost-effective way to utilize two different types of fiber cabling Bullet 3 Converts single mode fiber to multi-mode fiber and vice-versa Bullet 4 Maximum Fiber Cable length of 10 Km Bullet 5 Supports 9/125µm Single Mode or 50/125µm, 62.5/125µm Multi-Mode fiber cabling Marketing Copy Applications Bridging single mode and multi-mode fiber optic networks Related Products - ET90110SC
- ET90110ST
- ET91000SC
- ET90110WDM
Equivalent Part Number in the UK ET1000MMSMGB Input Voltage 115V-230V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 128 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 690 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Type - Multi Mode
- Single Mode
Max Transfer Distance 10 km (6.2 mi) Wavelength - 1310nm
- 850nm

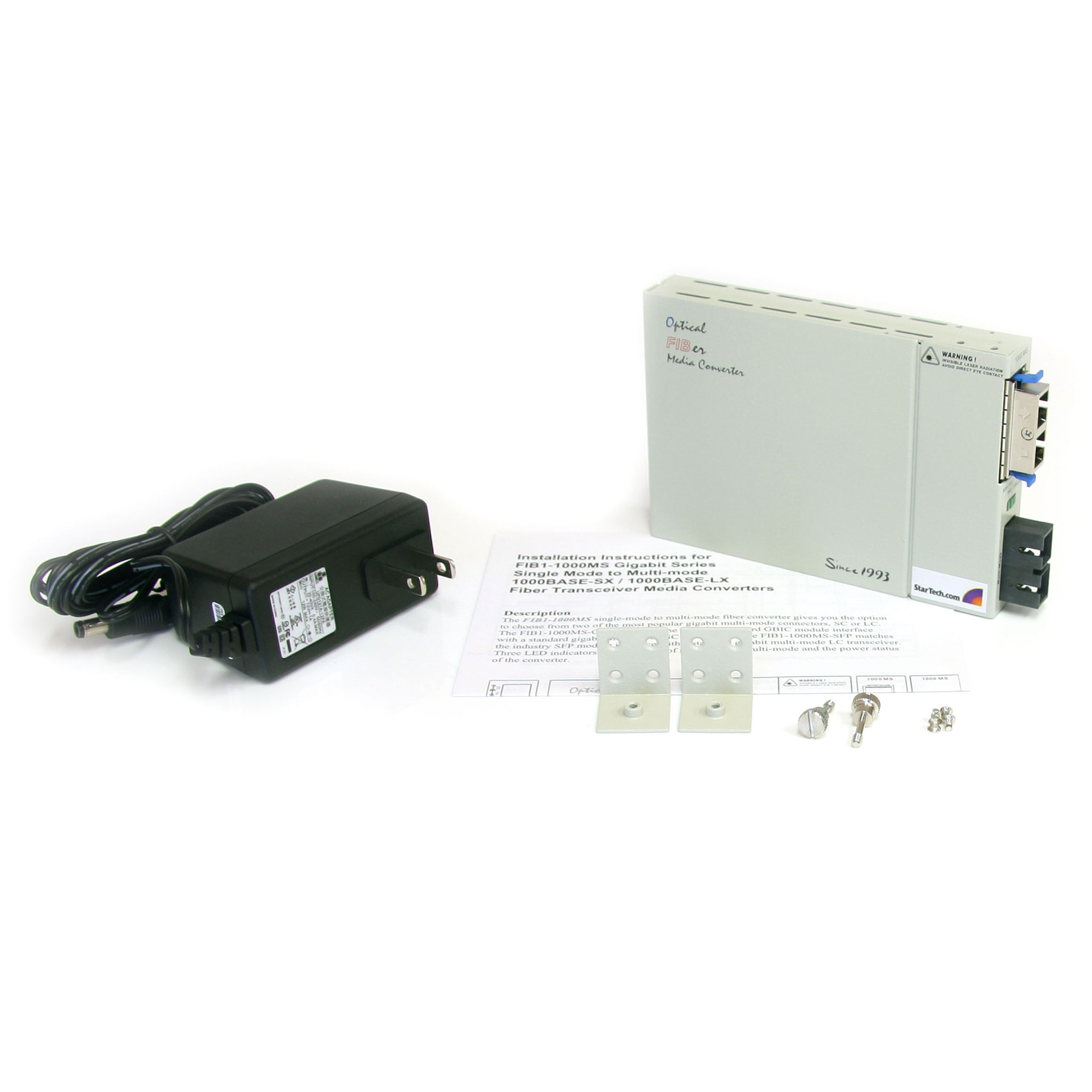

Fiber Connector SC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 490 Carton Height (mm) 315 Carton Quantity 12 Carton Weight Gross (g) 9600 Included in Package - 1 - Gigabit SM to MM Fiber Converter SC
- 2 - Mounting Brackets (w/ Screws)
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 189 Package Height (mm) 75 Package Width (mm) 234 Package Weight (g) 700 Packaging Description Gigabit SM to MM Fiber Converter SC - 10km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 2 en-US Content Approved Yes Product Manager Daryl Hunt
