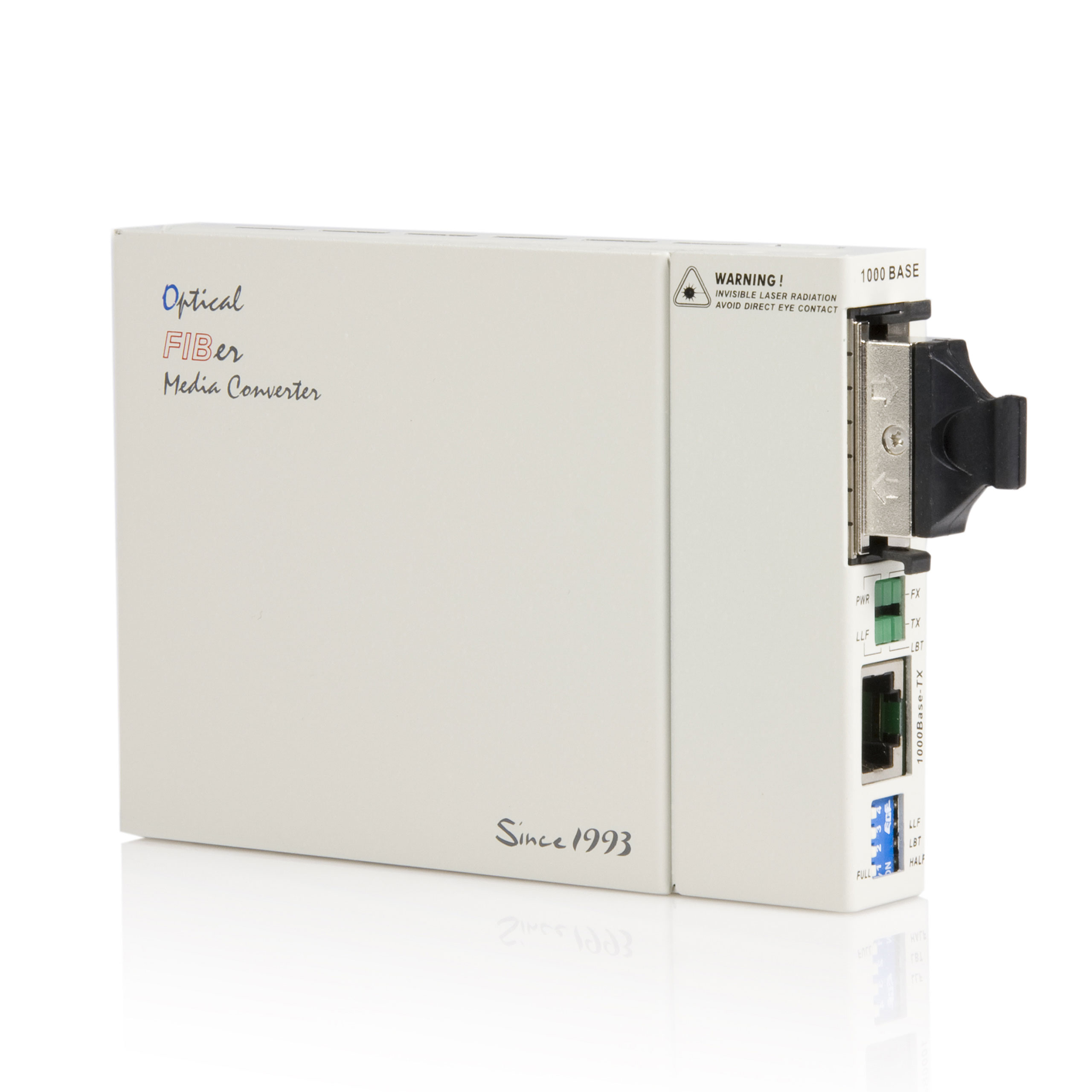

ET91000SC
Gigabit RJ45 to Mmode SC Fiber Converter
Convert and extend a Gigabit Ethernet connection up to 550 m over Multi Mode SC fiber
Main Image
Product Images
Product Images
BOM Image
Product Name Gigabit RJ45 to Mmode SC Fiber Converter Product Number ET91000SC UPC 065030799195 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) 1000 Ethernet Fiber Media Converter SC Product Title (Standard) StarTech.com Gigabit RJ45 to Mmode SC Fiber Media Converter - Media converter - 1000Base-SX, 1000Base-T - RJ-45 - SC multi-mode - external - up to 550 m - 850 nm Product Title (Long) 1000 Mbps Gigabit Ethernet to Multi Mode Fiber Media Converter SC Title Ingram (Part 1) 1000Mbps Gigabit Ethernet to MM Title Ingram (Part 2) Fiber Media Converter SC Website Product Headline Convert and extend a Gigabit Ethernet connection up to 550 m over Multi Mode SC fiber Bullet 1 Easy installation and setup in seconds Bullet 2 Guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks Bullet 3 Supports IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX industry standards Bullet 4 Standard RJ-45 connectors for connecting to UTP media, and SC connector for connecting to fiber media Bullet 5 Supports Half-Duplex and Full-Duplex operating modes up to 2 Gigabits/sec Marketing Copy Applications - Connect remote areas of large buildings to the main network
- LAN-to-LAN connectivity between remote offices
- Connecting network servers and power users to Gigabit backbone
- Connects distant network or devices up to 550m in an existing multimode network
Accessory Products - FIBSCSC10
- FIBSCSC15
- FIBSCSC5
Related Products - ET9003SC
- ET9003ST
- ET9003SM
- ET90110ST
- ET90110SC
Replacement Product ET91000SC2 Output Current 0.5A Output Voltage (V) 12V DC Power Source AC Adapter Included Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 123 Product Width (mm) 86 Product Height (mm) 20 Product Weight (g) 690 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 1000Mbps (1Gbps) Max Transfer Distance 550m [1804ft] Wavelength 850nm Fiber Connector SC Industry Standards IEEE 802.3ab 1000BaseT, IEEE 802.3z 1000BaseSX LED Indicators - 1 - Power
- 1 - Fiber
- 1 - UTP

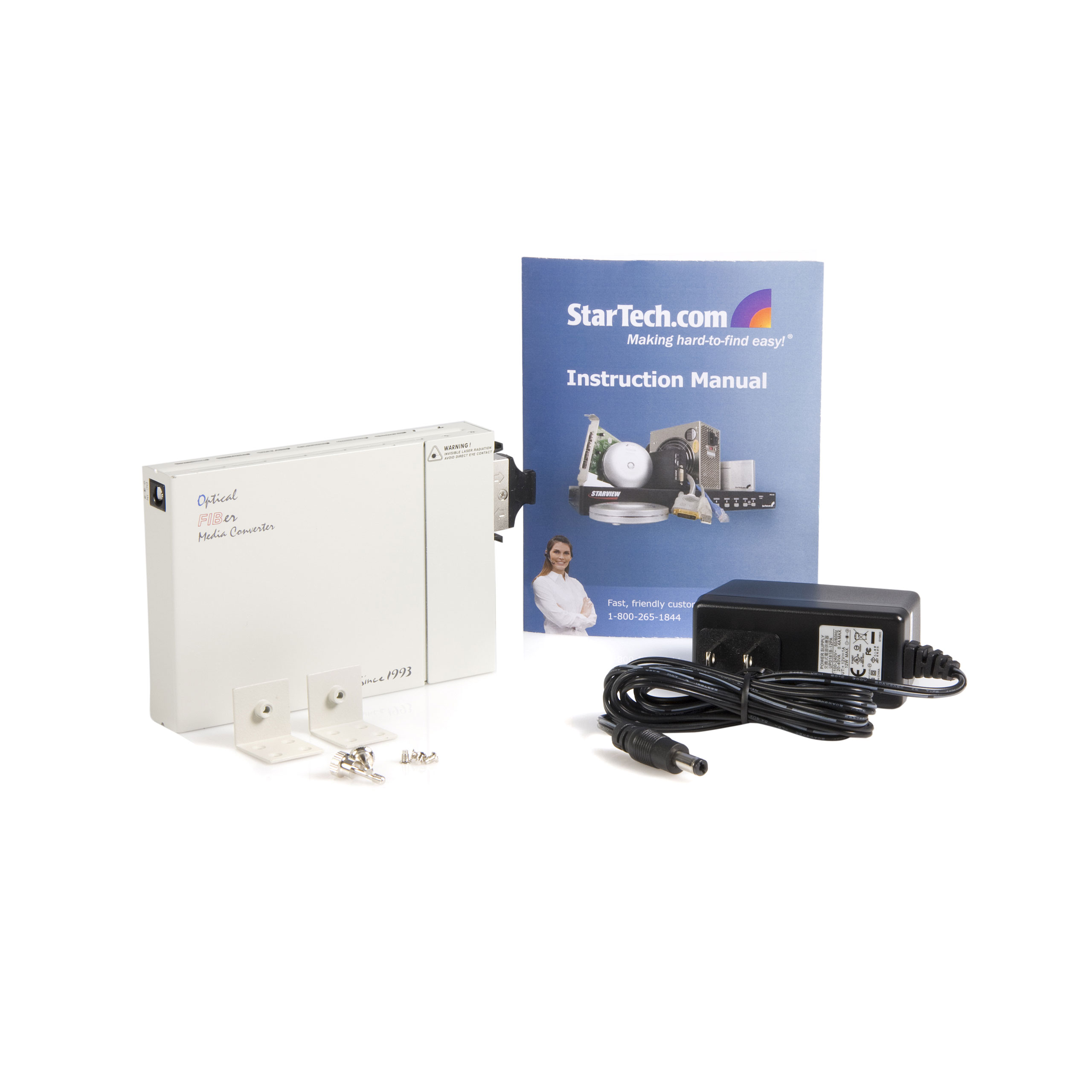

Power over Ethernet No Regulatory Approvals FCC Class A & CE Mark C-Tick Wave Division Multiplexing (WDM) No Carton Depth (mm) 490 Carton Height (mm) 315 Carton Quantity 12 Carton Weight Gross (g) 9840 Included in Package - 1 - Fiber Media Converter
- 1 - Power Adapter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Instruction Sheet
Package Depth (mm) 73 Package Height (mm) 199 Package Width (mm) 230 Package Weight (g) 720 Packaging Description Gigabit Ethernet to SC Fiber Converter 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
