Main Image
ET91000SC2
Gigabit Ethernet MM Fiber Converter SC 550m - 1000 Mbps
Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multi Mode SC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit Ethernet MM Fiber Converter SC 550m - 1000 Mbps Product Number ET91000SC2 UPC 065030846233 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Multi Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Gigabit Ethernet MM Fiber Converter SC Product Title (Medium) x Product Title (Standard) Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m, 1000 Mbps, TAA Product Title (Long) Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - 1000 Mbps - TAA Product Title (AMZ) Multimode (MM) SC Fiber Media Converter for 1Gbe Network - 550m Range - Gigabit Ethernet -Remote Monitoring - 850nm , TAA (ET91000SC2) Title Ingram (Part 1) Gigabit Ethernet MM Fiber Conver Title Ingram (Part 2) ter SC 550m Website Product Headline Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multi Mode SC fiber Bullet 1 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullet 2 Cost-effective way to extend/bridge networks using fiber cabling Bullet 3 Quick and simple installation, easy to use Bullet 4 Supports a maximum fiber cable length of 550m Bullet 5 Supports full or half-duplex operation Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection up to 550 m/1804 ft over Multi Mode SC fiber - Gigabit Ethernet Multi Mode Fiber Media Converter SC 550m - Gigabit Fiber Media Converter/1000Base-SX Fiber Converter - 1000 Mbps Ethernet Media Converter/Gigabit Media Converter/1000Base-SX - Fiber Optic Converter/Multimode Fiber to Ethernet Converter - Use as a standalone device or install into the ETCHS2U 20 slot chassis for added versatility - Rugged steel casing for durability Marketing Copy Marketing Copy (No HTML) Applications - Converts 1000Base-SX fiber optic signals to 1000Base-T Ethernet over multimode fiber cable
- Provides network connectivity to users or network segments located in isolated areas of a large complex or separate building
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Suitable for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- SC
- gigabit
- 1000Base-SX
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
- N785-001-SC-MM
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000MMSM
- ET91000LC
- ET91000SC
- MCMGBSC055
- ET91000SM40

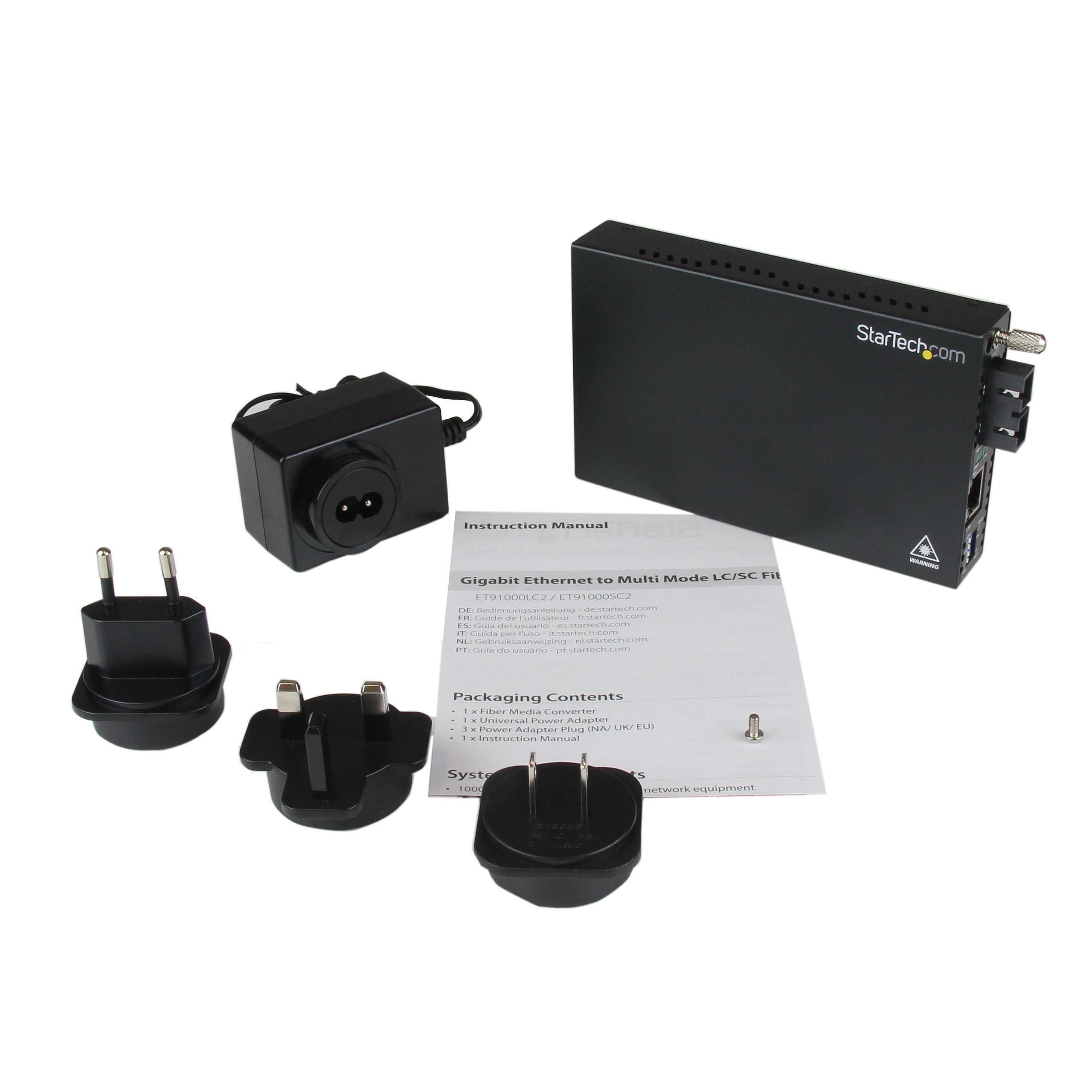

Constrained SKU Alternatives (Limited Stock) MCMGBSCMM055 Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 150 Product Width (mm) 90 Product Height (mm) 25 Product Weight (g) 395 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Multi Mode Maximum Data Transfer Rate 2000 Mbps (full duplex mode) Max Transfer Distance 550m [1804ft] MTBF (hours) 65,000 Hours Wavelength 850nm Fiber Connector SC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 441 Carton Height (mm) 301 Carton Quantity 15 Carton Weight Gross (g) 12126 Included in Package - 1 - Fiber Media Converter
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 137 Package Height (mm) 91 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 756 Packaging Description Gigabit Ethernet to SC Fiber Converter 550m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,HK,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
