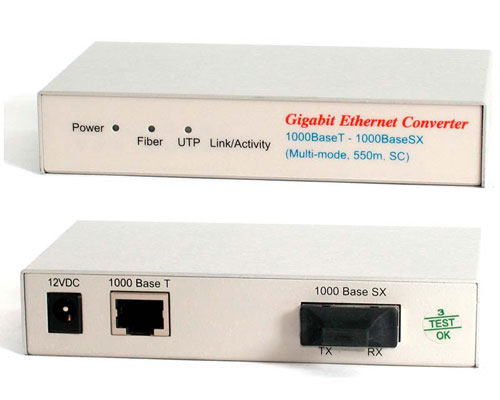

Gigabit RJ45 Multi-Mode SC Fiber Media Converter

Main Image

Product Name	Gigabit RJ45 Multi-Mode SC Fiber Media Converter
Product Number	ET91000SCGB
UPC	065030800518
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	1
Country of Origin History (2)	Taiwan

Product Title (Long)	Gigabit RJ45 Multi-Mode SC Fiber Media Converter
Bullet 1	Easy installation and setup in seconds
Bullet 2	Guaranteed compatibility with 3Com™, Cisco™, Lucent™, and Nortel™ networks
Bullet 3	Supports IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX industry standards
Bullet 4	Standard RJ-45 connectors for connecting to UTP media, and SC connector for connecting to fiber media
Bullet 5	Supports Half-Duplex and Full-Duplex operating modes up to 2 Gigabits/sec
Marketing Copy
Applications	Connect remote areas of large buildings to the main network LAN-to-LAN connectivity between remote offices Connecting network servers and power users to Gigabit backbone Connects distant network or devices up to 550m in an existing multimode network

Related Products
ET9003SC
ET9003ST
ET9003SM
ET90110ST
ET90110SC
Output Current 0.5A
Output Voltage (V) 12V DC
Power Source AC Adapter Included
Center Tip Polarity Positive

Fiber Type	Multi Mode
General Specifications	Fiber Duplex Mode: Full-Duplex or Half-Duplex Wave Length: 850nm Certifications: FCC Class B & CE Mark C-Tick
Maximum Data Transfer Rate	1000 Mbps (1 Gbps)
Max Transfer Distance	550m [1804ft]
Wavelength	850nm

Fiber Connector	SC
Industry Standards	IEEE 802.3ab 1000BaseT, IEEE 802.3z 1000BaseSX
LED Indicators	1 - Power 1 - UTP 1 - Fiber mode display indicator 1 - Fiber link indicator
Power over Ethernet	No
Wave Division Multiplexing (WDM)	No

Connector 1 RJ-45
Connector 1 (Quantity) 1
Connector 2 SC Duplex Fiber
Connector 2 (Quantity) 1
en-US Content Approved Yes
