Main Image
ET91000SFP2
Gigabit Open SFP Fiber to Ethernet Converter
Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice
Main Image
Product Images
Product Images
BOM Image
Product Name Gigabit Open SFP Fiber to Ethernet Converter Product Number ET91000SFP2 UPC 065030852517 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) Gb Media Conv No SFP Product Title (Short) Gigabit Fiber Media Converter - Open SFP Product Title (Standard) Gigabit Ethernet Fiber Media Converter with Open SFP Slot, TAA Product Title (Long) Gigabit Ethernet Fiber Media Converter with Open SFP Slot - TAA Product Title (AMZ) Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Fiber to Ethernet Converter - Gigabit Ethernet Media Converter , TAA (ET91000SFP2) Title Ingram (Part 1) Gigabit Open SFP Fiber Title Ingram (Part 2) to Ethernet Converter Website Product Headline Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice Bullet 1 Supports full or half-duplex operation Bullet 2 Easy to use and install Bullet 3 Jumbo Frame support Bullet 4 Open SFP slot supports MSA-Compliant Single / Multi-Mode Gigabit SFPs at varying distances Bullet 5 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice - Compatible with NETGEAR ProSAFE JGS524NA/Comparable to ET91000LC2 - Fiber to Ethernet Converter w/ Open SFP Slot/Multi/Single-Mode Fiber Converter - 1000 Mbps Gigabit Ethernet Media Converter/Fiber Optic Converter/Ethernet Over Fiber-1000Base-SX - Extend/Bridge networks over to fiber another building - Ethernet to fiber for Data Centers/Server Rooms - Supports MSA-Compliant Gigabit SFPs Marketing Copy Applications - Cost-effective way to extend/bridge networks using fiber cabling
- Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - ETCHS2U
- SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- SFPG1320C
- SFPG1580C
- SFPG1340C
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SC2
- ET91000SM402
- ET90110WDM2
- ET1110PSE
- ET91000LC2
- ET91000SFP2C
Constrained SKU Alternatives (Limited Stock) MCM1110SFP Input Current 0.36 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 12V DC Power Consumption (In Watts) 8 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 154 Product Width (mm) 88 Product Height (mm) 23 Product Weight (g) 396 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode / Multi Mode Maximum Data Transfer Rate 1.25 Gbps MTBF (hours) 65, 000 Hours Chipset ID Marvell - 88E1111 Fiber Connector Open Industry Standards - IEEE 802.3z 1000BASE-LX
- IEEE 802.3z 1000BASE-SX
- IEEE 802.3ab 1000BASE-T

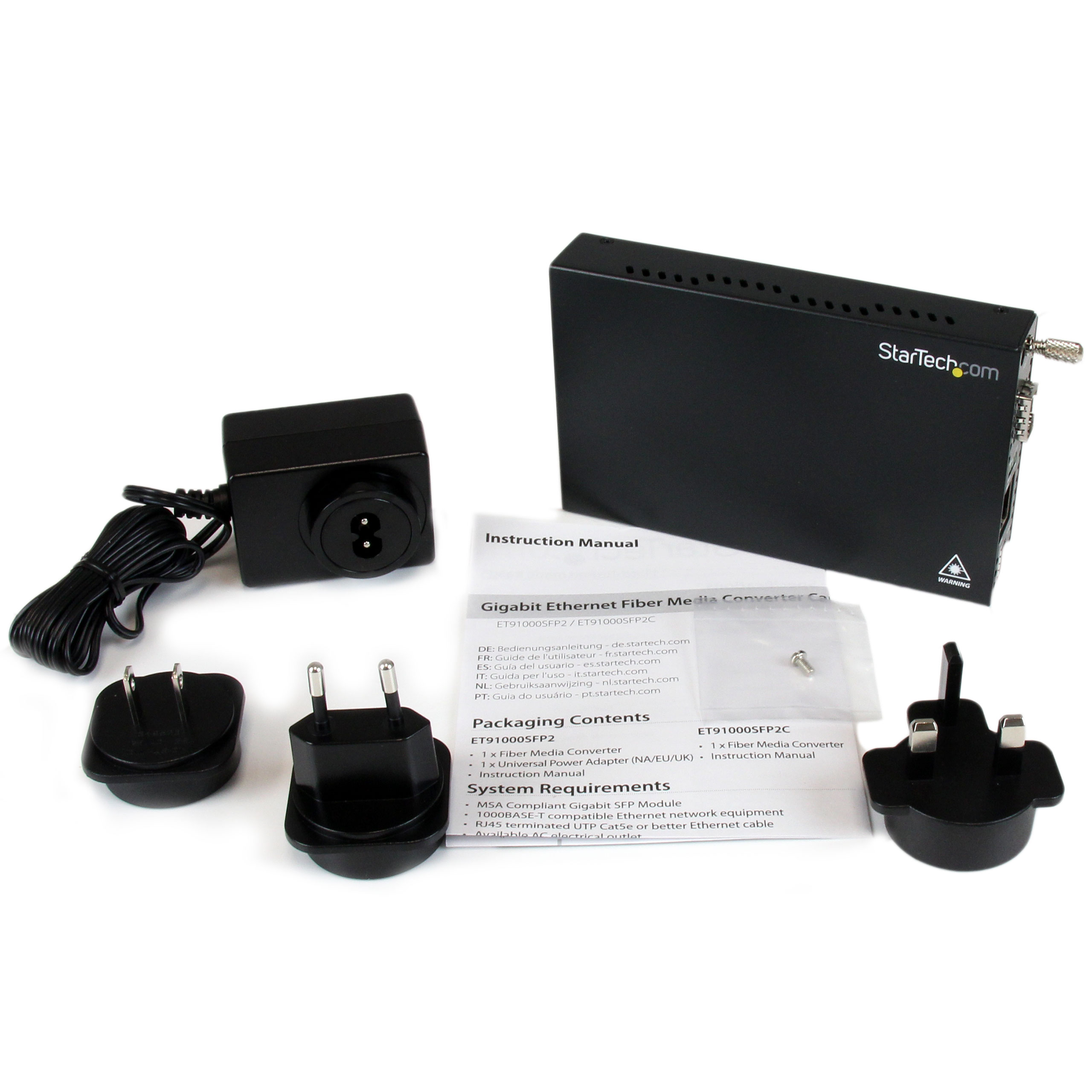

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 296 Carton Quantity 15 Carton Weight Gross (g) 12122 Included in Package - 1 - Fiber Media Converter
- 1 - Instruction Manual
- 1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
- 1 - Grounding Screw
Package Depth (mm) 138 Package Height (mm) 90 Package Width (mm) 204 Package Quantity 1 Package Weight (g) 756 Packaging Description Gigabit Ethernet Open SFP Fiber Media Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SFP Slot Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-19 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
