Main Image
ET91000SFP2C

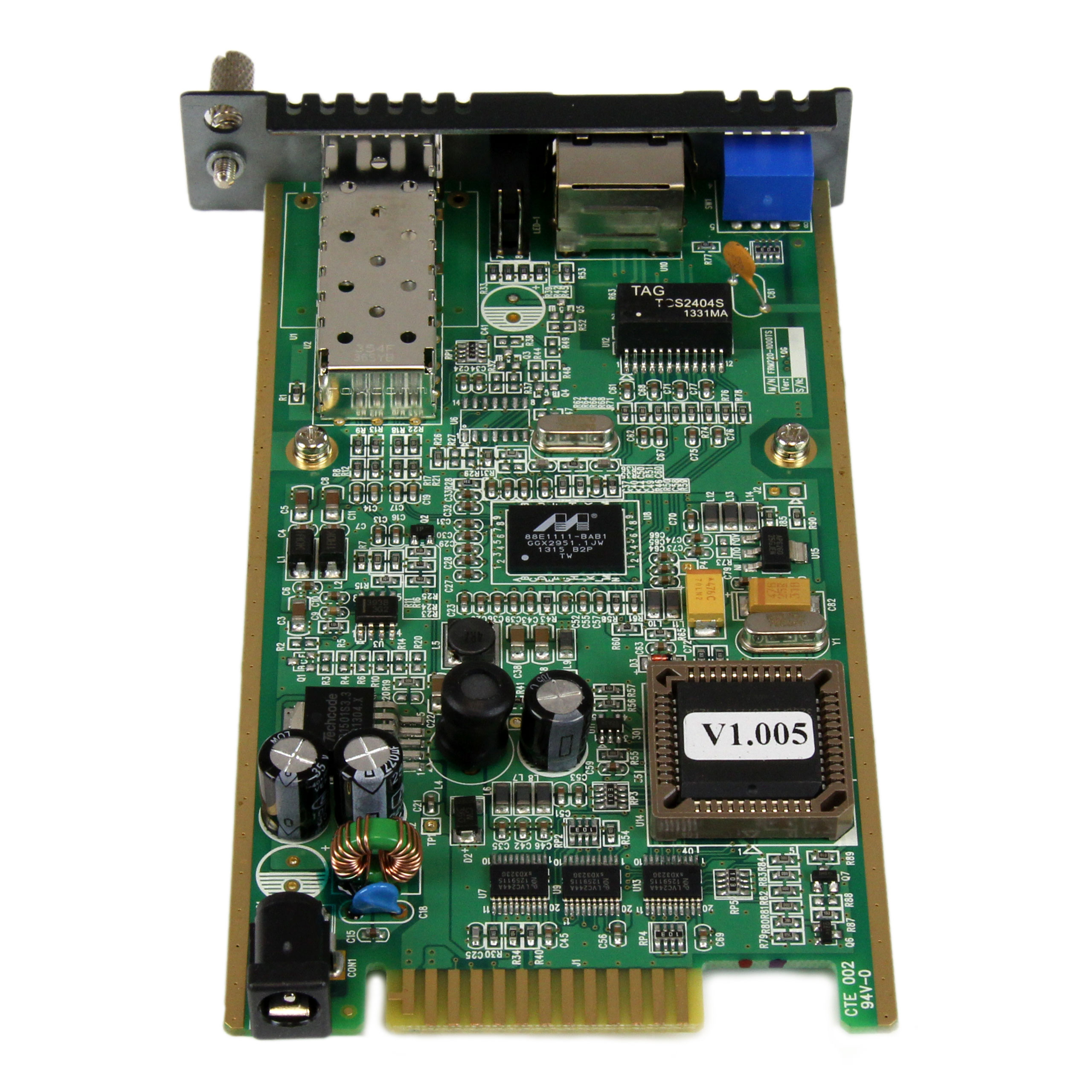

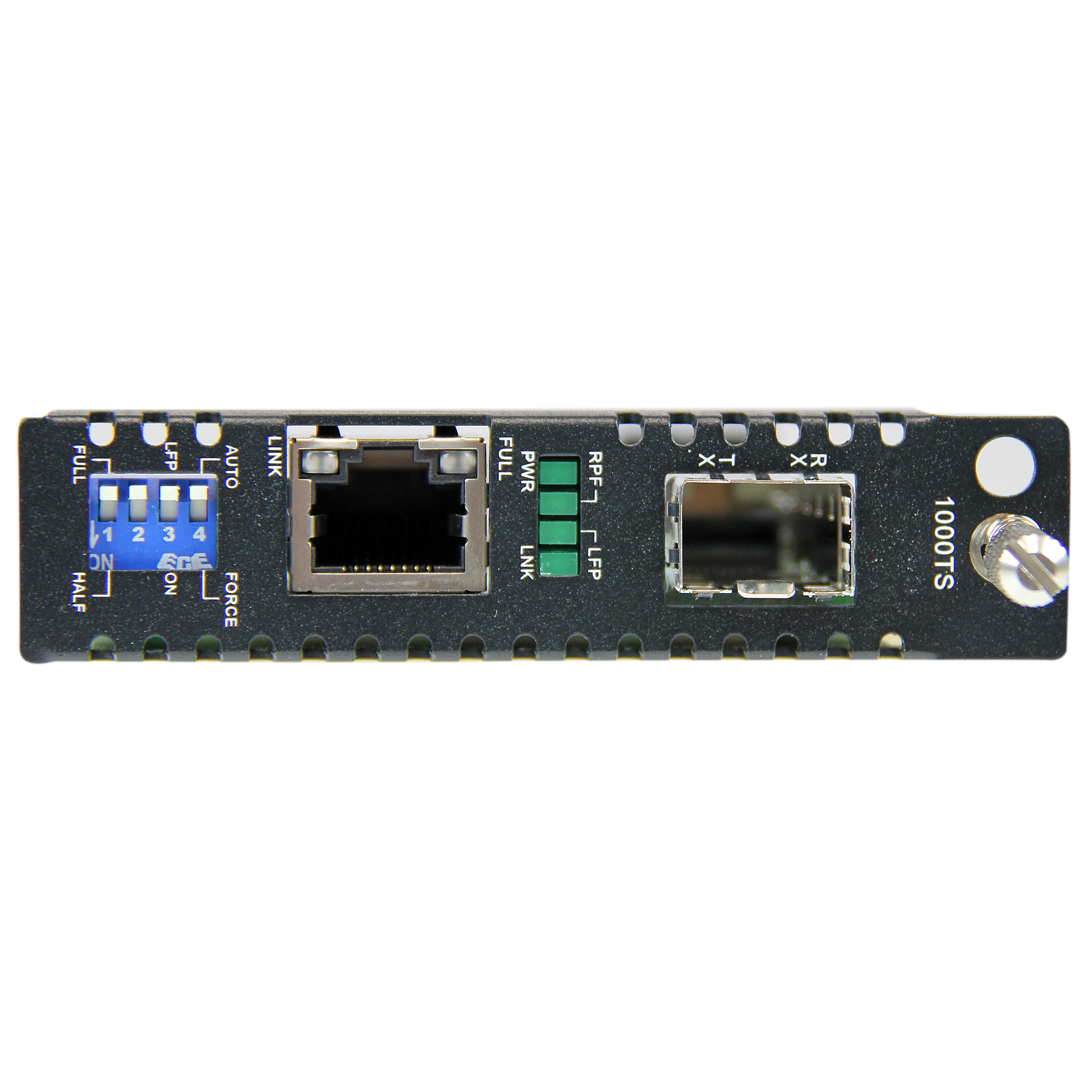

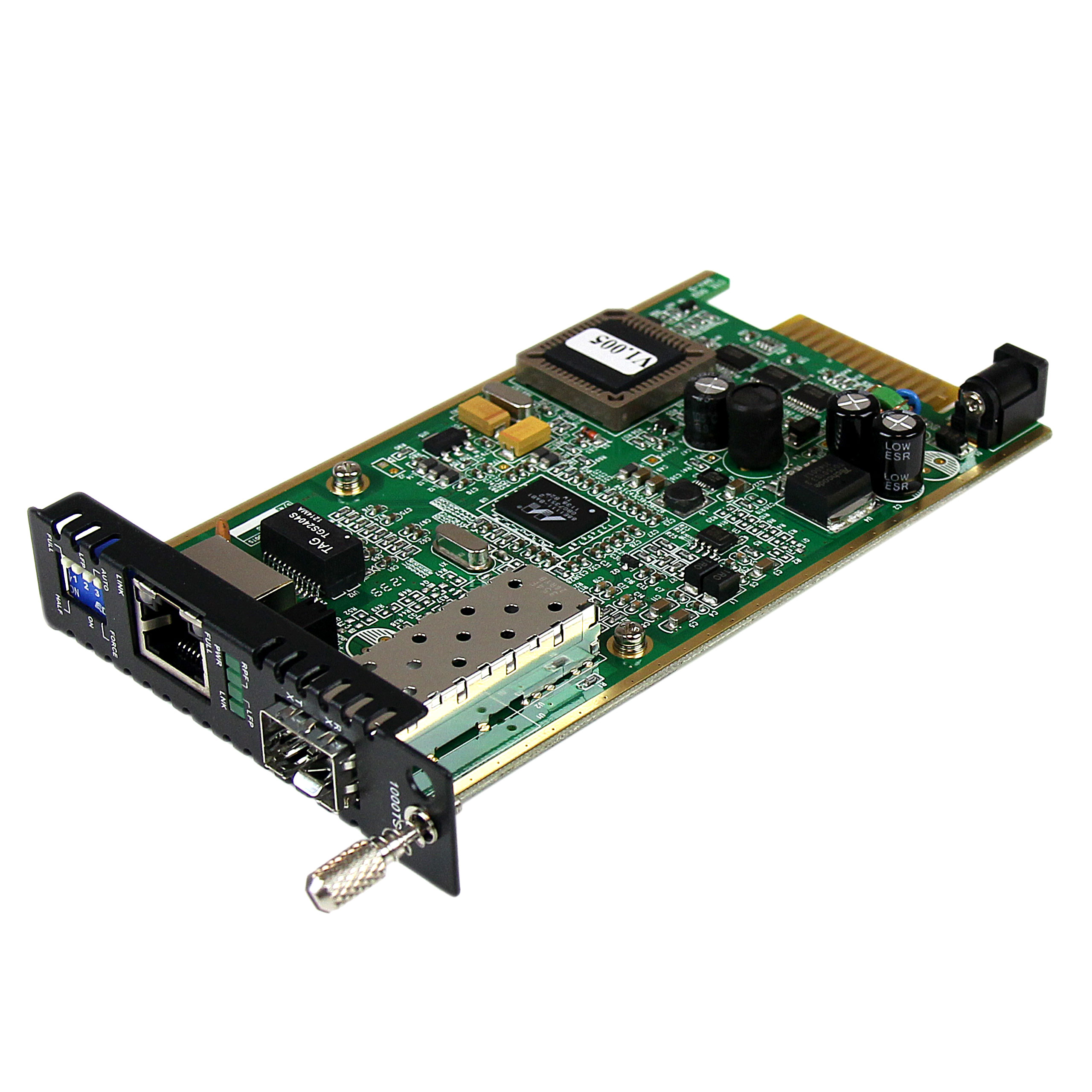

Open SFP Fiber to Ethernet Converter Card Module
Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice
Main Image
Product Images
Product Images
BOM Image
Product Name Open SFP Fiber to Ethernet Converter Card Module Product Number ET91000SFP2C UPC 065030852524 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Open Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) Gb Media Conv Card Product Title (Short) Gb Open SFP Fiber Media Converter Card Product Title (Standard) Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot, TAA Product Title (Long) Gigabit Ethernet Fiber Media Converter Card Module with Open SFP Slot - TAA Product Title (AMZ) Gigabit Ethernet Fiber Media Converter Card Module w/ Open SFP Slot - Fiber to Ethernet Converter - Ethernet Media Converter , TAA (ET91000SFP2C) Title Ingram (Part 1) Open SFP Fiber to Ethernet Title Ingram (Part 2) Converter Card Module Website Product Headline Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice Bullet 1 Supports full or half-duplex operation Bullet 2 Easy to use and install Bullet 3 Jumbo Frame support Bullet 4 Open SFP slot supports MSA-Compliant Single / Multi-Mode Gigabit SFPs at varying distances Bullet 5 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullets (Compact) Convert and extend a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice - Card module designed for installation into the StarTech.com Rackmount Chassis (ETCHS2U) - Open SFP slot supports MSA-compliant Gigabit SFPs Bullets (Consolidated) Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice - Card module for media converter chassis - Gigabit Ethernet Fiber Optic Media Converter Card Module with Open SFP Slot - Fiber to Ethernet Converter - Open SFP Fiber Media Converter card module connects an Ethernet (1000Base-T) network to remote network segments over fiber Marketing Copy Applications - Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
- Perfect for secure connections required by government agencies where EMI is not acceptable
- Connect traffic control/monitoring systems at extreme distances to the main office
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Cost-effective way to extend/bridge networks using fiber cabling
- Mount multiple media converter cards into a rack mount chassis
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) Accessory Products - SFPGLCLHSMST
- SFPGLCSXMMST
- SFPGESST
- SFPG1320C
- SFPG1580C
- SFPG1340C
- ETCHS2U
Related Products - ET91000SFP2
- ET1110PSE
- ET91000SC2
- ET91000SM402
- ET90110WDM2
- ET91000LC2
Input Current 1 A Input Voltage 12V DC Power Consumption (In Watts) < 8W Power Source Not Included (not required for standard applications) Plug Type M Center Tip Polarity Positive Color Green Humidity 10~90% RH (Non-Condensing) Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 142 Product Width (mm) 74 Product Height (mm) 21 Product Weight (g) 110 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode / Multi Mode Maximum Data Transfer Rate 1.25 Gbps MTBF (hours) 65, 000 Hours Chipset ID Marvell - 88E1111 Fiber Connector Open Industry Standards - IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX
- IEEE 802.3z 1000BASE-LX

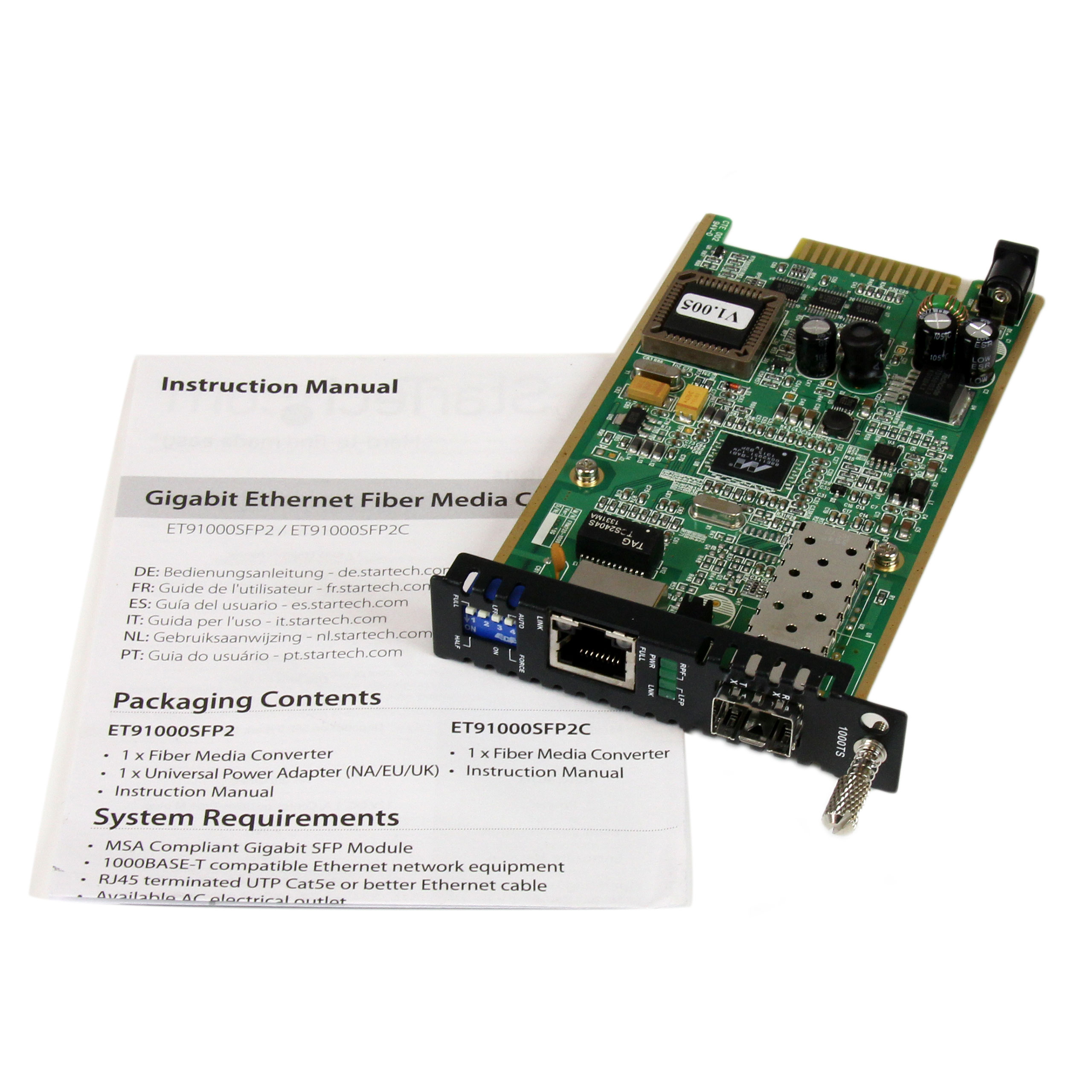

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 394 Carton Height (mm) 310 Carton Quantity 60 Carton Weight Gross (g) 11890 Included in Package - 1 - Fiber Media Converter
- 1 - Instruction Manual
Package Depth (mm) 132 Package Height (mm) 31 Package Width (mm) 186 Package Quantity 1 Package Weight (g) 178 Packaging Description Gigabit Ethernet Open SFP Media Converter Card Module Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SFP Slot Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-25 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None
