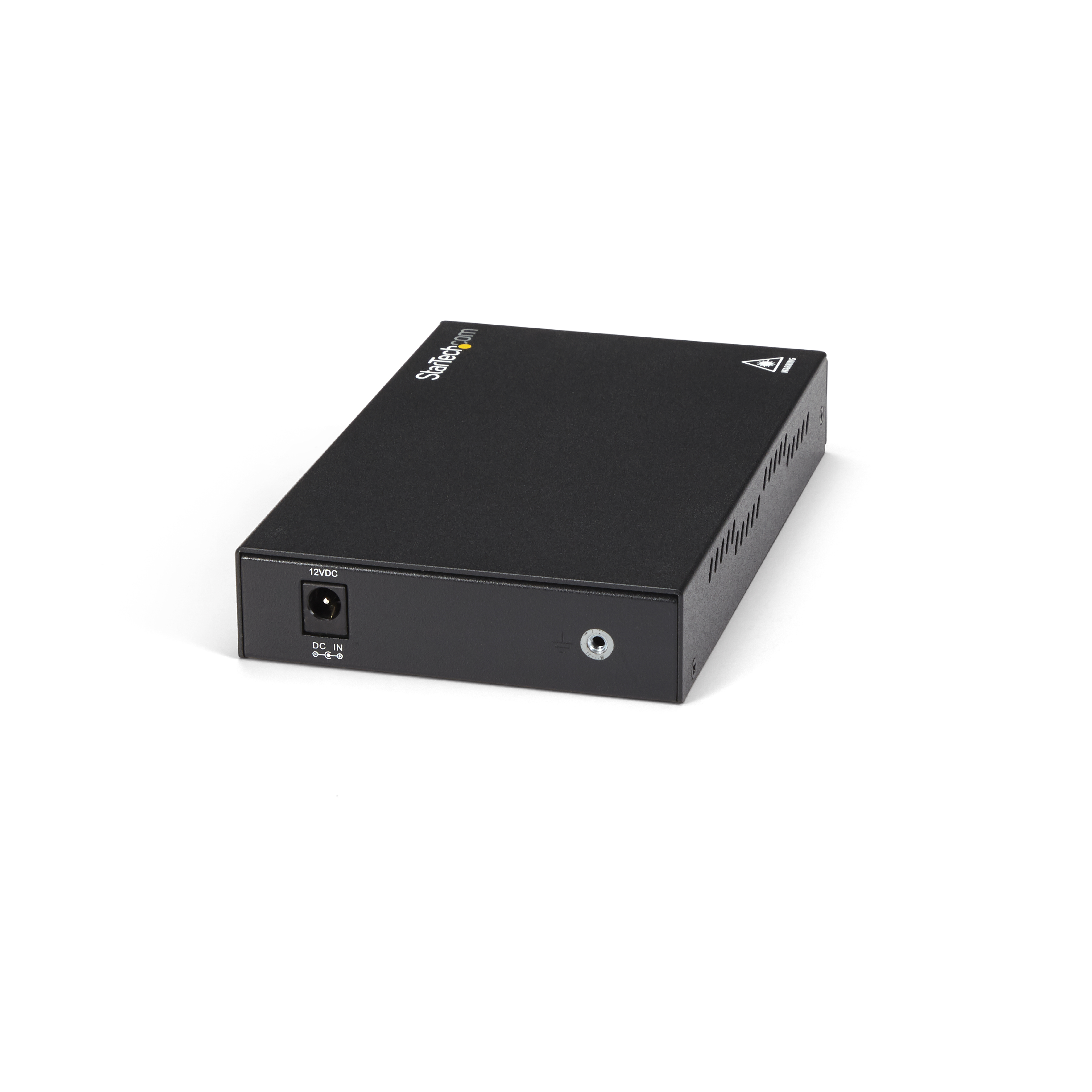

ET91000SM10
GbE Fiber Media Converter - 10km - Fiber-to-Copper

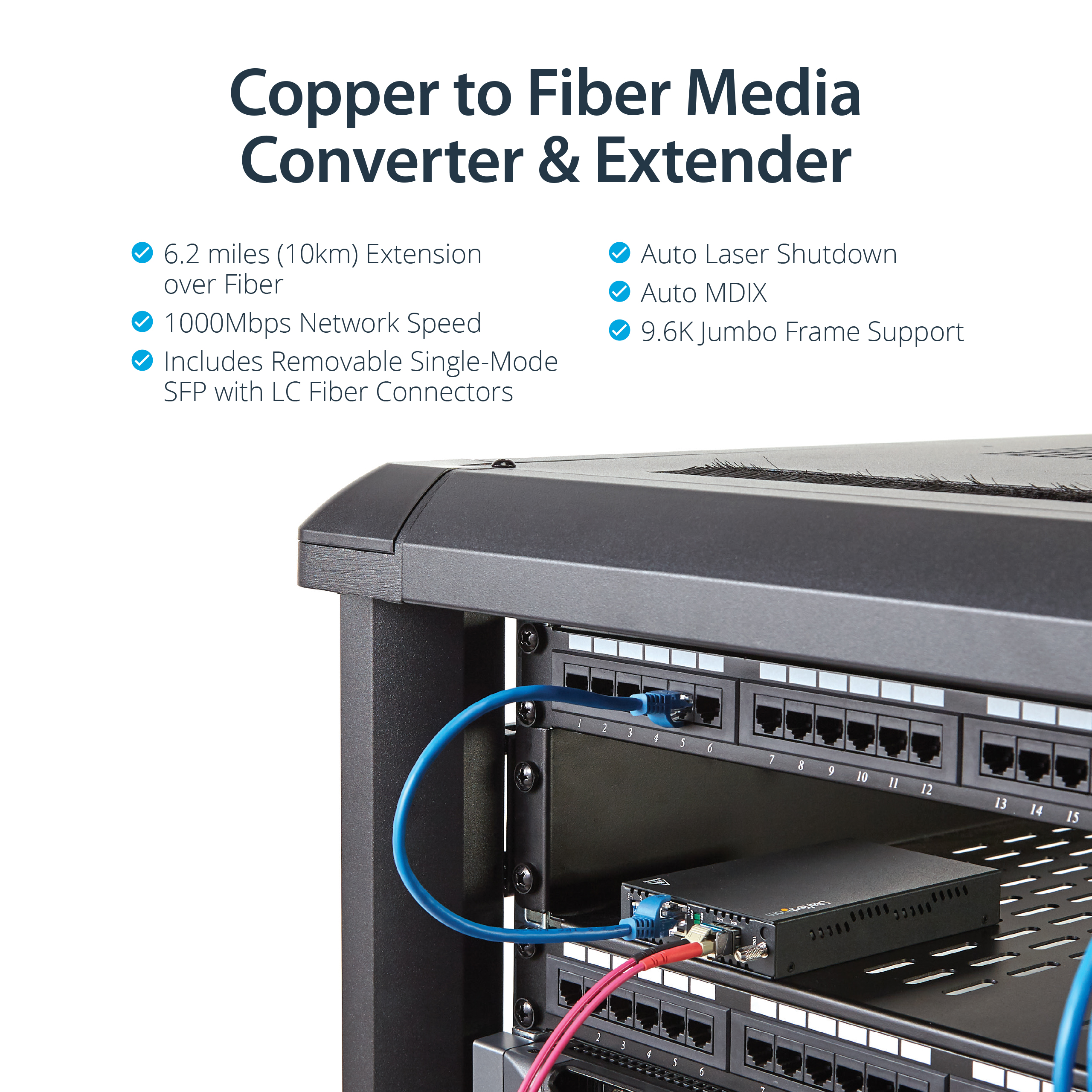

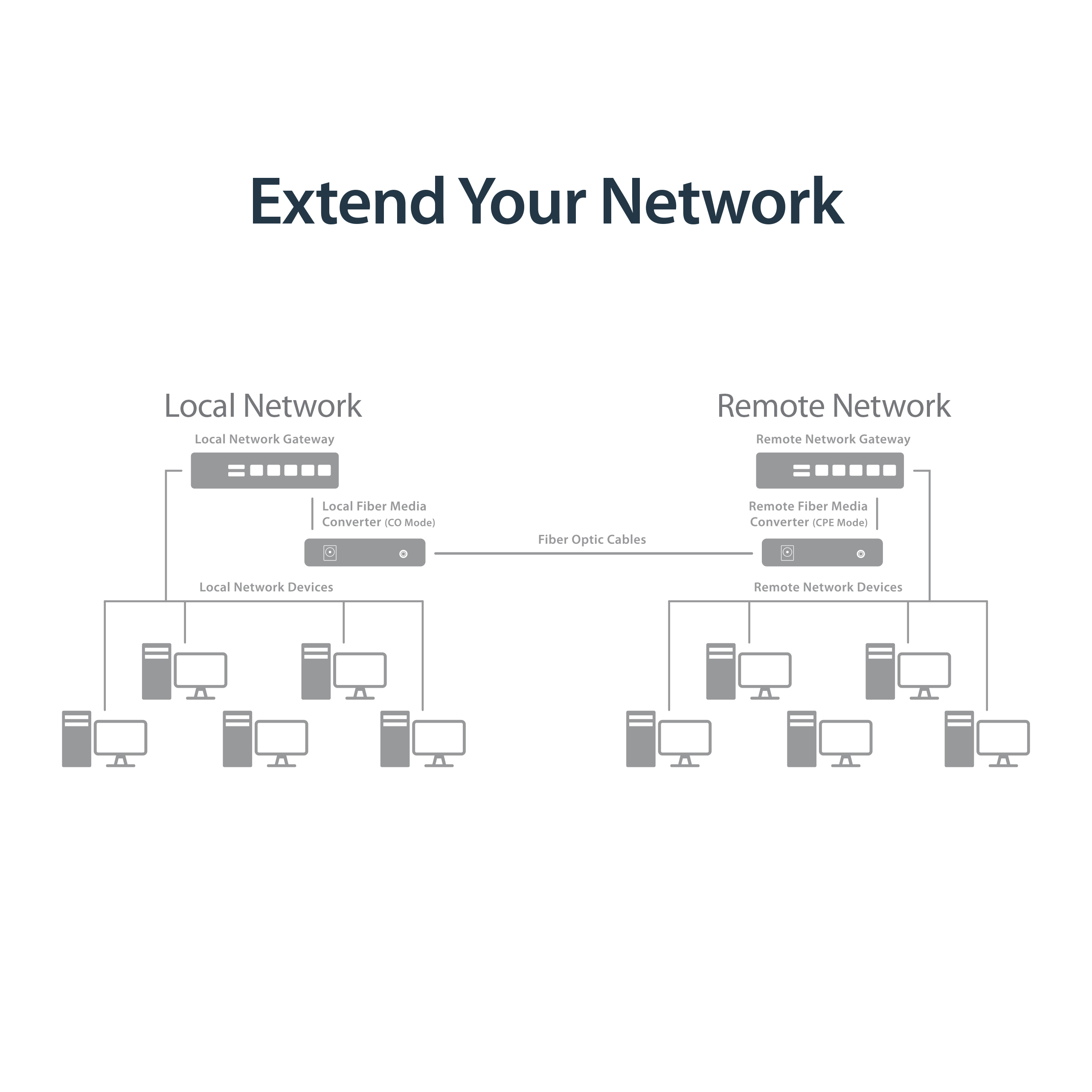

Convert and extend a Gigabit Ethernet connection up to 10 km (6.2 mi) using single-mode LC fiber cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name GbE Fiber Media Converter - 10km - Fiber-to-Copper Product Number ET91000SM10 UPC 065030864930 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) GbE Fiber Converter Product Title (Short) GbE Fiber Media Converter - SM LC 10 km Product Title (Medium) Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC 10 km - GbE Converter Product Title (Standard) Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 10 km, Ethernet Media Converter, GbE Converter, TAA Product Title (Long) Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 10 km - TAA Product Title (AMZ) Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 10km - Gigabit Ethernet - 1310nm - with SFP Transceiver , TAA (ET91000SM10) Title Ingram (Part 1) GbE Fiber Media Converter - Title Ingram (Part 2) 10km - Fiber-to-Copper - LC SM Website Product Headline Convert and extend a Gigabit Ethernet connection up to 10 km (6.2 mi) using single-mode LC fiber cable Bullet 1 ETHERNET OVER FIBER EXTENSION: Use this full / half duplex fiber media converter to convert and extend a Gigabit Ethernet connection up to 10km (6.2mi) using singlemode LC fiber cable Bullet 2 INCLUDES SFP: For added convenience, this IT-grade network fiber media converter includes an SFP transceiver (mini gbic), enabling an 1310nm LC single mode Gigabit fiber connection Bullet 3 MAXIMUM DURABILITY: Built to withstand harsh environments, this rugged media converter has a durable steel housing, and has an operating temperature range of 0°C-50°C (32°F-122°F) Bullet 4 SPECS: Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), VLAN tagging, and Auto MDIX; Up to 9.6K Jumbo Frame support; Compatible with Gigabit (1000Mbps) copper (IEEE 802.3ab, 1000BASE-T) and fiber (IEEE 802.3z, 1000BASE-LX) protocols Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this ethernet fiber converter is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Convert and extend a GbE connection up to 10 km (6.2 mi) using single-mode LC fiber cable - Copper-to-Fiber Media Converter supports standalone operation or install into the ETCHS2U chassis - Cost-effective network extension - Rugged metal housing Bullets (Consolidated) Convert and extend a GbE connection up to 10 km (6.2 mi) using single-mode LC fiber cable - Gigabit Ethernet Copper-to-Fiber Media Converter SM LC 10 km - Ethernet Media Converter/GbE Converter/1000Mbps Network Extender and Converter/Fiber to Copper - Supports standalone operation or install into ETCHS2U chassis - Cost-effective network extension up to 10km using fiber-optical cable - Includes a pre-installed GbE SFP transceiver - Rugged metal housing - Supports LFP/ALS/Jumbo Frames Marketing Copy Marketing Copy (No HTML) Applications - Use fiber optic cable to connect to your network from remote areas or separate buildings, at greater distances than copper (RJ45) cable allows
- Perfect for secure connections required by government agencies where EMI isn’t acceptable
- Easily expand the number of ports on your existing network now, or in the future — perfect for small and medium businesses
Website Search Keyword - Fiber media converter
- copper to fiber
- fiber to copper
- fiber optic media converter
- fiber to ethernet media converter
- Fiber Optic transmitter
- ethernet media converter
- ethernet to fiber
- fiber ethernet media converter
- Ethernet fiber extender
- rj45 to fiber media converter
- rj45 to fiber converter
- rj45 to fiber
- network media converter
- Long distance ethernet
- fiber to copper network converter
- copper to fiber network converter
- ethernet network media converter
- Gigabit Fiber media converter
- Gbe Fiber media converter
- Gigabit Ethernet Fiber media converter
- 1000Mbps Fiber media converter
- media converter
- 1Gbps fiber media converter
- fiber converter
- Gigabit Ethernet to Fiber Converter
- gigabit media converter
- sm fiber converter
- LC fiber media converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

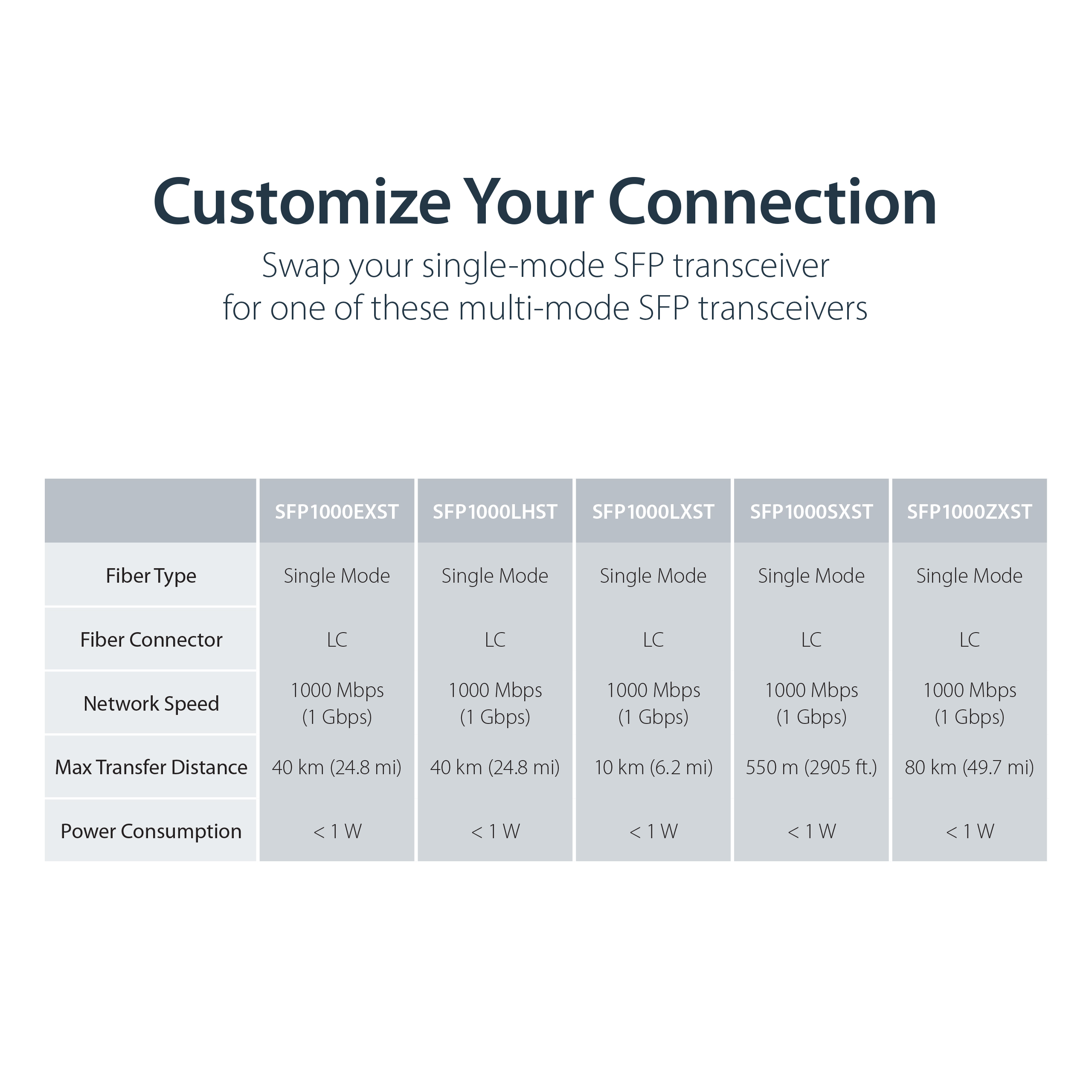

System and Cable Requirements The media converter can only be used with Gigabit SFP modules, and will not support 10/100Mbps modules. Accessory Products - PEX1000SFP2
- ST1000SPEX2
- ST1000SPEXD4
- SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- C6ASPAT3BL
- C6ASPAT35BL
- C6ASPAT14BK
- 45PATCH25OR
- 45PATCH50BK
- RJ45PATCH10
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SM20
- ET1000S40LC2
- ET91000LCOAM
- ET91000LC2
- ET10GSFP
- ET91000SFP2C
- ET91000SFP2
- MCM1110SFP
- MCM1110MMLC
Constrained SKU Alternatives (Limited Stock) ET91000SM20 Input Current 0.48 A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 140.000 Product Width (mm) 88.000 Product Height (mm) 23.000 Product Weight (g) 411.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Flow Control None Jumbo Frame Support 9.6K max. Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Max Transfer Distance 10 km (6.2 mi) MTBF (hours) 65,000 Hours Remote Management Ability No Switching Architecture None Wavelength 1310nm Fiber Connector LC Industry Standards - IEEE 802.3ab (1000BASE-T)
- IEEE 802.3z (1000BASE-LX)

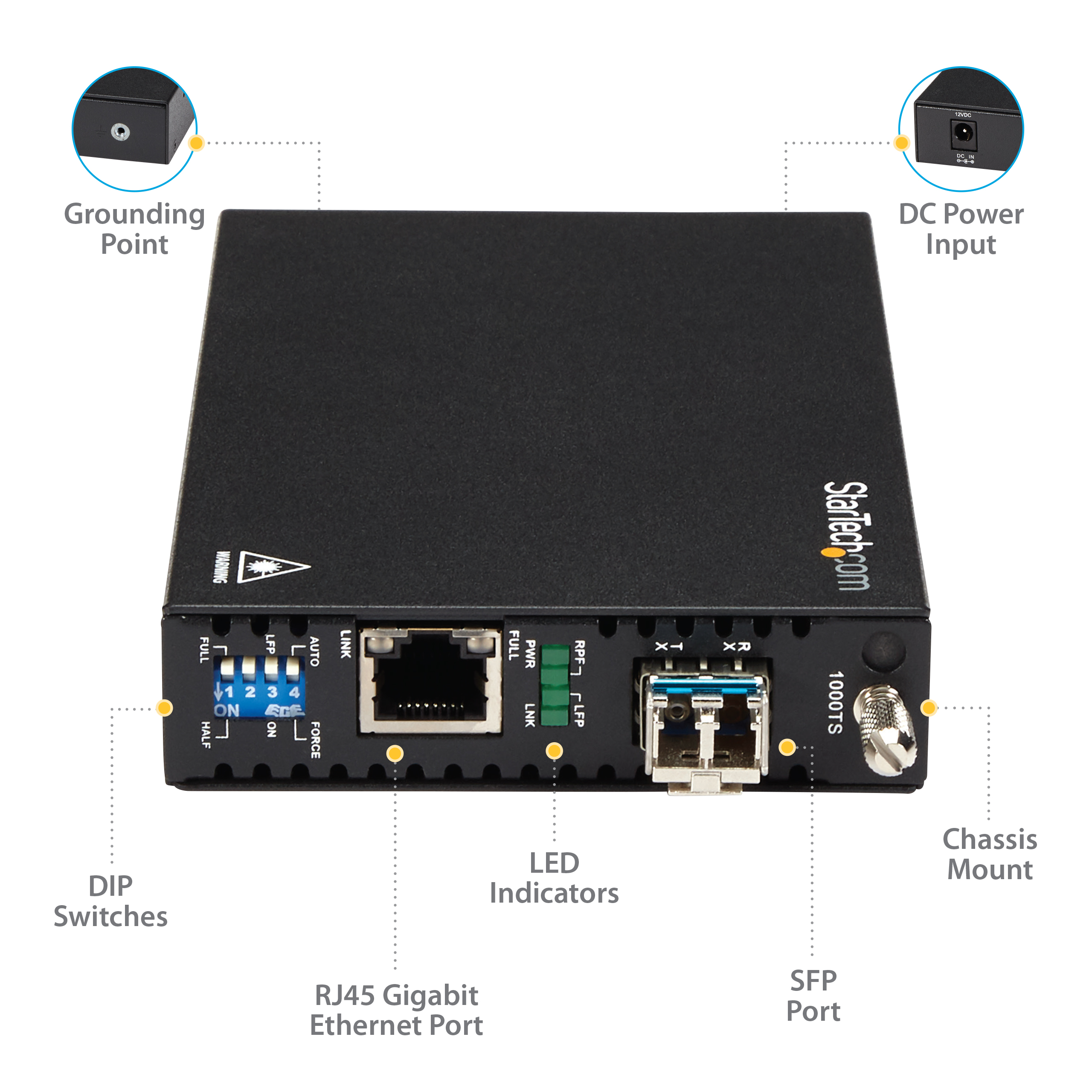

LED Indicators - 1 - PWR
- 1 - RPF
- 1 - LFP
- 1 - LNK
- 1 - LINK - RJ45
- 1 - FULL - RJ45

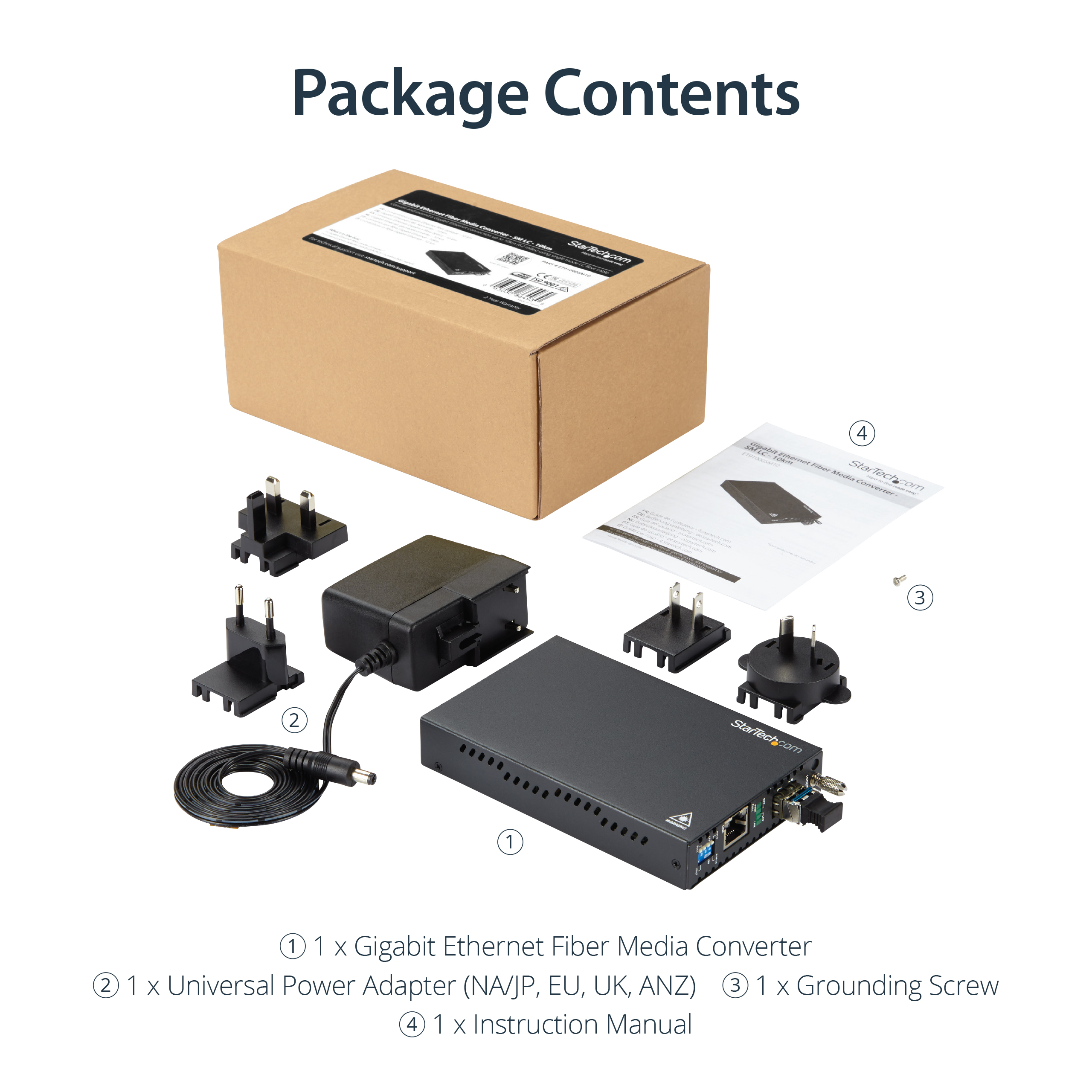

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 443 Carton Height (mm) 306 Carton Quantity 15 Carton Weight Gross (g) 12444 Included in Package - 1 - Gigabit Ethernet fiber media converter
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - instruction manual
- 1 - Grounding Screw
Package Depth (mm) 206 Package Height (mm) 89 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 764 Packaging Description Gigabit Ethernet Fiber Converter - 10km Packaging Description India Gigabit Ethernet Fiber Converter - 10km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-02-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,MX,NL,PE,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-03-11 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
