ET91000SM20

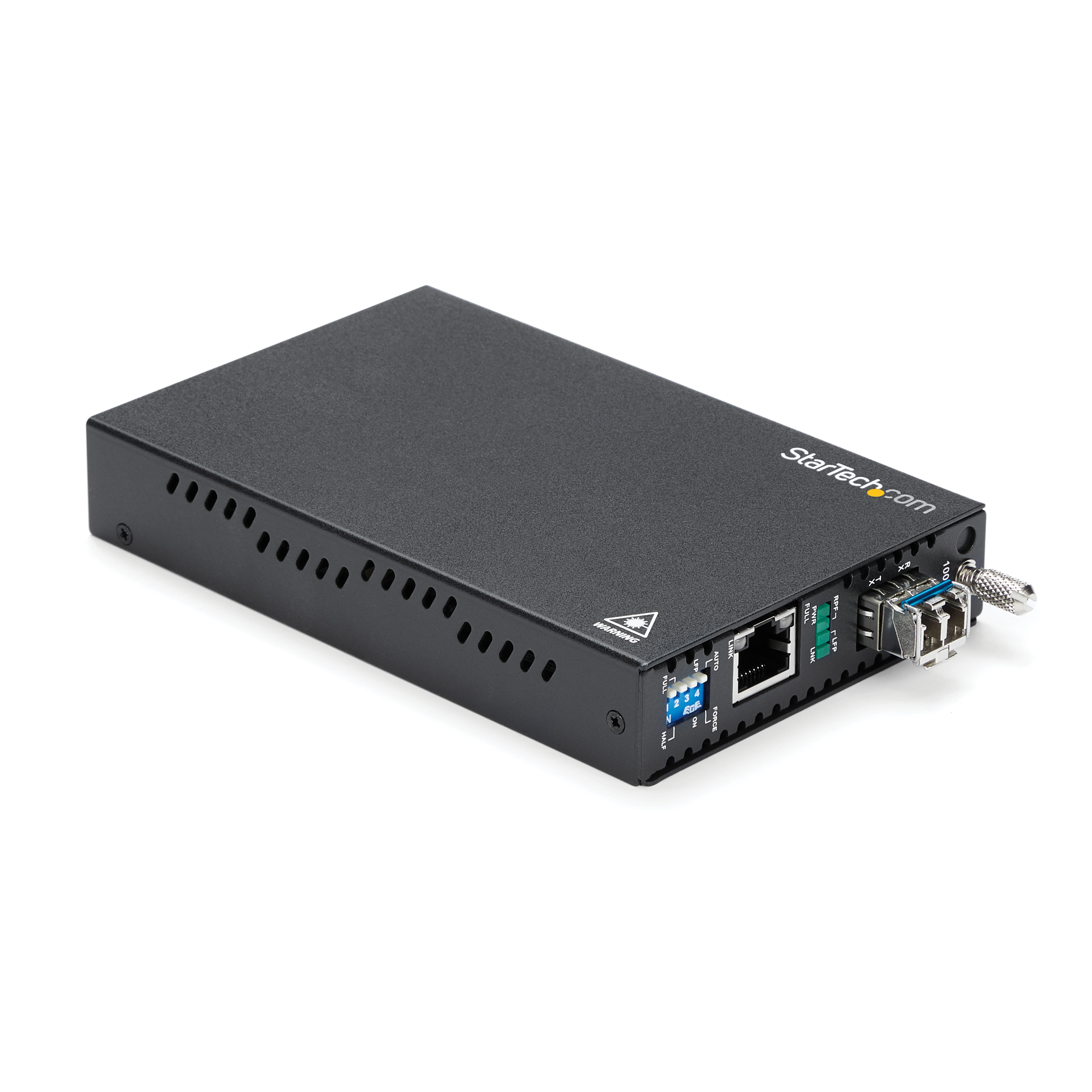

Gigabit Ethernet Copper-to-Fiber Media Converter

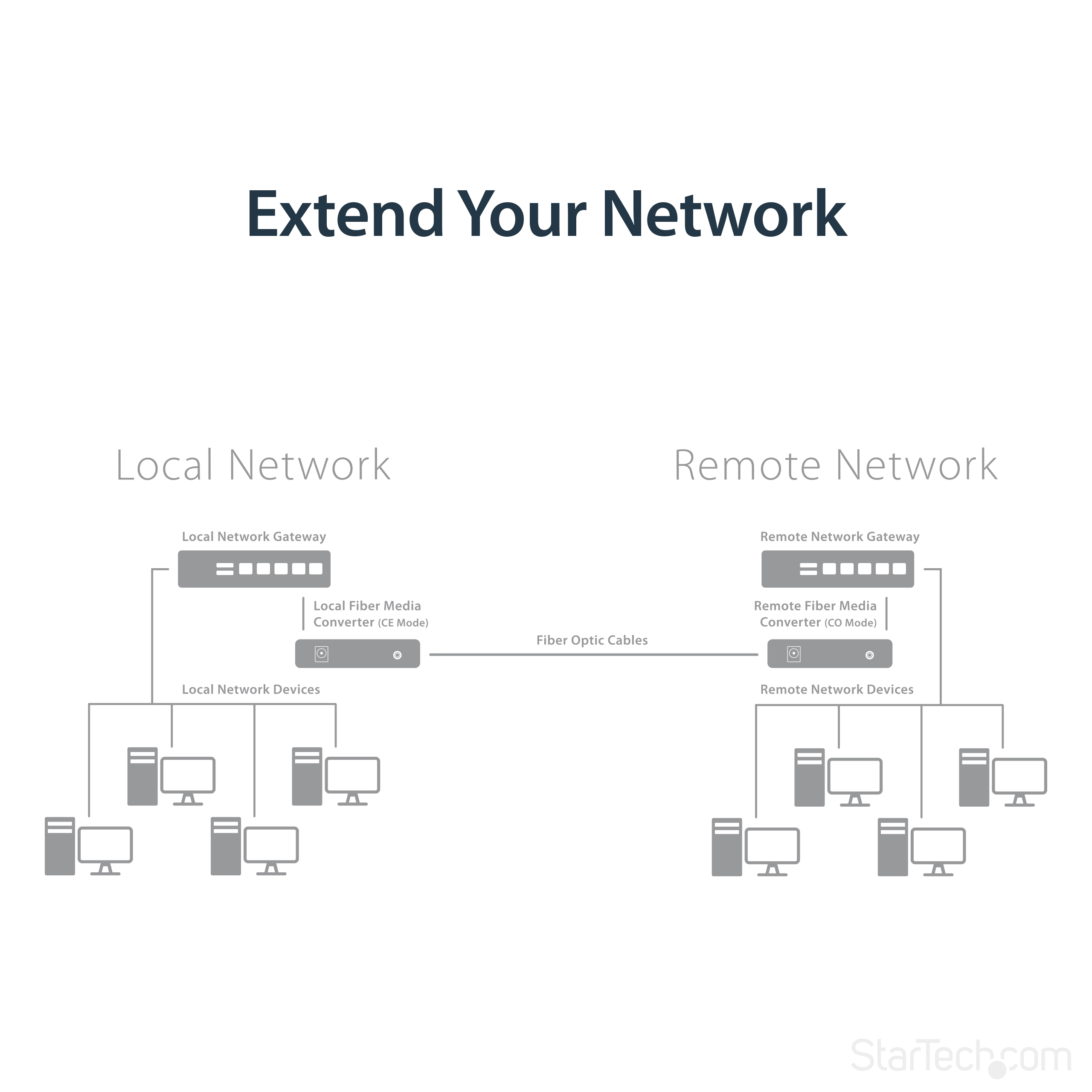

Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name Gigabit Ethernet Copper-to-Fiber Media Converter Product Number ET91000SM20 UPC 065030864947 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) GbE Fiber Converter Product Title (Short) GbE Fiber Media Converter - SM LC 20 km Product Title (Medium) Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC 20 km - GbE Converter Product Title (Standard) Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 20 km, Ethernet Media Converter, GbE Converter, TAA Product Title (Long) Gigabit Ethernet Copper-to-Fiber Media Converter - SM LC - 20 km - TAA Product Title (AMZ) Singlemode (SM) LC Fiber Media Converter for 1Gbe Network - 20km - Gigabit Ethernet - 1310nm - with SFP Transceiver , TAA (ET91000SM20) Title Ingram (Part 1) GbE Fiber Media Converter - Title Ingram (Part 2) 20km - Fiber-to-Copper - LC SM Website Product Headline Convert and extend a Gigabit Ethernet connection up to 20 km (12.4 mi) using single-mode LC fiber cable Bullet 1 Converts copper to fiber and extends your network up to 20 km (12.4 mi.) using single-mode LC fiber-optic cable (1310 nm) Bullet 2 Removable SFP module (LC fiber connector) can be replaced should your network infrastructure change Bullet 3 Supports Link Fault Passthrough (LFP), Auto Laser Shutdown (ALS), and Auto MDIX Bullet 4 Up to 9.6K Jumbo Frame support Bullet 5 Supports full or half-duplex operation, as well as autonegotiation or forced mode Bullets (Compact) Convert and extend a GbE connection up to 20 km (12.4 mi) using single-mode LC fiber cable - Copper-to-Fiber Media Converter supports standalone operation or install into the ETCHS2U chassis - Cost-effective network extension - Rugged metal housing Bullets (Consolidated) Convert and extend a GbE connection up to 20 km (12.4 mi) using single-mode LC fiber cable - Gigabit Ethernet Copper-to-Fiber Media Converter SM LC 20 km - Ethernet Media Converter/GbE Converter/1000Mbps Network Extender and Converter/Fiber to Copper - Supports standalone operation or install into ETCHS2U chassis - Cost-effective network extension up to 20km using fiber-optical cable - Includes a pre-installed GbE SFP transceiver - Rugged metal housing - Supports LFP/ALS /Jumbo Frames Marketing Copy Marketing Copy (No HTML) Applications - Use fiber optic cable to connect to your network from remote areas or separate buildings, at greater distances than copper (RJ45) cable allows
- Perfect for secure connections required by government agencies where EMI isn’t acceptable
- Easily expand the number of ports on your existing network now, or in the future — perfect for small and medium businesses
Website Search Keyword - Fiber media converter
- copper to fiber
- fiber to copper
- fiber optic media converter
- fiber to ethernet media converter
- Fiber Optic transmitter
- ethernet media converter
- ethernet to fiber
- fiber ethernet media converter
- Ethernet fiber extender
- rj45 to fiber media converter
- rj45 to fiber converter
- rj45 to fiber
- network media converter
- Long distance ethernet
- fiber to copper network converter
- copper to fiber network converter
- ethernet network media converter
- Gigabit Fiber media converter
- Gbe Fiber media converter
- Gigabit Ethernet Fiber media converter
- 1000Mbps Fiber media converter
- media converter
- 1Gbps fiber media converter
- fiber converter
- Gigabit Ethernet to Fiber Converter
- gigabit media converter
- sm fiber converter
- LC fiber media converter
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords

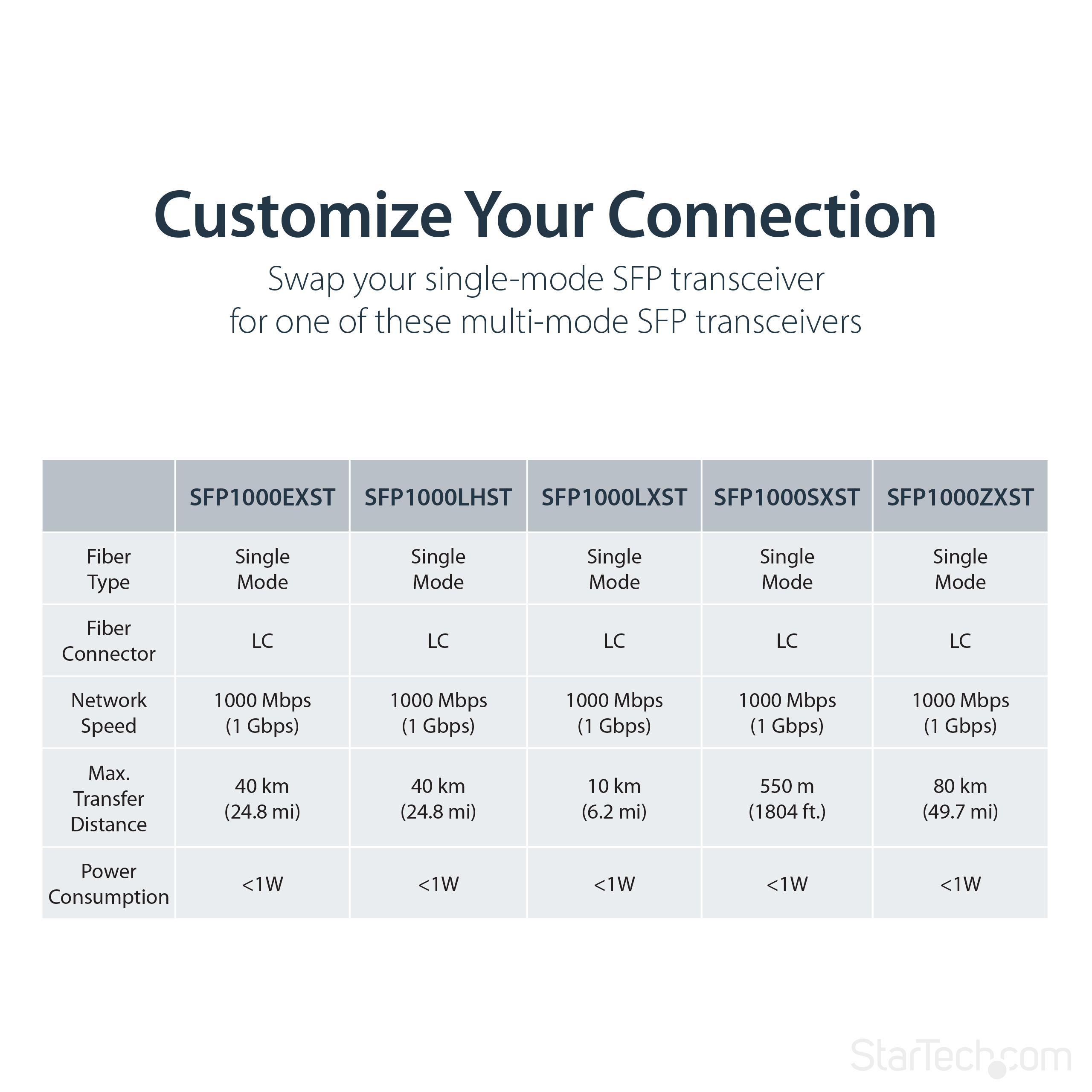

System and Cable Requirements The media converter can only be used with Gigabit SFP modules, and will not support 10/100Mbps modules. Accessory Products - SMFIBLCLC1
- SMFIBLCLC4
- SMFIBLCLC7
- SMFIBLCLC10
- C6ASPAT3BL
- C6ASPAT35BL
- C6ASPAT14BK
- PEX1000SFP2
- ST1000SPEX2
- ST1000SPEXD4
- 45PATCH25OR
- 45PATCH50BK
- RJ45PATCH10
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SM10
- ET1000S40LC2
- ET91000LCOAM
- ET91000LC2
- ET10GSFP
- ET91000SFP2C
- ET91000SFP2
- MCM1110SFP
- MCM1110MMLC

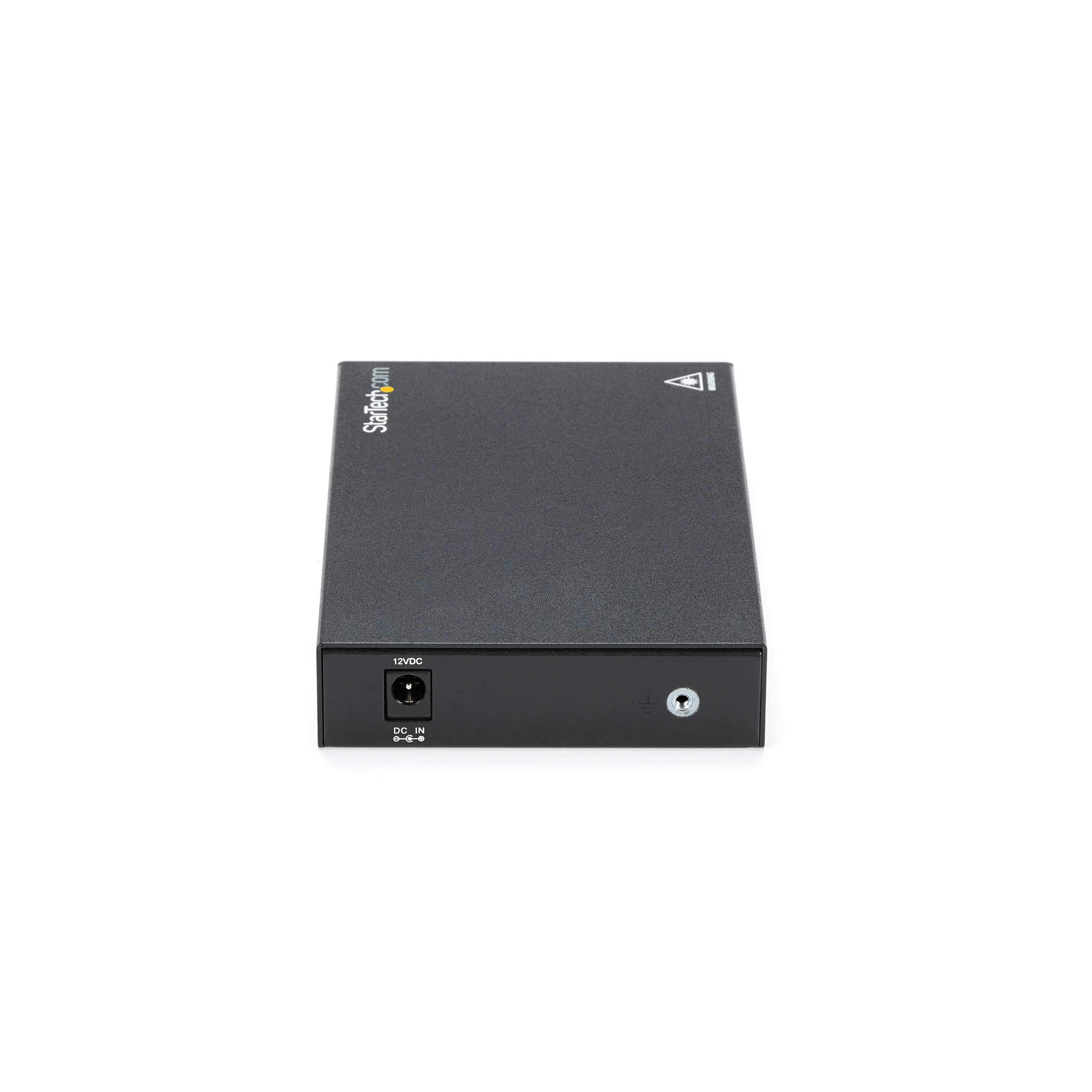

Constrained SKU Alternatives (Limited Stock) ET91000SM10 Input Current 0.48 A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 19.2 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH (Non-condensing) Material Steel Operating Temperature 0°C to 50°C (32°F to 122°F) Primary Material Steel Product Length (mm) 139.000 Product Width (mm) 88.000 Product Height (mm) 23.000 Product Weight (g) 410.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Compatible Networks 1000 Mbps (1 Gbps) Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Flow Control None Jumbo Frame Support 9.6K max. Maximum Data Transfer Rate 2 Gbps (Full-Duplex) Max Transfer Distance 20 km (12.4 mi) MTBF (hours) 65,000 Hours Remote Management Ability No Switching Architecture None Wavelength 1310nm Fiber Connector LC Industry Standards - IEEE 802.3ab (1000BASE-T)
- IEEE 802.3z (1000BASE-LX)

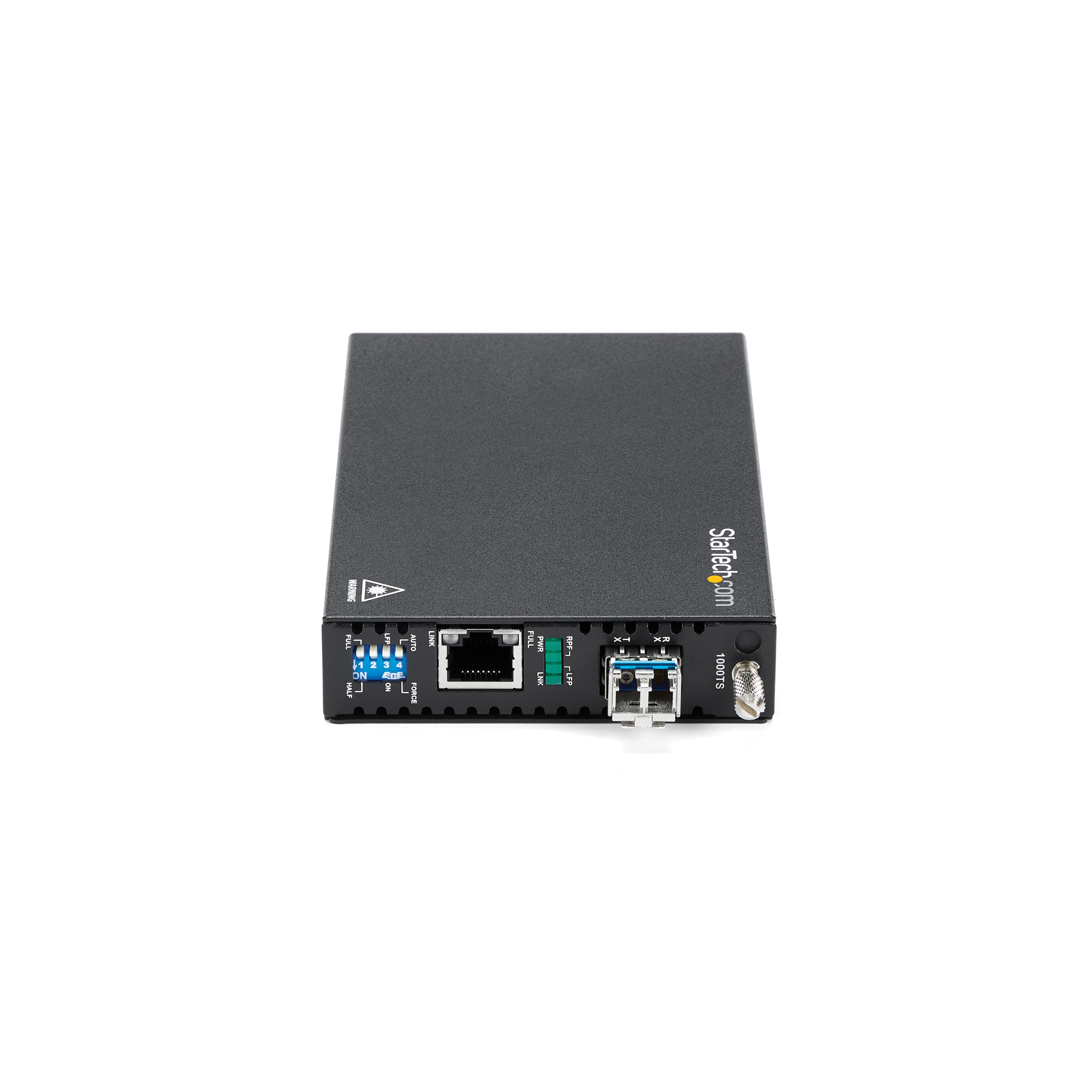

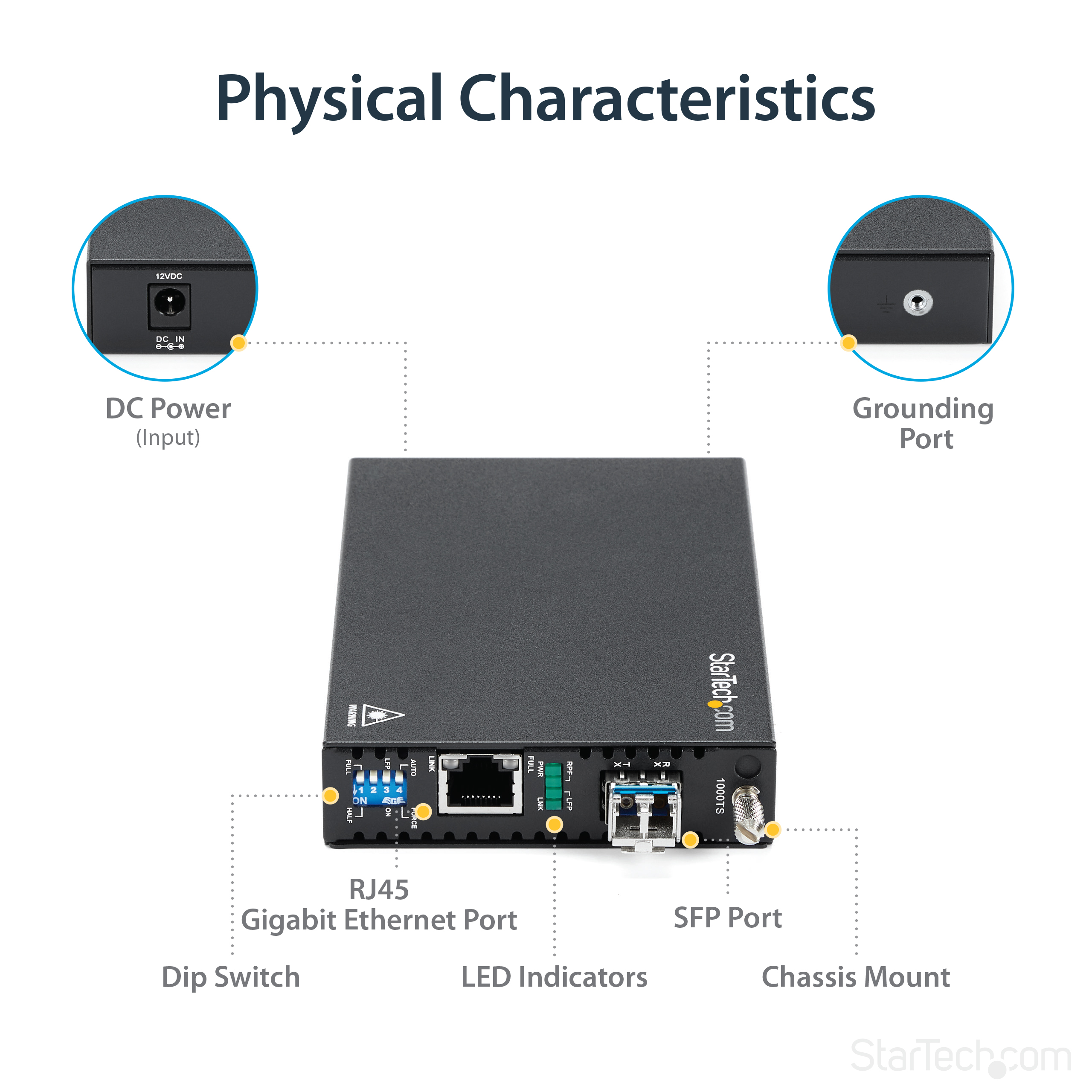

LED Indicators - 1 - PWR
- 1 - RPF
- 1 - LFP
- 1 - LNK
- 1 - LINK - RJ45
- 1 - FULL - RJ45

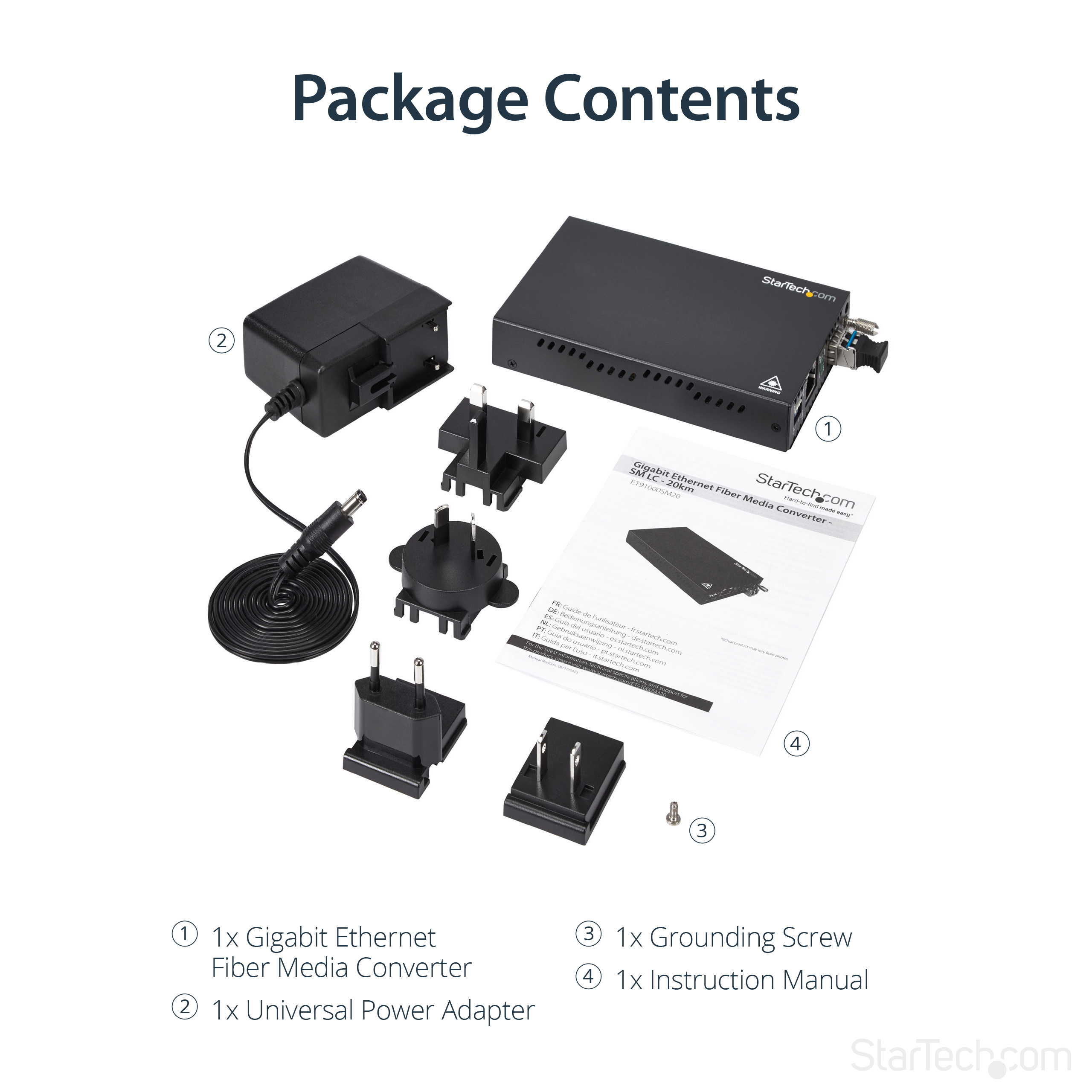

Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 437 Carton Height (mm) 302 Carton Quantity 15 Carton Weight Gross (g) 12472 Included in Package - 1 - Gigabit Ethernet fiber media converter
- 1 - universal power adapter (NA/JP, EU, UK, ANZ)
- 1 - instruction manual
- 1 - grounding screw
- 1 - SFP module
Package Depth (mm) 137 Package Height (mm) 91 Package Width (mm) 206 Package Weight (g) 772 Packaging Description Gigabit Ethernet Fiber Converter - 20km Packaging Description India Gigabit Ethernet Fiber Converter - 20km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 LC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2016-02-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,PE,SE,UK,US Primary Technology None Priority New Product N/A Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Production Release 2016-03-11 Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle Legacy
