Main Image
ET91000SM40

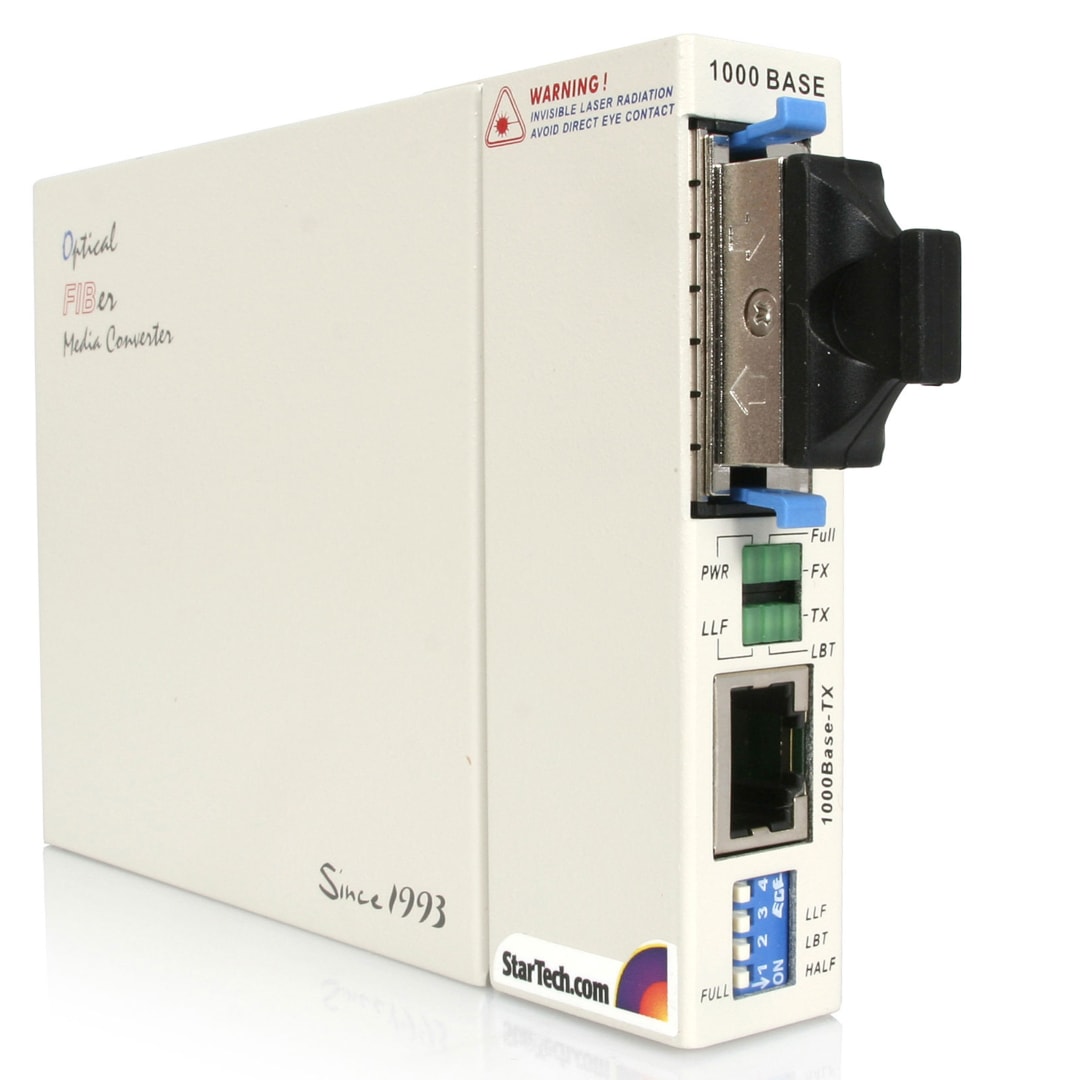

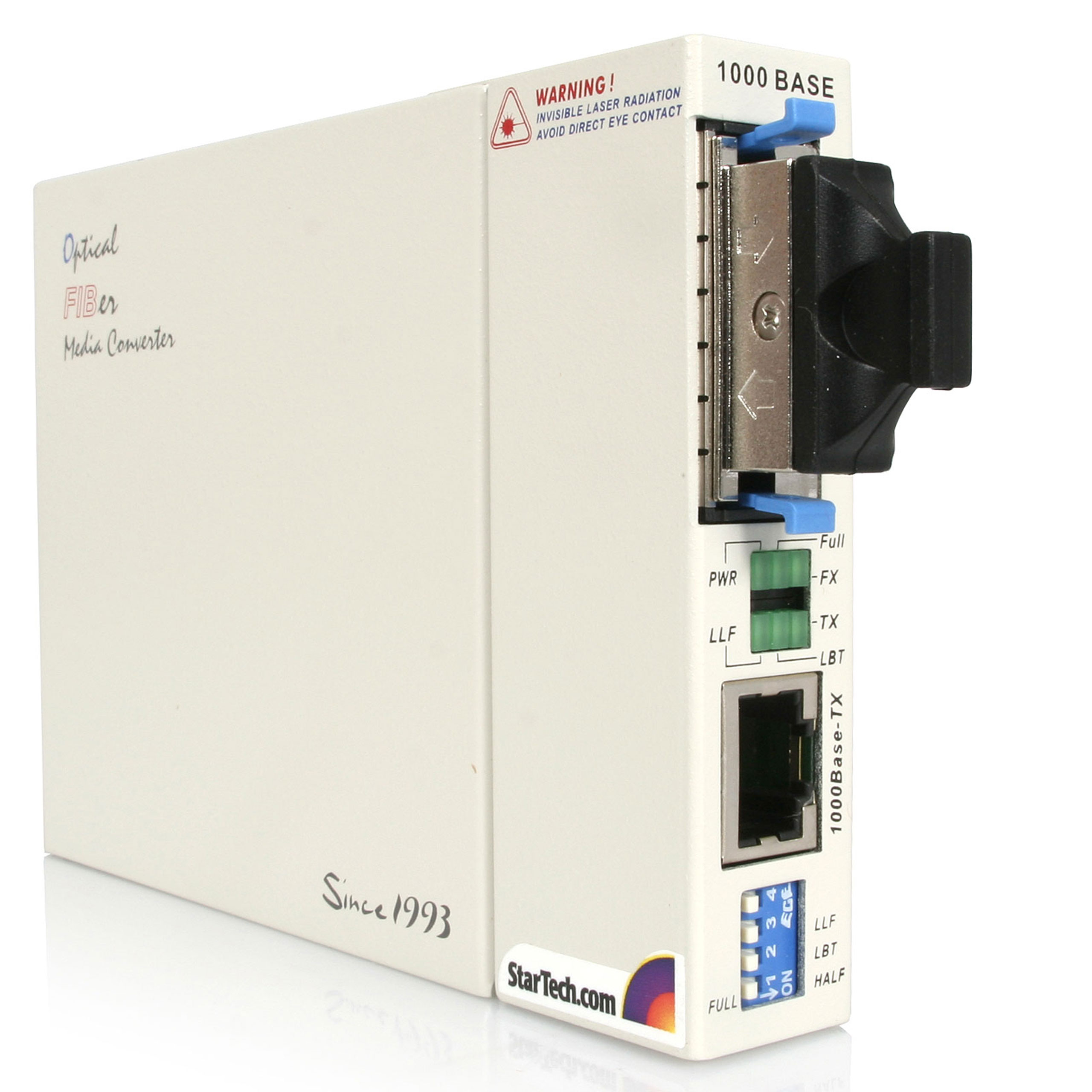

Gigabit Single Mode Media Converter (SC-40Km)
Convert and extend a Gigabit Ethernet connection up to 40 km over Single Mode SC fiber
Main Image
BOM Image
Product Name Gigabit Single Mode Media Converter (SC-40Km) Product Number ET91000SM40 UPC 065030820585 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Gigabit SM Fiber Media Converter SC 40km Product Title (Standard) StarTech.com 1000 Mbps Gigabit Ethernet Single Mode Fiber Media Converter Product Title (Long) 1000 Mbps Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km Title Ingram (Part 1) 1000 Mbps Gigabit Ethernet SM Fi Title Ingram (Part 2) ber Media Converter SC 40km Website Product Headline Convert and extend a Gigabit Ethernet connection up to 40 km over Single Mode SC fiber Bullet 1 Maximum Fiber Cable length of 40 Km Bullet 2 Supports full or half-duplex operation Bullet 3 Advanced features include Link-loss forwarding, loop-back test, remote monitor status, two frame lengths Bullet 4 Cost-effective way to extend/bridge networks using fiber cabling Bullet 5 Easy to use and install Marketing Copy Applications Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode cable Accessory Products - SMFIBSCSC1
- C6PATCH10BL
- C6PATCH15BL
Related Products - ET91000SC
- ET90110SC
- ET90110ST
- ET90110WDM

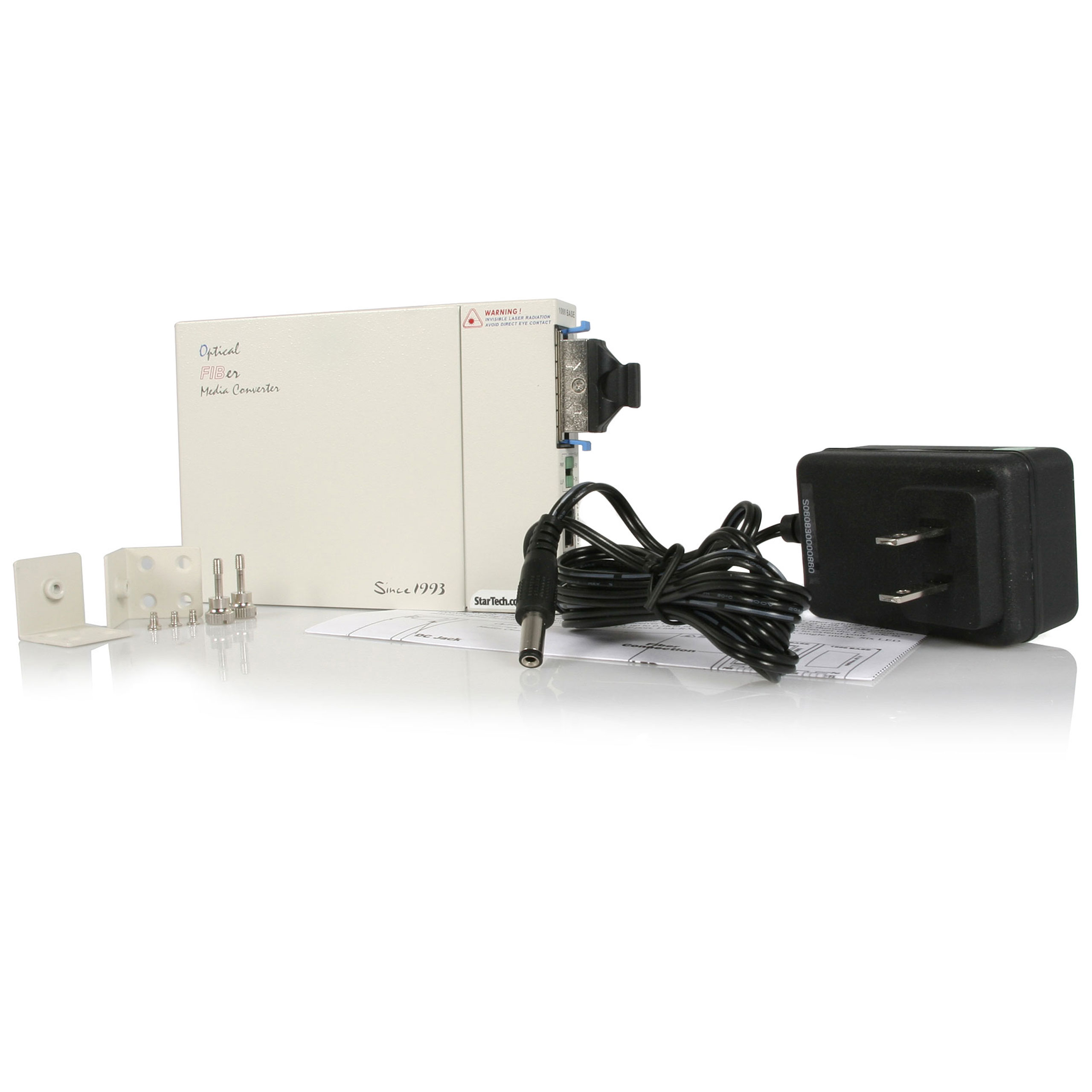

Replacement Product ET91000SM402 Input Voltage 115V-230V AC Output Current 1A Output Voltage (V) 12V DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Beige Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 490 Product Width (mm) 400 Product Height (mm) 260 Product Weight (g) 690 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 2000 Mbps (full duplex mode) Max Transfer Distance 40 km (24.8 mi) Wavelength 1310nm Fiber Connector SC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 490 Carton Height (mm) 315 Carton Quantity 12 Carton Weight Gross (g) 6960 Included in Package - 1 - Fiber Media Converter
- 2 - Mounting Brackets (w/ Screws)
- 1 - Power Adapter
- 1 - Instruction Manual
Package Depth (mm) 191 Package Height (mm) 77 Package Width (mm) 236 Package Weight (g) 720 Packaging Description Gigabit Ethernet to SC Fiber Converter 40km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 SC Duplex Fiber Host Connector 1 (Quantity) 1 Host Connector 2 RJ-45 Host Connector 2 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
