ET91000SM402
Gigabit Ethernet SM Fiber Converter SC 40 km
Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name Gigabit Ethernet SM Fiber Converter SC 40 km Product Number ET91000SM402 UPC 065030846219 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Ethernet Media Converters Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Single Mode Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Ultra-Short) . Product Title (Short) Gigabit Ethernet SM Fiber Converter SC Product Title (Standard) Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km, 1000 Mbps, TAA Product Title (Long) Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps - TAA Product Title (AMZ) Gigabit Ethernet Single Mode Fiber Media Converter SC 40 km - 1000 Mbps , TAA (ET91000SM402) Title Ingram (Part 1) Gigabit Ethernet SM Fiber Media Title Ingram (Part 2) Converter SC 40 km Website Product Headline Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40 km over Single Mode SC fiber Bullet 1 Advanced features include Link-loss forwarding, remote monitor status, two frame lengths Bullet 2 Cost-effective way to extend/bridge networks using fiber cabling Bullet 3 Quick and simple installation, easy to use Bullet 4 Maximum Fiber Cable length of 40 km Bullet 5 Supports full or half-duplex operation Bullets (Consolidated) Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis - Cost-effective way to extend/bridge networks using fiber cabling - Advanced features include Link-loss forwarding, remote monitor status - Maximum Fiber Cable length of 40 km - Supports full or half-duplex operation - Quick and simple installation - Easy to use Marketing Copy Marketing Copy (No HTML) Applications - Converts 1000Base-LX fiber optic signals to 1000Base-T Ethernet over single mode fiber cable
- Provides network connectivity to users or network segments located in isolated areas of a large complex or separate building
- Extend network connectivity to remote areas of stadiums, auditoriums or other venues
- Suitable for environments such as government agencies, where security threats (network tapping, etc.) need to be prevented
- Connect traffic control/monitoring systems at extreme distances to the main office
Website Search Keyword - Ethernet Fiber Media Converter
- Media Converter
- SC
- gigabit
- 1000Base-LX
- fibre converter
- coax to fiber
- coax to fibre
- ethernet to fiber
- copper to fibre
- ethernet fibre
- copper to optical
- copper to fiber
- long distance fibre
- long haul fiber
- long distance fiber
- long haul fibre
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - C6PATCH10BL
- C6PATCH15BL
- ETCHS2U
- SVA12M2NEUA
- SVA12M5NA
Related Products - ET91000SC
- ET91000SM40
- MCMGBSC15
- ET91000MMSM
- MCMGBSC055
- ET1000S40LC2

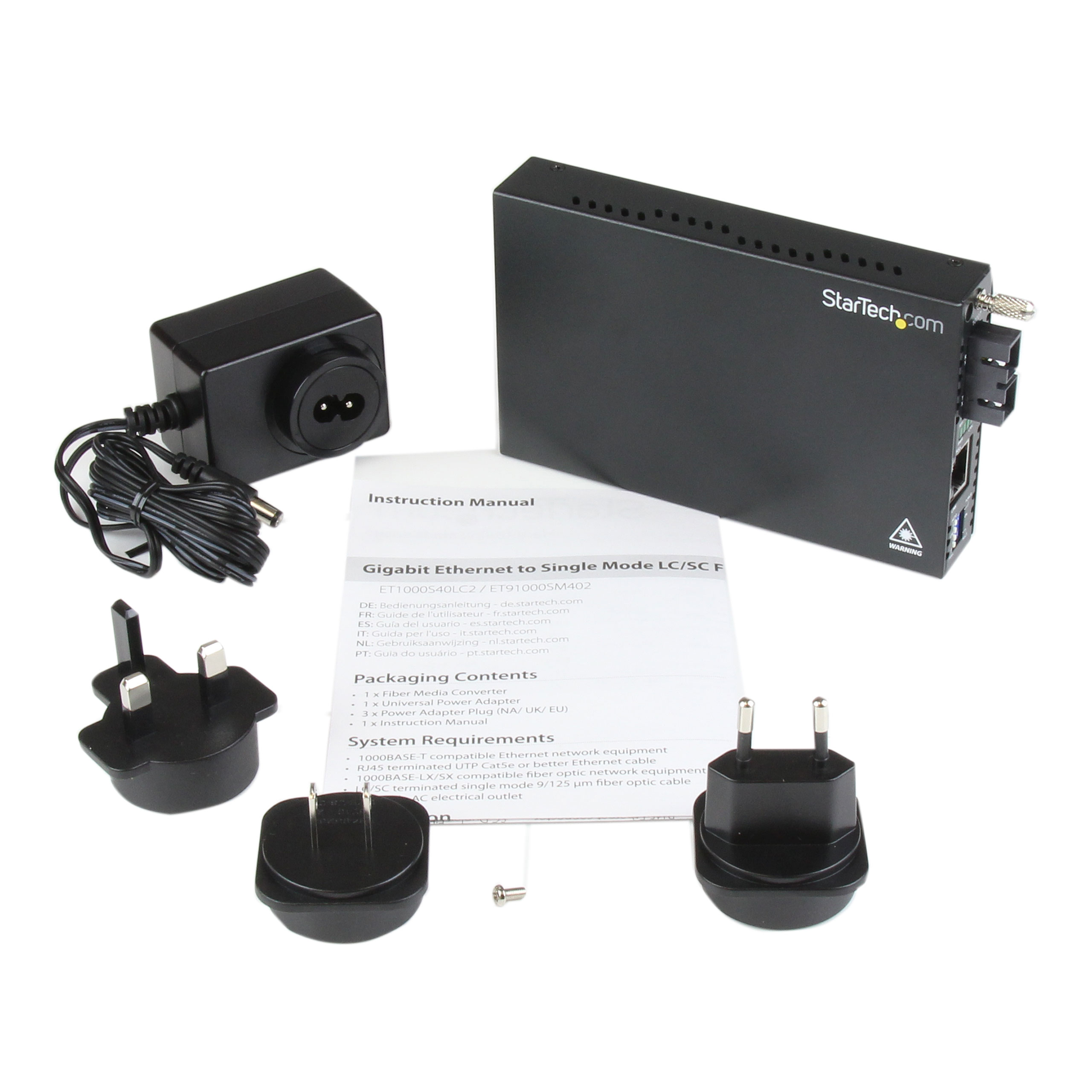

Constrained SKU Alternatives (Limited Stock) ET90110SM302 Input Current 0.36A Input Voltage 100 - 240 AC Output Current 1.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 4 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 10~90% RH Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 160 Product Width (mm) 95 Product Height (mm) 20 Product Weight (g) 600 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Auto MDIX Yes Fiber Operating Mode Half/Full-Duplex Fiber Type Single Mode Maximum Data Transfer Rate 2000 Mbps (full duplex mode) Max Transfer Distance 40 km (24.8 mi) MTBF (hours) 65,000 Hours Wavelength 1310nm Fiber Connector SC Power over Ethernet No Wave Division Multiplexing (WDM) No Carton Depth (mm) 360 Carton Height (mm) 298 Carton Quantity 15 Carton Weight Gross (g) 12276 Included in Package - 1 - Fiber Media Converter
- 1 - Universal Power Adapter (NA/EU/UK/AU)
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 137 Package Height (mm) 90 Package Width (mm) 206 Package Quantity 1 Package Weight (g) 762 Packaging Description Gigabit Ethernet to SC Fiber Converter 40 km Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Host Connector 1 RJ-45 Host Connector 1 (Quantity) 1 Host Connector 2 SC Duplex Fiber Host Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,SG,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Alex Garcia Technology Lifecycle None
