ETCHS2U
20 Slot Rack Mount Media Converter Chassis
Add an un-managed, 20-slot media converter chassis to your rack or cabinet
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 20 Slot Rack Mount Media Converter Chassis Product Number ETCHS2U UPC 065030848275 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Networking Category Level 2 Ethernet Media Converters Category Level 3 Other Ethernet Media Converters Family Media Converters - ET Series Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX016X Product Title (Short) Media Converter Chassis for ET Series 2 Product Title (Standard) 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Product Title (Long) 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converter Product Title (AMZ) 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converters (ETCHS2U) Title Ingram (Part 1) 20 Slot Rack Mount Media Convert Title Ingram (Part 2) er Chassis for ET Series 2 Website Product Headline Add an un-managed, 20-slot media converter chassis to your rack or cabinet Bullet 1 2U 20-slot Media Converter Chassis with AC/DC power Bullet 2 All modules and cards support hot-swapping Bullet 3 2 removable cooling fans included Bullet 4 Bullets (Compact) Add an unmanaged 20-slot media converter chassis to your server rack or cabinet - Compatible w/ StarTech.com ET Series 2 Fiber Media Converter - Consolidates media converters into one space while providing power & cooling - Includes 200W power supply Bullets (Consolidated) Add an un-managed 20-slot media converter chassis to your rack or cabinet - 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Fiber Media Converter - Media Converter Rack/Rack Mount Fiber Media Converter Chassis - Consolidates media converters into one space while providing central power and cooling - Modular design lets you hot-swap media converter cards or add an extra power supply without downtime - Single 200W power supply included/Use with ETCHS2UPSU redundant power supply Marketing Copy Applications Centrally mount and power up to 20 media converter units with a single chassis, while providing additional cooling and optional redundant power Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
Accessory Products - ETCHS2UFANL
- ET90110ST2
- ET90110WDM2
- ETCHS2UPSU
- ET90110SM302
- ET91000SM402
- ETCHS2UFANR
- ET91000LC2
- ET91000SC2
- ET90110SC2
- ET91000SFP2C
- ET91000SFP2
Input Current 2.2 A Input Voltage 110V-240V AC Output Current 16.6 A Output Voltage (V) 12V DC Power Consumption (In Watts) 60 Power Source Standard 120V Power Cords Color Black Humidity 5~90% RH Non-condensing Material Steel Operating Temperature 0°C to 60°C (32°F to 140°F) Primary Material Steel Product Length (mm) 394.000 Product Width (mm) 517.000 Product Height (mm) 164.000 Product Weight (g) 6060.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant Yes Air Flow Rate 59.37 CFM MTBF (hours) 65,000 Hours (25°C) Noise Level 44.5 dBA Fans 2 - 80 mm Fans Included? Yes/No Yes Frame Type Open Frame Mounting Options Front Mount (Front Only) U Height 2U Carton Depth (mm) 462 Carton Height (mm) 428 Carton Quantity 2 Carton Weight Gross (g) 17058 Included in Package - 1 - 2U Media Converter Chassis

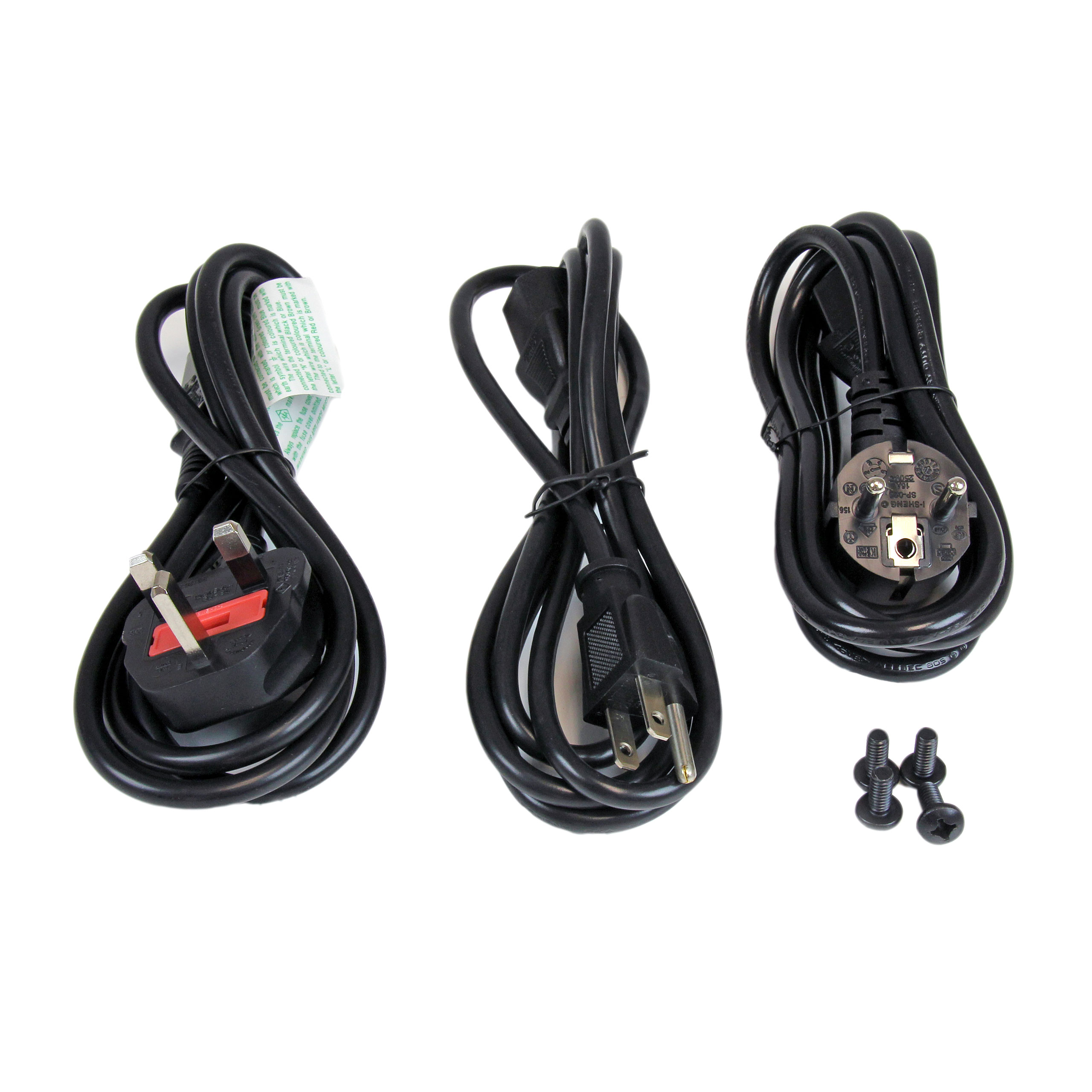

- 3 - Power Cords (NA/EU/UK)
- 1 - Instruction Manual
- 1 - Grounding Screw
Package Depth (mm) 442 Package Height (mm) 186 Package Width (mm) 566 Package Quantity 1 Package Weight (g) 7756 Packaging Description 2U Media Converter Chassis – ET Series 2 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-08-21 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
