F35023-USB-EXTENDER
USB 5Gbps Extender Optical Fiber usb3 0 2 0 1 1 2 port 350
Securely extend your USB signals over longer distances using fiber optic cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name USB 5Gbps Extender Optical Fiber usb3 0 2 0 1 1 2 port 350 Product Number F35023-USB-EXTENDER UPC 065030897389 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > USB Extenders Category Level 1 Computer Cards and Adapters Category Level 2 USB Cards and Extenders Category Level 3 USB Extenders - 5Gbps Family USB Extenders - 5Gbps - over Fiber Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX111X Product Title (Ultra-Short) USB Fiber Extender Product Title (Short) 2-Port USB 3.0 Extender over Fiber Optic Product Title (Medium) 2-Port USB 3.0 Extender over OM3 Multimode Fiber - LC/LC - 350m/1150ft Range Product Title (Standard) 2-Port USB 3.0 Extender over OM3 Multimode Fiber, LC/LC, USB-A 5Gbps Hub, 350m/1150ft, Durable USB Fiber Optic Extender, TAA Product Title (Long) 2-Port USB 3.0 Extender over OM3 Multimode Fiber - LC/LC - 2x 5Gbps USB-A Hub - 350m (1150ft) Range - Durable USB Fiber Optic Extender - Optical USB Extender - TAA Product Title (AMZ) 2-Port USB 3.0 Extender over OM3 Multimode Fiber - LC/LC - 2x USB-A Hub - 5Gbps - 350m (1150ft) Range - Durable USB Fiber Optic Extender - Optical USB Extender , TAA Title Ingram (Part 1) USB 3.0 Extender over Fiber - Title Ingram (Part 2) 350m - USB over Fiber Optic Website Product Headline Securely extend your USB signals over longer distances using fiber optic cable Bullet 1 USB 3.2 Gen 1 OVER FIBER EXTENDER: Extend and connect two USB 3.2 Gen 1 (5Gbps) devices up to 1150 ft (350 m) away over an OM3 multimode LC to LC fiber cable - Built with durable aluminum construction for high wear and tear environments Bullet 2 CONNECT REMOTE USB DEVICES: Works as a two port USB hub at remote location on a campus or between buildings for connecting USB cameras, POS devices, printers, scanners, plotters, keyboard/mouse, storage - Connection and power LEDs for activity and status Bullet 3 RELIABLE DATA TRANSFER: Unlike copper cable, optical fiber is not affected by Electromagnetic Interference (EMI), ensuring that the USB signal is delivered from transmitter to receiver without signal degradation or interference over long distances Bullet 4 ACTIVE USB EXTENDER: The secure locking power adapter (included) for the remote receiver unit provides 5V (0.9A) to each port - the local extender (transmitter) is USB bus powered by the host computer - Includes secure screw locking USB cable Bullet 5 EASY SETUP: The Point-to-Point USB fiber extender features driverless setup and is compatible with major operating systems incl. Windows, macOS, Linux - 2x 10G MMF SFP+ modules included - Compatible with USB 3.2 Gen 1/2.0/1.1 - Not compatible w/ LAN equipment Bullets (Compact) - Extend two 5Gbps USB devices up to 1150 ft (350 m) over OM3 LC/LC fiber - Optical fiber is not affected by EMI ensuring reliable data transfer - For USB cameras/POS devices/printers/scanners/plotters/keyboard/mouse/storage Bullets (Consolidated) Extend two 5Gbps USB devices up to 1150 ft (350 m) away over an OM3 multimode LC/LC fiber cable - Durable aluminum construction. Optical fiber is not affected by EMI ensuring reliable data transfer - For USB cameras/POS devices/printers/scanners/plotters/keyboard/mouse/storage - Secure locking power adapter included for remote unit/local unit is USB powered by the host - The USB fiber extender features driverless installation. Point-to-Point connection not compatible with network/LAN equipment Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - - Designed for use exclusively with the included SFP module. Other modules are not supported.
- - Each extender kit is factory-paired with its transmitter and receiver. Swapping components between kits is not supported.

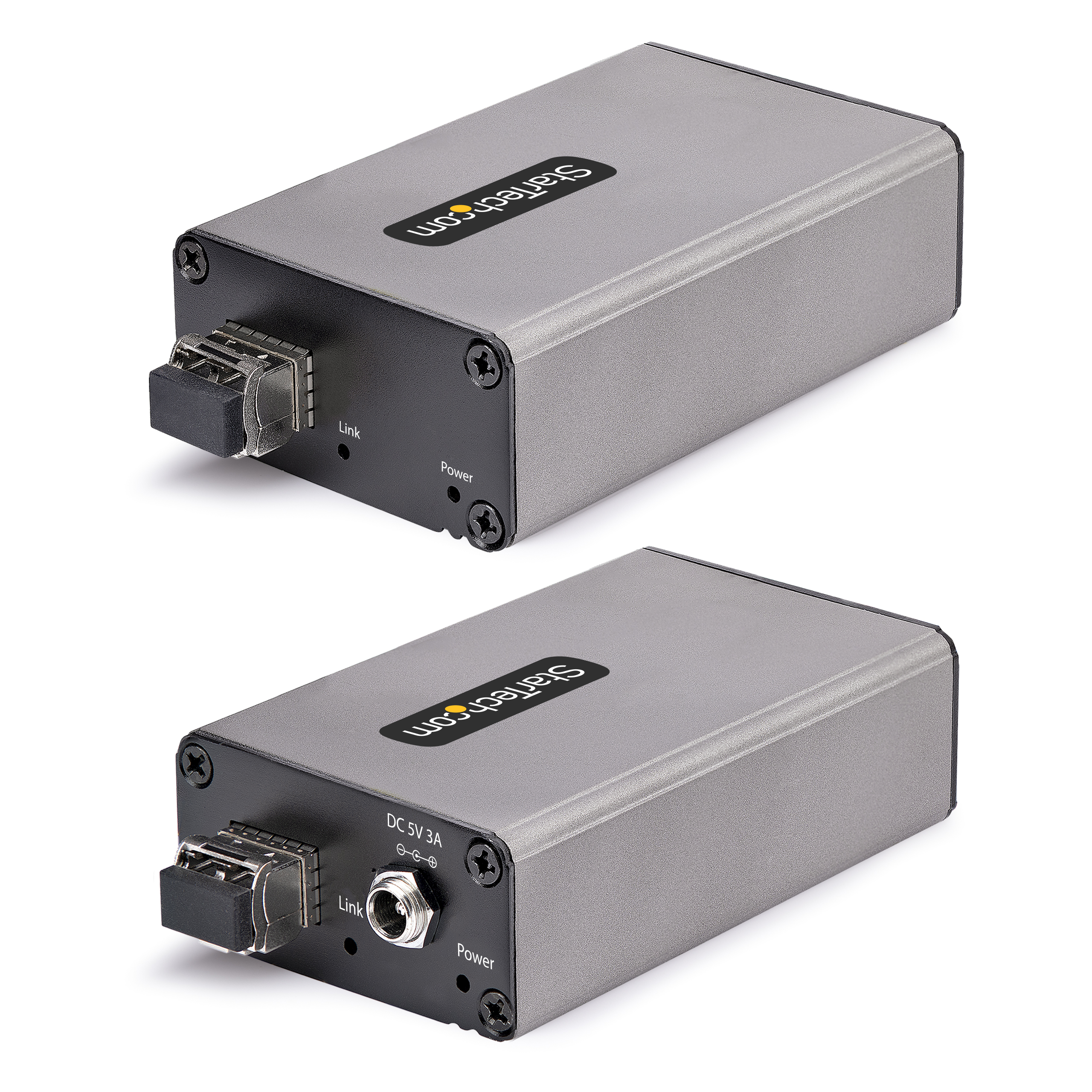

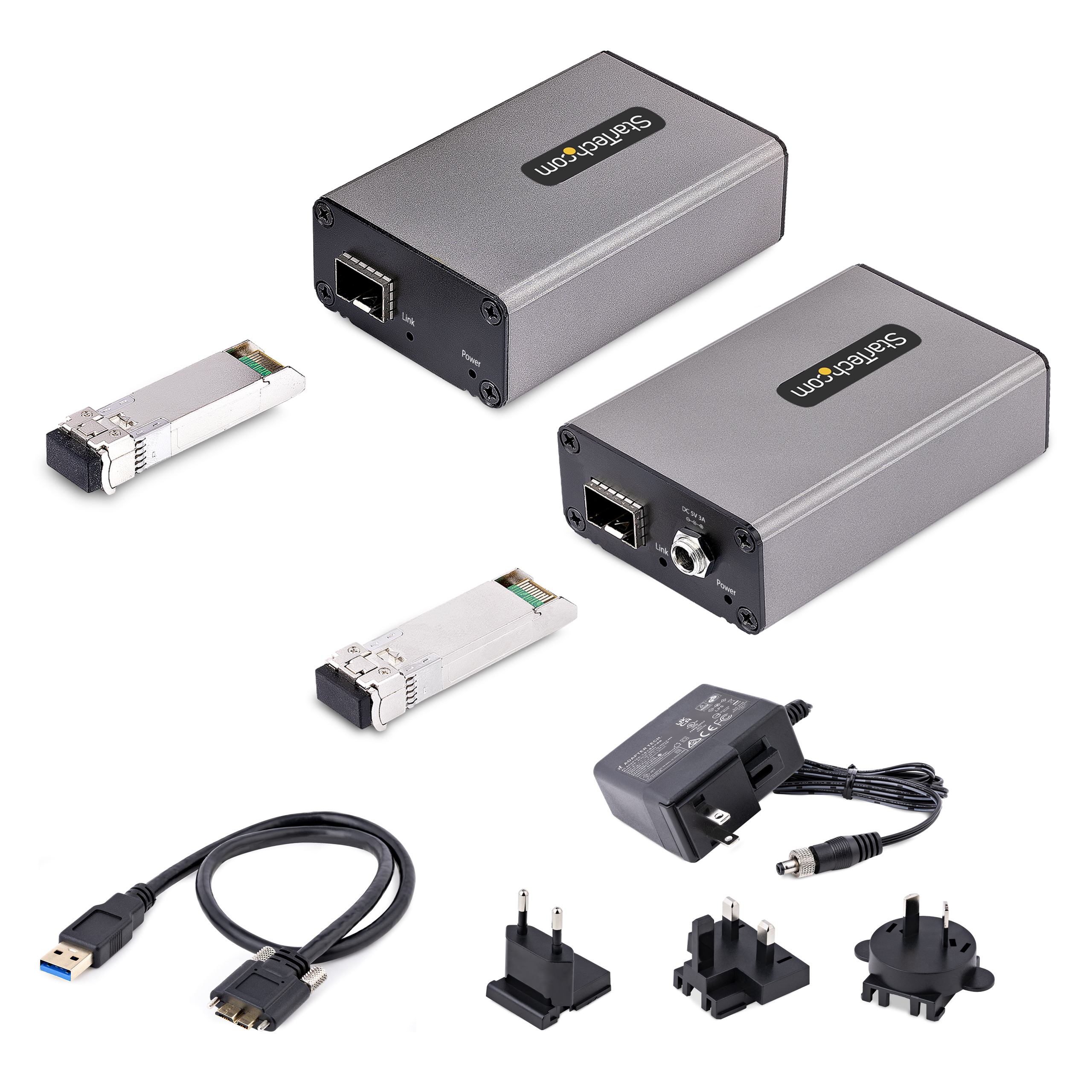

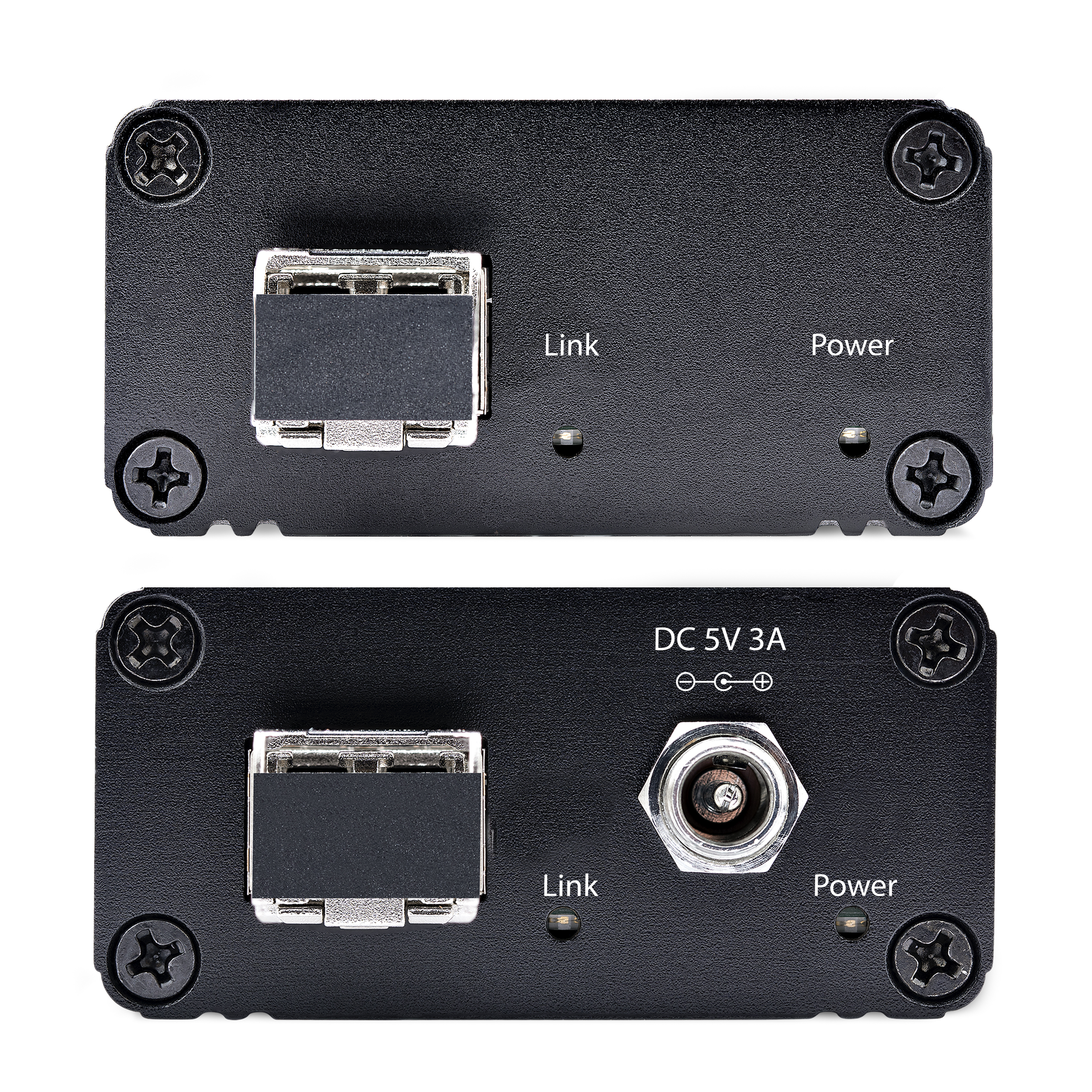

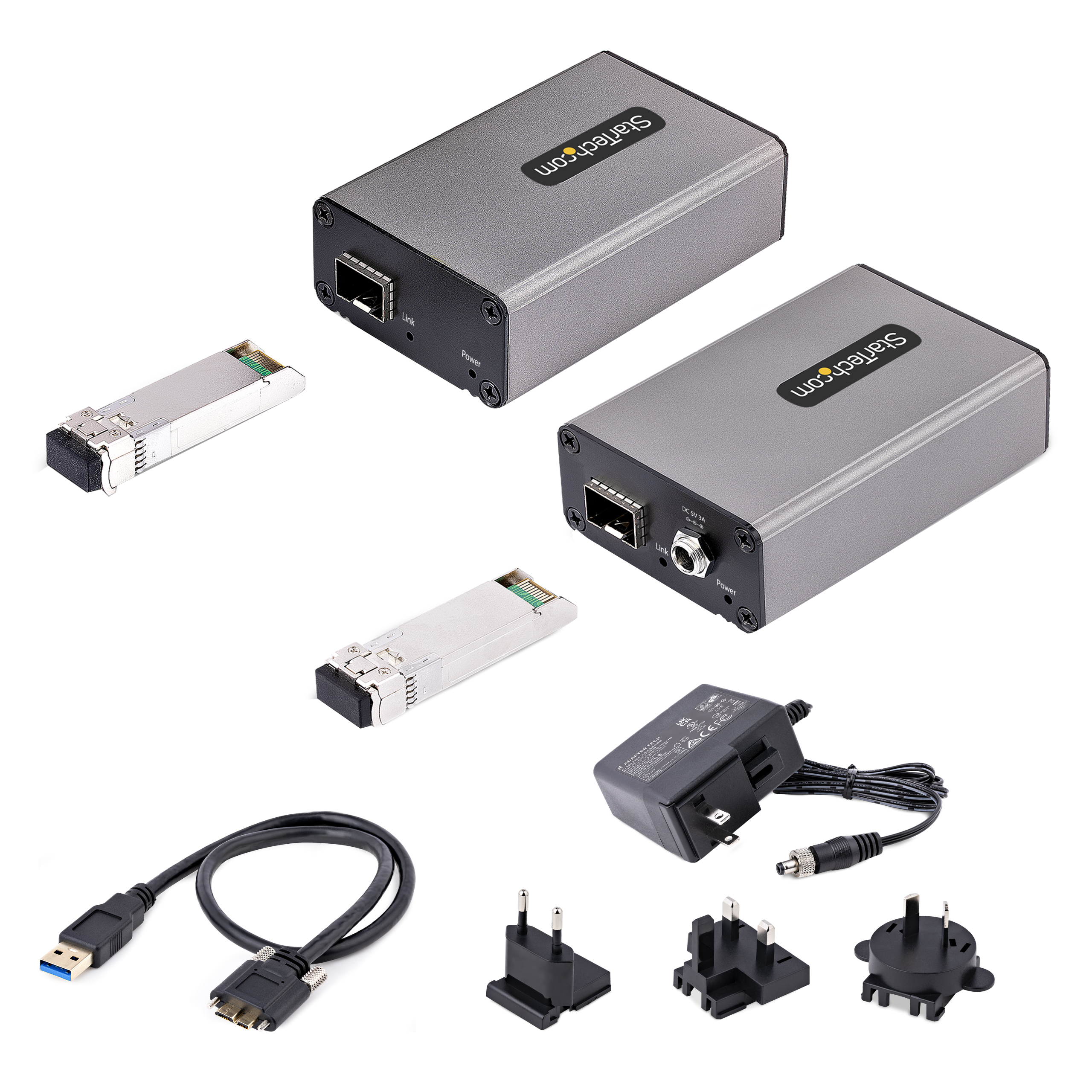

Input Current 0.48 A Input Voltage 100 - 240 AC Output Current 3 A Output Voltage (V) 5 DC Power Consumption (In Watts) 15 W Power Source AC Adapter Included Plug Type H Center Tip Polarity Positive Humidity 20% ~ 80% Operating</br> 10% ~ 90% Storage Operating Temperature 32°F ~ 122°F (0°C to 50°C) Product Length (mm) 57.000 Product Width (mm) 93.000 Product Height (mm) 28.000 Product Weight (g) 271.000 Storage Temperature -4°F ~ 158°F (-20°C to 70°C) TAA Compliant Yes Max Distance 350m [1148] Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility OS Independent Cabling Fiber Optic Interface/Bridge Fiber Ethernet LED Indicators 1 - Transmitter (Host Side) </br> Link LED = Solid Blue is Link </br> OFF = No Link </br> Power LED = Solid Blue is Power </br> Off = No Power </br> </br> Receiver (Remote Unit) </br> Link LED = Solid Blue is Link </br> OFF = No Link </br> Power LED = Solid Blue is Power </br> Off = No Power Network Adapter Host USB 3.0 - USB-A USB Port Type USB-A Carton Depth (mm) 386 Carton Height (mm) 298 Carton Quantity 12 Carton Weight Gross (g) 9190 Included in Package - 1 - Local Extender
- 1 - Remote Extender

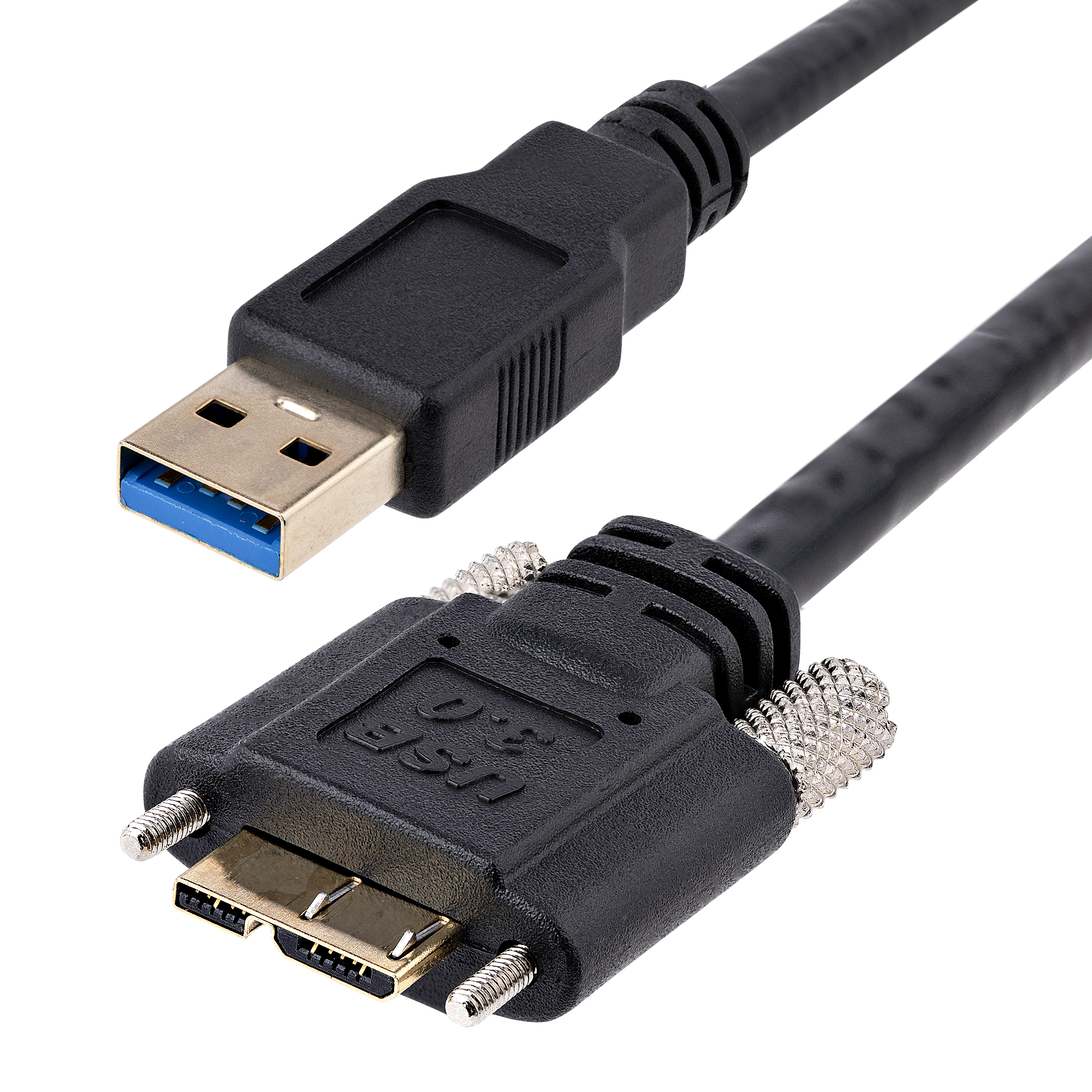

- 1 - 50 cm USB Type A to USB Micro B Cable For Host Connection
- 1 - Power Adapter
- 1 - Quick-Start Guide

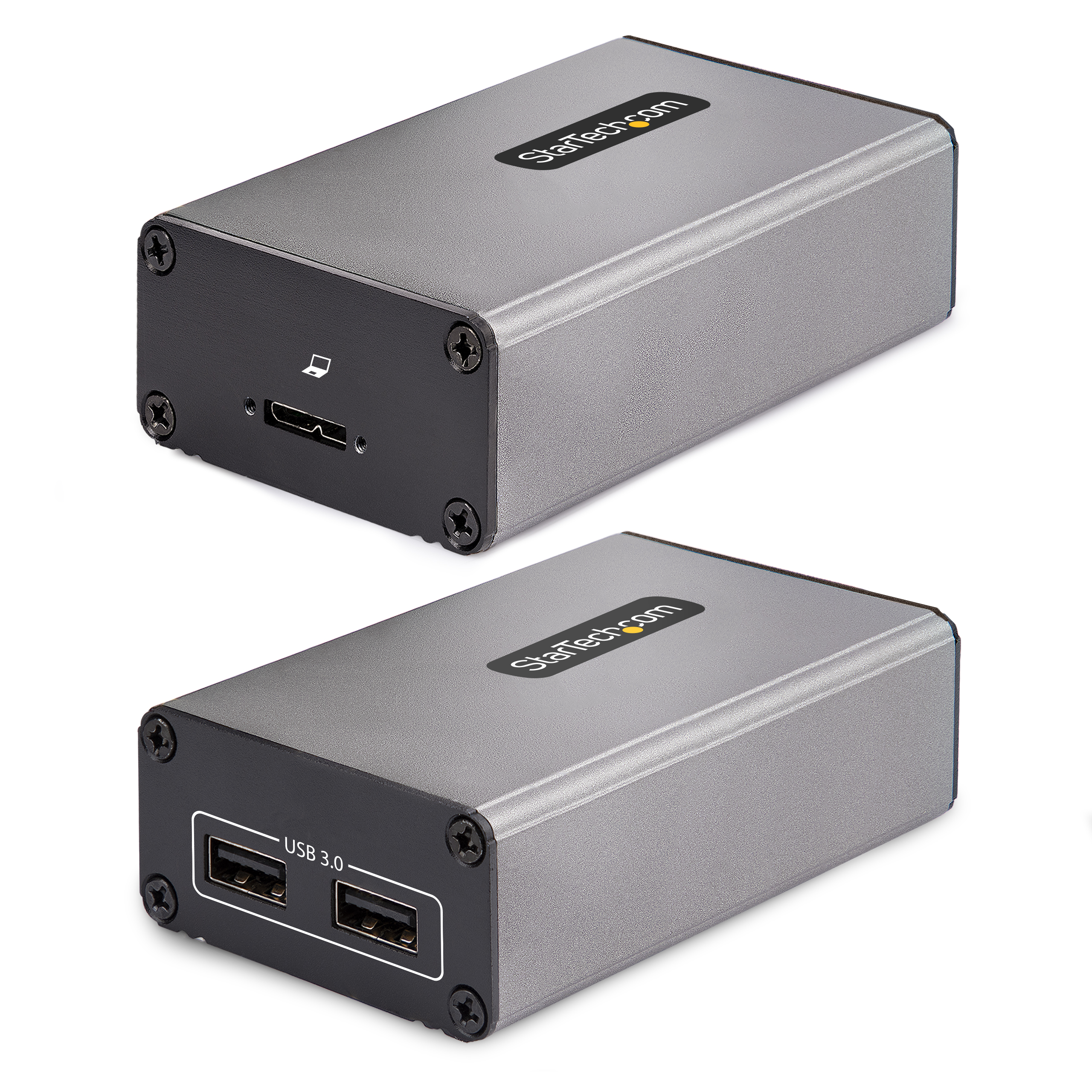

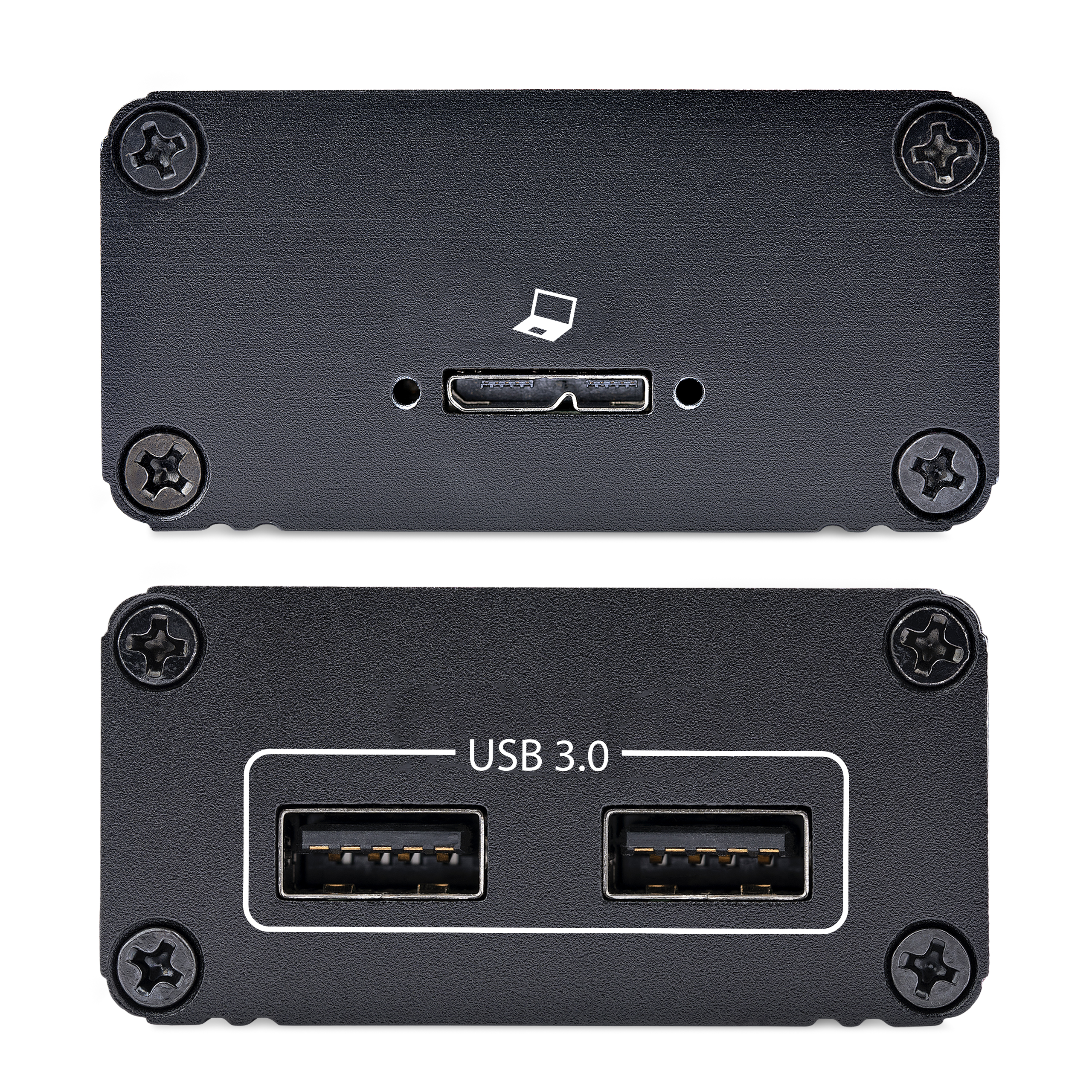

Number of Sub-Cartons 12 Package Depth (mm) 155 Package Height (mm) 130 Package Width (mm) 118 Package Quantity 1 Package Weight (g) 690 Packaging Description 2-Port USB 3.2 Gen 1 Extender Over Multimode Fiber - 5Gbps - Up to 350m Packaging Description India 2-Port USB 3.2 Gen 1 Extender Over Multimode Fiber - 5Gbps - Up to 350m Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 1 Sub-Carton Weight (g) 0 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 LC Duplex Fiber Connector 3 (Quantity) 1 Host Connector 1 USB Micro-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2022-07-14 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment least expensive current "industrial" cat extender. Has 1 port and uses Cat cable and is USB2.0 Comparable SKU 2 Comment USB 3.0 with 4 ports. Still ramping up and very expensive. Digital Content Due Date 2022-07-12 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,NL,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-07 Target Production Release 2022-07-14 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None
