FAN1156PWM

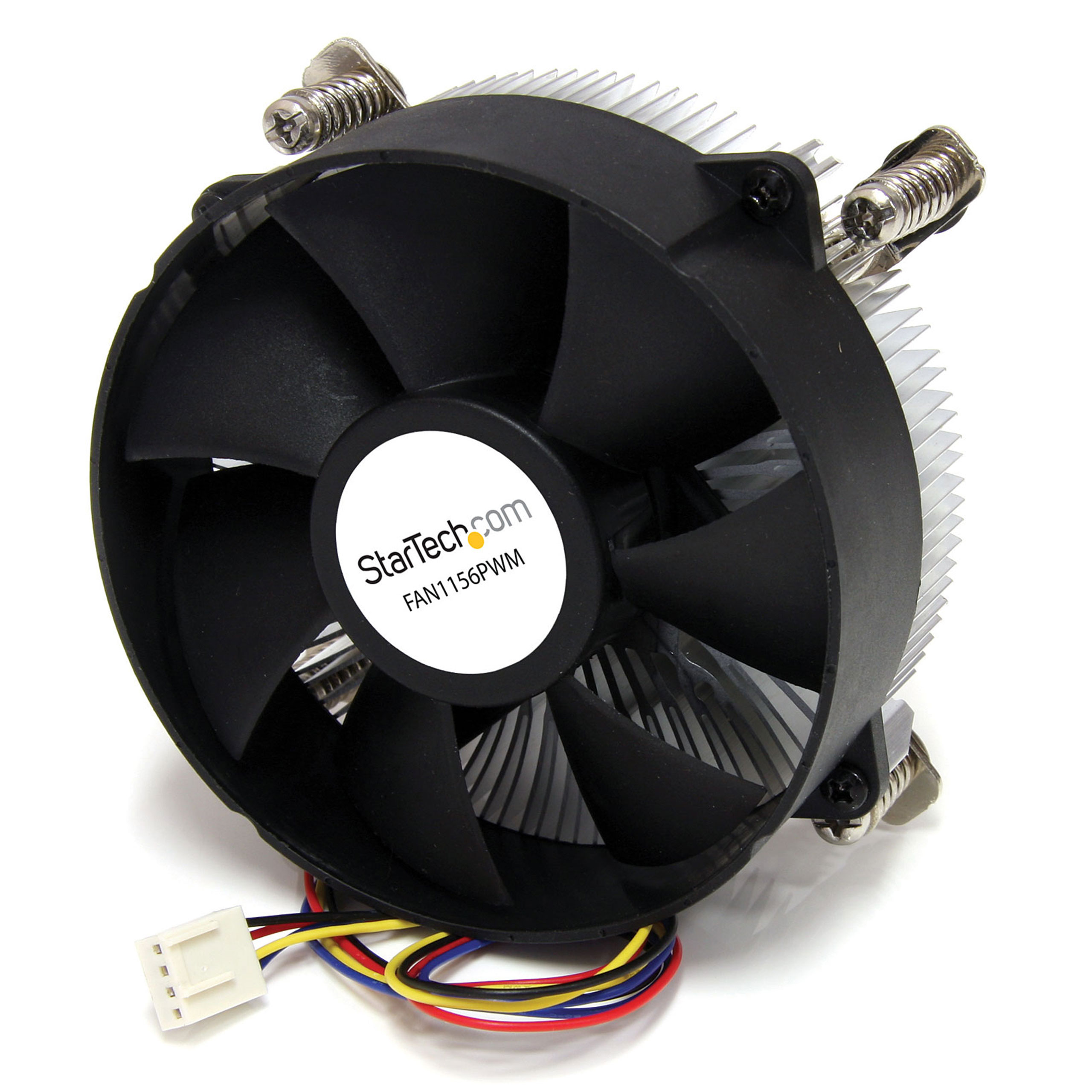

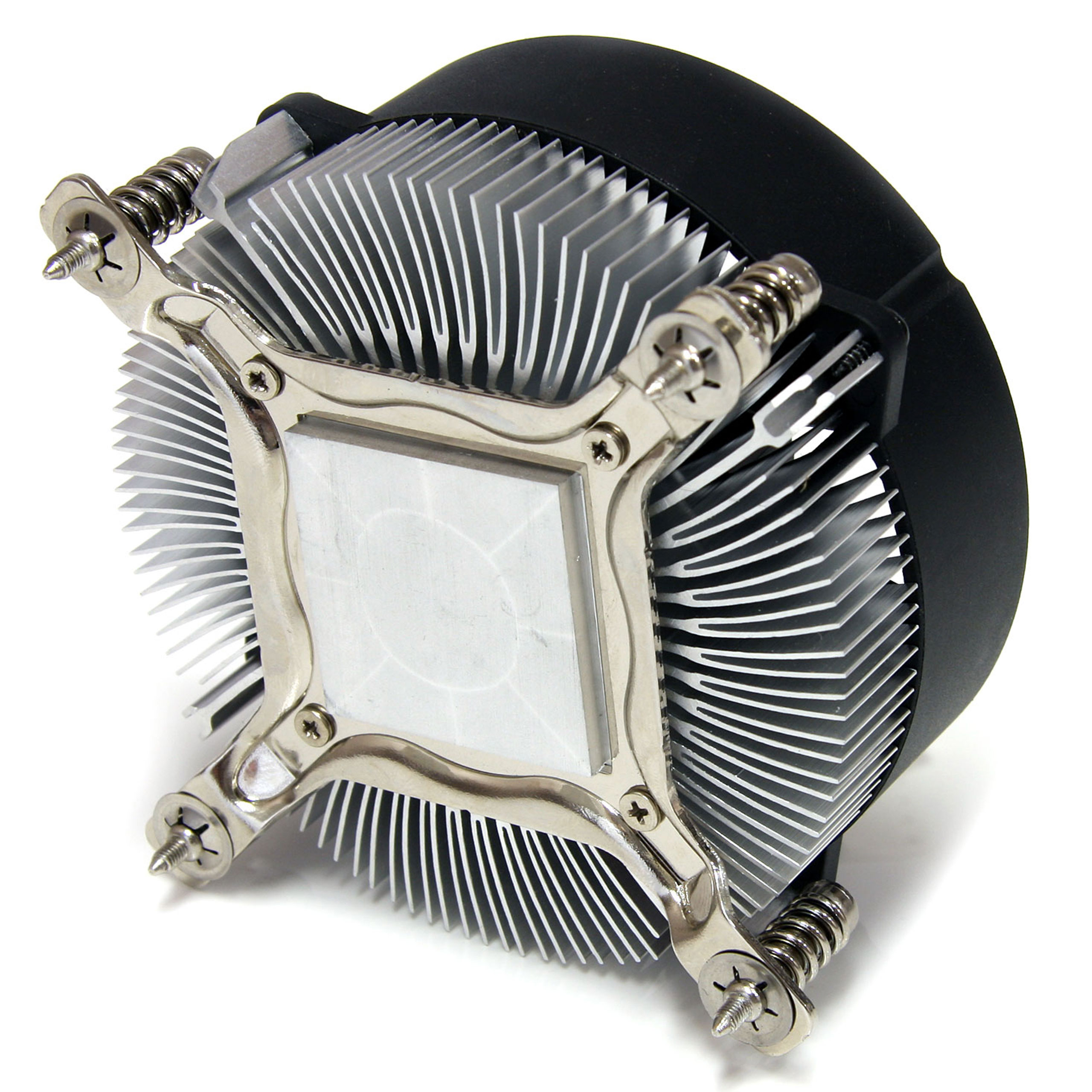

95mm CPU Cooler Fan with Heatsink for Socket LGA1156 1155 wi
Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System
Main Image
Product Images
Product Images
Product Name 95mm CPU Cooler Fan with Heatsink for Socket LGA1156 1155 wi Product Number FAN1156PWM UPC 065030845380 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Socket CPU Cooler Fan Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 95mm PWM CPU Cooler for LGA1156/1155 Product Title (Medium) 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 w/ PWM Product Title (Standard) 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with Pulse Width Modulation (PWM) Product Title (Long) 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with PWM Product Title (AMZ) 95mm CPU Cooler Fan with Heatsink for Socket LGA1156/1155/1150/1151/1200 with Pulse Width Modulation (PWM) Title Ingram (Part 1) 95mm CPU Cooler Fan for Socket L Title Ingram (Part 2) GA1156/1155 with PWM Website Product Headline Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System Bullet 1 4-pin Pulse Width Modulation (PWM) motherboard connector Bullet 2 Aluminum heatsink construction Bullet 3 95mm Ever Lubricate Bearing fan design Bullets (Consolidated) Add a Variable Speed PWM-Controlled CPU Cooler to an LGA1156/1155 System - 1155 Cooler PWM - 1156 Cooler PWM - 1155 PWM Fan - 1155 Heatsink - 1156 Heatsink - CPU Cooler Fan - 95mm CPU Cooler Fan for Socket LGA1156 /1155 - Pulse Width Modulation Lubricate Bearing Fan - Aluminum Marketing Copy Applications - Computer systems where the cooling fan does not need to run at full speed all the time, for lower power consumption and noise
- Replace a noisy or failed CPU cooler for an LGA1156/1155 system
Website Search Keyword - lga1156
- heatsink cooler
- cpu heat sink
- core i3
- cpu fan
- processor fan
- core i5
- pulse width modulation
- processor cooler
- socket 1156
- socket 1155
- core i7
- lga1155
Required Regulatory Compliance Marks - UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements Socket LGA1156/LGA1155 motherboard Accessory Products - FAN4SPLIT12
- SILVGREASE1
- HEATGREASE20
- HEATGREASE10
- HSFPHASECM
- HEATGREASE
Related Products - FAN7751U
- FANCSORB
- FANUNIVGA
- FAN3701U
- FAN775E
- FANATHLON
- FAN370PRO
- FAN478
- FANDURONTB
- UNIVERSALHSF
- FANK8AM21U
- FANK8AM2
Input Current 350 mA Input Voltage 12V DC Humidity 0 ~ 65% RH Material Steel Operating Temperature -10°C ~ 70°C (14°F ~ 158°F) Primary Material Steel Product Length (mm) 95 Product Width (mm) 95 Product Height (mm) 55 Product Weight (g) 274 Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F) TAA Compliant No Air Flow Rate 65.61 (max) CFM MTBF (hours) 40,000 Hours Noise Level <33 dBA RPM 1000 ~ 3000 RPM Fan Bearing Type Ever Lubricate Bearing Number of Conductors 4 Carton Depth (mm) 326 Carton Height (mm) 218 Carton Quantity 30 Carton Weight Gross (g) 10300 Included in Package - 1 - Socket LGA1156/1155 CPU Cooler
- 1 - Packet of thermal compound

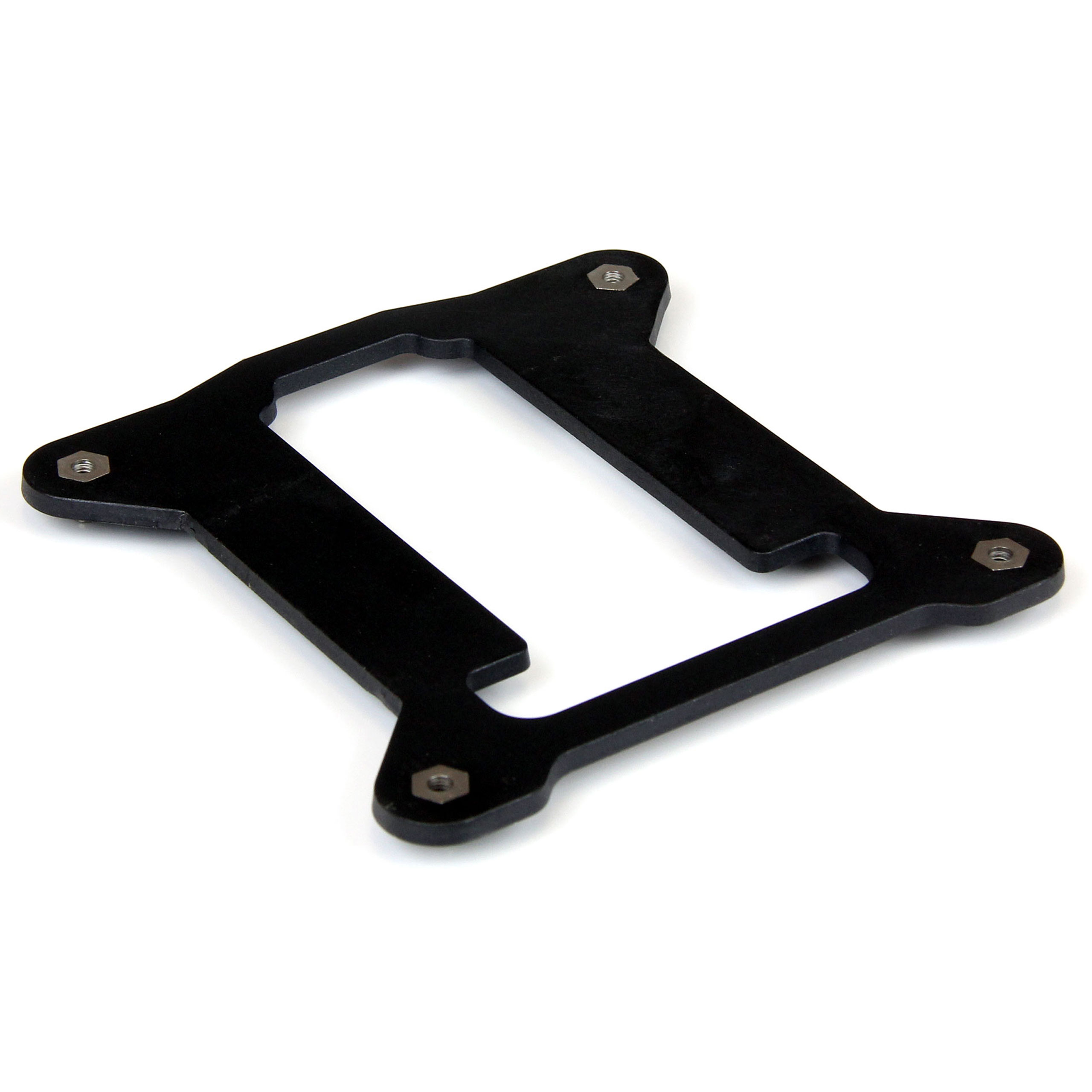

- 1 - Backing Plate
Included In Package for Label - 1 - Backing Plate
- 1 - Packet Of Thermal Compound
- 1 - Socket Lga1156/1155 Cpu Cooler
Package Depth (mm) 102 Package Height (mm) 87 Package Width (mm) 102 Package Quantity 1 Package Weight (g) 318 Packaging Description PWM CPU Cooler for LGA1156/LGA1155 Packaging Description India PWM CPU Cooler for LGA1156/LGA1155 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
