FAN12025PWM

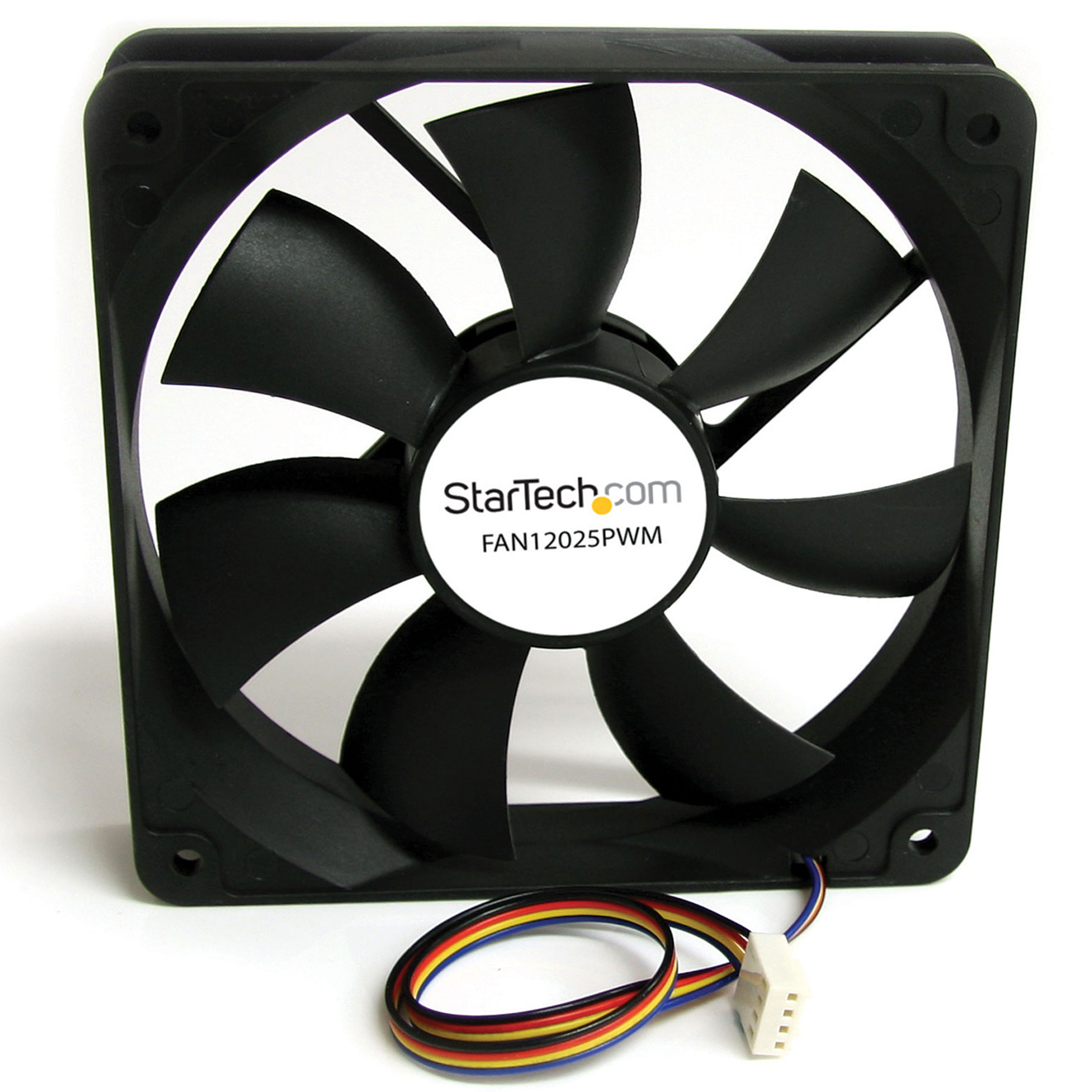

120x25 Ever Lubricate Bearing Case Fan - PWM
Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case
Main Image
Product Images
BOM Image
Product Name 120x25 Ever Lubricate Bearing Case Fan - PWM Product Number FAN12025PWM UPC 065030845335 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Replacement Computer Cooling Fan 120mm Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 120x25mm PWM Computer Case Fan Product Title (Medium) . Product Title (Standard) 120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector Product Title (Long) 120x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector Product Title (AMZ) 120x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - computer cooling Fan - pwm Fan - 120mm Fan (FAN12025PWM) Title Ingram (Part 1) 120x25mm Computer Case Fan with Title Ingram (Part 2) PWM Website Product Headline Add a Variable Speed, PWM-controlled Cooling Fan to your Computer Case Bullet 1 Ever Lubricate Bearing design Bullet 2 4-pin Pulse Width Modulation (PWM) motherboard connector Bullet 3 Includes a PWM Y-split cable Bullets (Consolidated) Case fan - 120 mm - black Marketing Copy Applications - Noisy or failed case fan replacement/upgrade
- Add an extra fan to a computer for improved system cooling
- Lowering power consumption and fan noise on computer systems where the cooling fan does not need to run at full speed all the time
Website Search Keyword - pulse width modulation
- cooling fan
- pwm
- chassis fan
- case fan
- 120mm
- ever lubricate bearing
- el bearing
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements 4-pin PWM fan connector (male) Accessory Products - TX3SPLITTER
- FAN4SPLIT12
- FANSCREW
- 12FANSCREW
Related Products - FAN8025PWM
- FANBOX12
- FAN9225PWM

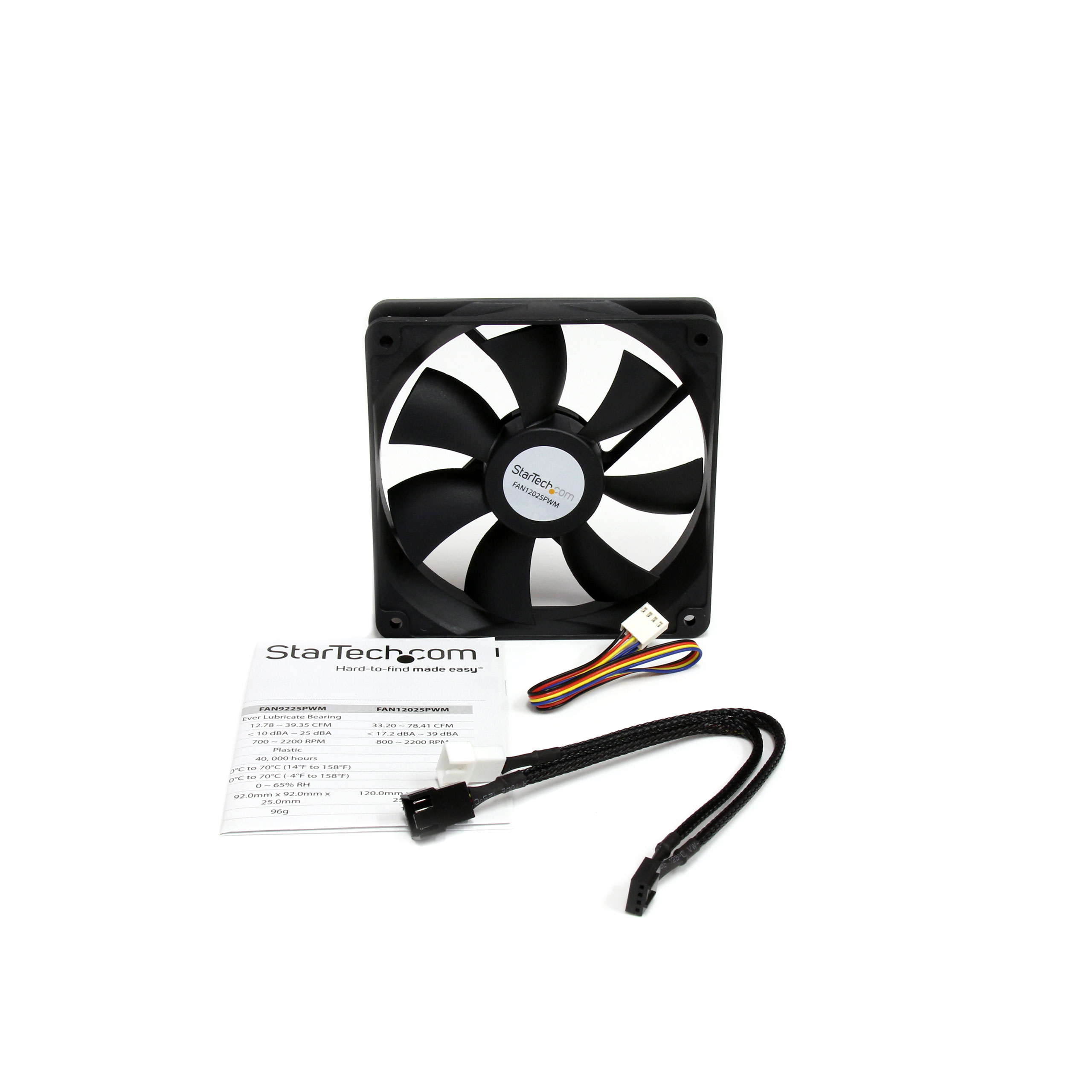

Input Current 320 mA Input Voltage 12V DC Cable Length (mm) 295 Color Black Humidity 0 ~ 65% RH Material Plastic Operating Temperature -10°C to 70°C (14°F to 158°F) Primary Material Plastic Product Length (mm) 120 Product Width (mm) 120 Product Height (mm) 25 Product Weight (g) 122 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Air Flow Rate 33.20 ~ 78.41 CFM MTBF (hours) 40,000 Hours Noise Level < 17.2 ~ 39 dBA RPM 800 ~ 2200 RPM Fan Bearing Type Ever Lubricate Bearing Number of Conductors 4 Carton Depth (mm) 528 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 12364 Included in Package - 1 - 120mm Case Fan

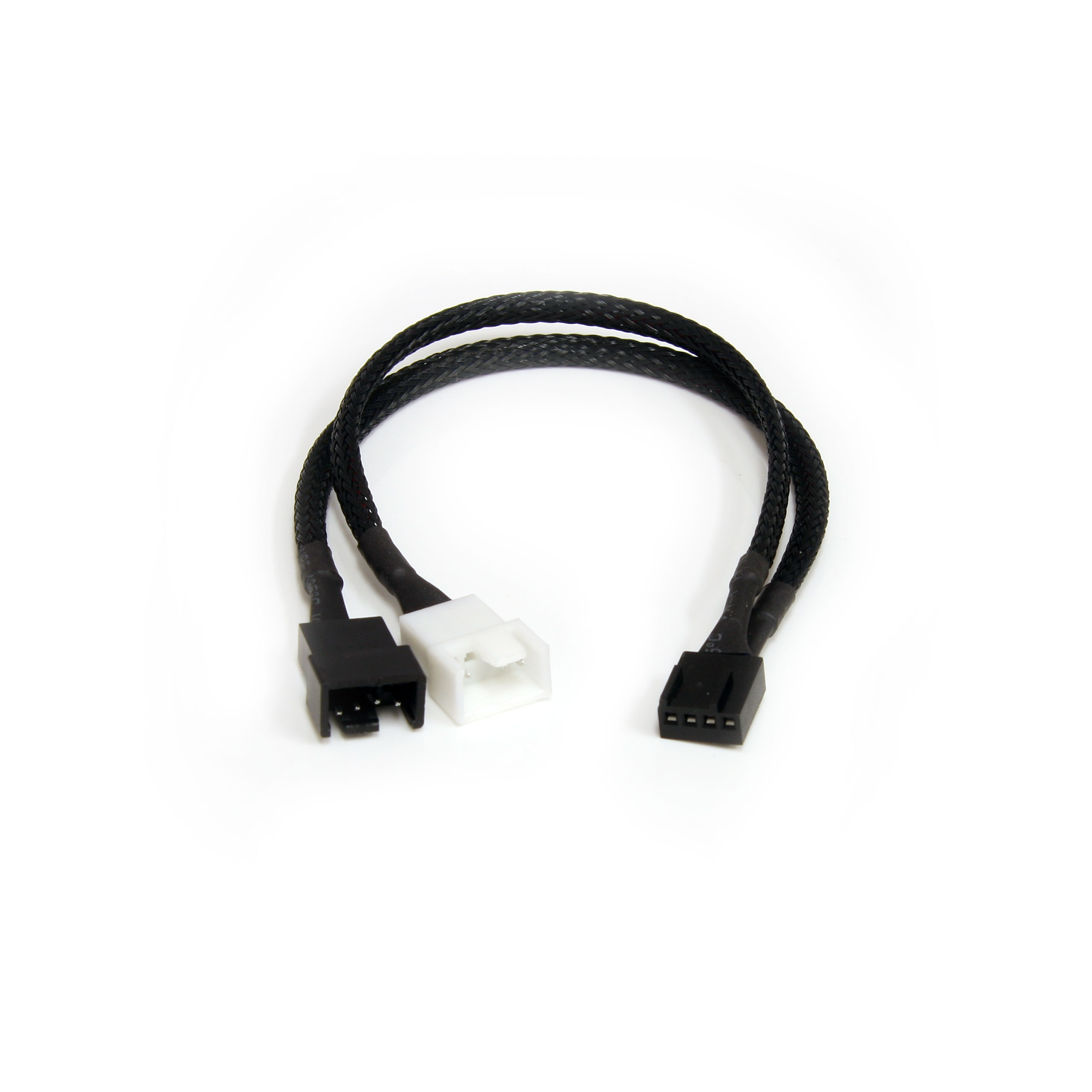

- 1 - 9 inch PWM Y-Cable
Included In Package for Label - 1 - 9 Inch Pwm Y-Cable
- 1 - 120Mm Case Fan
Package Depth (mm) 145 Package Height (mm) 34 Package Width (mm) 208 Package Quantity 1 Package Weight (g) 188 Packaging Description 120x25mm PWM Case Fan Packaging Description India 120x25mm PWM Case Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
