Main Image
FAN370
Main Image

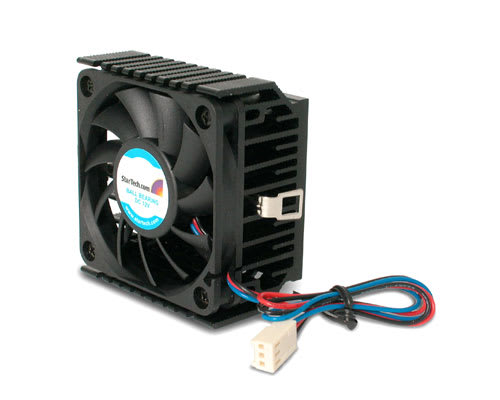

Product Name 3 LEAD FAN FOR SOCKET 7/370 CPUS-W. RPM Product Number FAN370 UPC 065030783538 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Long) Large Pentium/Celeron CPU Cooler Fan (Socket 7/370) Bullet 1 Steel clip provides a secure fit Marketing Copy The StarTech Socket7/370 CPU cooling fan is a combination heatsink and fan designed for cooling Socket 370 (PPGA) Celerons, Socket 7 Pentiums, FC-PGA (Flip-chip) Pentium I, II, and III, AMD K6, K6-2, K6-3, and Cyrix chips. It sports an extra-large heatsink with enough cooling capacity for Pentium III and Celeron CPUs up to 800 MHz. A quiet running 6 cm brushless ball bearing DC motor coupled with a high-efficiency blade design is capable of moving 13.5 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speed and operating status. Applications - Specially designed for Socket 7 or PGA370 mounted CPUs (K6-3)
- For Socket 370 (PPGA) Celerons, Socket 7 Pentiums, AMD K6, K6-2, K6-3, and Cyrix chips.
- Can be used as a replacement CPU fan for Pentium I or faster Socket 7 based computers.
- Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance
Accessory Products - CPUFANADAPT
- FANALARM
- HEATGREASE
- HEATGREASE10
- SILVGREASE1
Related Products - FANP1003LEAD
- FAN3701U
- FAN370CU
- FAN370PRO
- FAN370SUPER
Color Black Product Weight (g) 115 TAA Compliant No General Specifications - CPU Compatibility:
- Pentium: Pentium MMX, II & III up to 800 MHz
- AMD: K6 series up to 550 MHz
- Via: C3, Cyrix III & MII up to 550 MHz
- Socket Type: Socket 370 & Socket 7
- Heatsink Material: Aluminum
- Fan Enclosure: Plastic
- Fan Type: Ball Bearing
- Fan Airflow (CFM): 13.5
- Noise Level (DB)): 29
- Fan Speed (RPM): 5500
- Voltage: 12V
- Connector: 3-lead TX3
- Weight: 127 Grams
- Dimensions:
- Cooling Fan: 2.3x2.3x0.3 (58x58x8mm)
- Heatsink: 2.3x2.59x.39 (58x66x10mm)
RPM 5500 Fan Bearing Type Ball Bearing Carton Depth (mm) 406 Carton Height (mm) 242 Carton Quantity 100 Carton Weight Gross (g) 15200 Included in Package - 1 - CPU FAN
- 1 - Bag of Heatgrease compound
Package Depth (mm) 42 Package Height (mm) 146 Package Width (mm) 100 Package Weight (g) 140 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
