FAN370PRO
Socket 7/370 CPU Cooler with 2cm fan
Add a CPU heatsink and fan cooler to a Socket 7/370 system
Main Image
Product Images
BOM Image
Product Name Socket 7/370 CPU Cooler with 2cm fan Product Number FAN370PRO UPC 065030786478 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Socket 7/370 CPU Computer Cooling Fan Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) Socket 7/370 CPU Cooler Fan w/ Heatsink Product Title (Standard) StarTech.com 65x60x45mm Socket 7/370 CPU Cooler Fan w/ Heatsink & TX3 connector - Processor cooler - ( Socket 370, Socket 7 ) Product Title (Long) 65x60x45mm Socket 7/370 CPU Cooler Fan w/ Heatsink & TX3 connector Product Title (AMZ) 65x60x45mm Socket 7/370 CPU Cooler Fan w/ Heatsink & TX3 connector (FAN370PRO) Title Ingram (Part 1) TX3 Socket 7/370 CPU Cooler Fan Title Ingram (Part 2) w/ Heatsink & TX3 connector Website Product Headline Add a CPU heatsink and fan cooler to a Socket 7/370 system Bullet 1 60mm ball bearing cooling fan Bullet 2 Aluminum heatsink construction Bullet 3 Standard 3-pin Molex fan connector Marketing Copy Marketing Copy (No HTML) Measuring 65x60x45mm, this Socket 7/370 CPU Cooler/Fan is a combination heatsink and fan designed to cool high performance CPUs. The Socket 7/370 CPU Cooler offers an extra-large heatsink combined with a quiet running 6x2 cm brushless ball bearing DC motor. The fan features a high-efficiency blade design capable of moving 21.46 CFM, providing enough cooling capacity for Pentium III and Celeron CPUs up to 1.4 GHz. The Socket 7/370 CPU Cooler is powered through a TX3 (3-pin) connection to the computer power supply, and is a suitable cooling solution for Intel Pentium III and Celeron CPUs up to 1.4 GHz and AMD K6 processors at any speed. Please note: to power the Socket 7/370 CPU cooler using an LP4 (4-pin) connection to the power supply, please see our TX3 to 2x LP4 Power Y Splitter Cable (CPUFANADAPT). Applications - Replace a noisy/failing Socket 370/7/A CPU cooler
- Compatible with Socket 370/7 Intel Pentium III and Celeron CPUs up to 1.4 GHz and AMD K6 processors
- Compatible with Socket A AMD Duron processors up to 1.2 GHz
Website Search Keyword FANATHLON Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - SILVGREASE1
- HEATGREASE10
- CPUFANADAPT
Input Voltage 12V DC Power Consumption (In Watts) 2.52 W Color Black Material Aluminum and Plastic Primary Material Aluminum Product Length (mm) 0.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 136.000 TAA Compliant No Air Flow Rate 20.2 CFM Noise Level 31 dBA RPM 4000 Fan Bearing Type Ball Bearing Fans 1 - 58 mm Carton Depth (mm) 432 Carton Height (mm) 178 Carton Quantity 50 Carton Weight Gross (g) 9250 Included in Package - 1 - Socket 7/370 CPU Cooler

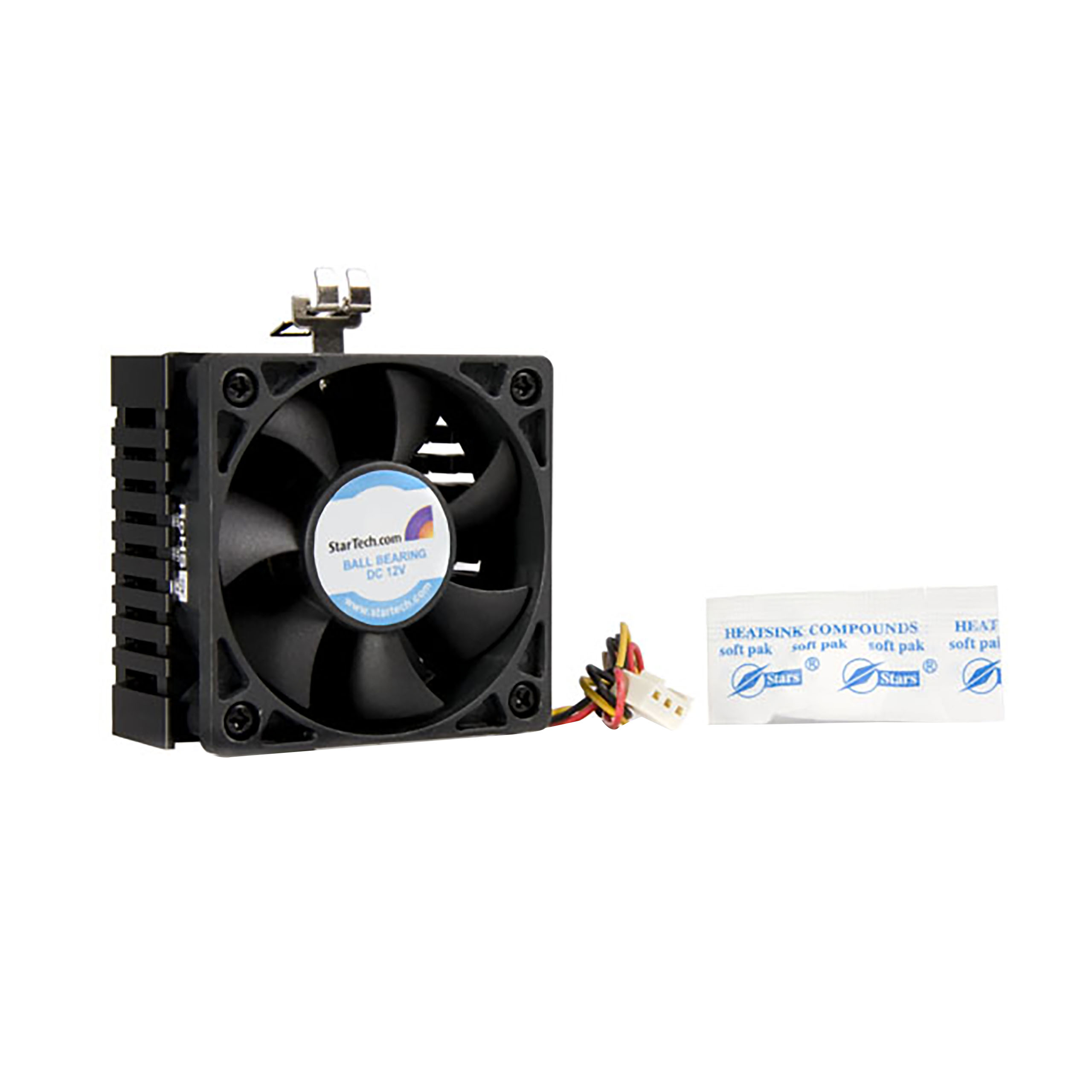

- 1 - Packet of Thermal Compound
Package Depth (mm) 81 Package Height (mm) 75 Package Width (mm) 99 Package Quantity 1 Package Weight (g) 166 Packaging Description Socket 7/370 CPU Cooler Heatsink and Fan Packaging Description India Socket 7/370 CPU Cooler Heatsink and Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,NL,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
