Main Image
FAN486
Main Image

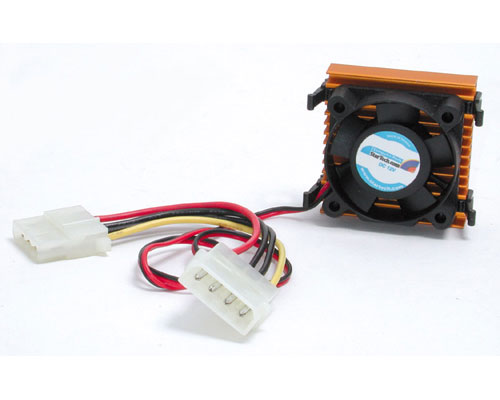

Product Name Replacement 486 CPU Fan Product Number FAN486 UPC 065030782722 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX020X Product Title (Long) Replacement 486 CPU Fan Marketing Copy The StarTech.com 486 CPU cooling fan is a combination heatsink and fan designed as a replacement cooler for 486 PCs. A quiet running brushless DC fan circulates air over the heatsink for improved heat dispersal. Power is supplied to the fan using a standard LP4 (hard drive power) connector. Applications Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance Accessory Products - FANALARM
- HEATGREASE
Color Black Product Length (mm) 53 Product Width (mm) 47 Product Height (mm) 20 Product Weight (g) 54 TAA Compliant No Air Flow Rate 5 CFM General Specifications - CPU Compatibility:
- Intel: 486 up to 100 MHz
- AMD: 486 up to 133 MHZ
- Heatsink Material: Aluminum
- Fan Enclosure: Plastic
- Fan Type: Sleeve Bearing
- Airflow (CFM): 5
- Noise Level (dB): 23.5
- Speed (RPM): 3000
- Voltage: 12V
- Connector: LP4
- Weight: 54 grams
- Fan Dimensions:
- Inches: 1.5 x 1.5 x 0.39
- Millimeters: 38 x 38 x 10
- Heat sink Dimensions:
- Inches: 1.7 x 1.8 x 0.2
- Millimeters: 45 x 47 x 7
RPM 3000 Fan Bearing Type Sleeve Bearing Carton Depth (mm) 314 Carton Height (mm) 252 Carton Quantity 150 Carton Weight Gross (g) 11700 Included in Package 1 - 486 Replacement Heatsink & Fan Package Depth (mm) 25 Package Height (mm) 154 Package Width (mm) 86 Package Weight (g) 70 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
