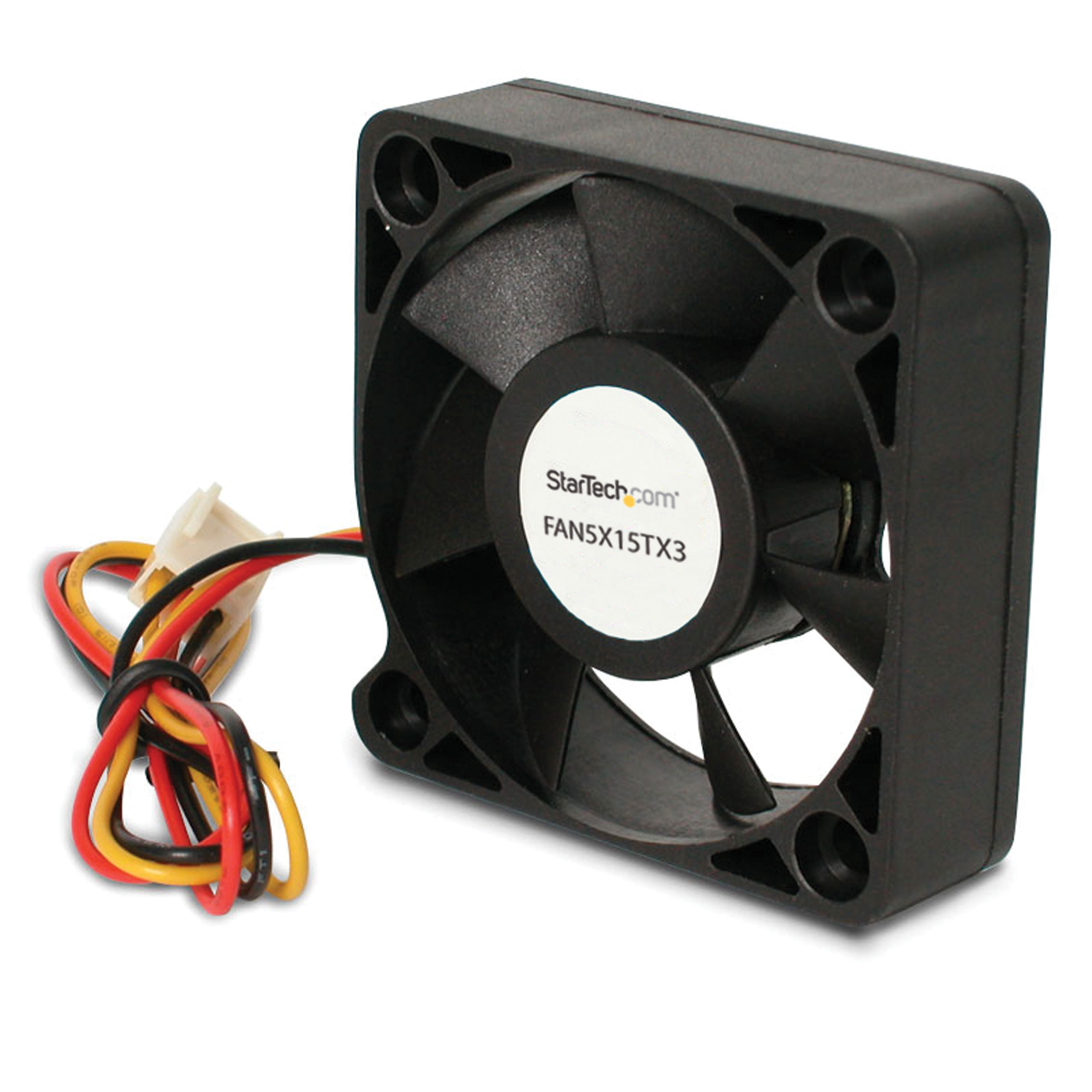

FAN5X15TX3
5x1.5cm TX3 Replacement Ball Bearing Fan
Add additional chassis cooling with a 50mm ball bearing fan
FAN5X15TX3
Add additional chassis cooling with a 50mm ball bearing fan
| Product Name | 5x1.5cm TX3 Replacement Ball Bearing Fan |
|---|---|
| Product Number | FAN5X15TX3 |
| UPC | 065030786607 |
| Lifecycle status | Discontinued |
| Warranty | 2 Years |
| Taxonomy | Product > Legacy Discontinued |
| Category Level 1 | Legacy Category |
| Category Level 2 | Legacy Sub-Category |
| Category Level 3 | Legacy Group |
| Country of Origin Europe & Japan | China |
| Country of Origin North America | China |
| Country of Origin History (1) | China |
| Country of Origin Revision (1) | XXXXXX027X |
| Product Title (Short) | Replacement 50x15mm TX3 CPU Cooler Fan |
|---|---|
| Product Title (Standard) | StarTech.com Replacement 50mm Ball Bearing CPU Case Fan - TX3 Connector - System fan kit - 50 mm |
| Product Title (Long) | 50x15mm TX3 Replacement Ball Bearing Computer Case Fan |
| Product Title (AMZ) | 50x15mm TX3 Replacement Ball Bearing Computer Case Fan (FAN5X15TX3) |
| Title Ingram (Part 1) | Replacement 50mm Ball Bearing CP |
| Title Ingram (Part 2) | U Case Fan - TX3 Connector |
| Website Product Headline | Add additional chassis cooling with a 50mm ball bearing fan |
| Bullet 1 | Dual ball bearing design |
| Bullet 2 | 3-pin connector with tachometer wire |
| Bullet 3 | Includes a 3-pin to 4-pin LP4 Molex adapter |
| Marketing Copy | |
| Applications |
|
| Website Search Keyword | FAN5X15LP4 |
| Related Products | FAN5X1TX3 |
|---|
| Input Current | 180mA |
|---|---|
| Input Voltage | 12V DC |
| Power Consumption (In Watts) | 2.16W |
| Color | Black |
|---|---|
| Material | Plastic |
| Operating Temperature | -10 to 80 |
| Product Length (mm) | 50 |
| Product Width (mm) | 15 |
| Product Height (mm) | 50 |
| Product Weight (g) | 30 |
| TAA Compliant | No |
| Air Flow Rate | 13.74 CFM |
|---|---|
| MTBF (hours) | 50,000 Hours |
| Noise Level | <31 Dba |
| RPM | 5000 |
| Fan Bearing Type | Ball Bearing |
|---|---|
| Number of Conductors | 3 |
| Carton Depth (mm) | 500 |
|---|---|
| Carton Height (mm) | 274 |
| Carton Quantity | 200 |
| Carton Weight Gross (g) | 5700 |
| Included in Package |
|
| Package Depth (mm) | 280 |
| Package Height (mm) | 150 |
| Package Width (mm) | 85 |
| Package Weight (g) | 60 |
| Packaging Description | 50mm Ball Bearing Computer Case Fan |
| Packaging Description India | 50mm Ball Bearing Computer Case Fan |
| Sub-Carton Depth (mm) | 0 |
| Sub-Carton Height (mm) | 0 |
| Sub-Carton Width (mm) | 0 |
| Sub-Carton Weight (g) | 0 |
| Connector 1 | Fan TX3 (3-Pin, 12V) |
|---|---|
| Connector 1 (Quantity) | 1 |
| en-US Content Approved | Yes |
|---|---|
| Product Manager | Rafal Gwozdz |
