FAN6X1TX3

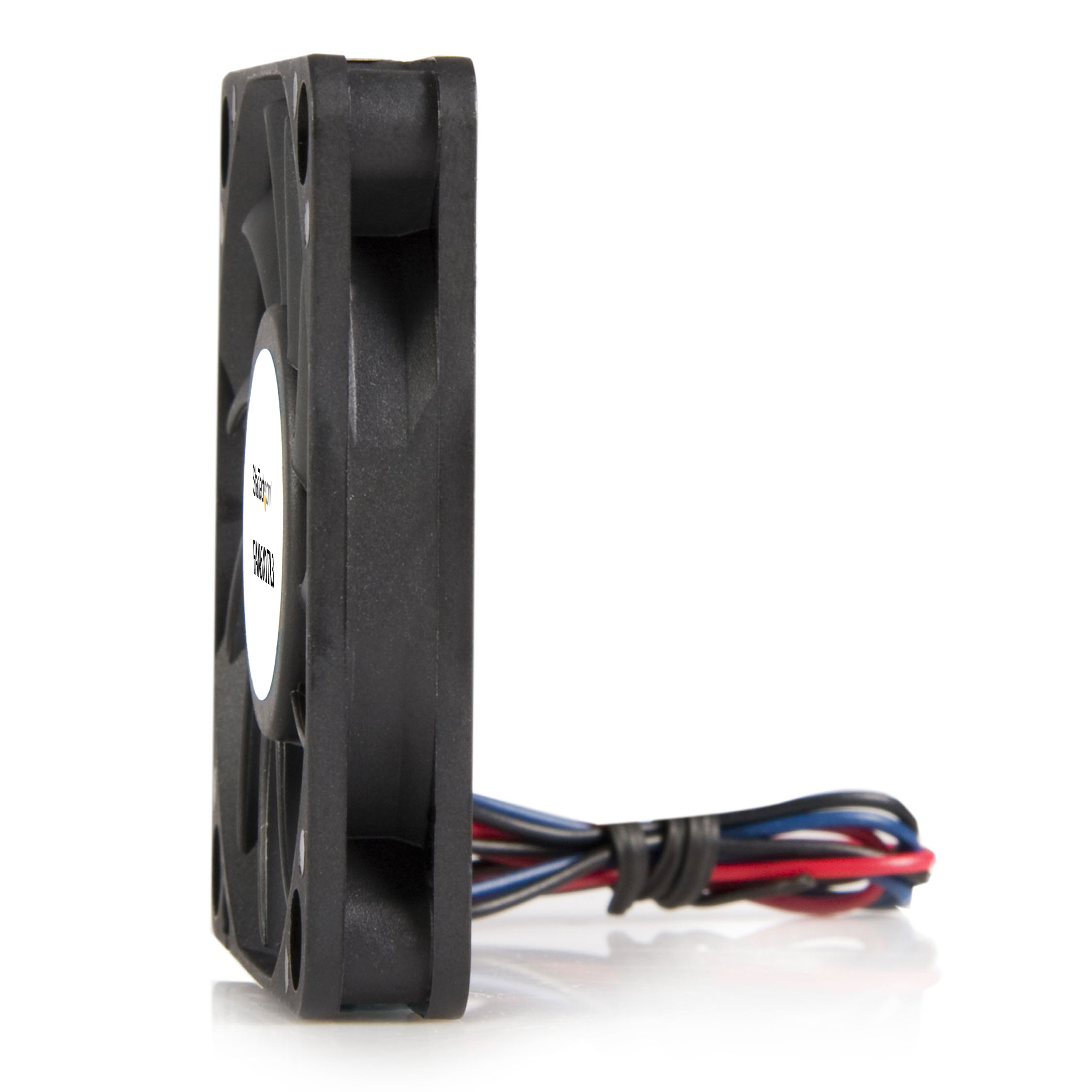

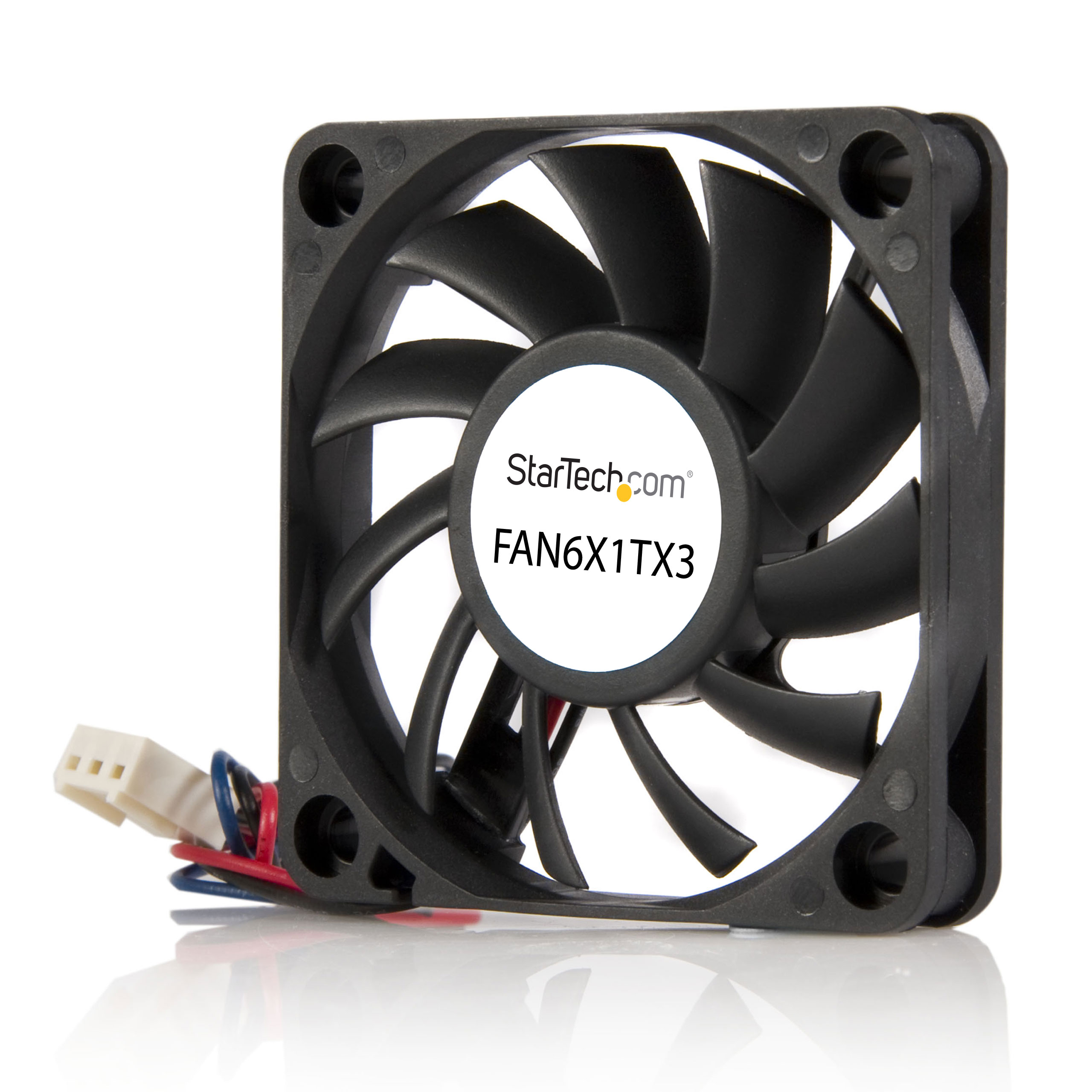

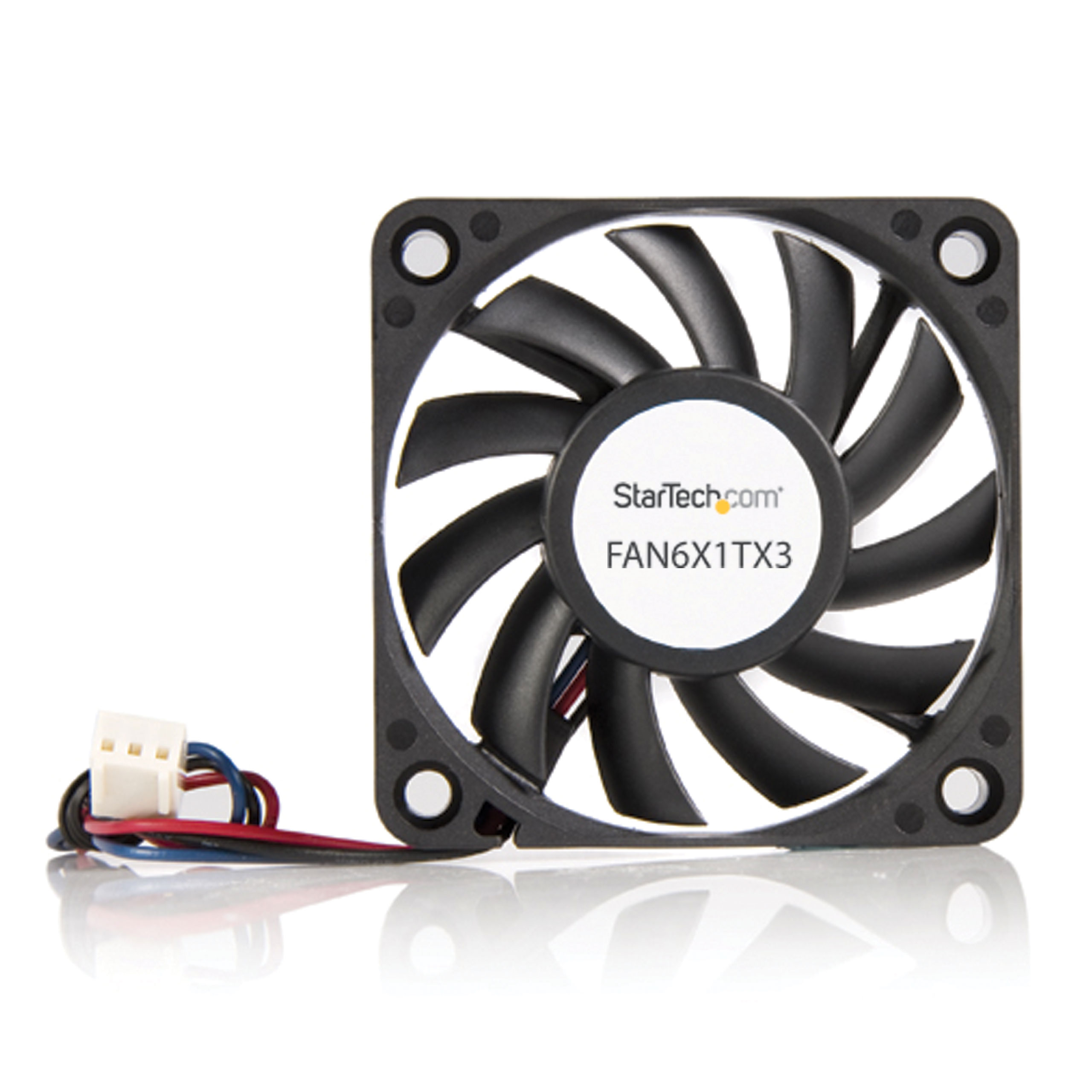

6x1cm TX3 Replacement Ball Bearing Fan
Add additional chassis cooling with a 60mm ball bearing fan
Main Image
Product Images
Product Images
BOM Image
Product Name 6x1cm TX3 Replacement Ball Bearing Fan Product Number FAN6X1TX3 UPC 065030786355 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Replacement Computer Cooling Fan 60mm Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) Replacement 60x10mm TX3 CPU Cooler Fan Product Title (Standard) Replacement 60mm Ball Bearing CPU Case Fan - TX3 Connector - System fan kit - 60 mm Product Title (Long) 60x10mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector Product Title (AMZ) 60x10mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 60mm Fan (FAN6X1TX3) Title Ingram (Part 1) Replacement 60mm Ball Bearing CP Title Ingram (Part 2) U Case Fan - TX3 Connector Website Product Headline Add additional chassis cooling with a 60mm ball bearing fan Bullet 1 Dual ball bearing design Bullet 2 3-pin connector with tachometer wire Bullet 3 Includes a 3-pin to 4-pin LP4 Adapter Bullets (Consolidated) Add additional chassis cooling with a 60mm ball bearing fan - Works with computer cases found on desktop computers with an available 60mm fan mount and TX3 power source or LP4 motherboard header - Computer case fan/60mm fan/Tx3 fan/3 pin case fan - Dual ball bearing design ensures reliability and longer life - Supports both 3-pin motherboard fan headers or LP4 Molex power supplies - Includes a TX3 (3-pin) to LP4 molex (4-pin) adapter Marketing Copy Applications - Replace a noisy or failed computer case fan
- Install into a computer to increase air flow and cooling
Website Search Keyword FAN6X1LP4 Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Related Products - FAN6X2TX3
- FAN6X25TX3H

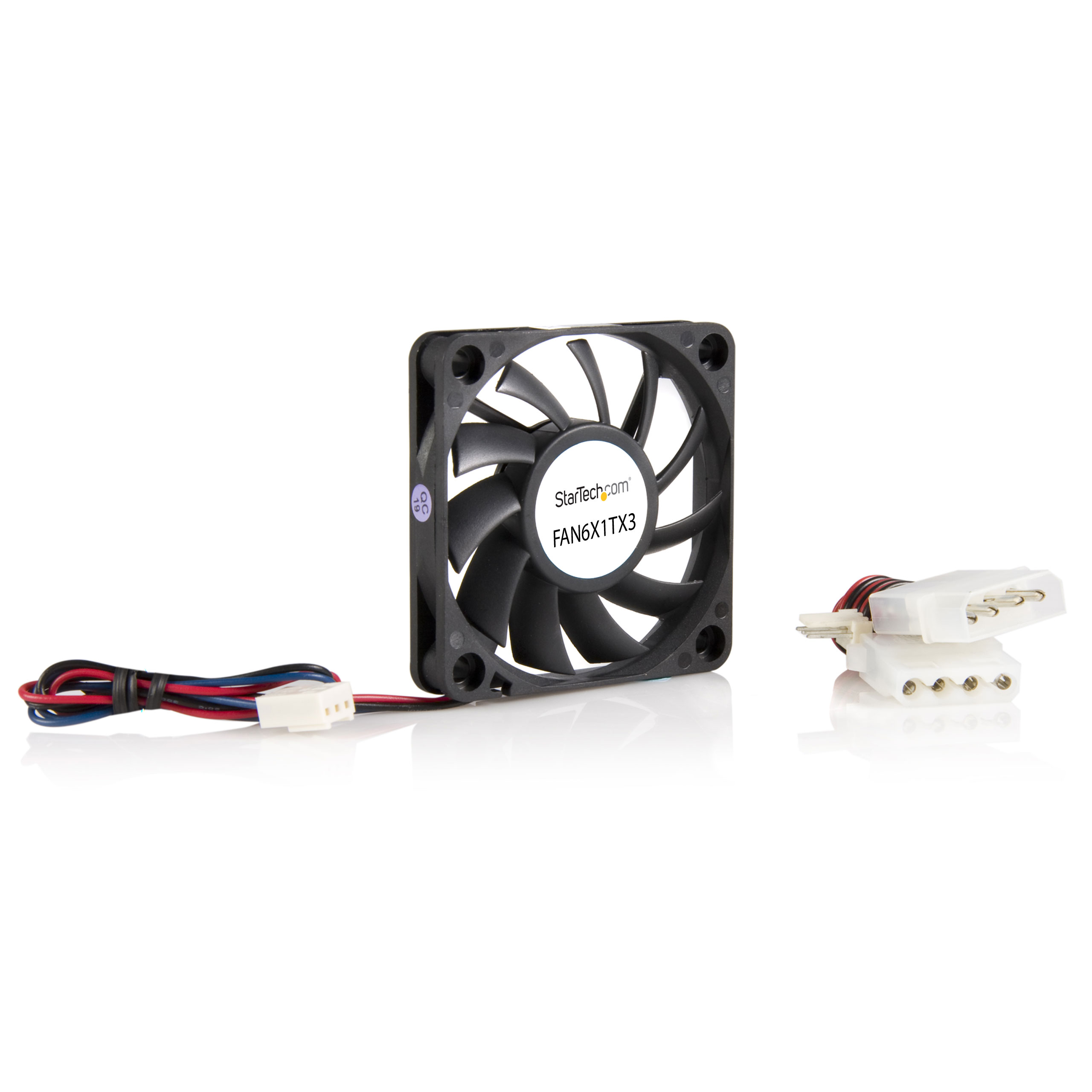

Input Current 160mA Input Voltage 12V DC Output Voltage (V) 12V DC Power Consumption (In Watts) 1.92W Color Black Material Plastic Operating Temperature -10 to 80 Primary Material Plastic Product Length (mm) 60 Product Width (mm) 10 Product Height (mm) 60 Product Weight (g) 28 TAA Compliant No Air Flow Rate 15.49 CFM MTBF (hours) 56,609 Hours Noise Level 28 dBA RPM 4000 Fan Bearing Type Ball Bearing Number of Conductors 3 Carton Depth (mm) 471 Carton Height (mm) 297 Carton Quantity 200 Carton Weight Gross (g) 10094 Included in Package - 1 - 6cm Case Fan
- 1 - 3-pin to 4-pin LP4 Adapter Cable
Included In Package for Label - 1 - 3-Pin To 4-Pin LP4 Converter Cable
- 1 - 6Cm Case Fan
Package Depth (mm) 66 Package Height (mm) 32 Package Width (mm) 115 Package Quantity 1 Package Weight (g) 46 Packaging Description 60mm Ball Bearing Computer Case Fan Packaging Description India 60mm Ball Bearing Computer Case Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
