FAN7751U

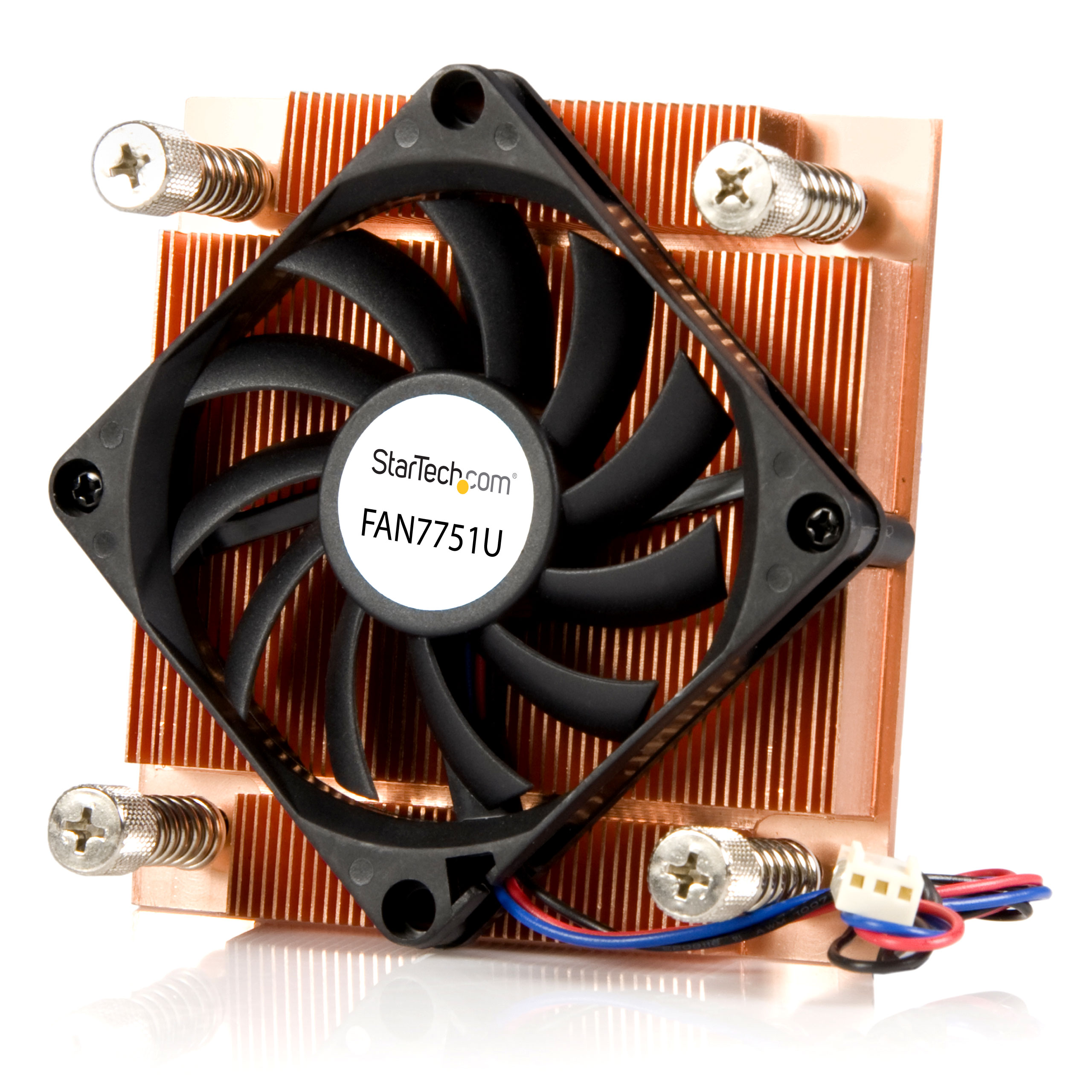

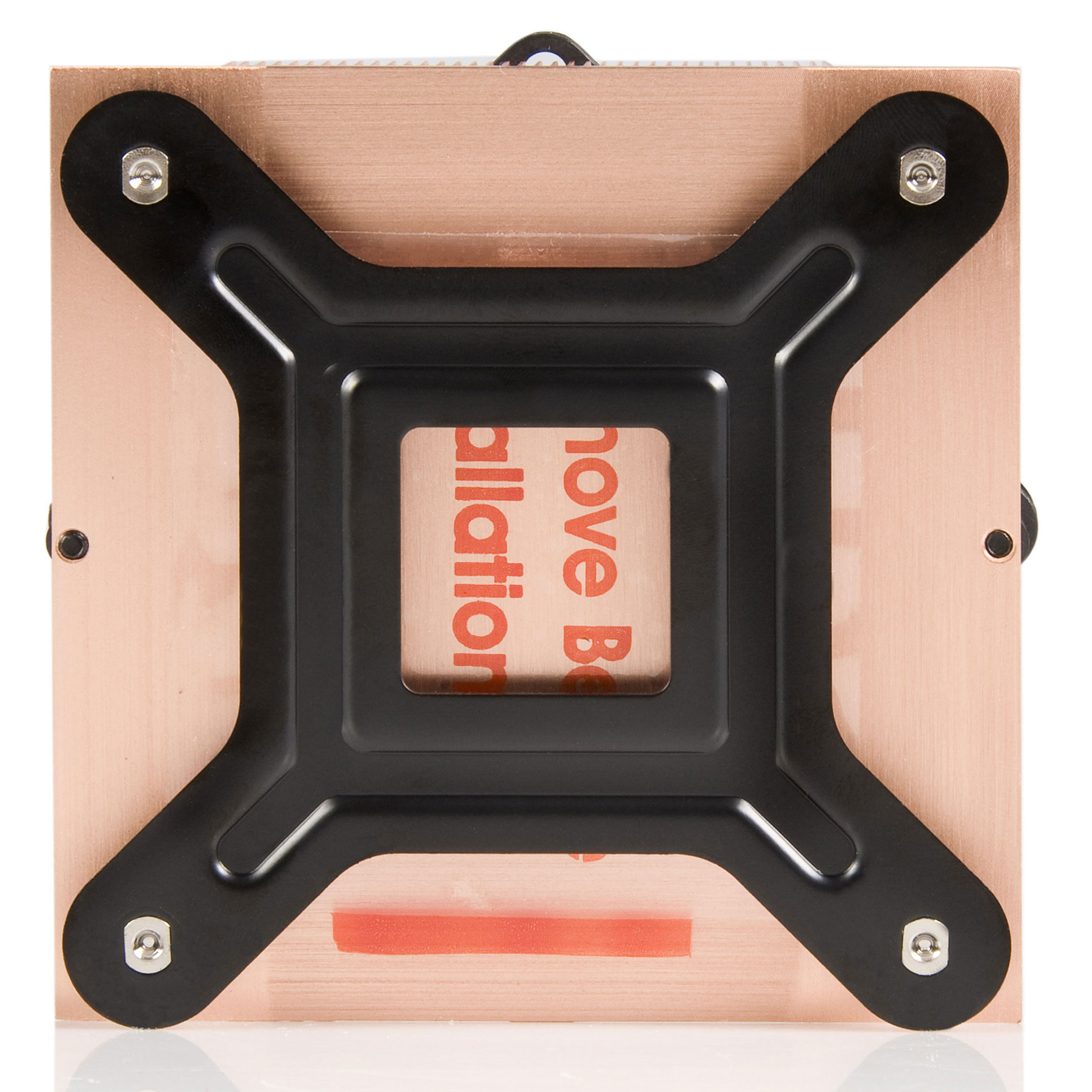

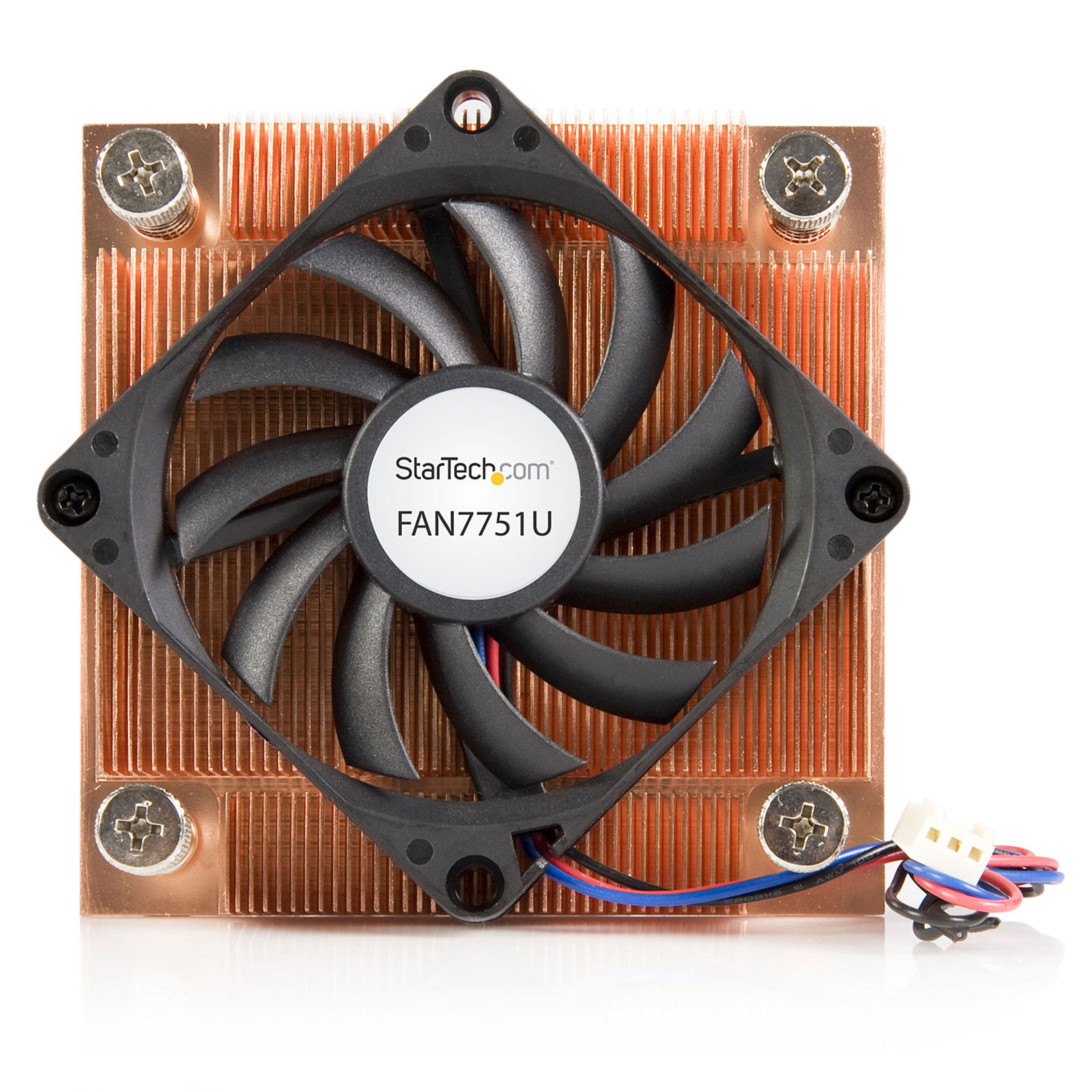

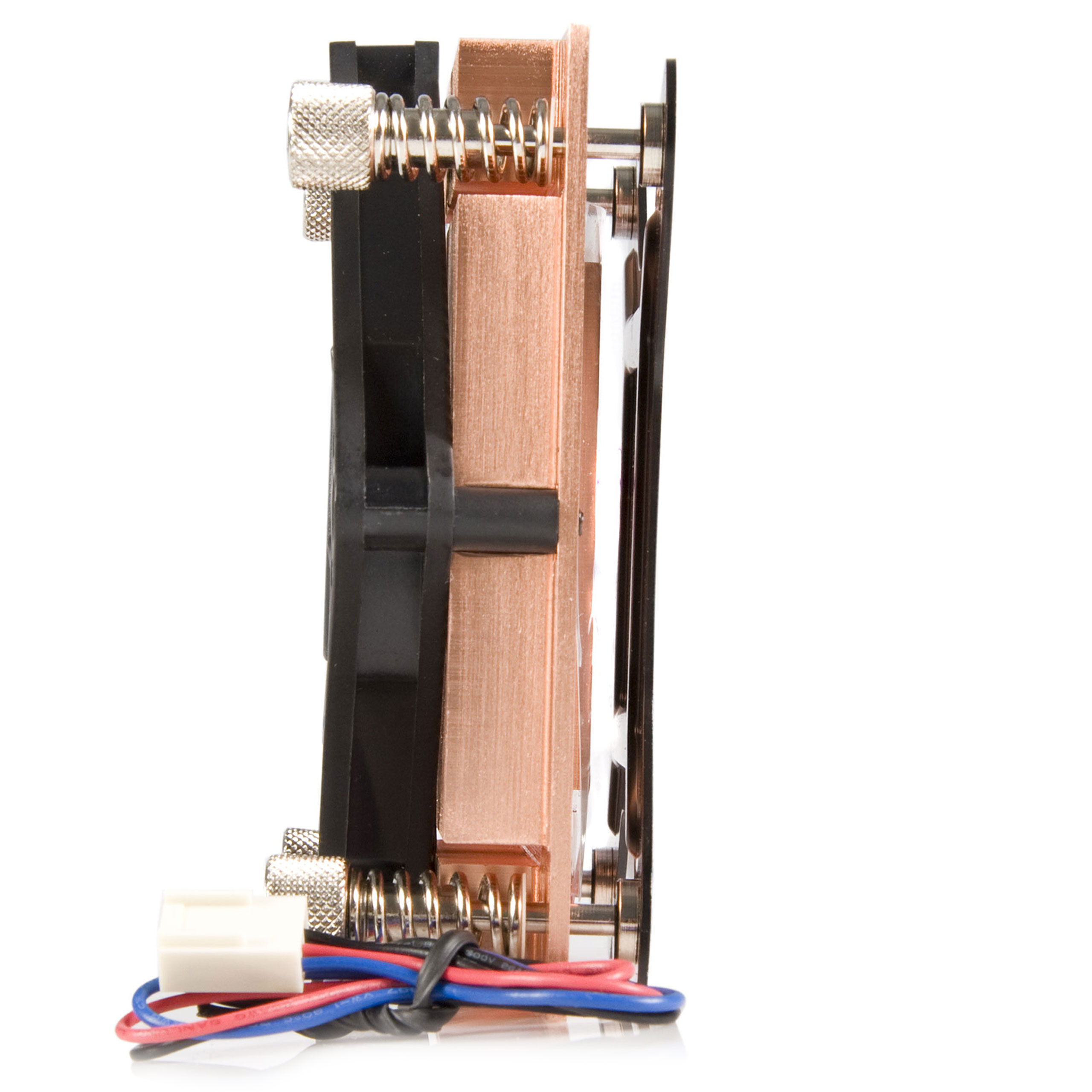

1U Intel Socket 775 CPU Heatsink with Fan
Keep your Socket 775 CPU cool, for optimal system performance; designed for low profile computer cases
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 1U Intel Socket 775 CPU Heatsink with Fan Product Number FAN7751U UPC 065030821421 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 1U LP 70mm Socket 775 CPU Cooler Fan Product Title (Standard) StarTech.com 1U Low Profile 70mm Socket 775 CPU Cooler Fan w/ Heatsink & TX3 Product Title (Long) 1U Low Profile 70mm Socket 775 CPU Cooler Fan w/ Heatsink & TX3 Product Title (AMZ) 1U Low Profile 70mm Socket 775 CPU Cooler Fan w/ Heatsink & TX3 (FAN7751U) Title Ingram (Part 1) 1U Low Profile 70mm Socket 775 C Title Ingram (Part 2) PU Cooler Fan Heatsink & TX3 Website Product Headline Keep your Socket 775 CPU cool, for optimal system performance; designed for low profile computer cases Bullet 1 Dual ball-bearing 70mm cooling fan Bullet 2 All copper base, skive-fin heatsink Marketing Copy Applications - Building a Socket 775-based 1U rack mount server
- Replace the stock/OEM cooler for a Socket 775 system
Website Search Keyword - socket LGA 775 cpu cooler
- 1U heatsink and fan
- FAN775
Related Products - FAN775
- FAN3701U

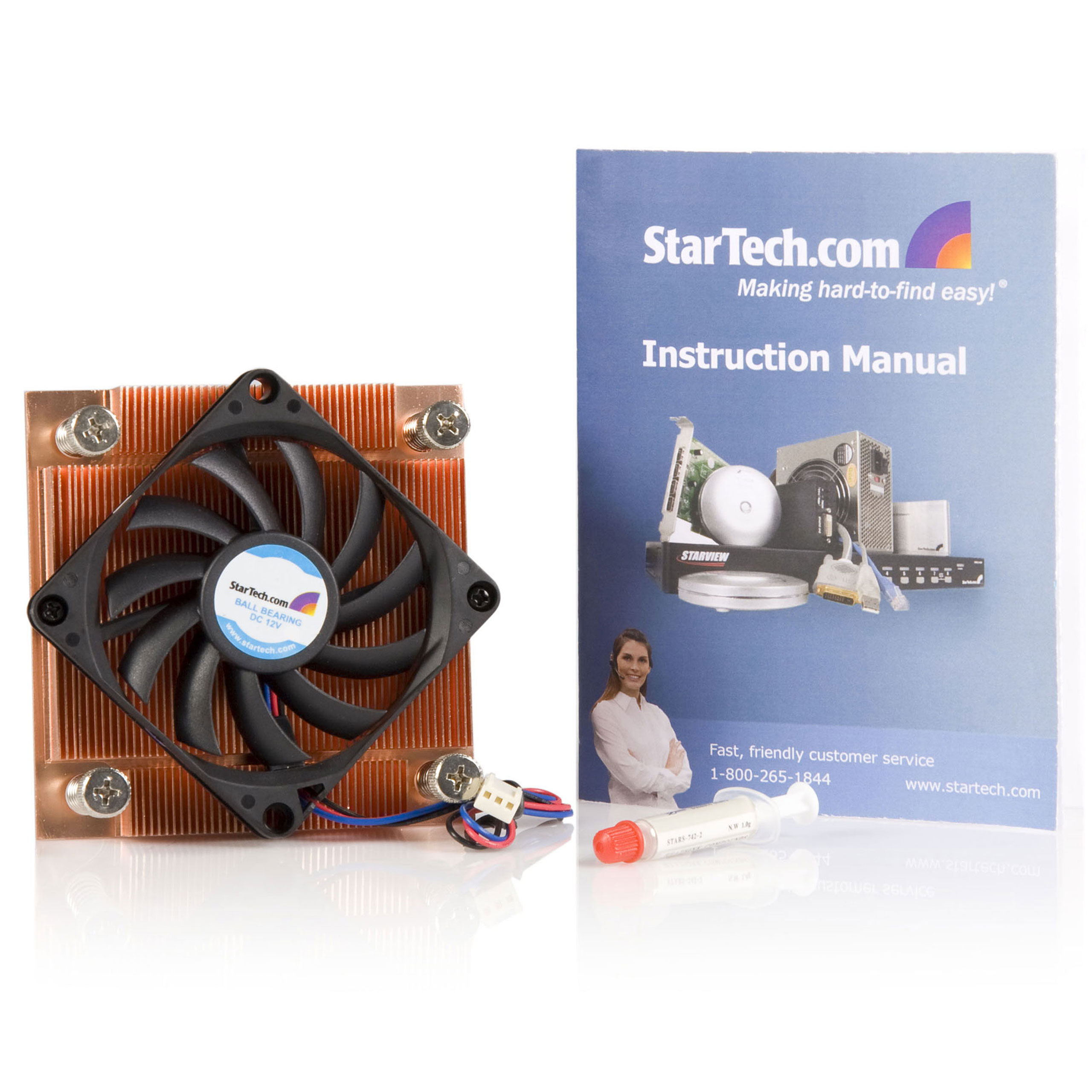

Input Voltage 12V DC Color Black Product Length (mm) 95 Product Width (mm) 95 Product Height (mm) 24 Product Weight (g) 493 TAA Compliant No Air Flow Rate 30.79 CFM MTBF (hours) 50,000 Hours Noise Level < 39 dBA RPM 4500 +/- 10% RPM Fan Bearing Type Ball Bearing Carton Depth (mm) 460 Carton Height (mm) 280 Carton Quantity 30 Carton Weight Gross (g) 19200 Included in Package - 1 - Heatsink Fan assembly
- 1 - Instruction Manual
- 1 - Thermal Compound
- 1 - Backing Plate
- 4 - Mounting Screw/Nut
Package Depth (mm) 120 Package Height (mm) 80 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 600 Packaging Description 1U Low Profile 70mm Socket 775 CPU Cooler Packaging Description India 1U Low Profile 70mm Socket 775 CPU Cooler Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
