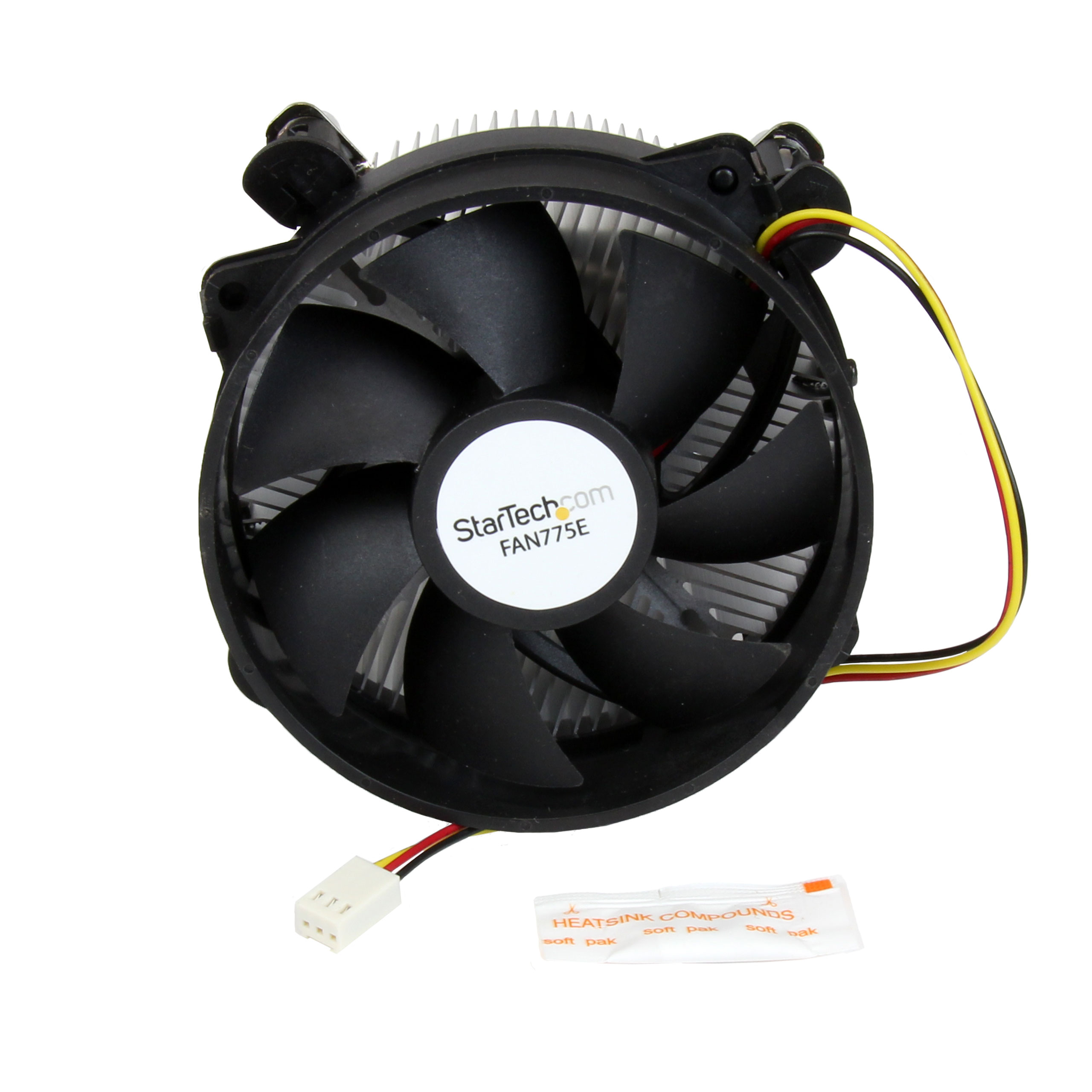

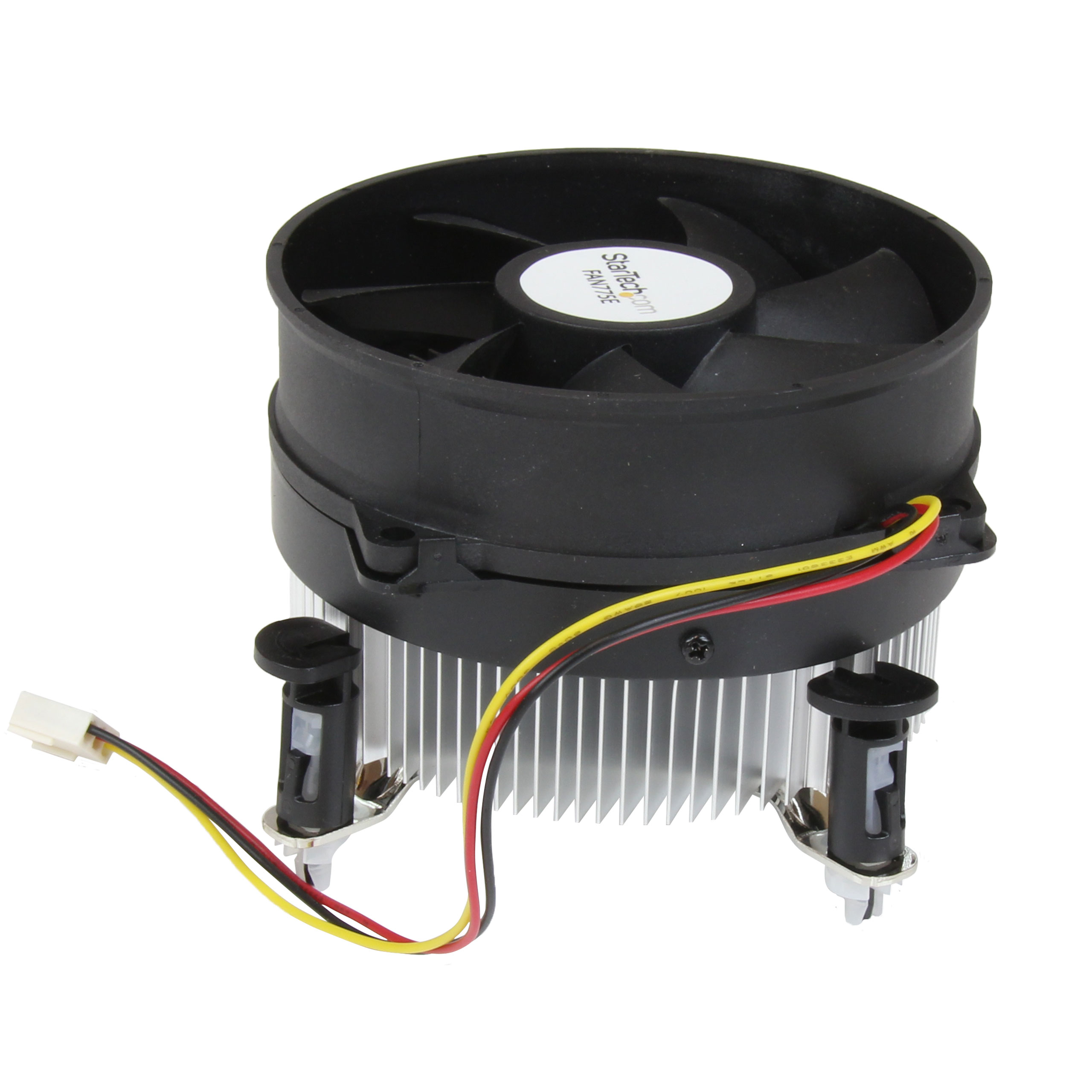

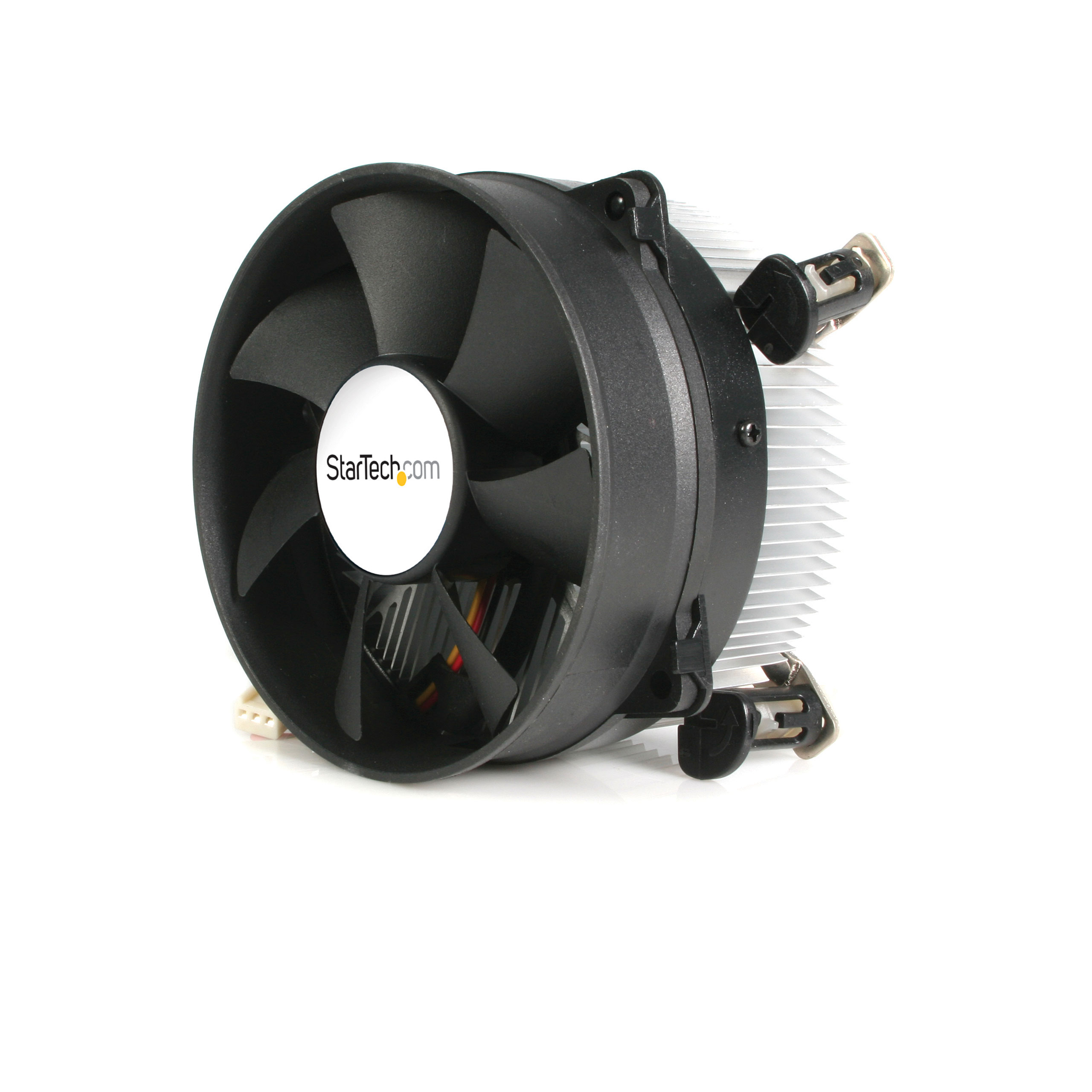

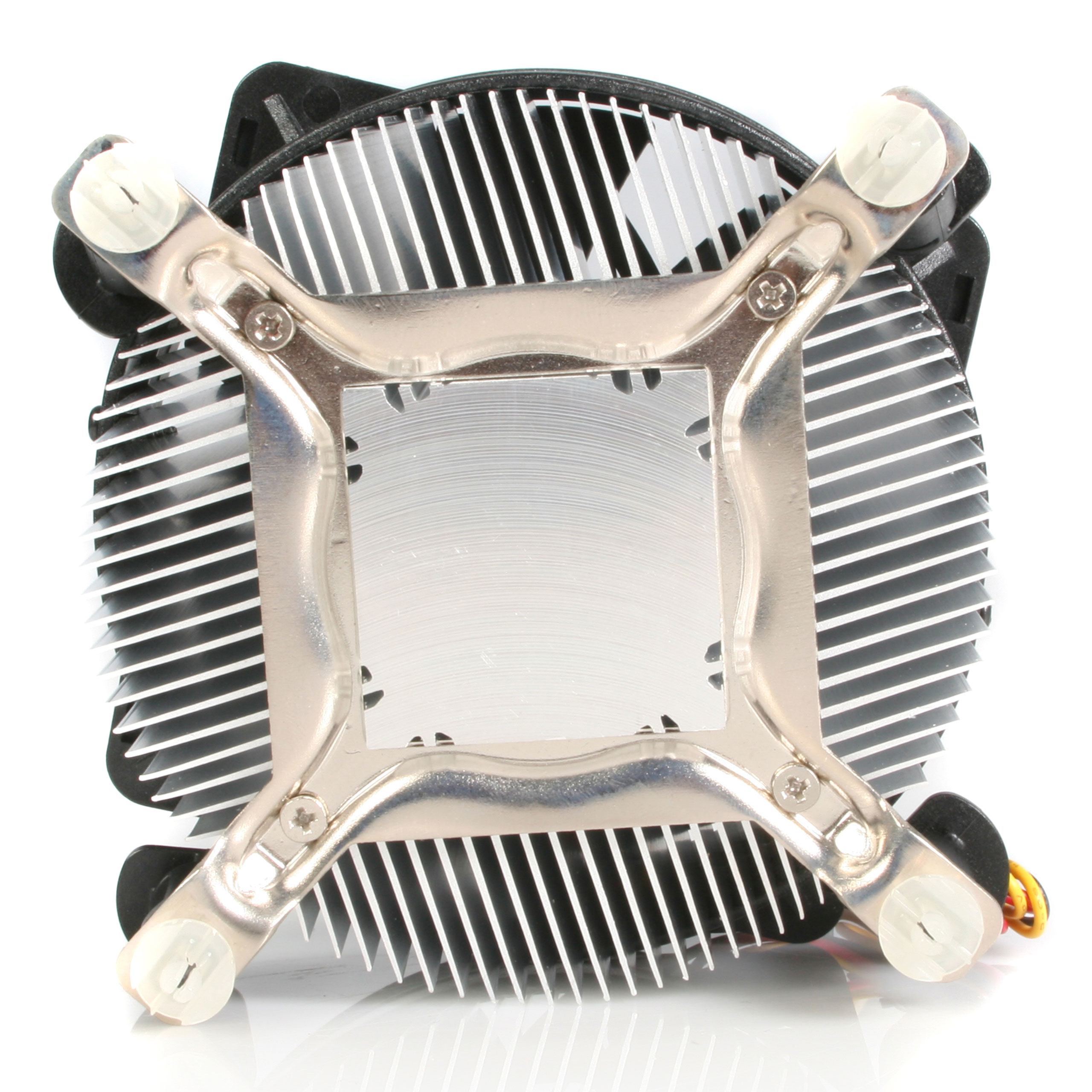

FAN775E
Value Socket T/775 Heatsink with Fan
Provide a fan and heatsink cooling solution to any standard Socket 775/T desktop CPU
Main Image
Product Images
Product Images
BOM Image
Product Name Value Socket T/775 Heatsink with Fan Product Number FAN775E UPC 065030826631 Lifecycle status End of Life Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Socket CPU Cooler Fan Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 95mm Socket T 775 CPU Fan with Heatsink Product Title (Medium) . Product Title (Standard) CPU Cooler Fan - Processor cooler - ( Socket 775 ) - aluminum - black - 95mm Product Title (Long) 95mm Socket T 775 CPU Cooler Fan with Heatsink Product Title (AMZ) 95mm Socket T 775 CPU Cooler Fan with Heatsink - socket 775 cooler - lga 775 cooler - 775 cpu cooler (FAN775E) Title Ingram (Part 1) 95mm Socket T 775 CPU Cooler Fan Title Ingram (Part 2) with Heatsink Website Product Headline Provide a fan and heatsink cooling solution to any standard Socket 775/T desktop CPU Bullet 1 Compatible with Intel Socket-T/LGA-775 motherboards Bullet 2 Aluminum heatsink Bullet 3 95mm Ever-Lubricate bearing cooling fan Bullets (Consolidated) Processor cooler - (LGA775 Socket) - aluminum - 95 mm - black Marketing Copy Applications - New or replacement heatsink with cooling fan for Socket-T/LGA-775 Core 2 Duo, Core 2 Quad, Core 2 Extreme, Pentium or Celeron CPUs
- Intel Core 2 Quad up to Q6600
- Intel Core 2 Duo (all models)
- Intel Core 2 Extreme up to QX6700
- Intel Pentium Extreme Edition 840-965
- Intel Pentium D 805.840/915-960
- Intel Pentium 4 Extreme Edition up to 3.73 GHz
- Intel Pentium 4 505-570J/620-672
Website Search Keyword - Heatsink with Fan
- socket T/775
- Intel Pentium 4
- Dual Core 2 Duo Extreme Quad
- FAN775
- LGA775
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes Supports Intel Core 2 Duo Processor and Intel Core 2 Quad Processor Related Products - FAN775
- FAN7751U
- FAN939775HP
Input Voltage 12V DC Output Voltage (V) 12V DC Color Black Material Steel Primary Material Steel Product Length (mm) 95 Product Width (mm) 95 Product Height (mm) 67.7 Product Weight (g) 384 TAA Compliant No Air Flow Rate 49.37 CFM Noise Level <22.2 dBA RPM Fan Bearing Type Ever Lubricate Bearing Carton Depth (mm) 372 Carton Height (mm) 234 Carton Quantity 30 Carton Weight Gross (g) 13114 Included in Package - 1 - Socket 775 CPU Heatsink with Fan
- 1 - Thermal Compound
Included In Package for Label - 1 - Socket 775 Cpu Heatsink With Fan
- 1 - Thermal Compound
Package Depth (mm) 116 Package Height (mm) 103 Package Width (mm) 115 Package Quantity 1 Package Weight (g) 418 Packaging Description 95mm Socket T/775 CPU Fan w/Heatsink Packaging Description India 95mm Socket T/775 CPU Fan w/Heatsink Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IN,IT,MX,NL,PE,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
