Main Image
FAN7X15TX3

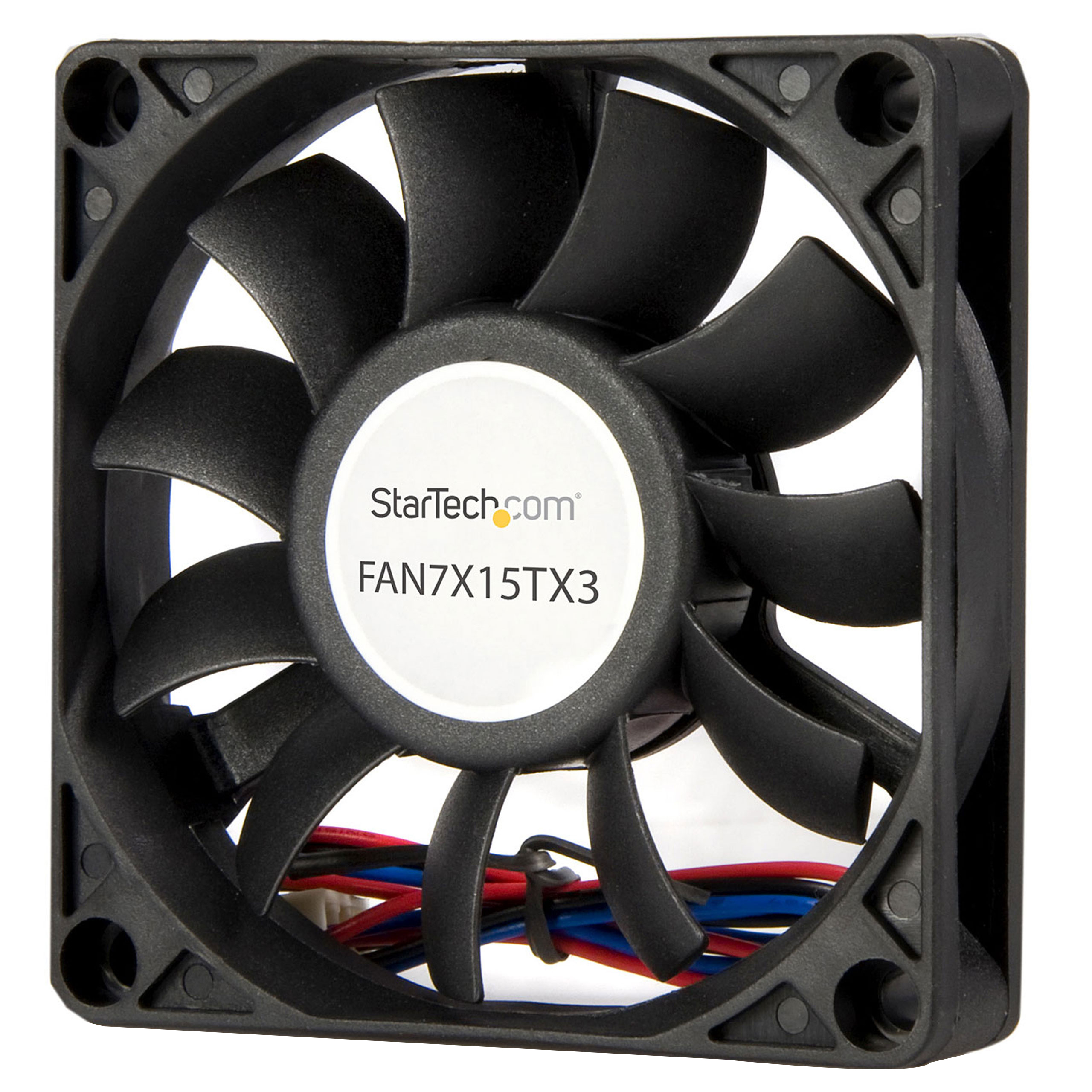

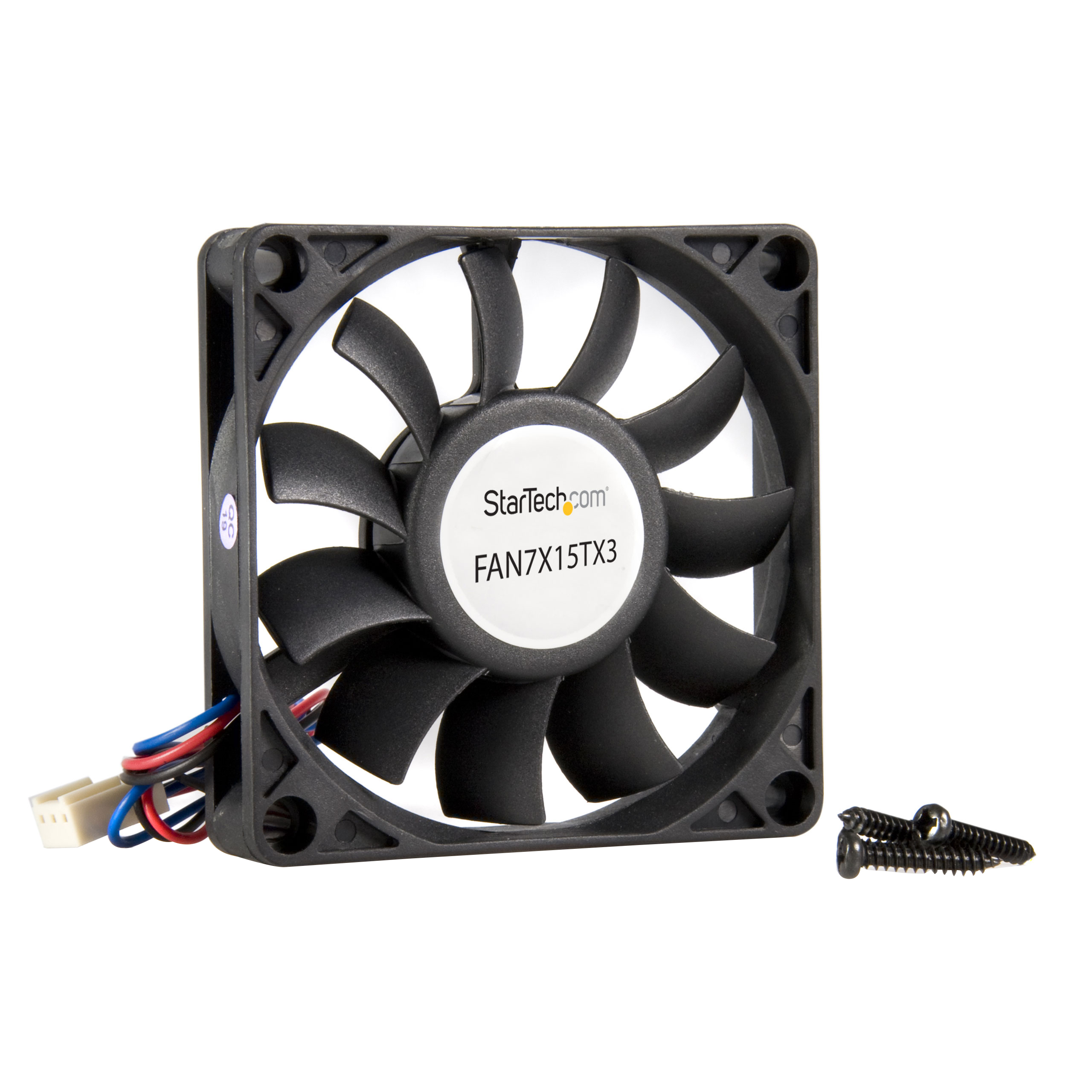

70x15mm PC Case Fan
Add additional chassis cooling with a 70mm ball bearing fan
Main Image
BOM Image
Product Name 70x15mm PC Case Fan Product Number FAN7X15TX3 UPC 065030820387 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Replacement Computer Cooling Fan 70mm Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) Replacement 70x15mm TX3 CPU Cooler Fan Product Title (Medium) . Product Title (Standard) Replacement 70mm Ball Bearing CPU Case Fan - TX3 Connector - Case fan - 70 mm - black Product Title (Long) 70x15mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector Product Title (AMZ) 70x15mm Replacement Ball Bearing Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 70mm Fan (FAN7X15TX3) Title Ingram (Part 1) Replacement 70mm Ball Bearing CP Title Ingram (Part 2) U Case Fan - TX3 Connector Website Product Headline Add additional chassis cooling with a 70mm ball bearing fan Bullet 1 Dual ball bearing design Bullet 2 3-pin connector with tachometer wire Bullets (Consolidated) Case fan - 70 mm - black Marketing Copy Applications - Replace a noisy or failed computer case fan
- Install into a computer to increase air flow and cooling
Website Search Keyword - FAN6X1LP4
- replacement
- 7cm
- 70mm
- fans
- RoHS
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
Related Products - FAN7X25TX3
- FAN6X2TX3
Input Current 26 mA Input Voltage 12V DC Power Consumption (In Watts) 3.12W Color Black Humidity 0~65% RH Material Plastic Operating Temperature -10°C to 70°C (14°F to 158°F) Primary Material Plastic Product Length (mm) 70 Product Width (mm) 15 Product Height (mm) 70 Product Weight (g) 50 Storage Temperature -40°C to 75°C (-40°F to 167°F) TAA Compliant No Air Flow Rate 29.58 CFM MTBF (hours) 50,000 Hours Noise Level < 34 dBA RPM 3500 Fan Bearing Type Ball Bearing Carton Depth (mm) 364 Carton Height (mm) 220 Carton Quantity 100 Carton Weight Gross (g) 8742 Included in Package - 1 - 7cm Case Fan
- 4 - Mounting Screws
Included In Package for Label - 4 - Mounting Screws
- 1 - 7Cm Case Fan
Package Depth (mm) 96 Package Height (mm) 33 Package Width (mm) 143 Package Quantity 1 Package Weight (g) 78 Packaging Description 70mm Ball Bearing Computer Case Fan Packaging Description India 70mm Ball Bearing Computer Case Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
