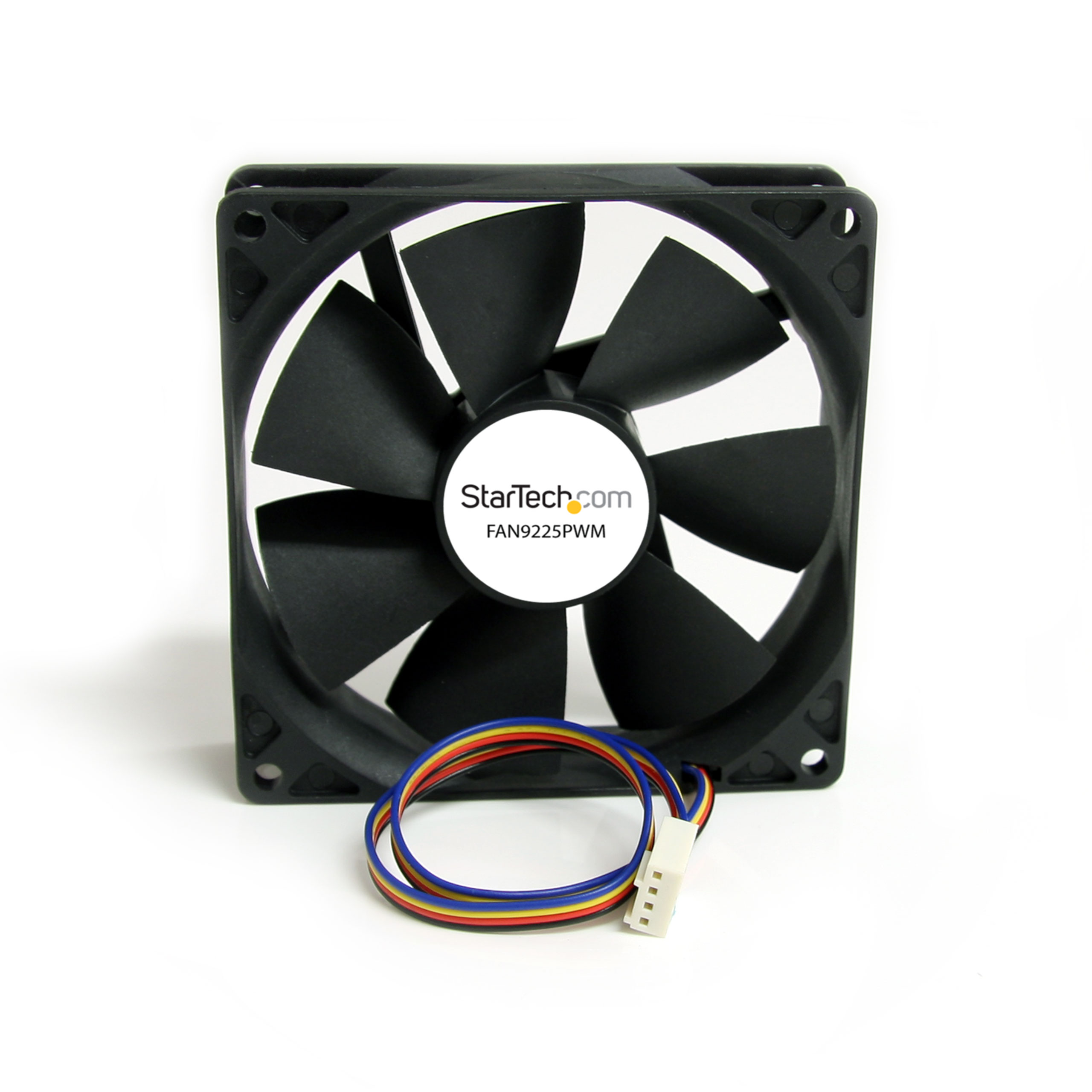

FAN9225PWM
92x25 Ever Lubricate Bearing Case Fan - PWM
Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case
Main Image
Product Images
BOM Image
Product Name 92x25 Ever Lubricate Bearing Case Fan - PWM Product Number FAN9225PWM UPC 065030845328 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 92x25mm PWM Computer Case Fan Product Title (Standard) 92x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector Product Title (Long) 92x25mm Computer Case Fan with PWM – Pulse Width Modulation Connector Product Title (AMZ) 92x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - computer cooling Fan - 92mm Fan - pwm Fan (FAN9225PWM) Title Ingram (Part 1) 92x25mm Computer Case Fan with P Title Ingram (Part 2) WM Website Product Headline Add a Variable Speed, PWM-Controlled Cooling Fan to a Computer Case Bullet 1 Ever Lubricate Bearing design Bullet 2 4-pin Pulse Width Modulation (PWM) motherboard connector Bullet 3 Includes a PWM Y-split cable Marketing Copy Applications - Noisy or failed case fan replacement/upgrade
- Add an extra fan to a computer for improved system cooling
- Lowering power consumption and fan noise on computer systems where the cooling fan does not need to run at full speed all the time
Website Search Keyword - pulse width modulation
- cooling fan
- pwm
- chassis fan
- case fan
- 92mm
- ever lubricate bearing
- el bearing
System and Cable Requirements 4-pin PWM fan connector (male) Accessory Products - TX3SPLITTER
- FAN4SPLIT12
- FANSCREW
- 12FANSCREW
Related Products - FAN8025PWM
- FAN9X25TX3L
- FANBOX92
- FAN12025PWM
- FAN9X25TX3H

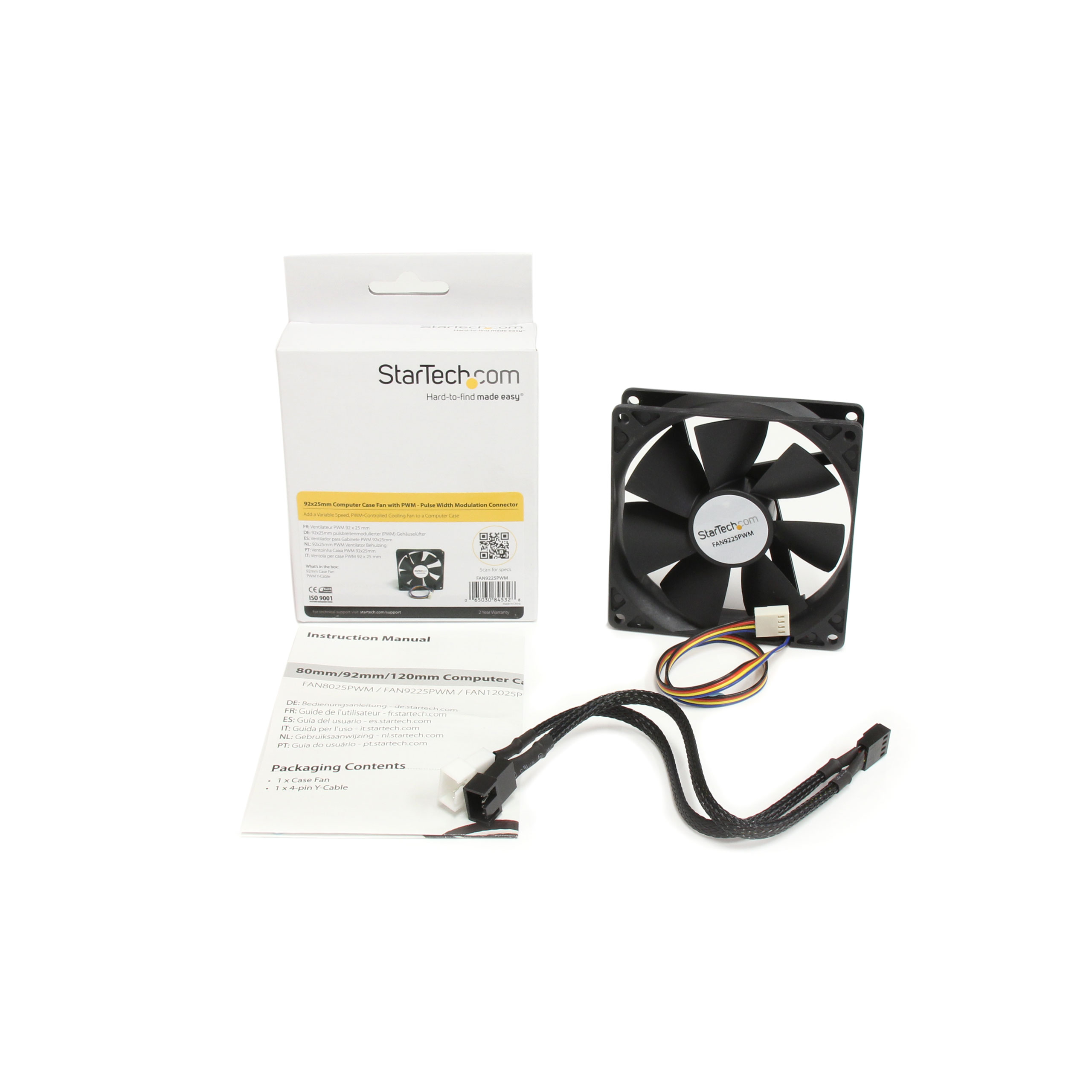

Input Current 160 mA Input Voltage 12V DC Cable Length (mm) 295 Color Black Humidity 0 ~ 65% RH Material Plastic Operating Temperature -10°C to 70°C (14°F to 158°F) Product Length (mm) 92 Product Width (mm) 92 Product Height (mm) 25 Product Weight (g) 96 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Air Flow Rate 12.78 ~ 39.35 CFM MTBF (hours) 40,000 Hours Noise Level < 10 ~ 25 dBA RPM 700 ~ 2200 RPM Fan Bearing Type Ever Lubricate Bearing Number of Conductors 4 Carton Depth (mm) 360 Carton Height (mm) 220 Carton Quantity 100 Carton Weight Gross (g) 12900 Included in Package - 1 - 92mm Case Fan

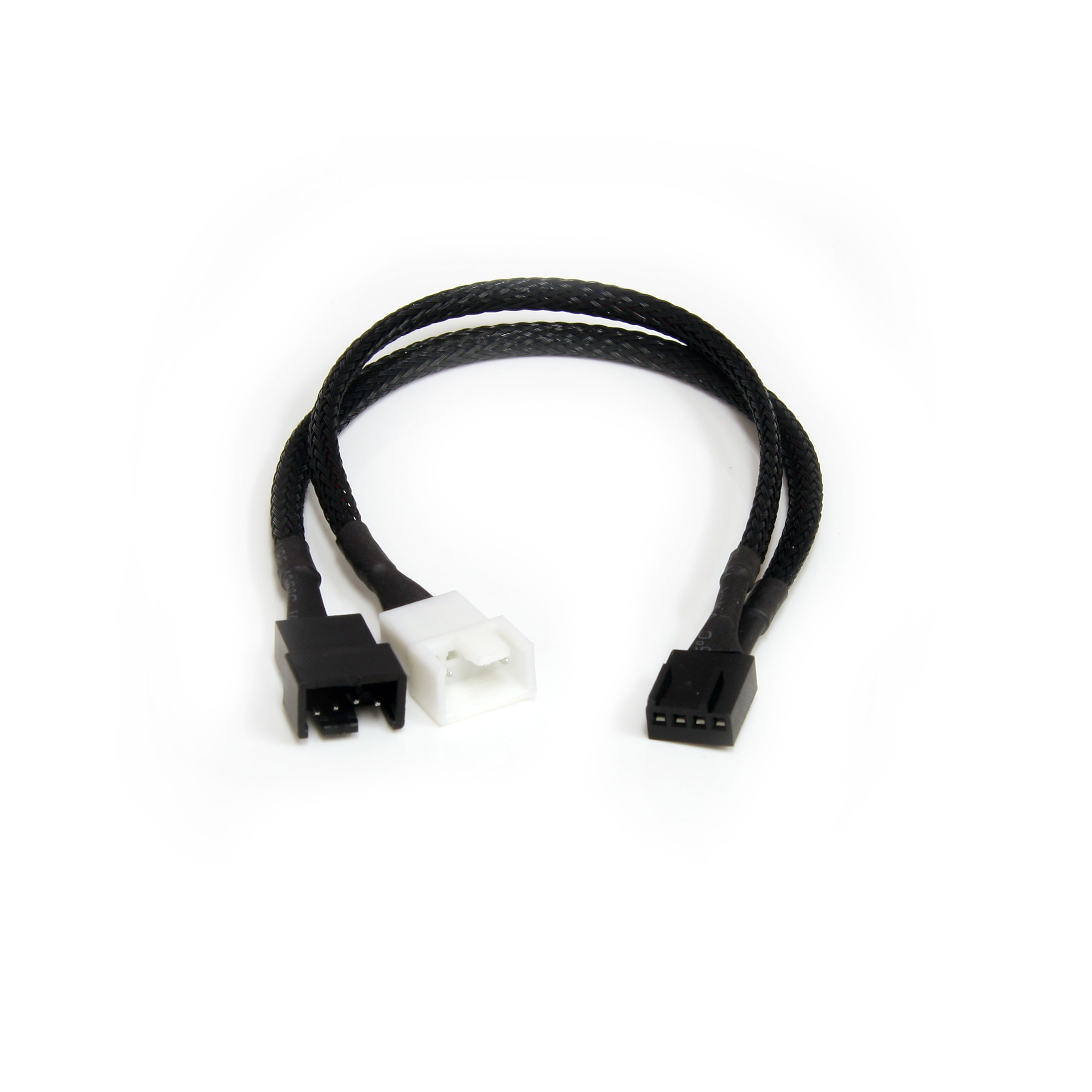

- 1 - 9 inch PWM Y-Cable
Package Depth (mm) 30 Package Height (mm) 142 Package Width (mm) 95 Package Weight (g) 115 Packaging Description 92x25mm PWM Case Fan Packaging Description India 92x25mm PWM Case Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
