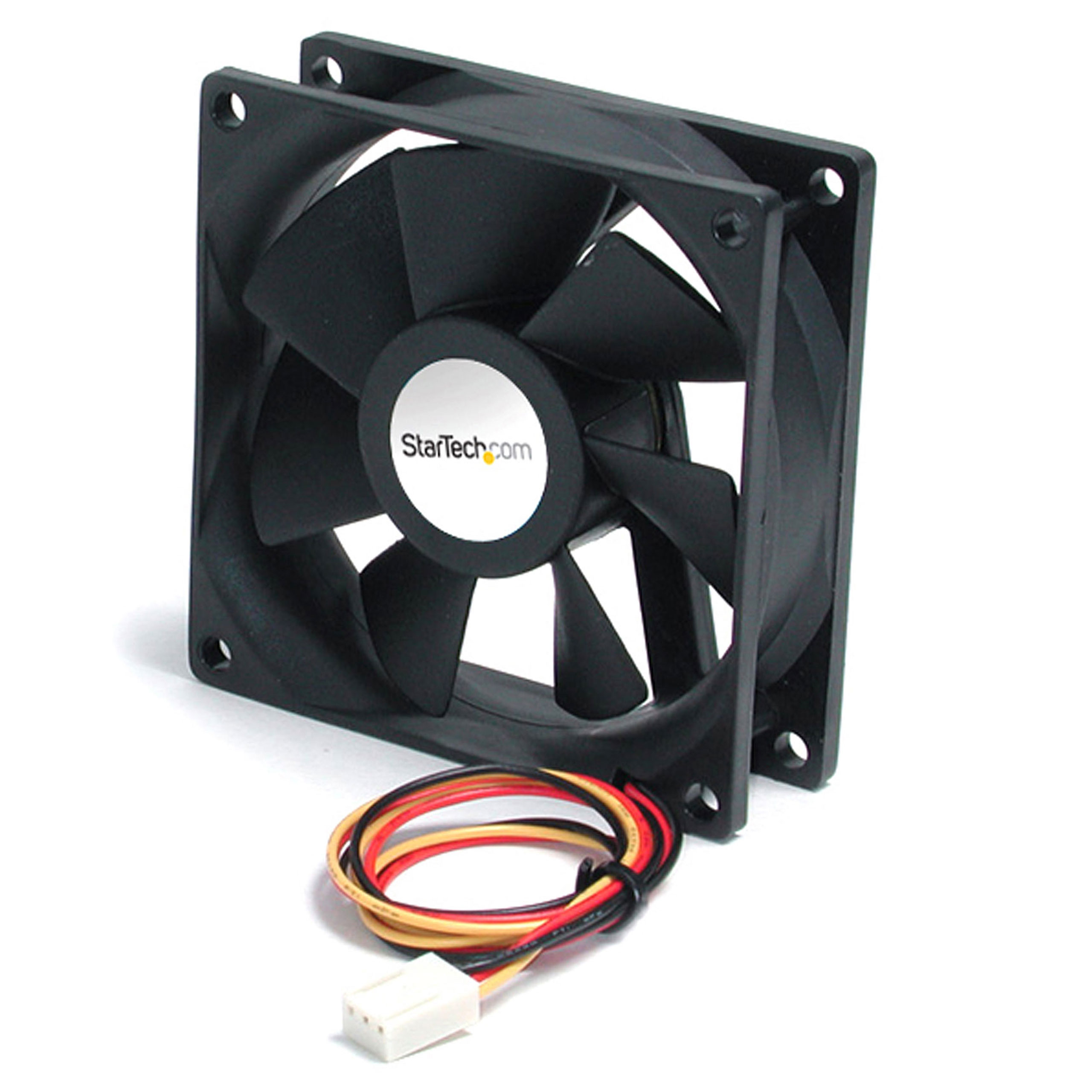

FAN9X25TX3H
90x25mm High Air Flow Dual Ball Bearing Computer Case Fan w
Add additional chassis cooling with a 90mm high flow case fan
Main Image
BOM Image
Product Name 90x25mm High Air Flow Dual Ball Bearing Computer Case Fan w Product Number FAN9X25TX3H UPC 065030788946 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Replacement Computer Cooling Fan 90mm Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) 90mm High Air Flow Computer Case Fan Product Title (Standard) 90x25mm High Air Flow Dual Ball Bearing PC Case Fan Product Title (Long) 90x25mm High Air Flow Dual Ball Bearing Computer Case Fan w/ TX3 Product Title (AMZ) 90x25mm High Air Flow Dual Ball Bearing Computer Case Fan w/ TX3 (FAN9X25TX3H) Title Ingram (Part 1) 90x25mm High Air Flow Dual Ball Title Ingram (Part 2) Bearing Computer Case Fan Website Product Headline Add additional chassis cooling with a 90mm high flow case fan Bullet 1 Dual ball bearing design Bullet 2 3-pin connector with tachometer wire Bullet 3 Higher speed 2600 RPM operation Bullets (Consolidated) Dual ball bearing design - 3-pin connector with tachometer wire - Higher speed 2600 RPM operation Marketing Copy Applications - Install into a computer chassis to increase air flow and cooling
- Replace a noisy or failed computer case fan
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Input Current 0.21 A Input Voltage 12V DC Power Consumption (In Watts) 2.52 W Max Color Black Material Plastic Operating Temperature -10 to 80 Primary Material Plastic Product Length (mm) 92 Product Width (mm) 25 Product Height (mm) 92 Product Weight (g) 108 TAA Compliant No Air Flow Rate 48.43 CFM Noise Level 33 dBA RPM 2600 Fan Bearing Type Ball Bearing Number of Conductors 3 Carton Depth (mm) 597 Carton Height (mm) 227 Carton Quantity 100 Carton Weight Gross (g) 12010 Included in Package - 1 - 90mm Case Fan

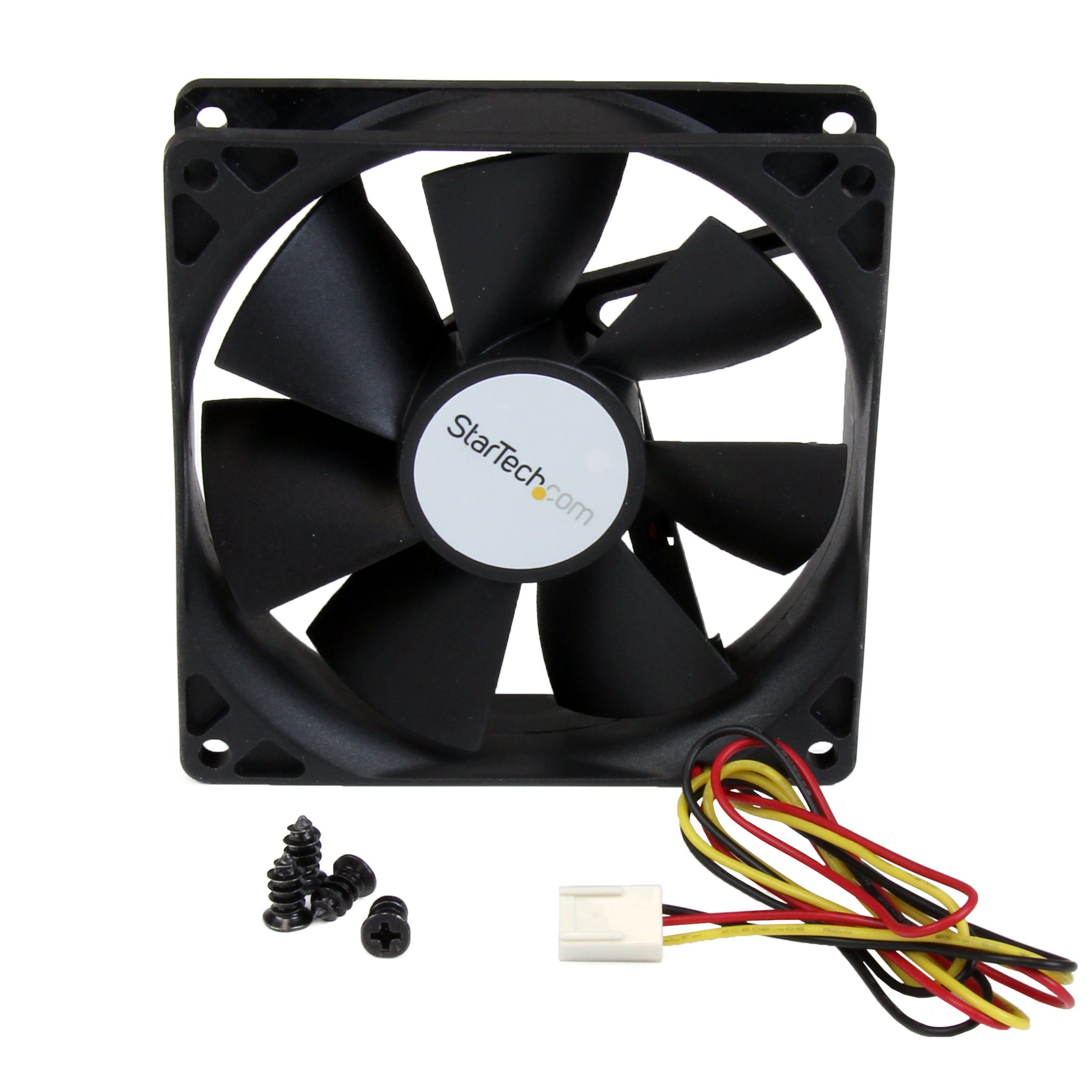

- 4 - Mounting Screw
Included In Package for Label - 1 - 90Mm Case Fan
- 4 - Mounting Screw
Package Depth (mm) 95 Package Height (mm) 34 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 110 Packaging Description 90mm High Flow Computer Case Fan Packaging Description India 90mm High Flow Computer Case Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Fan TX3 (3-Pin, 12V) Connector 1 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,NL,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
