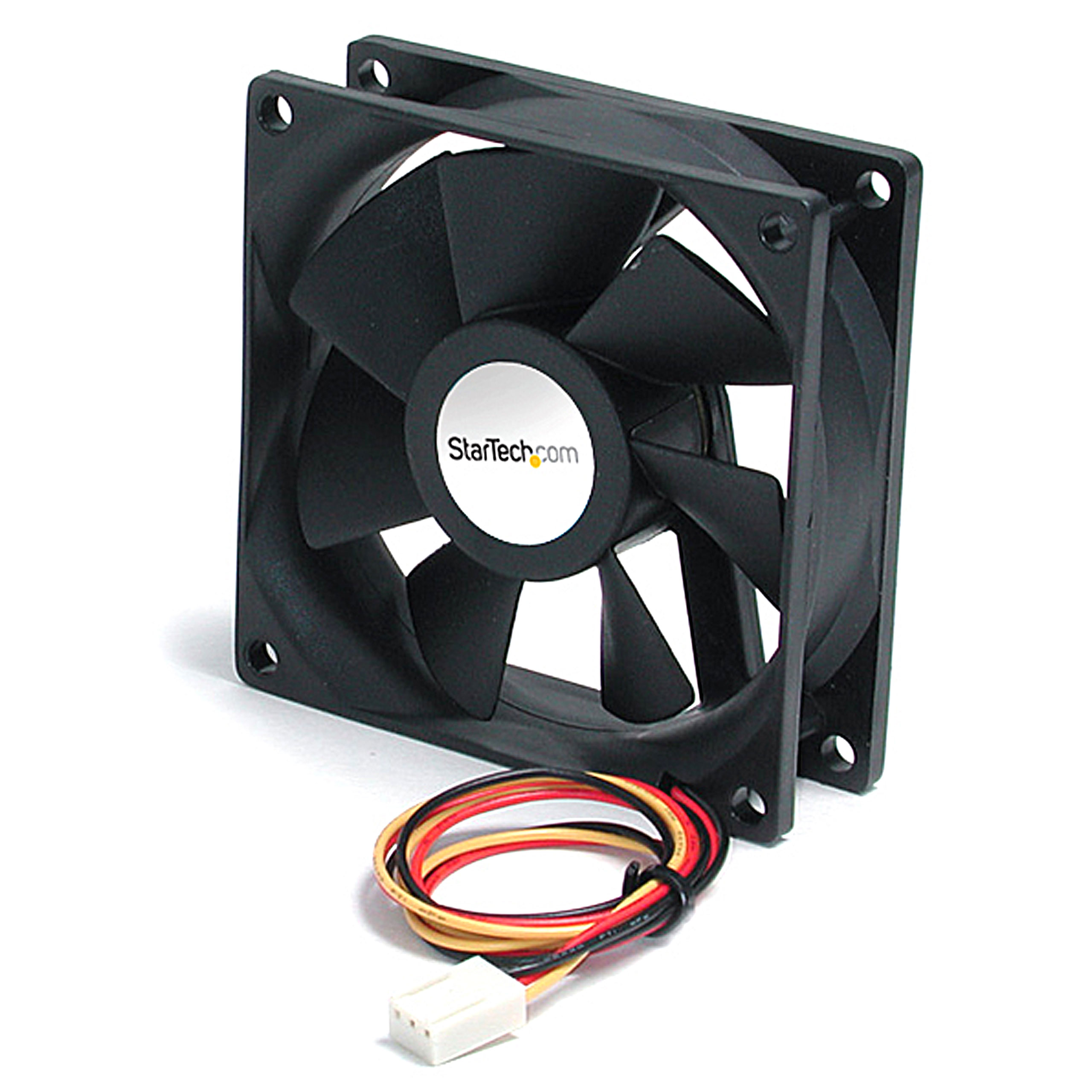

92mm Ball Bearing Quiet Computer Case Fan w TX3

Add additional chassis cooling with a 92mm ball bearing fan

Main Image

Product Name	92mm Ball Bearing Quiet Computer Case Fan w TX3
Product Number	FAN9X25TX3L
UPC	065030788953
Lifecycle status	Active
Warranty	2 Years
Taxonomy	Product > Other > Fans and Coolers
Category Level 1	Computer Cards and Adapters
Category Level 2	Components, Tools and Accessories
Category Level 3	Fans and Coolers
Family	Replacement Computer Cooling Fan 92mm
Country of Origin Europe & Japan	China
Country of Origin North America	China
Country of Origin History (1)	China
Country of Origin Revision (1)	XXXXXX027X

Product Title (Short)	92mm Ball Bearing Computer Case Fan
Product Title (Standard)	92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector
Product Title (Long)	92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector
Product Title (AMZ)	92x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector - 3 pin case Fan - TX3 Fan - 90mm Fan (FAN9X25TX3L)
Title Ingram (Part 1)	92mm Ball Bearing Quiet Computer
Title Ingram (Part 2)	Case Fan w/ TX3 Connector
Website Product Headline	Add additional chassis cooling with a 92mm ball bearing fan
Bullet 1	Dual ball bearing design
Bullet 2	3-pin connector with tachometer wire
Bullets (Consolidated)	System fan kit - 92 mm
Marketing Copy	This quiet, dual ball-bearing (9.25cm) Case Fan offers a cost-effective solution for replacing a non-functional or noisy fan in your PC. Powered through a simple TX3 connection to the host computer power supply, the 8cm case fan helps keep your computer running at optimal temperatures for stable system performance.
Applications	Replace a noisy or failed computer case fan Install into a computer chassis to increase air flow and cooling

Required Regulatory Compliance Marks

WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Recycling - Waste - Japan - Plastic Recycling Mark
Recycling - Waste - Japan - Paper Recycling Mark
Triman/Info-Tri - Product - Waste - European Union - EEE Device

Constrained SKU Alternatives (Limited Stock) FAN9X25TX3H
Input Current 90mA
Input Voltage 12V DC
Power Consumption (In Watts) 1.08W
Color Black
Material Plastic
Operating Temperature -10°C to 80°C (14°F to 176°F)
Primary Material Plastic
Product Length (mm) 92
Product Width (mm) 25
Product Height (mm) 92
Product Weight (g) 79
TAA Compliant No
Air Flow Rate 31.84 CFM
MTBF (hours) 50,000 Hours
Noise Level <22 Dba
RPM 1800 RPM +/-10%
Fan Bearing Type Ball Bearing
Number of Conductors 3

Carton Depth (mm)	364
Carton Height (mm)	216
Carton Quantity	100
Carton Weight Gross (g)	12072
Included in Package	1 - 92mm Case Fan 4 - Mounting Screw
Included In Package for Label	1 - 92Mm Case Fan 4 - Mounting Screw
Package Depth (mm)	95
Package Height (mm)	32
Package Width (mm)	141
Package Quantity	1
Package Weight (g)	64
Packaging Description	92mm Ball Bearing Computer Case Fan
Packaging Description India	92mm Ball Bearing Computer Case Fan
Sub-Carton Depth (mm)	0
Sub-Carton Height (mm)	0
Sub-Carton Width (mm)	0
Sub-Carton Weight (g)	0
