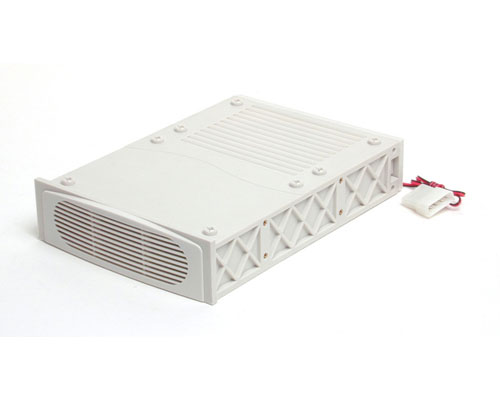

Product Name 5.25 Drive Bay Case Exhaust Fan Product Number FANBAY UPC 065030787567 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Long) 5.25" Drive Bay Case Exhaust Fan Bullet 1 Fits in any 5.25 inch drive bay Bullet 2 Exhausts up to 52 CFM of air from the PC case Bullet 3 Low noise 1600 RPM impeller type fan Bullet 4 Extendable design allows air flow to be directed to the position it is most needed Marketing Copy Have you been saving things to your hard drive and seeing fire spurting out of the back? Can you fry eggs on your drive case after installing software from a CD? StarTech.com’s 5.25" drive bay exhaust fan features an extendable design allows you to direct the cool air to where you need it to go so that you can get the best performance out of your computer. The low noise fan means no disruptions to you as you work and by blasting 52 CFM of hot air out of your drive case, you’ll stay nice and cool. Applications PC Servers Color Beige TAA Compliant No Air Flow Rate 52 CFM General Specifications - Hard Drive Requirements:
- Bay : 5.25 inches
- Hard Drive Size : 3.5 inches
- Hard Drive Type : IDE & SCSI
- Weight :
- Lbs: 1.38
- Grams: 625
- Fan Type: Sleeve Bearing
- Construction:
- Fan: Plastic
- Enclosure: Plastic
- Number of Fans: 1
- Fan Airflow (CFM): 52
- Noise Level (dB): 32
- Voltage: 12V
- Life Expectancy: 45,000 hrs
- Connector: LP4
- Fan Dimension:
- Inches: 3.14 X 3.14 X 1.0
- Millimeters: 80 X 80 X 25
- Enclosure Dimension:
- Inches: 8.25 X 5.75 X 1.75
- Millimeters: 210 X 149 X 43
RPM 1600 Carton Depth (mm) 455 Carton Height (mm) 310 Carton Quantity 34 Carton Weight Gross (g) 13970.6336 Included in Package - 1 - 5.25 Drive Bay Case Exhaust Fan
- 4 - Screws
Package Depth (mm) 62 Package Height (mm) 165 Package Width (mm) 240 Package Weight (g) 610 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
