FANCASE

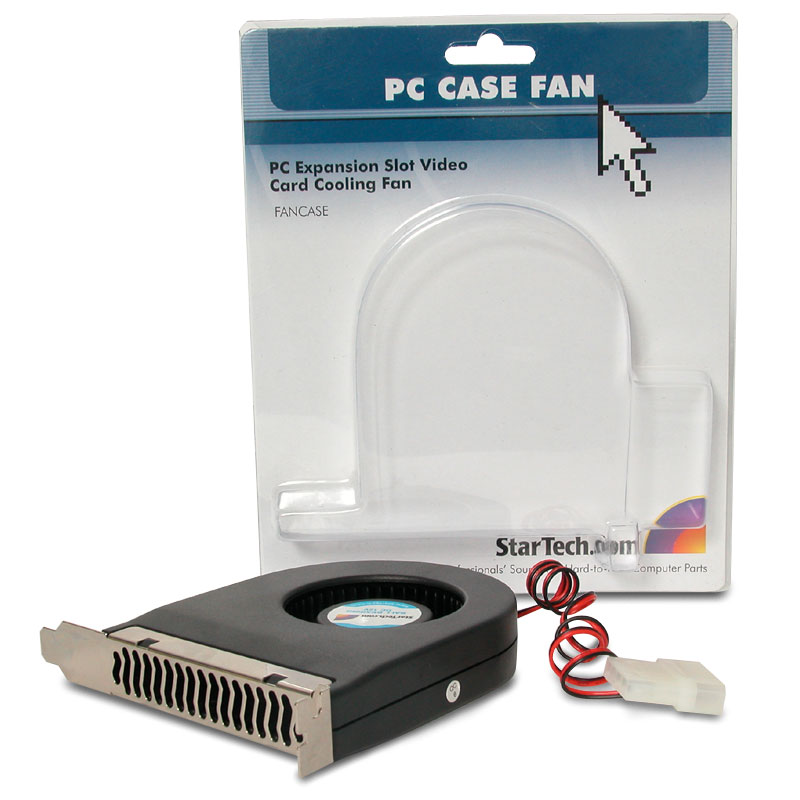

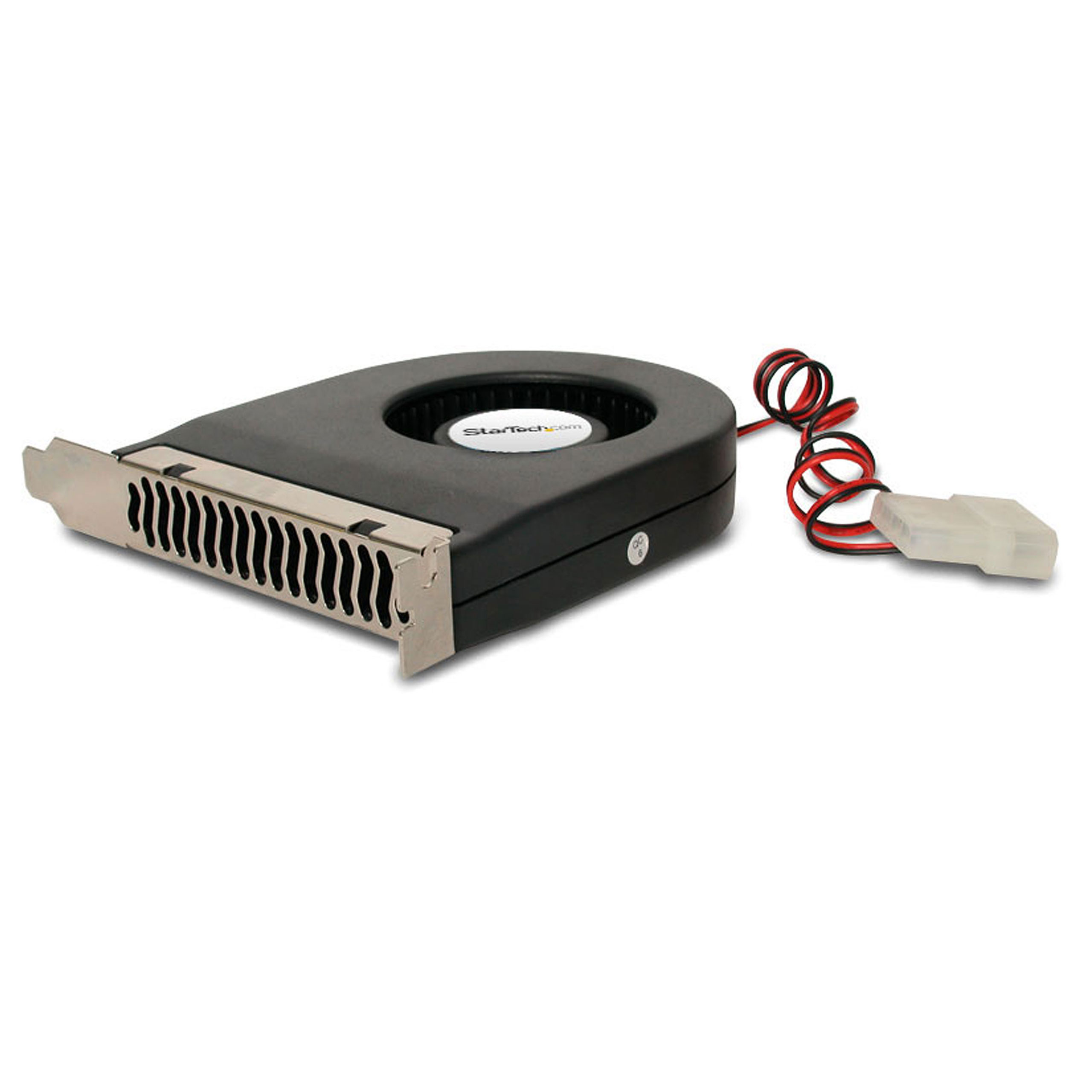

Case Exhaust Fan Video Card Cooler Fan
Remove hot air from a computer case with a rear exhaust fan
Main Image
BOM Image
Product Name Case Exhaust Fan Video Card Cooler Fan Product Number FANCASE UPC 065030782739 Lifecycle status Active Warranty 2 Years Taxonomy Product > Other > Fans and Coolers Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Fans and Coolers Family Expansion Slot Cooling Fan Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX027X Product Title (Short) Expansion Slot Rear Exhaust Cooling Fan Product Title (Standard) Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector - PC Case Exhaust Fan/Video Card Cooler Fan - System fan kit Product Title (Long) Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector Product Title (AMZ) Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector (FANCASE) Title Ingram (Part 1) Expansion Slot Rear Exhaust Cool Title Ingram (Part 2) ing Fan with LP4 Connector Website Product Headline Remove hot air from a computer case with a rear exhaust fan Bullet 1 Fits in standard full-height/full-profile computer cases Bullet 2 Can be used to pull in air from the top to vent out the rear, or pull in air from the bottom to vent out the rear Bullet 3 Ball bearing fan; Inline LP4 power connectors; 12V @ 0.15A, 1.8W; 6.9 CGM @ 2,200 RPM; 32 dBA; MTBF: 37,739 hours; Black plastic housing; Reversible bracket Bullet 4 NOTE: Does not support PWM for fan speed control and will operate at full speed Bullets (Compact) Fits in standard full-profile computer cases; Ball bearing fan; Inline LP4 connectors; 12V @ 0.15A, 1.8W; 6.9 CGM @ 2,200 RPM; 32 dBA; Reversible bracket; NOTE: Does not support PWM for fan speed control and will operate at full speed Bullets (Consolidated) its in standard full-height/full-profile computer cases - Can be used to pull in air from the top to vent out the rear, or pull in air from the bottom to vent out the rear - Ball bearing fan | Inline LP4 power connectors | 12V @ 0.15A, 1.8W | 6.9 CGM @ 2,200 RPM | 32 dBA; MTBF: 37,739 hours | Black plastic housing | Reversible bracket - NOTE: Does not support PWM for fan speed control and will operate at full speed Marketing Copy Applications - Increase airflow within a computer case by adding an exhaust fan
- Add an additional fan to a computer case that doesn't have provisions for a case fan
- Remove the hot air from a high performance graphics card more efficiently
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
System and Cable Requirements Available rear expansion card slot Related Products FANCASE2 Input Voltage 12V DC Power Consumption (In Watts) 1.8W Color Black Material Plastic Operating Temperature -10°C to 80°C (14°F to 176°F) Primary Material Plastic Product Length (mm) 110.000 Product Width (mm) 90.000 Product Height (mm) 20.000 Product Weight (g) 103.000 TAA Compliant No Air Flow Rate 6.9 CFM Noise Level 32 dBA RPM 2200 RPM Fan Bearing Type Ball Bearing Carton Depth (mm) 541 Carton Height (mm) 289 Carton Quantity 80 Carton Weight Gross (g) 11372 Included in Package 1 - Expansion Slot Exhaust Fan Included In Package for Label 1 - Expansion Slot Exhaust Fan Package Depth (mm) 127 Package Height (mm) 32 Package Width (mm) 157 Package Quantity 1 Package Weight (g) 132 Packaging Description Rear Expansion Slot Exhaust Fan Packaging Description India Rear Expansion Slot Exhaust Fan Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
