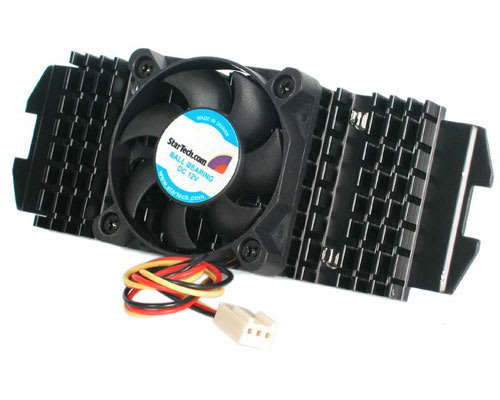

PENTIUM II HEATSINK/FAN FOR CELERON CHIP

Main Image

Product Name	PENTIUM II HEATSINK/FAN FOR CELERON CHIP
Product Number	FANCELERON
UPC	065030782531
Lifecycle status	Discontinued
Warranty	2 Years
Taxonomy	Product > Legacy Discontinued
Category Level 1	Legacy Category
Category Level 2	Legacy Sub-Category
Category Level 3	Legacy Group
Country of Origin Europe & Japan	Taiwan
Country of Origin North America	Taiwan
Country of Origin History (1)	Taiwan
Country of Origin Revision (1)	XXXXXX020X

Product Title (Long)	Pentium II Heatsink/Fan for Slot-1 Celeron CPU
Bullet 1	Specially designed for Celeron CPUs
Bullet 2	Includes thermal conductive tape for improved heat transfer
Bullet 3	Steel clip provides a secure fit
Marketing Copy	The StarTech.com Slot 1 Celeron CPU cooling fan is a combination heatsink and fan designed for cooling Slot 1 Celerons. A quiet running 5cm brushless ball bearing DC motor coupled with a high efficiency blade design is capable of moving 9 CFM (cubic feet per minute) of air. Power is supplied to the fan using a 3-lead TX3 connector that plugs into the motherboard and allows the system to monitor fan speed and operating status.
Applications	Designed for Slot-1 type Pentium II Celeron CPUs Use thermal heatsink compound (HEATGREASE or HEATGREASE10) for optimal performance

Air Flow Rate	9.3 CFM
General Specifications	CPU Compatibility: Intel : Celeron up to 600 MHz Intel : Pentium II up to 600 MHz Slot Type : SEP Type Slot 1 Heatsink material: Aluminum Fan Enclosure : Plastic Fan Type : Ball Bearing Fan Airflow (CFM) : 9.3 Noise Level (dB) : 28 Fan Speed (RPM): 3800 Weight: 185 grams Voltage: 12V Connector: TX3 Motherboard Fan Dimensions: Inches: 1.96 x 1.96 x 0.40 Millimeters: 50 x 50 x 10 Heatsink dimensions: Inches: 1.88 x 5.5 x 0.98 Millimeters: 48 x 140 x 25
RPM	3800

Connector 1	Fan TX3 (3-Pin, 12V)
Connector 1 (Quantity)	1
